6-84 — BACK TRIM (#52594) — 16 parça

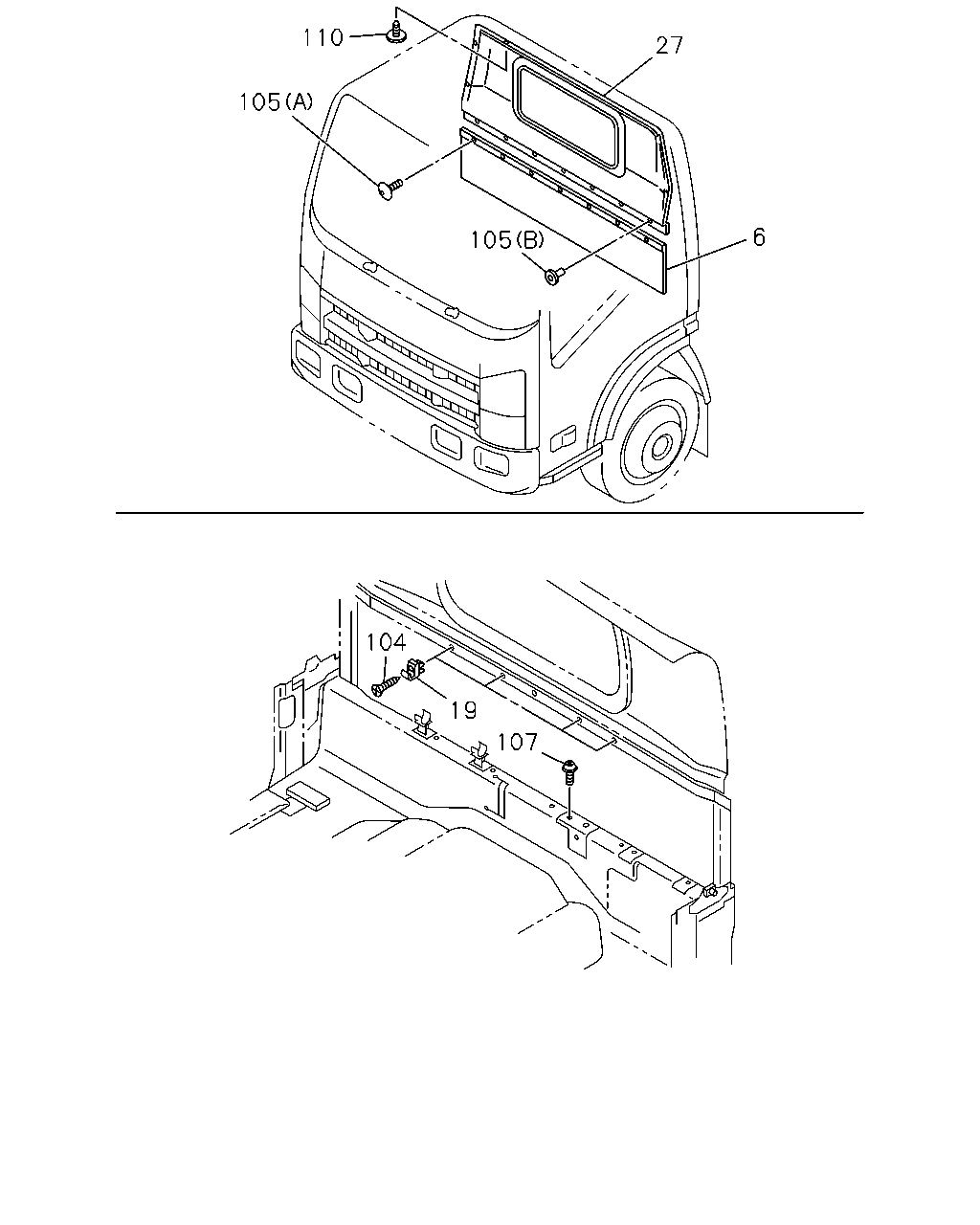

çizim 159749
105 105 110 27 6 107 19 104
BalonParca AdiParca NoAdetTipApplied Date
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-549-3 01 1 0907-1108
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-549-3 01 1 1109-
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-550-3 01 1 0907-1108
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-550-3 01 1 1109-
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 0907-1108
19 16.165 HOOK; RET
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> GRAY 		8-97406-042-0 04 1 1109-
27 16.587 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> DARK GRAY 		8-97406-430-2 01 1 0910-
27 16.587 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. WINDOW RR<8LF> DARK GRAY 		8-97406-431-2 01 1 0910-
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 0907-1108
104 17.225 SCREW; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV>,INTERIOR TRIM-FULL TRIMMING<WM3> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1109-
105 16.166 CLIP; BACK TRIM
(A) GRAY 		8-97405-295-0 04 1 0907-0909
105 16.166 CLIP; BACK TRIM
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) GRAY 		8-97405-295-0 04 1 0910-1108
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> (A) GRAY 		8-97405-295-0 04 1 1109-
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> 16.587 (B) 		8-98033-680-0 04 1 0910-
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 0907-
110 16.587 CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> 16.166 GRAY 		8-97406-433-0 04 1 0910-
