◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#52592) — 31 parça

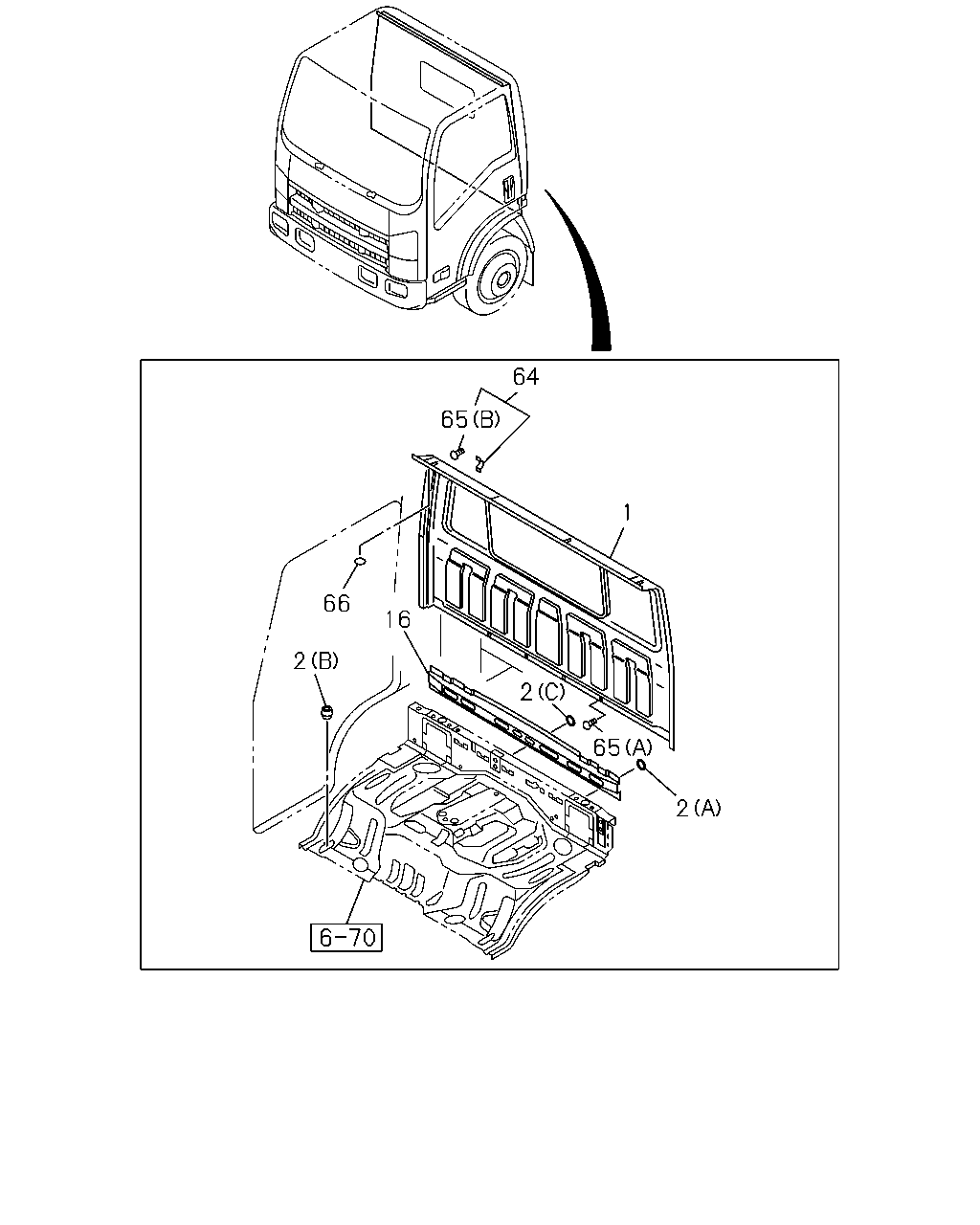

çizim 159724
64 65 66 16 2 2 1 65 2
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-300-3 01 1 0907-
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-303-4 01 1 0907-1410
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-303-4 01 1 1411-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0907-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0907-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 		8-97898-423-0 04 1 0907-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0907-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0907-
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> 		8-98313-204-0 01 1 1505-
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 0907-1410
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 		8-97584-607-3 01 1 1411-1504
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1505-
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 0907-1410
64 16.587 BRACKET; AIR INTAKE DUCT
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1411-
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0907-1410
65 17.198 STUD; BACK PANEL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> (B) 		8-94389-701-0 01 1 1411-
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0907-1001
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 0907-0909
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 0910-1007
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1008-
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0907-0909
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0910-1007
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1008-
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0907-0909
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0910-1007
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FT OR ANGE(609),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG E(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1008-1203
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLA ND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COL OR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1204-
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0907-0909
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0910-1007
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FT OR ANGE(609),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG E(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1008-1203
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLA ND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COL OR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1204-
