◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#5259) — 263 parça

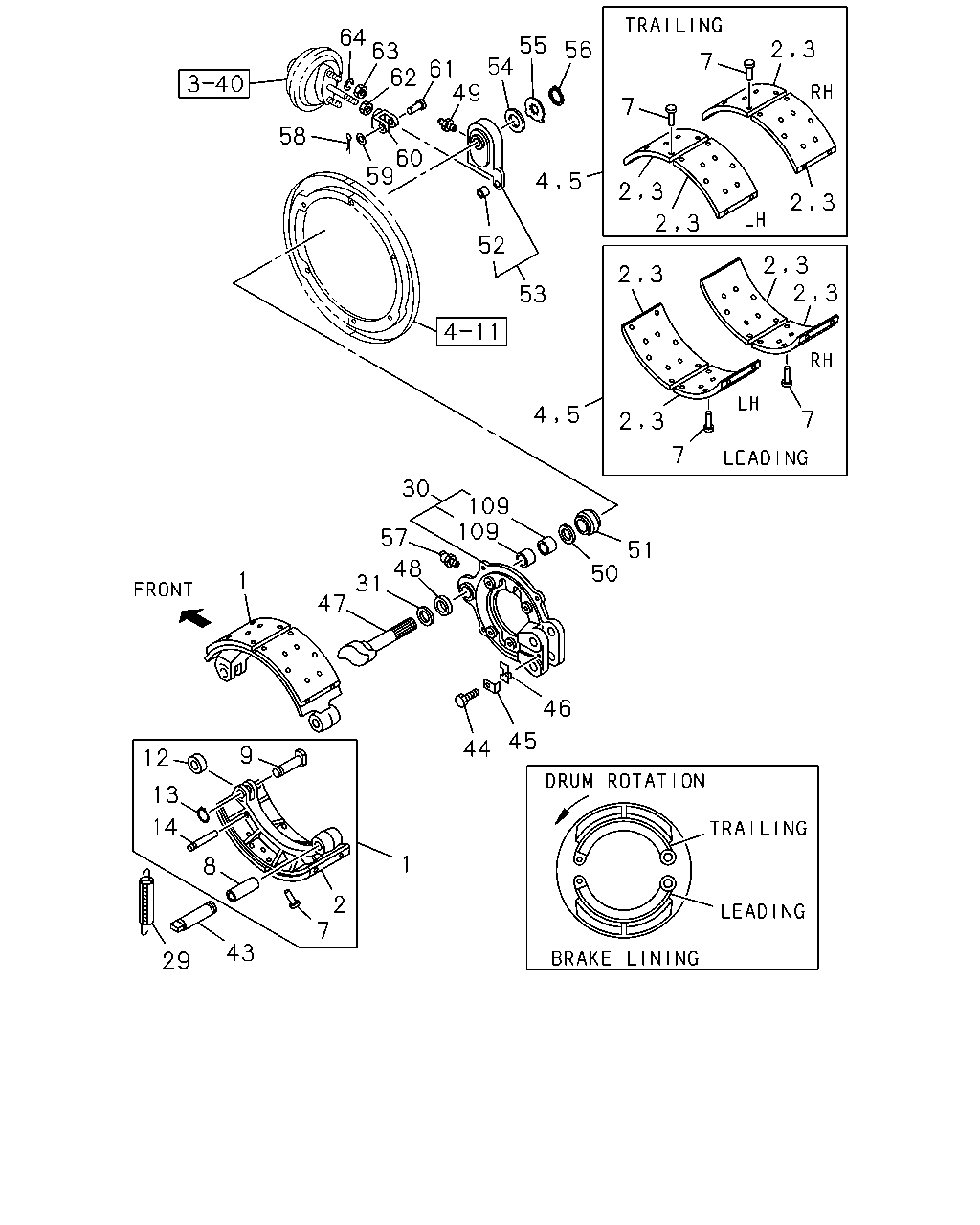

çizim 4493
64 63 62 55 61 54 49 56 7 7 58 60 59 52 53 7 7 30 109 109 57 51 50 48 1 31 47 46 45 44 9 12 13 14 1 8 2 7 43 29 4 5 2 3 2 3 2 3 2 3 3 2 3 2 3 2 3 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> LEADING 		1-47120-113-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-334-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-334-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> TRAILING 		1-47120-114-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-335-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-335-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> LEADING 		1-47120-111-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-332-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-332-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> TRAILING 		1-47120-112-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-333-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-333-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-965-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-965-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-711-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-966-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-966-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TLAILING 		1-47120-712-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-963-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-963-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-709-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-964-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-964-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-710-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47120-328-0 04 1 9911- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-955-0 04 1 9603-9610 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-431-0 04 1 9611-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-431-0 04 1 9911- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-961-0 04 1 9603-9610 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-432-0 04 1 9611-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-432-0 04 1 9911- ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-771-0 04 1 9603-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-771-0 04 1 9911-0006 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-793-0 04 1 0007- ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-814-0 04 1 9603-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-814-0 04 1 9911-0006 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-795-0 04 1 0007- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47125-431-0 08 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-956-0 04 1 9603-9610 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-433-0 04 1 9611-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-433-0 04 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-962-0 04 1 9603-9610 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-434-0 04 1 9611-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-434-0 04 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-772-0 04 1 9603-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-772-0 04 1 9911-0006 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-794-0 04 1 0007- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-815-0 04 1 9603-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-815-0 04 1 9911-0006 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-796-0 04 1 0007- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WO/INDICTOR HOLE 		1-47125-433-0 08 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/INDICTOR HOLE 		1-47125-444-0 08 1 9911- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-051-0 01 1 9603-9610 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-309-0 01 1 9611-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-309-0 01 1 9911- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-053-0 01 1 9603-9610 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-311-0 01 1 9611-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-311-0 01 1 9911- ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-923-0 01 1 9603-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-923-0 01 1 9911-0006 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-497-0 01 1 0007- ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-931-0 01 1 9603-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-931-0 01 1 9911-0006 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-499-0 01 1 0007- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-88310-309-0 02 1 9911- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-052-0 01 1 9603-9610 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-310-0 01 1 9611-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-310-0 01 1 9911- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-054-0 01 1 9603-9610 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-312-0 01 1 9611-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-312-0 01 1 9911- ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-924-0 01 1 9603-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-924-0 01 1 9911-0006 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-498-0 01 1 0007- ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-932-0 01 1 9603-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-932-0 01 1 9911-0006 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-500-0 01 1 0007- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-88310-310-0 02 1 9911- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 9603- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 9603- ● ●
9 PIN; SHOE HOLDER 1-09744-060-0 04 1 9603-9910 ● ●
9 PIN; SHOE HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09744-060-0 04 1 9911- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 04 1 9603-9910 ● ●
12 ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47113-007-0 04 1 9911- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 9603-9910 ● ●
13 CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-47119-022-0 04 1 9911- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9603- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 02 1 9603-9910 ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09583-185-2 02 1 9911- ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09583-269-1 02 1 9911- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-119-3 01 1 9603-9910 ● ●
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47137-119-3 01 1 9911- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-118-3 01 1 9603-9910 ● ●
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47137-118-3 01 1 9911- ● ●
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47137-435-0 02 1 9911- ● ●
31 SEAL; OIL,CM/SHF 1-09625-228-0 02 1 9603-9910 ● ●
31 SEAL; OIL,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09625-228-0 02 1 9911- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 9603- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9603- ● ●
45 WASHER; LK 1-47133-011-0 02 1 9603- ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 9603- ● ●
47 CAMSHAFT; FRT BRK 1-47141-052-0 01 1 9603-9910 ● ●
47 CAMSHAFT; FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47141-052-0 01 1 9911- ● ●
47 CAMSHAFT; FRT BRK 1-47141-051-0 01 1 9603-9910 ● ●
47 CAMSHAFT; FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47141-051-0 01 1 9911- ● ●
48 RING; SPACER,CM/SHF 1-47143-005-0 02 1 9603-9910 ● ●
48 RING; SPACER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47143-005-0 02 1 9911- ● ●
49 NIPPLE; GREASE,SLACK ADJ
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-9910 ● ●
49 NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9911- ● ●
49 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9910 ● ●
49 NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9911- ● ●
50 RING; FELT,CM/SHF 1-09620-009-0 02 1 9603-9910 ● ●
50 RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09620-009-0 02 1 9911- ● ●
51 COLLAR; RING,CM/SHF 1-47143-003-0 02 1 9603-9708 ● ●
51 COLLAR; RING,CM/SHF 1-47143-016-0 02 1 9709-9910 ● ●
51 COLLAR; RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47143-016-0 02 1 9911- ● ●
52 BUSHING; SLACK ADJ 1-09330-041-0 02 1 9603-9910 ● ●
52 BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09330-041-0 02 1 9911- ● ●
53 ADJUSTER ASM; SLACK 1-48270-044-0 01 1 9603-9910 ● ●
53 ADJUSTER ASM; SLACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48270-044-0 01 1 9911- ● ●
53 ADJUSTER ASM; SLACK 1-48270-043-0 01 1 9603-9910 ● ●
53 ADJUSTER ASM; SLACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48270-043-0 01 1 9911- ● ●
54 SPACER; CM/SHF 1-47143-004-0 02 1 9603-9910 ● ●
54 SPACER; CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47143-004-0 02 1 9911- ● ●
55 PLATE; STOPPER,CM/SHF 1-47149-021-0 02 1 9603-9910 ● ●
55 PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47149-021-0 02 1 9911- ● ●
56 CLIP; ANCHOR PIN 9-09180-038-0 02 1 9603-9910 ● ●
56 CLIP; ANCHOR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09180-038-0 02 1 9911- ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-9910 ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9911- ● ●
58 PIN; SPLIT,JAW JOINT
OD=3.7 L=28 		9-08114-028-0 02 1 9603-9910 ● ●
58 PIN; SPLIT,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28 		9-08114-028-0 02 1 9911- ● ●
59 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 9603-9910 ● ●
59 WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32 		9-09160-616-0 02 1 9911- ● ●
60 JOINT; JAW,POWER CHAMBER 1-09768-060-0 02 1 9603-9910 ● ●
60 JOINT; JAW,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09768-060-1 02 1 9911- ● ●
61 PIN; JAW JOINT,POWER CHAMBER 1-09744-088-0 02 1 9603-9910 ● ●
61 PIN; JAW JOINT,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09744-088-0 02 1 9911- ● ●
62 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 9603-9910 ● ●
62 NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		9-99111-416-0 02 1 9911- ● ●
63 NUT; POWER CHAMBER
M16 		9-99110-416-0 04 1 9603-9910 ● ●
63 NUT; POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		9-99110-416-0 04 1 9911- ● ●
64 WASHER; LK,POWER CHAMBER
ID=16.2 		9-09150-516-0 04 1 9603-9910 ● ●
64 WASHER; LK,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		9-09150-516-0 04 1 9911- ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-003-1 04 1 9603-9910 ● ●
109 BUSHING; CM/SHF,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47146-003-1 04 1 9911- ● ●

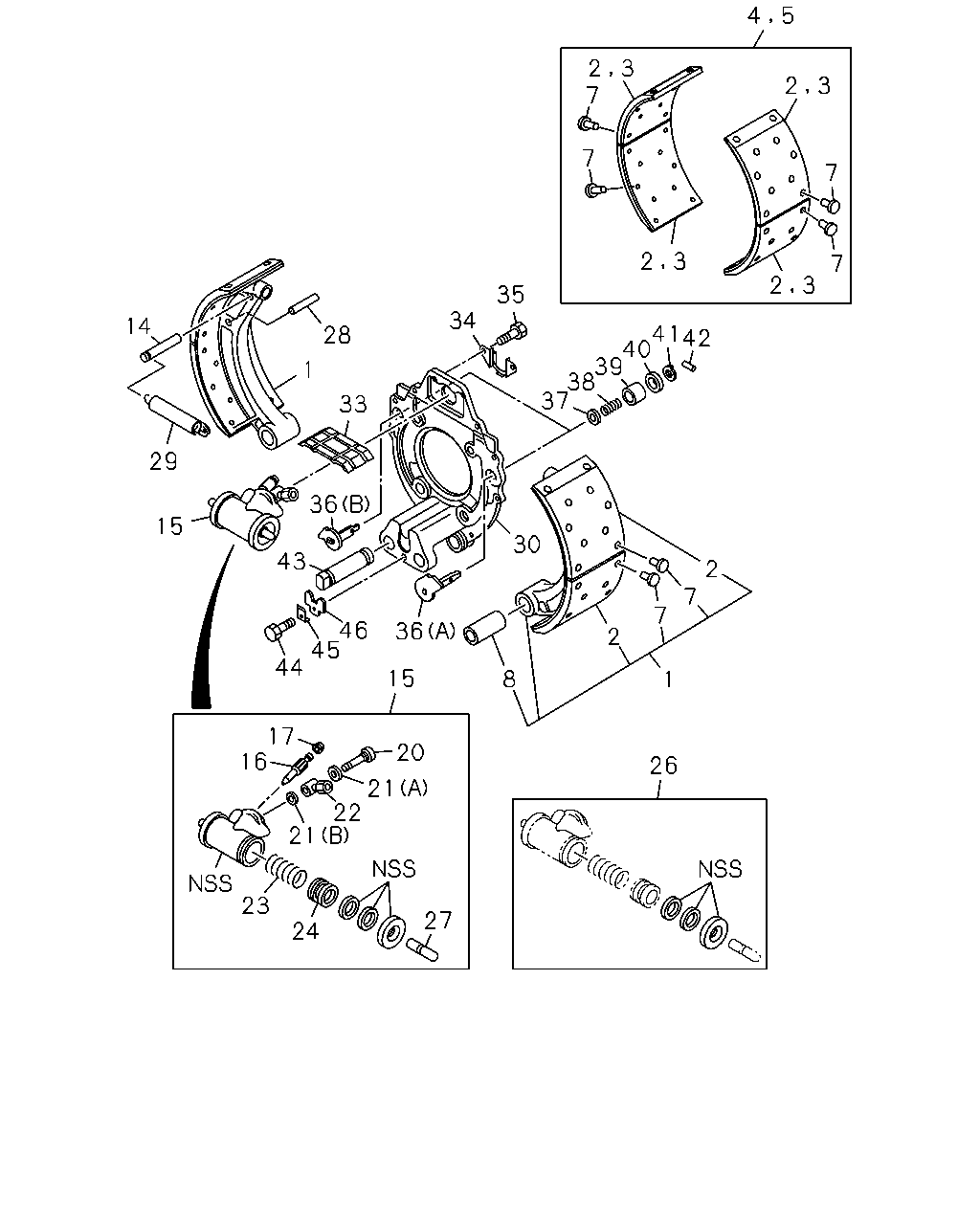

çizim 7500
7 7 7 7 35 34 14 41 42 40 39 38 37 28 1 33 29 36 15 30 43 2 7 7 46 45 44 36 2 15 8 1 17 16 20 26 21 22 21 23 27 24 2 3 3 2 2 3 5 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> LEADING 		1-47120-113-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-334-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-334-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> TRAILING 		1-47120-114-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-335-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-335-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> LEADING 		1-47120-111-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-332-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-332-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> TRAILING 		1-47120-112-0 01 1 9603-9610 ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-333-0 01 1 9611-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-333-0 01 1 9911- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-965-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-965-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-711-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-966-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-966-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TLAILING 		1-47120-712-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-963-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-963-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-709-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-964-0 01 1 9603-9910 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-964-0 01 1 9911-0006 ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-710-0 01 1 0007- ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47120-328-0 04 1 9911- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-955-0 04 1 9603-9610 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-431-0 04 1 9611-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-431-0 04 1 9911- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-961-0 04 1 9603-9610 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-432-0 04 1 9611-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-432-0 04 1 9911- ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-771-0 04 1 9603-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-771-0 04 1 9911-0006 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-793-0 04 1 0007- ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-814-0 04 1 9603-9910 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-814-0 04 1 9911-0006 ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-795-0 04 1 0007- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47125-431-0 08 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-956-0 04 1 9603-9610 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-433-0 04 1 9611-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-433-0 04 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-962-0 04 1 9603-9610 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-434-0 04 1 9611-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-434-0 04 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-772-0 04 1 9603-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-772-0 04 1 9911-0006 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47125-794-0 04 1 0007- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-815-0 04 1 9603-9910 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-815-0 04 1 9911-0006 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47125-796-0 04 1 0007- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WO/INDICTOR HOLE 		1-47125-433-0 08 1 9911- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/INDICTOR HOLE 		1-47125-444-0 08 1 9911- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-051-0 01 1 9603-9610 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-309-0 01 1 9611-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-309-0 01 1 9911- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-053-0 01 1 9603-9610 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-311-0 01 1 9611-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-311-0 01 1 9911- ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-923-0 01 1 9603-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-923-0 01 1 9911-0006 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-497-0 01 1 0007- ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-931-0 01 1 9603-9910 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-931-0 01 1 9911-0006 ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-499-0 01 1 0007- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-88310-309-0 02 1 9911- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-052-0 01 1 9603-9610 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-310-0 01 1 9611-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-310-0 01 1 9911- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-054-0 01 1 9603-9610 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-312-0 01 1 9611-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-312-0 01 1 9911- ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-924-0 01 1 9603-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-924-0 01 1 9911-0006 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-498-0 01 1 0007- ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-932-0 01 1 9603-9910 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-932-0 01 1 9911-0006 ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-500-0 01 1 0007- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-88310-310-0 02 1 9911- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 9603- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 9603- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9603- ● ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47600-689-0 01 1 9911- ● ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47600-690-0 01 1 9911- ● ●
16 SCREW; BLEEDER,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5 		1-47615-005-0 02 1 9911- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12 		1-47619-011-0 02 1 9911- ● ●
20 BOLT; JOINT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT 		1-47634-006-0 02 1 9911- ● ●
21 GASKET; UNION BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2 		1-09630-019-0 02 1 9911- ● ●
21 GASKET; UNION BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2 		1-09630-020-0 02 1 9911- ● ●
22 JOINT; PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47631-057-1 02 1 9911- ● ●
23 SPRING; COIL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09940-435-0 02 1 9911- ● ●
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-47624-211-0 04 1 9911- ● ●
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=33.3 		1-87830-525-0 02 1 9911- ● ●
27 ROD; PUSH
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47621-009-0 04 1 9911- ● ●
28 PIN; SHOE ADJ CAM GUIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47116-002-0 04 1 9911- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 02 1 9603-9910 ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09583-185-2 02 1 9911- ● ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09583-269-1 02 1 9911- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-119-3 01 1 9603-9910 ● ●
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47137-119-3 01 1 9911- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-118-3 01 1 9603-9910 ● ●
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47137-118-3 01 1 9911- ● ●
30 BRACKET; ANCHOR,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47137-435-0 02 1 9911- ● ●
33 COVER; WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47159-080-0 02 1 9911- ● ●
34 PLATE; DIRECTION,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47159-094-0 02 1 9911- ● ●
35 BOLT; FRT WHEEL CYL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER 		0-50051-235-0 04 1 9911- ● ●
36 CAM ASM; ADJ
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47165-058-1 02 1 9911- ● ●
36 CAM ASM; ADJ
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-47165-059-1 02 1 9911- ● ●
37 WASHER; ADJ CAM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47169-033-0 04 1 9911- ● ●
38 SPRING; ADJ CAM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47169-046-0 04 1 9911- ● ●
39 BOOT; ADJ CAM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47169-034-0 04 1 9911- ● ●
40 COVER; BOOT,ADJ CAM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47169-031-0 04 1 9911- ● ●
41 INDICATOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47169-032-1 04 1 9911- ● ●
42 PIN; SPINDLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47169-030-0 04 1 9911- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 9603- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9603- ● ●
45 WASHER; LK 1-47133-011-0 02 1 9603- ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
