◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#52589) — 8 parça

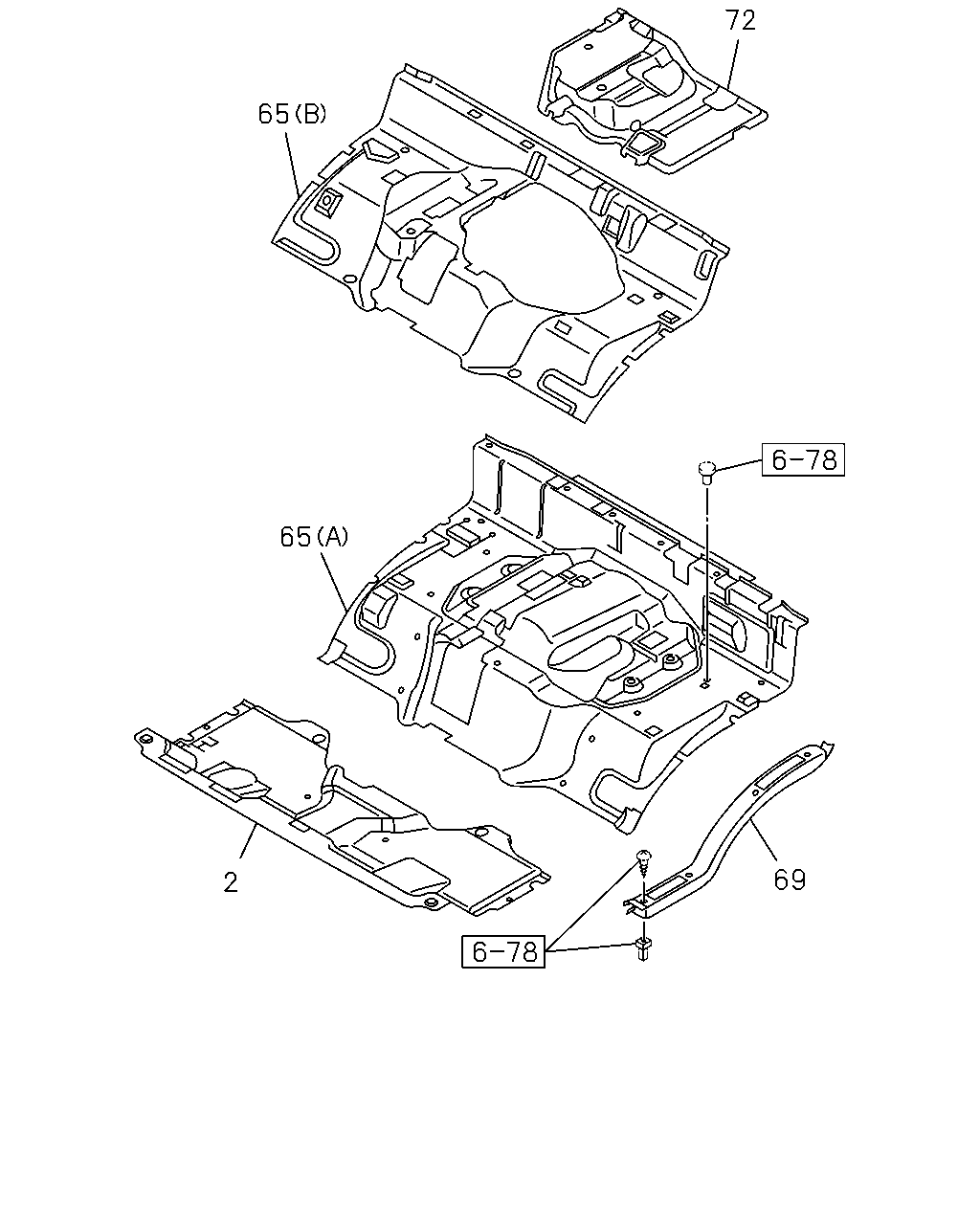

çizim 159732
72 65 65 69 2
BalonParca AdiParca NoAdetTipApplied Date
2 16.800 MAT; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97406-155-6 01 1 1311-
2 16.800 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 0907-1310
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97406-154-6 01 1 1311-
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97406-229-9 01 1 0907-
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97406-227-7 01 1 0907-
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0907-
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0907-
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0907-
