6-66 — HEAD LINING AND TRIM (#52587) — 90 parça

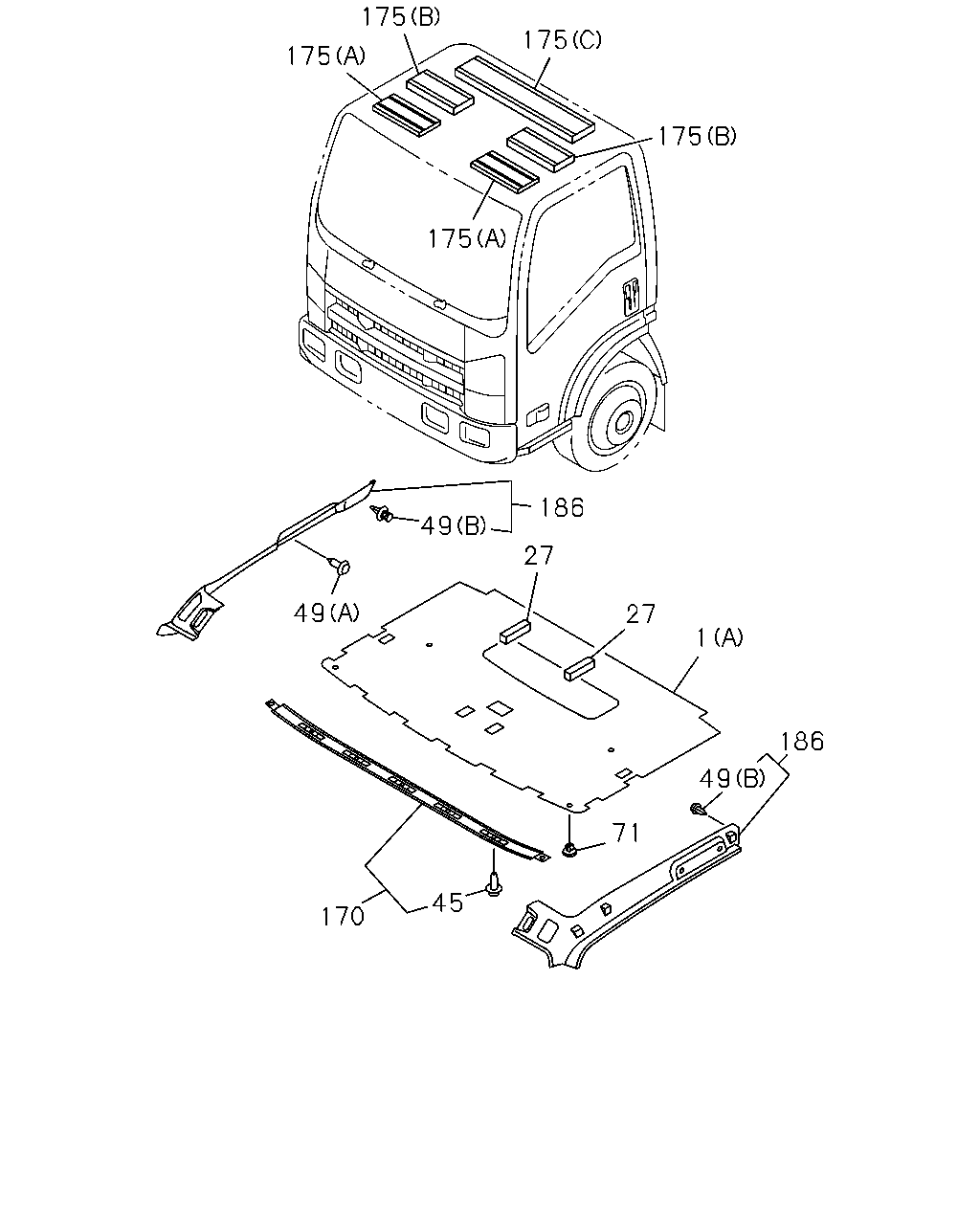

175 175 175 175 175 49 186 27 27 1 186 49 71 45 170 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> FLUORESCENT LAMP<6UC> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-285-4	01	1	0911-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> FLUORESCENT LAMP<6UC> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-044-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97409-859-1	01	1	0910-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-050-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-683-1	01	1	0910-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-047-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-284-4	01	1	0910-0910
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (B) DARK GRAY	8-97406-284-4	01	1	0911-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (B) DARK GRAY	8-97425-043-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97409-018-1	01	1	0910-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-046-0	01	1	1212-
1	16.742 LINING; HD FLUORESCENT LAMP<6UC> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-283-6	01	1	0911-
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97406-280-6	01	1	0907-0909
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-280-6	01	1	0910-
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-282-5	01	1	0907-0909
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-282-6	01	1	0910-0910
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97406-282-6	01	1	0911-
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0907-0909
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0910-
27	16.165 INSULATION; ROOF INTERIOR TRIM-FULL TRIMMING<WM3> FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	0911-
27	16.165 INSULATION; ROOF FLUORESCENT LAMP<6UC> EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98046-638-2	02	1	0911-
45	16.742 CLIP; FINISHER	8-98035-592-1	05	1	0907-0909
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	05	1	0910-0911
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	0912-
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	0907-0909
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	0910-
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	0907-0909
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0910-1410
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0910-1410
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-
49	16.742 CLIP; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	04	1	0907-0909
49	16.742 CLIP; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>,INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	04	1	0910-
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, FLUORESCENT LAMP<6UC> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1008-
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0910-
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0910-
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0910-
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0907-0909
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0910-1007
71	16.742 FASTENER; HD LINING FLUORESCENT LAMP<6UC> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	04	1	1008-
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97406-296-4	01	1	0907-0909
170	16.742 FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97406-296-4	01	1	0910-
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98051-799-2	01	1	0910-
175	16.742 CUSHION; HEAD LINING (B)	8-98037-299-3	02	1	0907-0909
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0910-
175	16.742 CUSHION; HEAD LINING (C)	8-98037-300-3	01	1	0907-0909
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0910-
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0907-
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	0907-0909
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	0910-
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	0907-0909
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	0910-
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	0907-0909
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	0910-
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	0907-0909
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	0910-

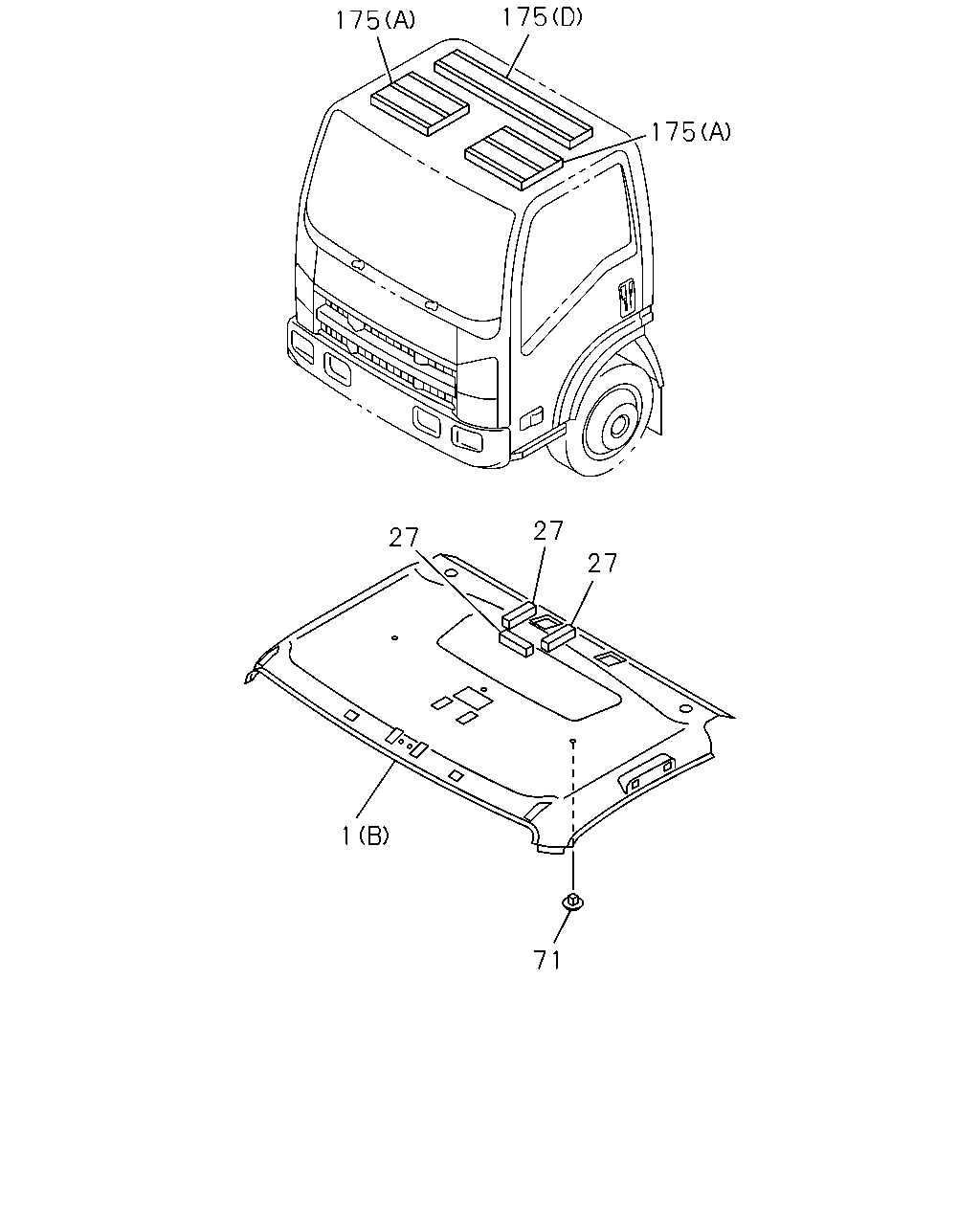

175 175 175 27 27 27 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> FLUORESCENT LAMP<6UC> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-285-4	01	1	0911-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> FLUORESCENT LAMP<6UC> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-044-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97409-859-1	01	1	0910-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-050-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-683-1	01	1	0910-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-047-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-284-4	01	1	0910-0910
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (B) DARK GRAY	8-97406-284-4	01	1	0911-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (B) DARK GRAY	8-97425-043-0	01	1	1212-
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97409-018-1	01	1	0910-1211
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-046-0	01	1	1212-
1	16.742 LINING; HD FLUORESCENT LAMP<6UC> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-283-6	01	1	0911-
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97406-280-6	01	1	0907-0909
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-280-6	01	1	0910-
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-282-5	01	1	0907-0909
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-282-6	01	1	0910-0910
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, FLUORESCENT LAMP<6UC> (A) DARK GRAY	8-97406-282-6	01	1	0911-
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0907-0909
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0910-
27	16.165 INSULATION; ROOF INTERIOR TRIM-FULL TRIMMING<WM3> FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	0911-
27	16.165 INSULATION; ROOF FLUORESCENT LAMP<6UC> EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98046-638-2	02	1	0911-
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, FLUORESCENT LAMP<6UC> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1008-
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0910-
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0910-
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0910-
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0907-0909
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0910-1007
71	16.742 FASTENER; HD LINING FLUORESCENT LAMP<6UC> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	04	1	1008-
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98051-799-2	01	1	0910-
175	16.742 CUSHION; HEAD LINING (B)	8-98037-299-3	02	1	0907-0909
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0910-
175	16.742 CUSHION; HEAD LINING (C)	8-98037-300-3	01	1	0907-0909
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0910-
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0907-
