Isuzu WW
▶
TRUCKS
▶
NMR
▶
51250 - NMR85(RHD)EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

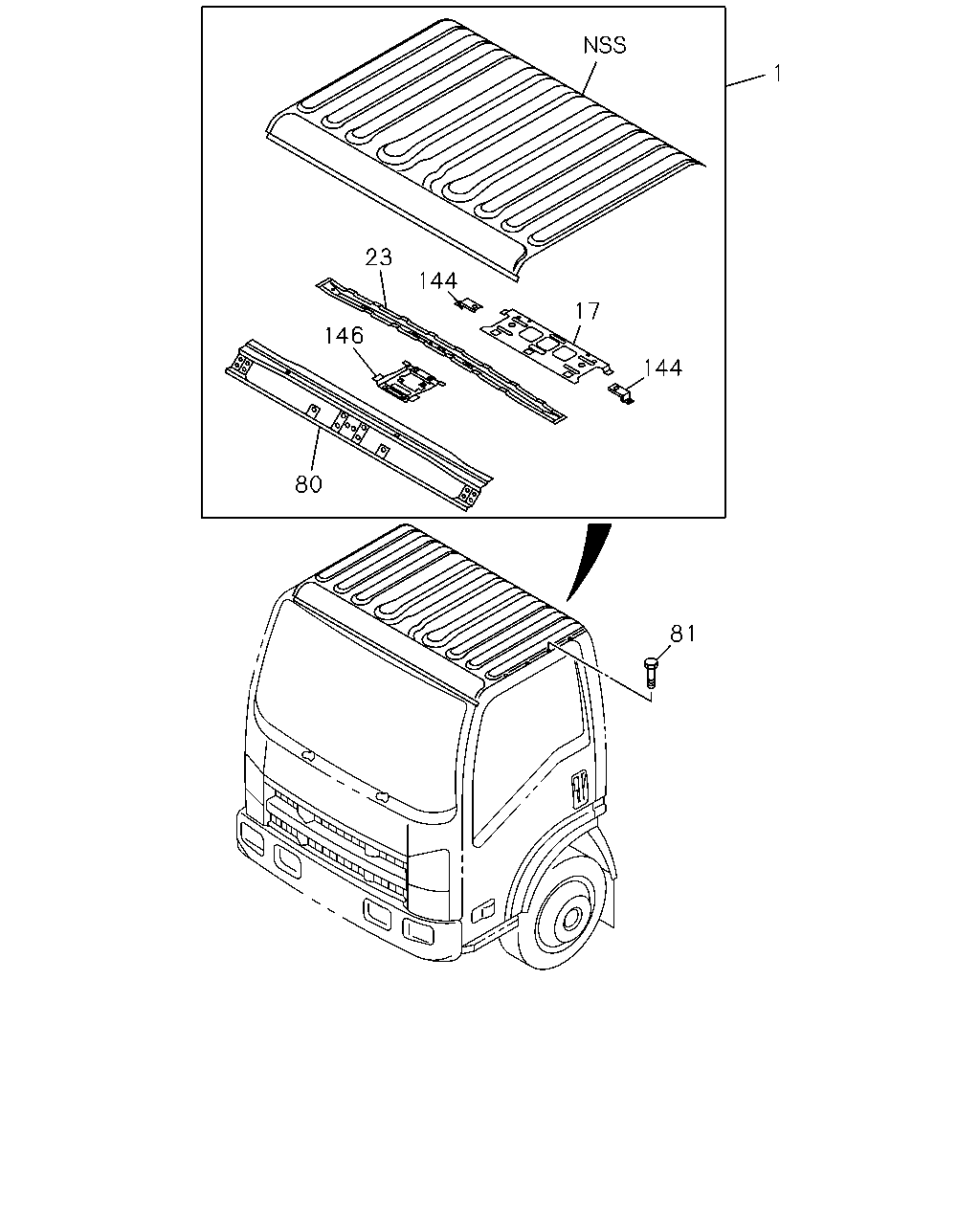

6-60 — ROOF PANEL
(#52586) — 16 parça
1
144
23
146
17
144
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.585 PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-97584-161-7
01
1
0912-1503
1
16.585 PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-98287-344-0
01
1
1504-
1
16.585 PANEL; ROOF
8-97584-169-6
01
1
0907-0911
1
16.585 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-97584-169-6
01
1
0912-1503
1
16.585 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98287-343-0
01
1
1504-
17
16.570 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
0912-1204
17
16.570 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1205-
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-97584-197-0
01
1
0907-1503
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-358-0
01
1
1504-
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
0907-1503
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1504-
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0907-0910
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
0907-0911
144
16.585 BRACKET; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98013-931-1
02
1
0912-
146
16.570 REINFORCEMENT; ROOM LAMP
8-98009-289-4
01
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
