1 |

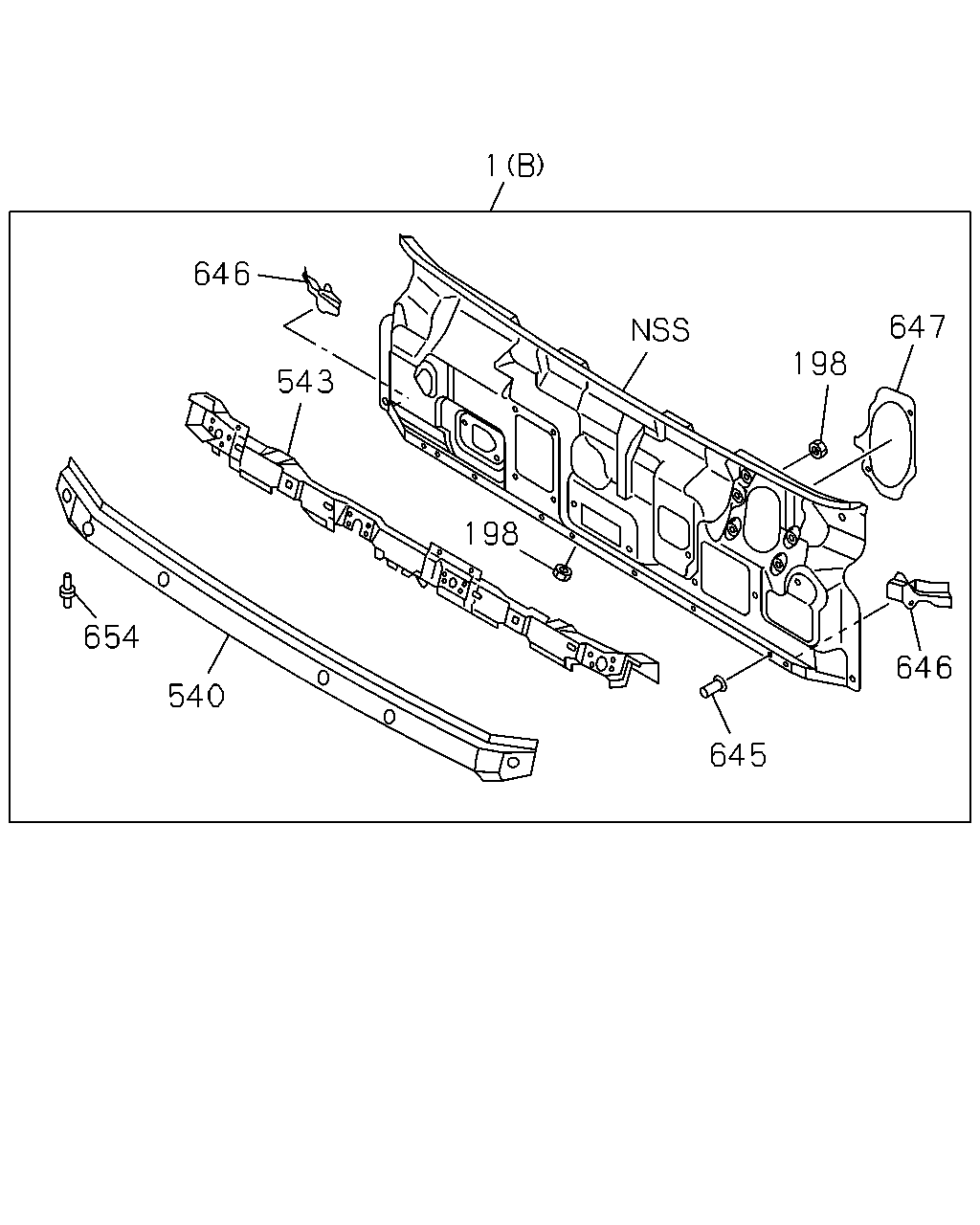

16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC)
(B)
|
8-98049-844-5 |
01 |
1 |
0907-1103 |
| |
1 |
16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC)
(B)
|
8-98186-849-0 |
01 |
1 |
1104- |
| |
1 |
16.550 PANEL ASM; FRT
(A)
|
8-98122-692-0 |
01 |
1 |
0907- |
| |
1 |
16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC)
(B)
|
8-98021-581-5 |
01 |
1 |
0907-1103 |
| |
1 |
16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC)
(B)
|
8-98186-848-0 |
01 |
1 |
1104- |
| |
16 |

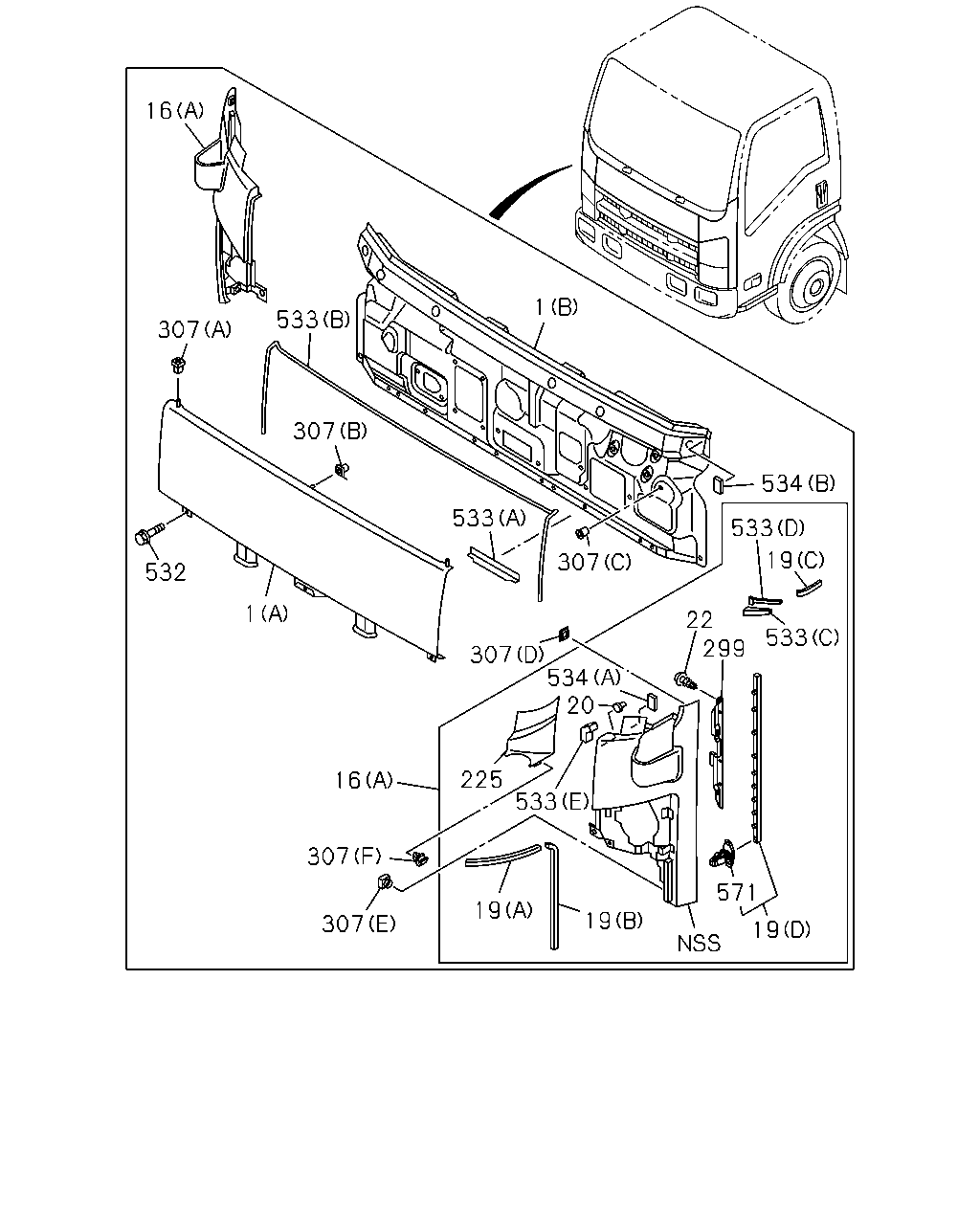

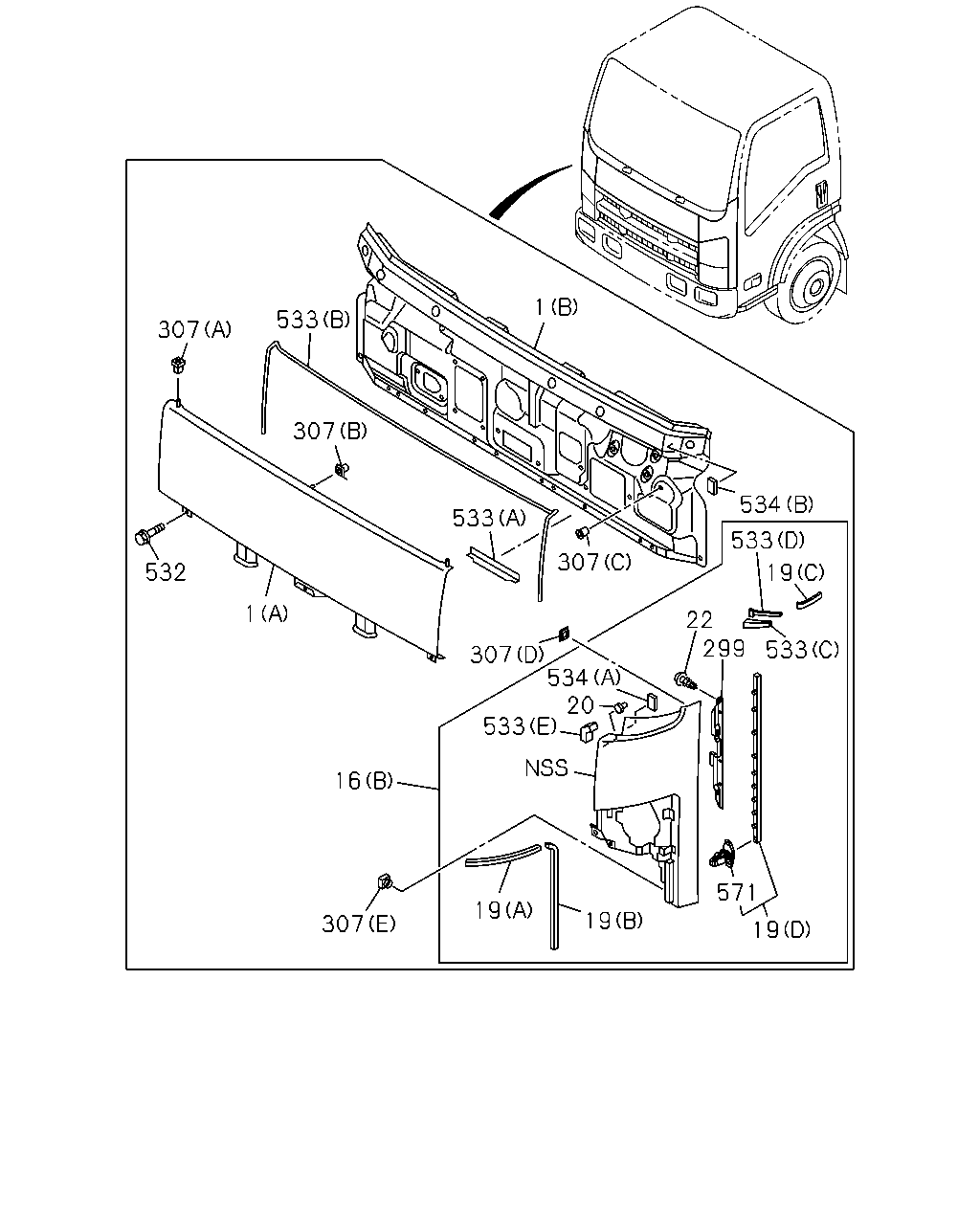

16.588 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
GREEN
|
8-97423-750-9 |
01 |
1 |
1204- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
GREEN
|
8-97423-751-9 |
01 |
1 |
1204- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLACK
|
8-97417-315-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BLACK
|
8-97417-315-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BLACK
|
8-97417-315-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLACK
|
8-97417-316-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLACK
|
8-97407-904-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BLACK
|
8-97407-904-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLACK
|
8-97407-909-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
GRAY
|
8-97412-096-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
GRAY
|
8-97412-096-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
GRAY
|
8-97412-096-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
GRAY
|
8-97412-107-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
GRAY
|
8-97417-302-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
GRAY
|
8-97417-302-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
GRAY
|
8-97417-308-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
WHITE
|
8-97412-105-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
WHITE
|
8-97412-105-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
WHITE
|
8-97412-105-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
WHITE
|
8-97412-116-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
WHITE
|
8-97417-303-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
WHITE
|
8-97417-303-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
WHITE
|
8-97417-310-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
YELLOW
|
8-97417-343-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
YELLOW
|
8-97417-343-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
YELLOW
|
8-97417-345-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
PINK
|
8-97417-344-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
PINK
|
8-97417-344-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
PINK
|
8-97417-346-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97412-097-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BLUE
|
8-97412-097-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BLUE
|
8-97412-097-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97412-108-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97417-304-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BLUE
|
8-97417-304-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97417-311-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
RED
|
8-97409-579-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
RED
|
8-97409-579-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
RED
|
8-97409-579-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
RED
|
8-97409-588-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
RED
|
8-97417-305-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
RED
|
8-97417-305-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
RED
|
8-97417-312-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97412-098-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BLUE
|
8-97412-098-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BLUE
|
8-97412-098-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97412-109-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97407-905-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BLUE
|
8-97407-905-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97407-910-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
RED
|
8-97412-099-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
RED
|
8-97412-099-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
RED
|
8-97412-099-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
RED
|
8-97412-110-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
RED
|
8-97407-342-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
RED
|
8-97407-342-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
RED
|
8-97407-343-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
DARK GREEN
|
8-97412-100-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
DARK GREEN
|
8-97412-100-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
DARK GREEN
|
8-97412-100-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
DARK GREEN
|
8-97412-111-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
DARK GREEN
|
8-97407-906-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
DARK GREEN
|
8-97407-906-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
DARK GREEN
|
8-97407-911-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
YELLOW
|
8-97412-101-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
YELLOW
|
8-97412-101-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
YELLOW
|
8-97412-101-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
YELLOW
|
8-97412-112-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
YELLOW
|
8-97407-907-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
YELLOW
|
8-97407-907-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
YELLOW
|
8-97407-912-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BEIGE
|
8-97412-102-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BEIGE
|
8-97412-102-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BEIGE
|
8-97412-102-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BEIGE
|
8-97412-113-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BEIGE
|
8-97417-306-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BEIGE
|
8-97417-306-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BEIGE
|
8-97417-314-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
DARK YELLOW
|
8-97412-104-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
DARK YELLOW
|
8-97412-104-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
DARK YELLOW
|
8-97412-104-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
DARK YELLOW
|
8-97412-115-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
ORANGE
|
8-97417-307-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
ORANGE
|
8-97417-307-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
ORANGE
|
8-97417-313-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
GREEN
|
8-97412-106-8 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
GREEN
|
8-97412-106-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
GREEN
|
8-97412-106-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
GREEN
|
8-97412-117-8 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
GREEN
|
8-97412-842-9 |
01 |
1 |
1008-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
GREEN
|
8-97412-842-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
GREEN
|
8-97412-843-9 |
01 |
1 |
1008- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BEIGE
|
8-97411-500-8 |
01 |
1 |
0910-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BEIGE
|
8-97411-500-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BEIGE
|
8-97411-500-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BEIGE
|
8-97411-501-8 |
01 |
1 |
0910- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BEIGE
|
8-97411-498-9 |
01 |
1 |
0910-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BEIGE
|
8-97411-498-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BEIGE
|
8-97411-499-9 |
01 |
1 |
0910- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
WHITE
|
8-97406-039-9 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
WHITE
|
8-97406-039-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
WHITE
|
8-97406-040-9 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97415-715-9 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BLUE
|
8-97415-715-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97415-716-9 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
LIGHT GRAY
|
8-97414-635-9 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
LIGHT GRAY
|
8-97414-635-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
LIGHT GRAY
|
8-97414-636-9 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97409-870-9 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
BLUE
|
8-97409-870-9 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
BLUE
|
8-97409-872-9 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
WHITE
|
8-97405-621-8 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
WHITE
|
8-97405-621-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
WHITE
|
8-97405-621-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
WHITE
|
8-97405-625-8 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97412-103-8 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BLUE
|
8-97412-103-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BLUE
|
8-97412-103-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97412-114-8 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
LIGHT GRAY
|
8-97405-619-8 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
LIGHT GRAY
|
8-97405-619-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
LIGHT GRAY
|
8-97405-619-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
LIGHT GRAY
|
8-97405-623-8 |
01 |
1 |
0907- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97405-620-8 |
01 |
1 |
0907-1110 |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR
ASSIST SIDE EXTEND LONG STAY<8EB>,O/SIDE MIRROR
RR VIEW MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(A)
BLUE
|
8-97405-620-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
(A)
BLUE
|
8-97405-620-8 |
01 |
1 |
1111- |
| |
16 |
16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999)
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
BLUE
|
8-97405-624-8 |
01 |
1 |
0907- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(A)
|
8-98035-268-0 |
02 |
1 |
0907-1110 |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(A)
|
8-98035-268-0 |
01 |
1 |
1111- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(A)
|
8-98035-268-0 |
01 |
1 |
1111- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(B)
|
8-98062-215-0 |
02 |
1 |
0907-1110 |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(B)
|
8-98062-215-0 |
01 |
1 |
1111- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(B)
|
8-98062-215-0 |
01 |
1 |
1111- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(C)
|
8-98038-608-0 |
02 |
1 |
0907-1110 |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(C)
|
8-98038-608-0 |
01 |
1 |
1111- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(C)
|
8-98038-608-0 |
01 |
1 |
1111- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(D)
|
8-98028-749-3 |
01 |
1 |
0907- |
| |
19 |
16.588 SEAL; FRT SIDE PANEL
(D)
|
8-98028-750-3 |
01 |
1 |
0907- |
| |
20 |
16.588 CLIP; FRT PANEL SIDE
|
8-97410-739-0 |
04 |
1 |
0907-1110 |
| |
20 |
16.588 CLIP; FRT PANEL SIDE
|
8-97410-739-1 |
02 |
1 |
1111- |
| |
20 |
16.588 CLIP; FRT PANEL SIDE
|
8-97410-739-1 |
02 |
1 |
1111- |
| |
22 |
16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER
|
0-74360-410-0 |
06 |
1 |
0907-1110 |
| |
22 |
16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER
|
0-74360-410-0 |
03 |
1 |
1111- |
| |
22 |
16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER
|
0-74360-410-0 |
03 |
1 |
1111- |
| |
225 |
16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
PLEASE PAINT TO MATCH BODY COLOR
|
8-98036-520-3 |
01 |
1 |
0907- |
| |
225 |
16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
PLEASE PAINT TO MATCH BODY COLOR
|
8-98036-521-3 |
01 |
1 |
0907- |
| |
299 |
16.069 COVER; FRT PANEL SIDE
|
8-98028-144-1 |
01 |
1 |
0907- |
| |
299 |
16.069 COVER; FRT PANEL SIDE
|
8-98028-145-1 |
01 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
(A)
|
8-98021-968-0 |
01 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
(A)
|
8-98021-969-0 |
01 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
(B)
|
8-98023-229-1 |
01 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
(C)
OD=20
|
8-98034-363-1 |
04 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
(D)
|
8-97410-738-0 |
02 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
(E)
|
8-98021-300-1 |
04 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(F)
|
8-98028-743-0 |
02 |
1 |
0907- |
| |
307 |
16.125 GROMMET; FRT PANEL
UNDER MIRROR<RR9>
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(F)
|
8-98028-743-0 |
01 |
1 |
1112-1112 |
| |
307 |
16.125 GROMMET; FRT PANEL
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(F)
|
8-98028-743-0 |
01 |
1 |
1201- |
| |
532 |
08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER
|
0-52010-616-0 |
04 |
1 |
0907- |
| |
533 |
08.143 SEAL; FRT PANEL
(A)
|
8-98021-003-1 |
01 |
1 |
0907- |
| |
533 |
08.143 SEAL; FRT PANEL
(B)
|
8-98030-961-4 |
01 |
1 |
0907-1506 |
| |
533 |
08.143 SEAL; FRT PANEL
(B)
|
8-98309-763-0 |
01 |
1 |
1507- |
| |
533 |
08.143 SEAL; FRT PANEL
(C)
|
8-98043-509-0 |
01 |
1 |
0907- |
| |
533 |
08.143 SEAL; FRT PANEL
(C)
|
8-98043-510-0 |
01 |
1 |
0907- |
| |
533 |
08.143 SEAL; FRT PANEL
(D)
|
8-98043-511-1 |
02 |
1 |
0907-1110 |
| |
533 |
08.143 SEAL; FRT PANEL
(D)
|
8-98043-511-1 |
01 |
1 |
1111- |
| |
533 |
08.143 SEAL; FRT PANEL
(D)
|
8-98043-511-1 |
01 |
1 |
1111- |
| |
533 |
08.143 SEAL; FRT PANEL
(E)
|
8-98064-939-0 |
02 |
1 |
0907-1110 |
| |
533 |
08.143 SEAL; FRT PANEL
(E)
|
8-98064-939-0 |
01 |
1 |
1111- |
| |
533 |
08.143 SEAL; FRT PANEL
(E)
|
8-98064-939-0 |
01 |
1 |
1111- |
| |
534 |
16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(A)
40X25
|
8-98089-412-1 |
02 |
1 |
0907-1110 |
| |
534 |
16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
40X25
|
8-98089-412-1 |
01 |
1 |
1111- |
| |
534 |
16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(A)
40X25
|
8-98089-412-1 |
01 |
1 |
1111- |
| |
534 |
16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
20X30
|
8-98059-208-1 |
02 |
1 |
0907-1110 |
| |
534 |
16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
20X30
|
8-98059-208-1 |
01 |
1 |
1008- |
| |
534 |
16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY
<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND
LONG STAY<8EB>
(A)
20X30
|
8-98059-208-1 |
01 |
1 |
1008- |
| |
534 |
16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG
STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEN
D LONG STAY<8EB>
(B)
40X25
|
8-98089-411-1 |
02 |
1 |
0907-1111 |
| |
534 |
16.550 FASTENER
UNDER MIRROR<RR9>
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
40X25
|
8-98089-411-1 |
01 |
1 |
1112-1112 |
| |
534 |
16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
UNDER MIRROR<RR9>
(B)
40X25
|
8-98089-411-1 |
01 |
1 |
1201- |
| |
534 |
16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. UNDER MIRROR<RR9>
(B)
40X25
|
8-98089-411-1 |
02 |
1 |
1112- |
| |
571 |
16.570 CLIP; SEAL
16.165
NATURAL
|
8-98027-457-0 |
20 |
1 |
0907-1110 |
| |
571 |
16.570 CLIP; SEAL
16.165
NATURAL
|
8-98027-457-0 |
10 |
1 |
1111- |
| |
571 |
16.570 CLIP; SEAL
16.165
NATURAL
|
8-98027-457-0 |
10 |
1 |
1111- |
