5-20 — BATTERY CARRIER (#52572) — 32 parça

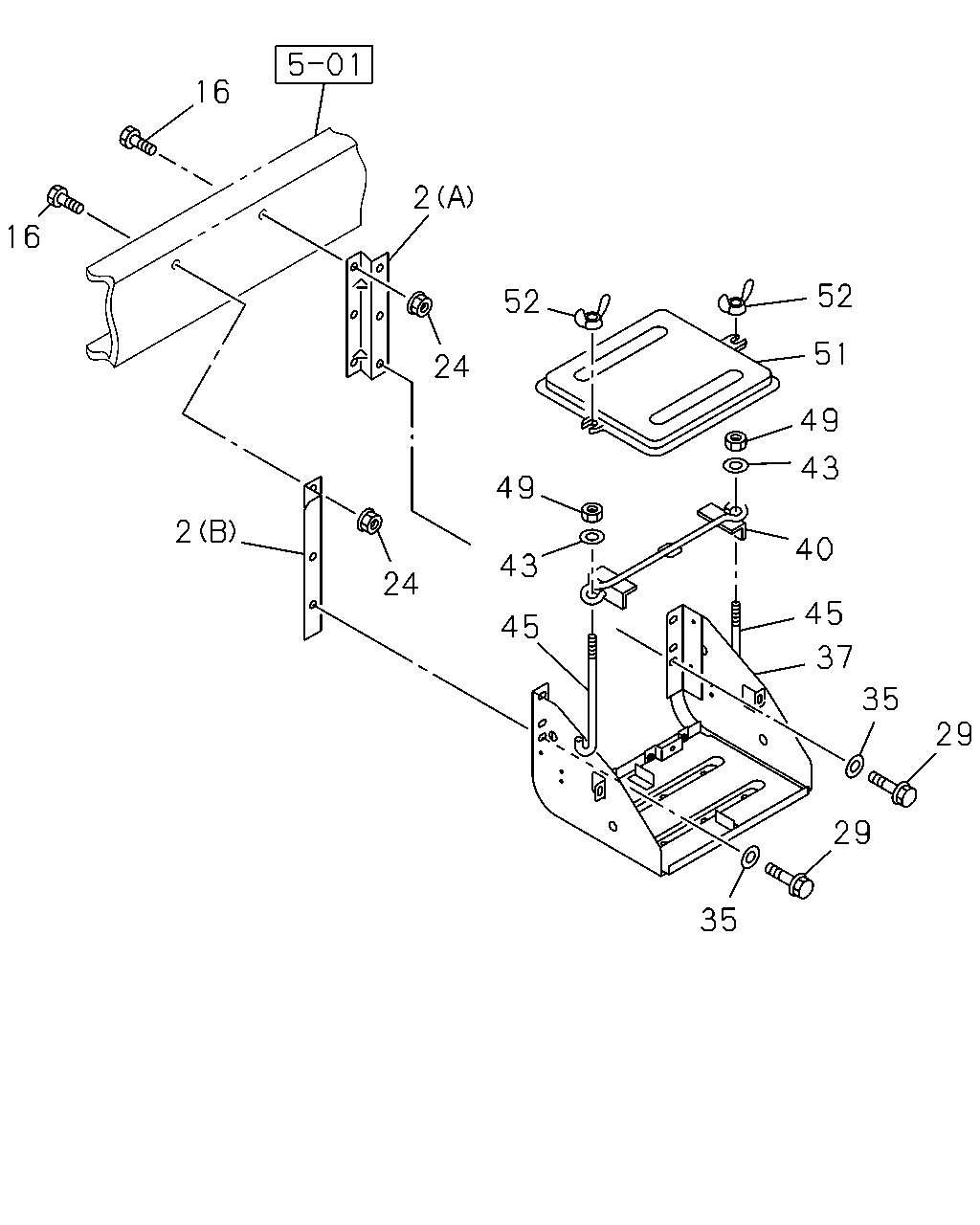

16 16 2 52 24 24 2 43 49 45 45 37 40 43 49 51 52 35 29 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.333 BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	0907-
2	02.333 BRACKET; BATTERY WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	0907-
16	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-0912
16	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1311-
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0907-0912
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-1310
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0907-
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1>	8-97384-067-2	01	1	0907-
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97384-068-2	01	1	0907-
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0907-
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0907-
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0907-
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	8-97120-747-0	01	1	0907-
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0907-

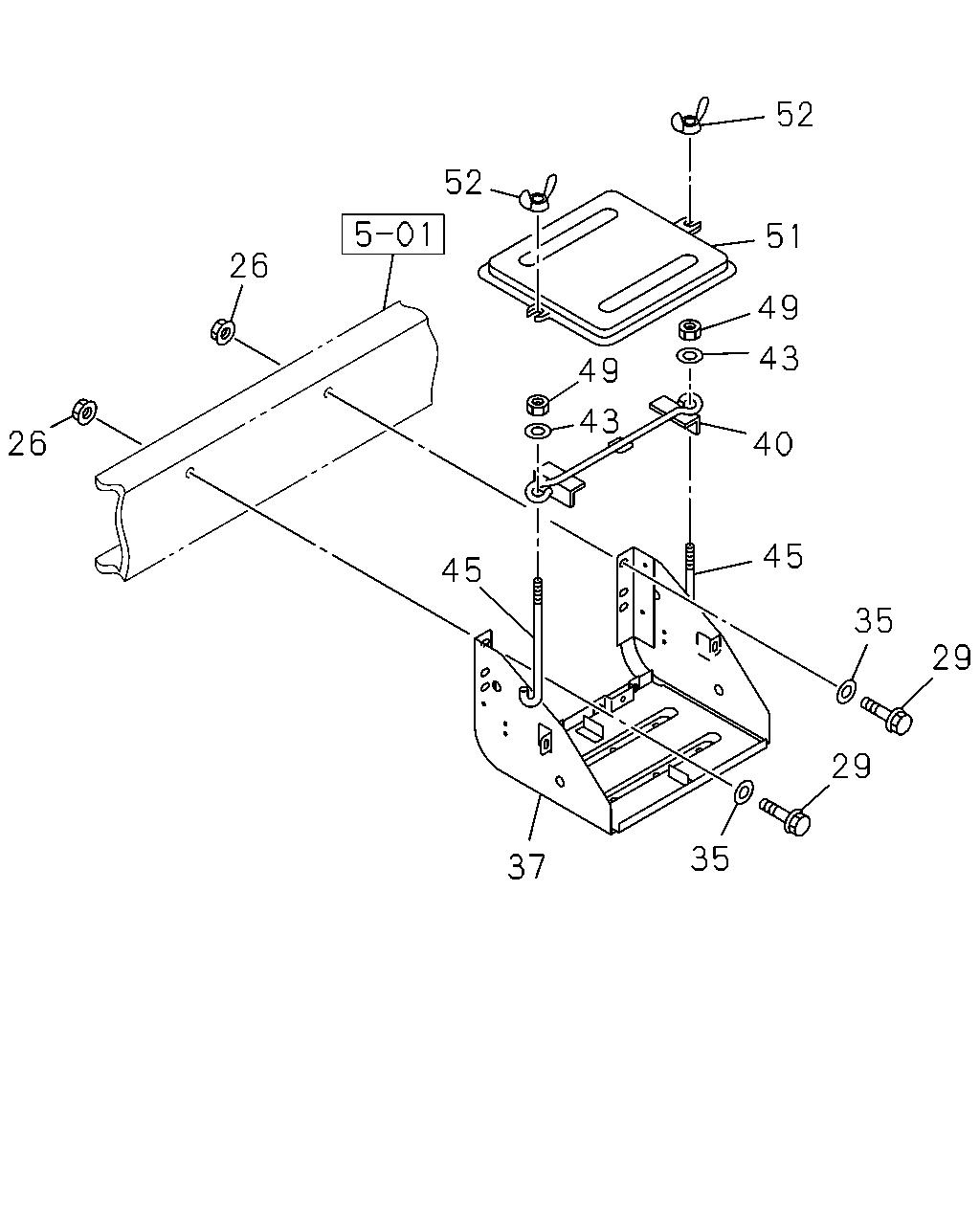

52 26 26 52 51 49 40 43 49 45 43 35 29 29 35 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0907-0910
26	02.334 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0911-1003
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	02	1	1004-1111
26	02.334 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	02	1	1112-
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0907-
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1>	8-97384-067-2	01	1	0907-
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97384-068-2	01	1	0907-
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0907-
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0907-
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0907-
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	8-97120-747-0	01	1	0907-
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0907-
