Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#52569) — 199 parça

173 173 173 533 533 39 51 139 198 198 130 24 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0907-1003
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1004-
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0907-1003
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1004-
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0907-1003
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1004-
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0907-1003
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1004-
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98041-239-0	01	1	0907-0910
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	0911-
139	07.012 MEMBER; CROSS,6TH	8-97384-745-0	01	1	0907-
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0907-
173	07.112 STIFFENER; RR SPRING FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-97386-634-0	02	1	1004-1310
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97386-634-0	02	1	1311-
173	07.112 STIFFENER; RR SPRING (A)	8-98012-947-3	02	1	0907-1003
173	07.112 STIFFENER; RR SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98012-947-3	02	1	1004-1308
173	07.112 STIFFENER; RR SPRING FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (A)	8-98012-947-3	02	1	1309-
173	07.112 STIFFENER; RR SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98012-947-3	02	1	1309-
173	07.112 STIFFENER; RR SPRING (B)	8-98012-948-2	02	1	0907-1003
173	07.112 STIFFENER; RR SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98012-948-2	02	1	1004-
198	07.039 GUSSET; 6TH C/MBR RH-LOWER & LH-UPPER	8-94258-068-1	02	1	0907-
198	07.039 GUSSET; 6TH C/MBR RH-UPPER & LH-LOWER	8-94258-069-1	02	1	0907-
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0911-1003
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-0	01	1	1004-1304
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	0907-0911
533	07.010 STIFFENER; REINFORCEMENT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	0912-1003
533	07.010 STIFFENER; REINFORCEMENT WHEEL BASE 2800MM(28W)	8-98006-680-1	02	1	0912-1003
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1004-1308
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1004-1308
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1309-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98257-353-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98257-354-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (C)	8-98252-850-0	01	1	1309-1310
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98252-850-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98023-308-4	01	1	0911-1003
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-308-4	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98246-426-0	01	1	1305-1310
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98246-426-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-265-4	01	1	0911-1003
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-265-4	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98246-427-0	01	1	1305-1310
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98246-427-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98169-729-0	01	1	1004-1310
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98169-729-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) (A)	8-98159-916-0	01	1	0911-1003
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98023-295-4	01	1	0907-0909
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (A)	8-98023-295-4	01	1	0910-1003
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-295-4	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), STABILIZER REAR<GN1> (A)	8-98023-295-4	01	1	1305-1309
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-266-2	01	1	0907-1003
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-266-2	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), STABILIZER REAR<GN1> (B)	8-98023-266-2	01	1	1305-1309
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0911-1003
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-0	01	1	1004-1304

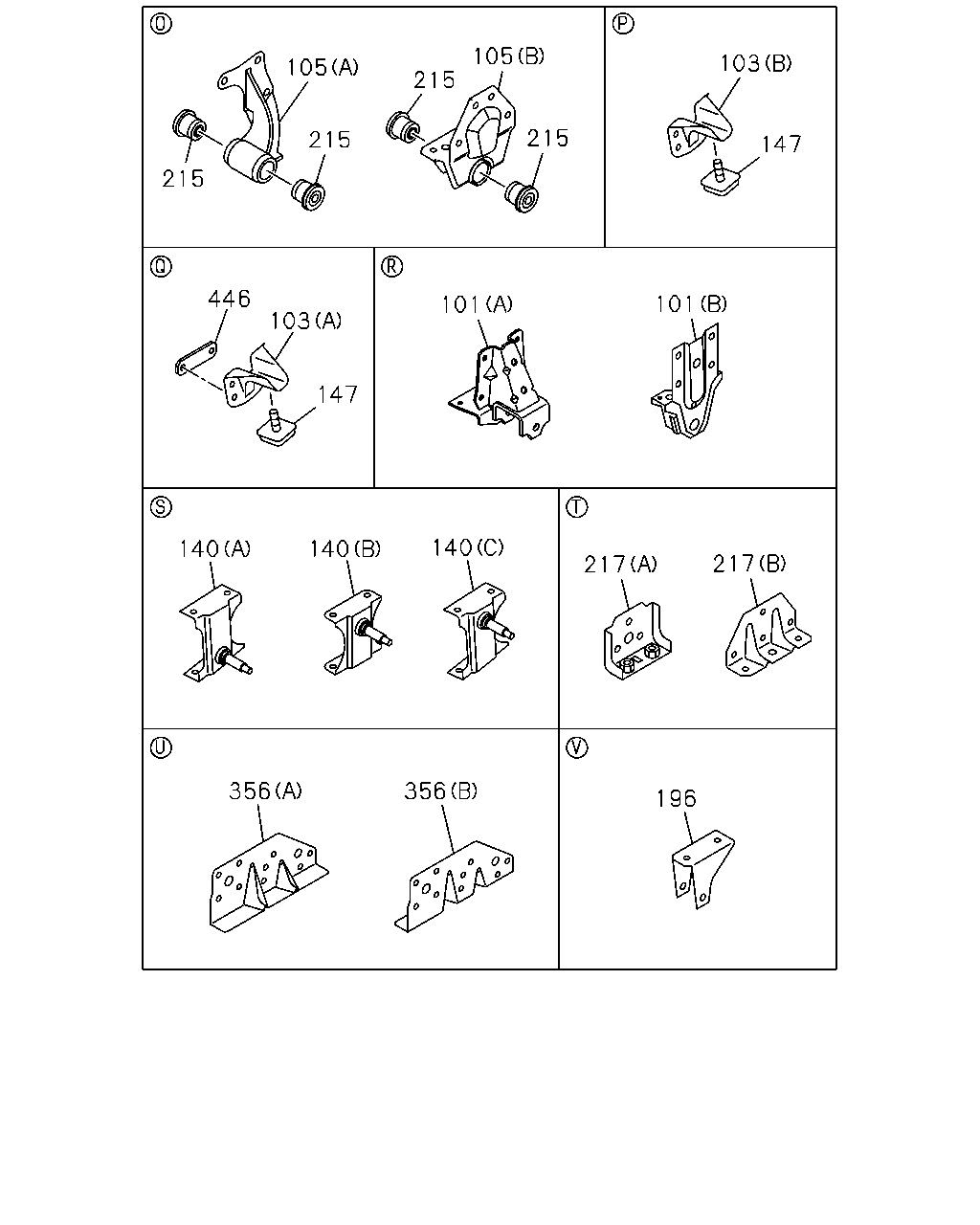

101 101 103 147 144 140 356 140 140 196 356 215 215 105 215 105 215 103 147 217 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	07.112 BRACKET; RR SPR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98243-604-0	02	1	1311-
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (A)	8-97042-245-1	02	1	1309-1310
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97042-245-1	02	1	1311-
101	07.112 BRACKET; RR SPR,FRT FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98028-305-0	01	1	1004-1310
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-305-0	01	1	1311-
101	07.112 BRACKET; RR SPR,FRT FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98028-306-0	01	1	1004-1310
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-306-0	01	1	1311-
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	0907-1003
101	07.112 BRACKET; RR SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97034-156-1	02	1	1004-1310
101	07.112 BRACKET; RR SPR,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97034-156-1	02	1	1311-
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0907-1003
103	07.420 STOPPER; SUB SPR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97223-748-0	02	1	1004-1308
103	07.420 STOPPER; SUB SPR FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (B)	8-97223-748-0	02	1	1309-
103	07.420 STOPPER; SUB SPR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97223-748-0	02	1	1309-
103	07.420 STOPPER; SUB SPR (A)	8-97223-750-0	02	1	0907-1003
103	07.420 STOPPER; SUB SPR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97223-750-0	02	1	1004-1308
103	07.420 STOPPER; SUB SPR FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (A)	8-97223-750-0	02	1	1309-
103	07.420 STOPPER; SUB SPR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97223-750-0	02	1	1309-
105	07.112 BRACKET; RR SPR,RR FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97166-684-2	02	1	1004-1310
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97166-684-2	02	1	1311-
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	0907-1003
105	07.112 BRACKET; RR SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98032-488-0	01	1	1004-1308
105	07.112 BRACKET; RR SPR,RR FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (A)	8-98032-488-0	01	1	1309-
105	07.112 BRACKET; RR SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98032-488-0	01	1	1309-
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	0907-1003
105	07.112 BRACKET; RR SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98032-489-0	01	1	1004-1308
105	07.112 BRACKET; RR SPR,RR FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (A)	8-98032-489-0	01	1	1309-
105	07.112 BRACKET; RR SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98032-489-0	01	1	1309-
140	07.112 BRACKET; S/ABS,RR FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98006-178-0	01	1	1004-1310
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98006-178-0	01	1	1311-
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-176-0	01	1	0907-
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-180-0	01	1	0907-1003
140	07.112 BRACKET; S/ABS,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-180-0	01	1	1004-1308
140	07.112 BRACKET; S/ABS,RR FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (B)	8-98006-180-0	01	1	1309-
140	07.112 BRACKET; S/ABS,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-180-0	01	1	1309-
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0907-1003
147	07.535 RUBBER; SUB SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97254-387-0	04	1	1004-1308
147	07.535 RUBBER; SUB SPRING FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	1309-
147	07.535 RUBBER; SUB SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97254-387-0	04	1	1309-
196	07.242 BRACKET; STAB TO FRAME STABILIZER REAR<GN1>	8-98033-523-0	02	1	1305-1310
196	07.242 BRACKET; STAB TO FRAME EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-523-0	02	1	1311-
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0907-
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98006-210-0	02	1	1004-1308
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-210-0	02	1	1309-
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	0907-1003
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97202-417-0	02	1	1004-
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98062-610-1	01	1	0911-1003
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1004-1304
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98062-611-1	01	1	0911-1003
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1004-1304
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0911-1003
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-0	01	1	1004-1304

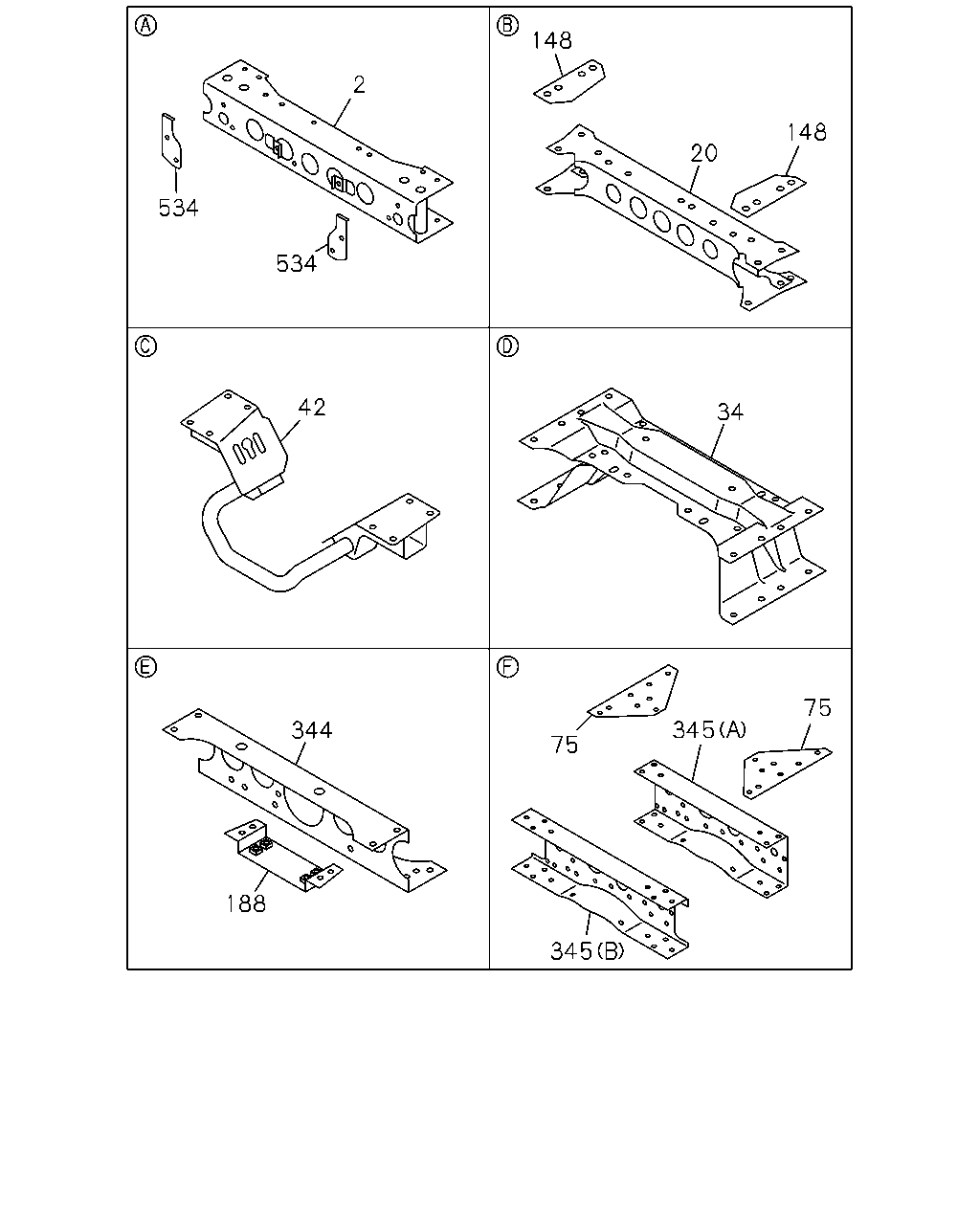

345 345 75 75 344 188 42 34 148 20 148 2 534 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	0907-
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98088-281-1	01	1	0911-1003
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1004-1304
20	07.012 MEMBER; CROSS,2ND	8-98038-419-1	01	1	0907-0911
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-1	01	1	0912-1003
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 2800MM(28W)	8-98038-419-1	01	1	0912-1003
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1004-1308
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1004-1308
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1309-
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98081-959-0	01	1	0911-1003
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1004-1304
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	0907-0911
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	0912-1003
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2800MM(28W)	8-97384-743-1	01	1	0912-1003
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1004-1308
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1004-1308
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1309-
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0907-1003
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1004-
75	07.039 GUSSET; 5TH C/MBR	8-98011-863-0	04	1	0907-
148	07.105 SPACER; C/MBR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98081-958-0	04	1	0911-1003
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1004-1304
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97083-157-1	01	1	0907-0910
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	0911-
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98005-959-1	01	1	0907-0910
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	0911-
345	07.012 MEMBER; CROSS,5TH FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97384-744-2	01	1	1004-1310
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97384-744-2	01	1	1311-
345	07.012 MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	0907-1003
345	07.012 MEMBER; CROSS,5TH EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98011-861-2	01	1	1004-1308
345	07.012 MEMBER; CROSS,5TH FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (A)	8-98011-861-2	01	1	1309-
345	07.012 MEMBER; CROSS,5TH EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98011-861-2	01	1	1309-
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0911-1003
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-0	01	1	1004-1304
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	0907-
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	0907-

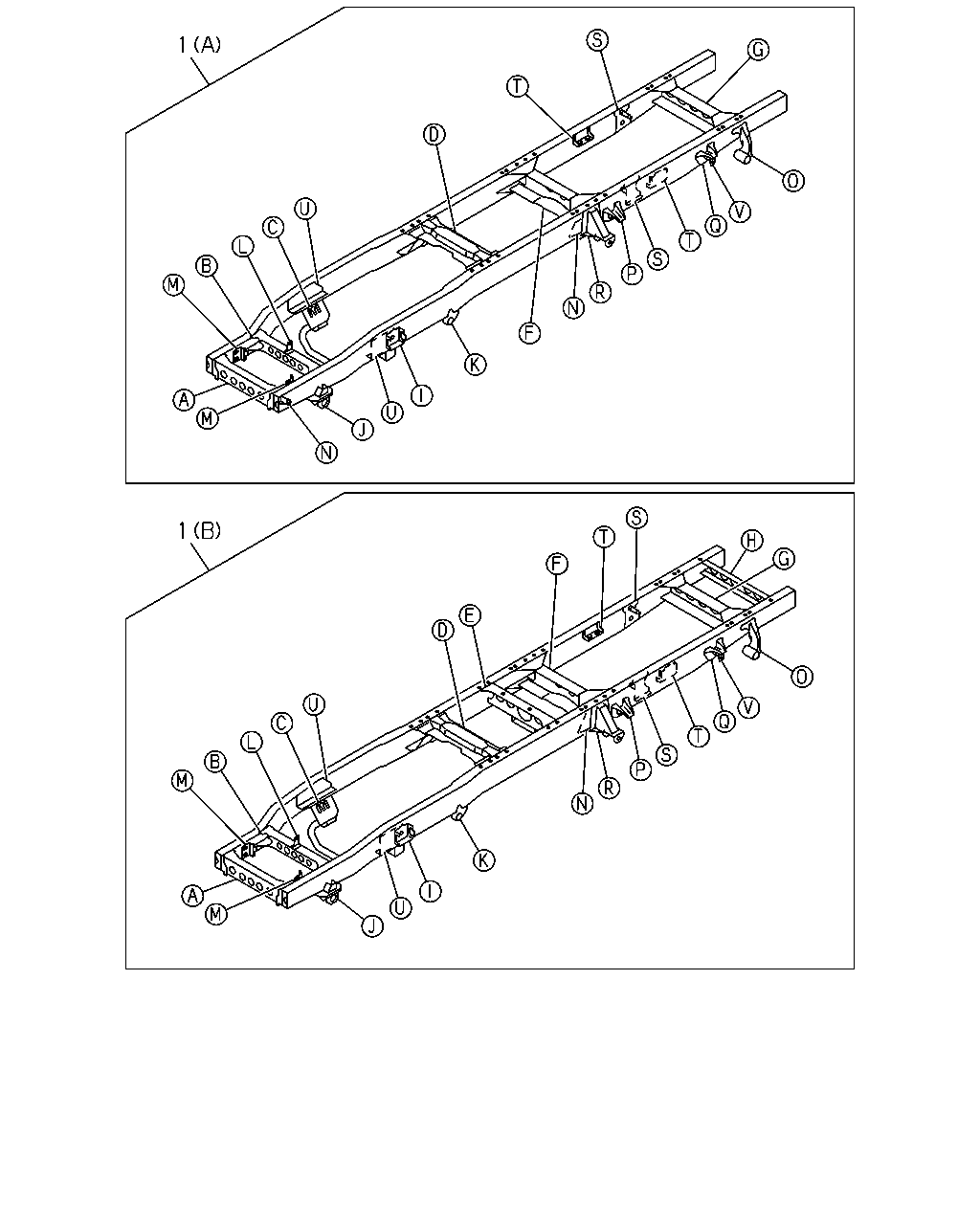

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98257-353-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98257-354-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) (C)	8-98252-850-0	01	1	1309-1310
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98252-850-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98023-308-4	01	1	0911-1003
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-308-4	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98246-426-0	01	1	1305-1310
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98246-426-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-265-4	01	1	0911-1003
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-265-4	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98246-427-0	01	1	1305-1310
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> STABILIZER REAR<GN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98246-427-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98169-729-0	01	1	1004-1310
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98169-729-0	01	1	1311-
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) (A)	8-98159-916-0	01	1	0911-1003
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98023-295-4	01	1	0907-0909
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (A)	8-98023-295-4	01	1	0910-1003
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-295-4	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), STABILIZER REAR<GN1> (A)	8-98023-295-4	01	1	1305-1309
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-266-2	01	1	0907-1003
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-266-2	01	1	1004-1304
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), STABILIZER REAR<GN1> (B)	8-98023-266-2	01	1	1305-1309
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0911-1003
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-0	01	1	1004-1304

376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 296 176 62 67 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0907-1003
40	08.155 BOLT; BRKT TO FRAME EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1004-
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	0907-1003
60	05.601 BOLT; MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.039 M10X30	0-20851-030-0	04	1	1004-
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-1003
62	05.601 NUT; MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1004-
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0907-1003
118	07.529 NUT; STOPPER EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 LOCK NUT	0-91370-008-0	02	1	1004-1308
118	07.529 NUT; STOPPER FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) M8 LOCK NUT	0-91370-008-0	02	1	1309-
118	07.529 NUT; STOPPER EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 LOCK NUT	0-91370-008-0	02	1	1309-
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2800MM(28W) (B) M14X45 FLANGE	0-29261-445-0	08	1	0912-1003
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	0907-1003
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1004-
296	07.039 BOLT; 3RD C/MBR FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> M10X30	0-20851-030-0	04	1	1004-1308
296	07.039 BOLT; 3RD C/MBR FRT INDEPENDENT SUSPENSION(FF0) M10X30	0-20851-030-0	04	1	1309-
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2800MM(28W) M10X30	0-20851-030-0	04	1	0912-1003
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0907-
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0907-
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0907-
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0907-
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0907-
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0907-
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0907-
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0907-
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	0907-
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0907-
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	0907-
376	07.039 RIVET; FRAME 07.006 (L) D12X32 TAPER END	9-06751-232-0	AR	1	0907-
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	0907-
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	0907-
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0911-1003
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98060-184-0	01	1	1004-1304

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
