Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

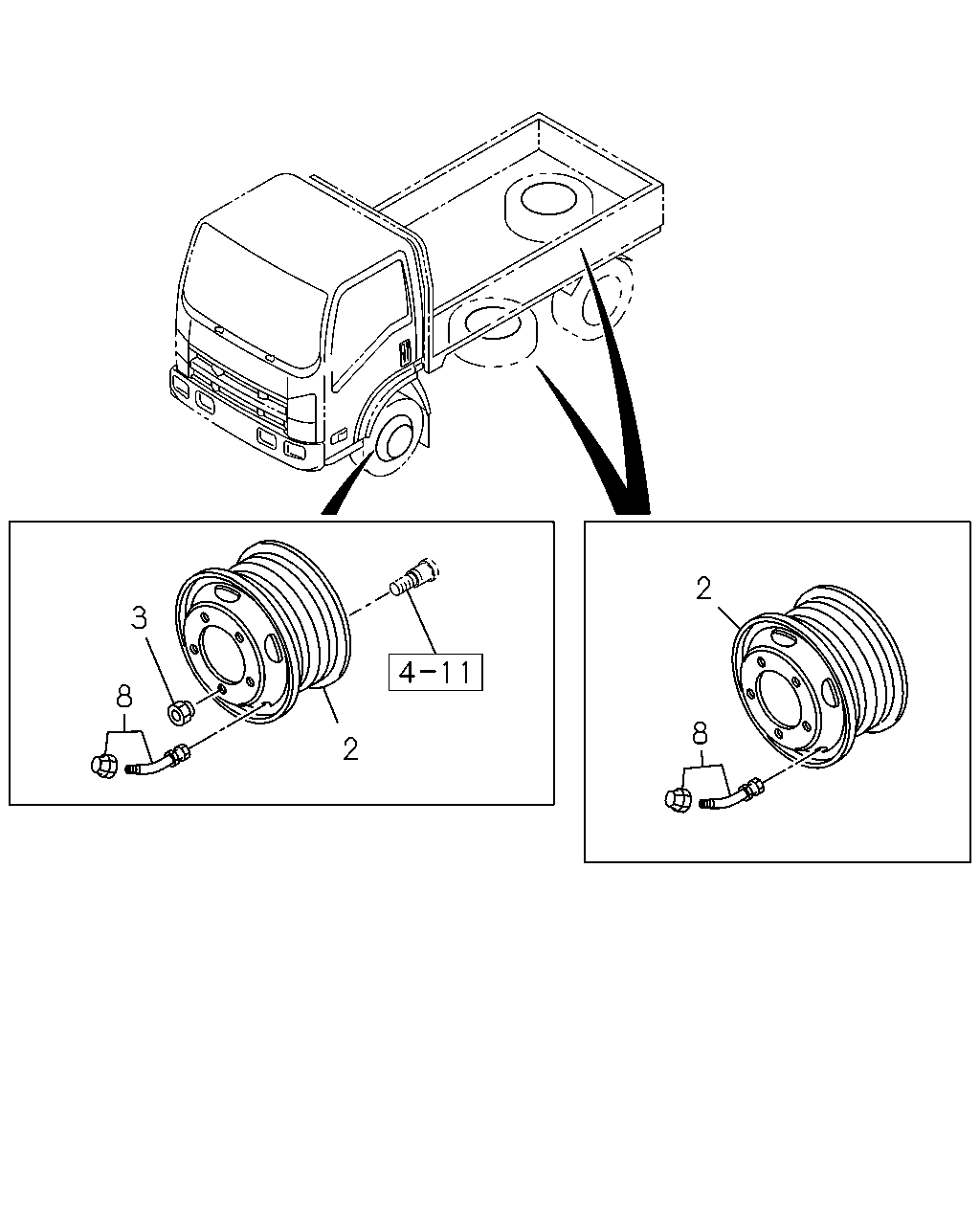

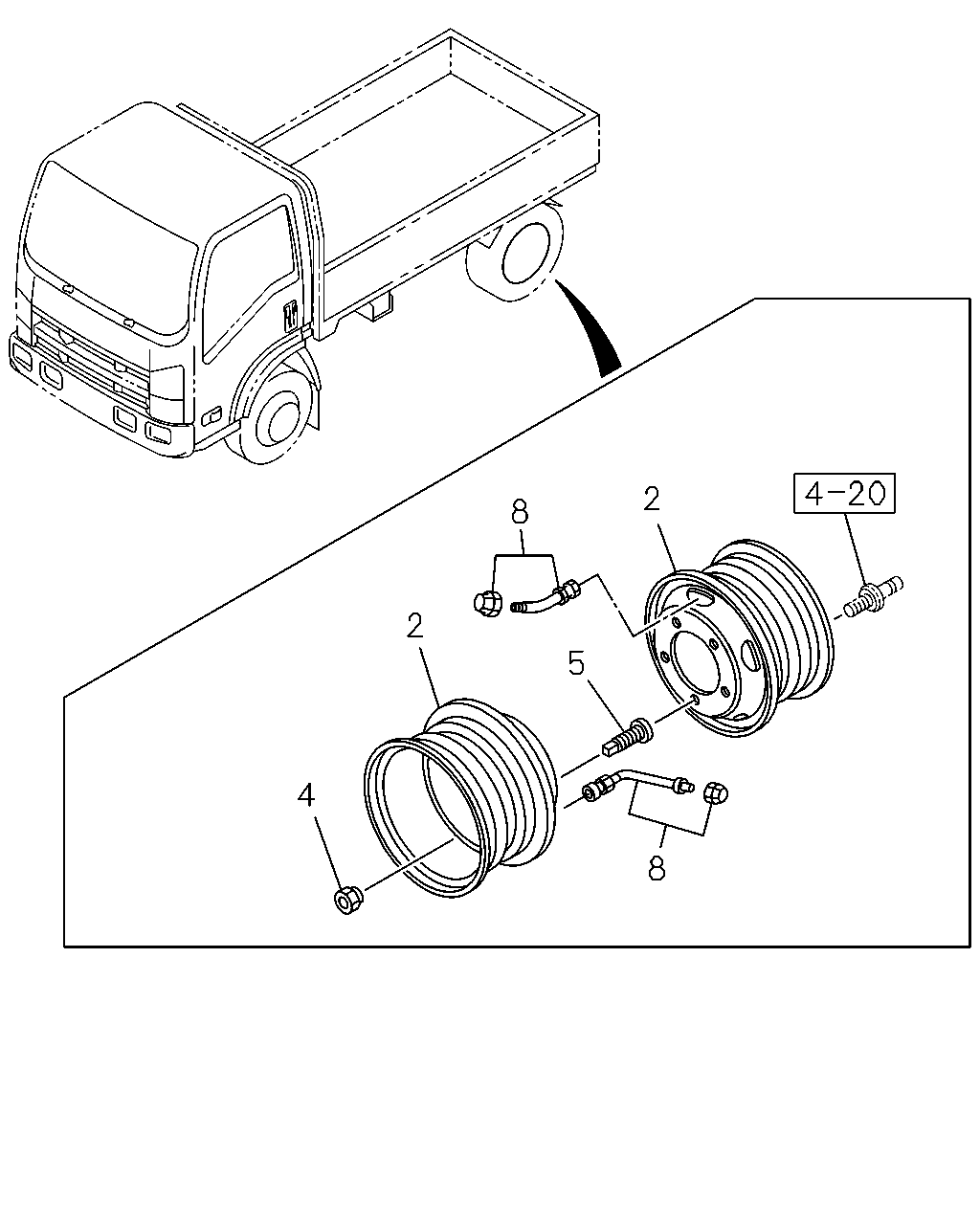

4-80 — ROAD WHEEL (#52568) — 26 parça

8 2 5 8 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0907-0909
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0910-1003
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1004-1005
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1006-
2	05.803 WHEEL; DISC FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0907-0909
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0910-1003
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1004-1005
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1006-
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0907-
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0907-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0907-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0907-
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0907-
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	0907-

2 8 2 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0907-0909
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0910-1003
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1004-1005
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1006-
2	05.803 WHEEL; DISC FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0907-0909
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0910-1003
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1004-1005
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1006-
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0907-
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0907-
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0907-
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	0907-
