◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#52566) — 32 parça

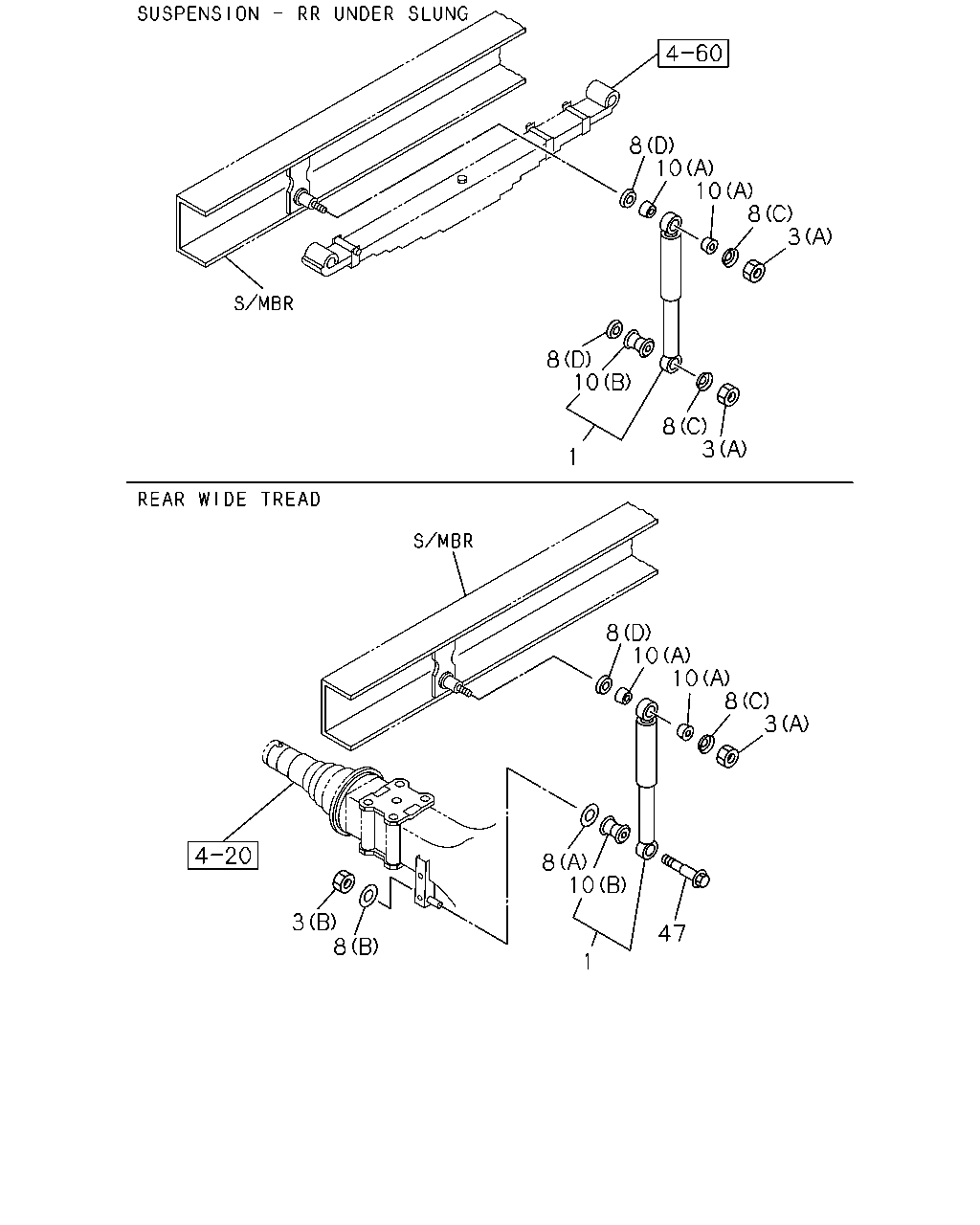

çizim 159779
8 8 10 10 3 8 8 3 1 10 8 10 10 8 3 3 8 8 10 1 47
BalonParca AdiParca NoAdetTipApplied Date
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-0 04 1 0907-0909
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97253-651-0 04 1 0910-1003
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97253-651-0 02 1 1004-1004
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97253-651-0 02 1 1004-1004
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97253-651-2 02 1 1004-1308
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97253-651-2 02 1 1309-1506
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98040-034-0 02 1 1004-1004
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97253-647-1 02 1 1004-
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1308
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> BEST VALUE PARTS 		5-87610-132-0 02 1 1309-1506
1 07.395 ABSORBER ASM; SHOCK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98316-233-0 02 1 1507-
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 0907-1003
3 07.347 NUT; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> 07.833 (A) M14 		0-91110-514-0 02 1 1004-
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1004-
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 0907-0909
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 00.785 (B) M16 		0-91111-516-0 02 1 0910-
8 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 0907-1003
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (C) ID=15 		8-97360-056-0 02 1 1004-
8 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 1004-
8 07.347 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 0907-1003
8 07.347 WASHER; S/ABS
SUSPENSION - RR UNDER SLUNG<V4U> (D) ID=20.0 		8-97360-057-0 02 1 1004-
8 07.347 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 1004-
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 0907-0909
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 0910-
8 07.347 WASHER; S/ABS
07.427 (B) ID=16.5 		8-98011-489-0 02 1 0907-0909
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0910-
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0907-0909
10 07.388 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 0910-1003
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1004-
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0907-
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 0907-0909
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 0910-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
