◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#52565) — 85 parça

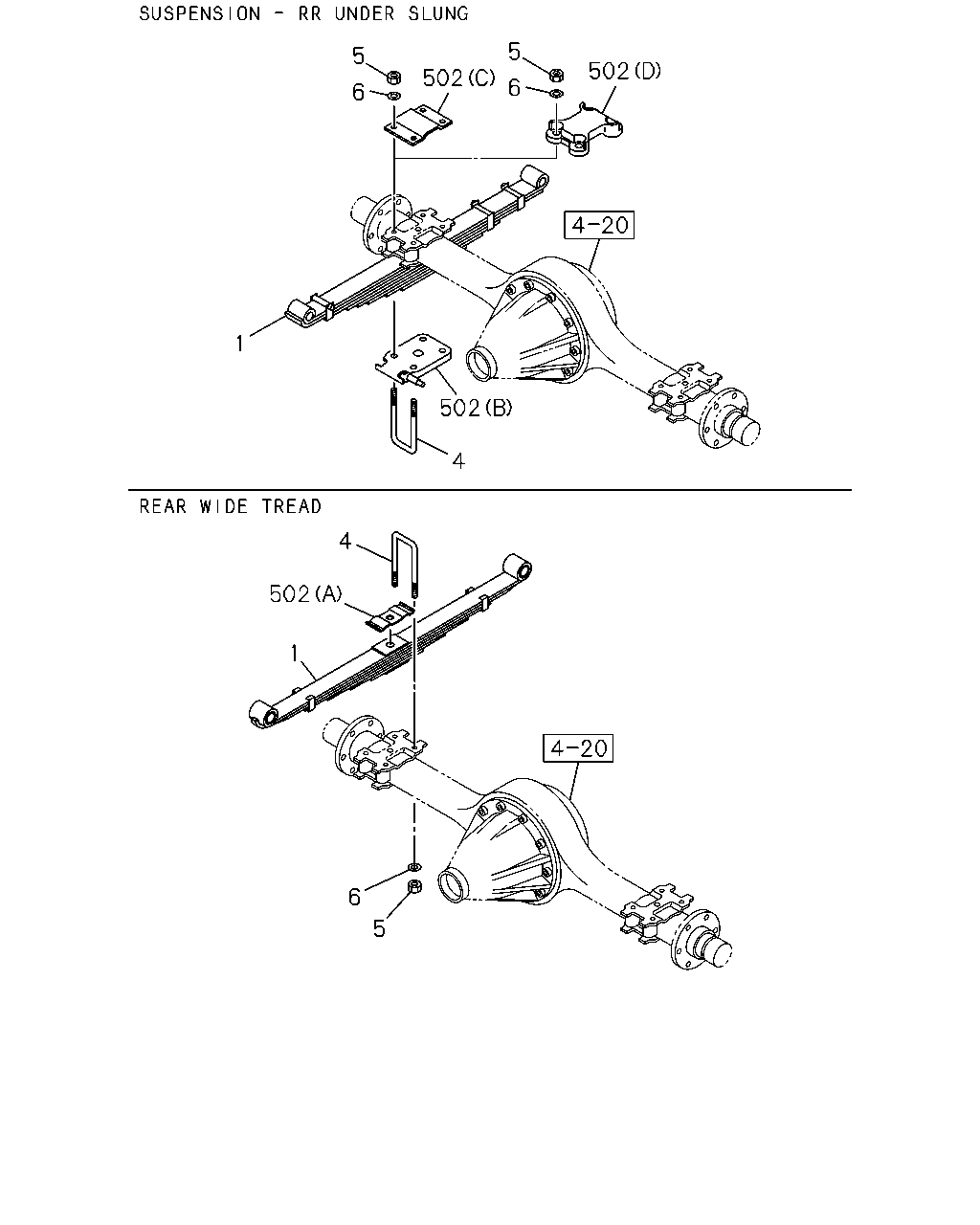

çizim 159766
5 5 6 6 502 502 1 502 4 4 1 6 5 502
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 7-LEAF 		8-98252-083-0 02 1 1309-1310
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 7-LEAF 		8-98258-484-0 02 1 1311-
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> 6-LEAF 		8-98001-619-0 02 1 1004-1309
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> 6-LEAF 		8-98253-318-0 02 1 1310-
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-652-0 02 1 0907-1003
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 1004-1308
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 1309-
4 07.516 U-BOLT; RR SPR
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1309-
4 07.516 U-BOLT; RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> L=260 		8-94157-016-1 04 1 1004-
4 07.516 U-BOLT; RR SPR
L=245 		8-94127-921-2 04 1 0907-1003
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=245 		8-94127-921-2 04 1 1004-1005
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) L=245 		8-94127-921-3 04 1 1006-
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0907-
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0907-
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (D) 		8-97383-975-0 02 1 1011-
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-94113-325-2 01 1 1004-
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-94113-326-2 01 1 1004-
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) L=176 T=8 		8-97136-907-0 02 1 1004-1010
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 5.0-5.5TON(RPT) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) L=176 T=8 		8-97136-907-0 02 1 1011-
502 07.506 CLAMP; RR LEAF SPR
07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0907-0909
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0910-

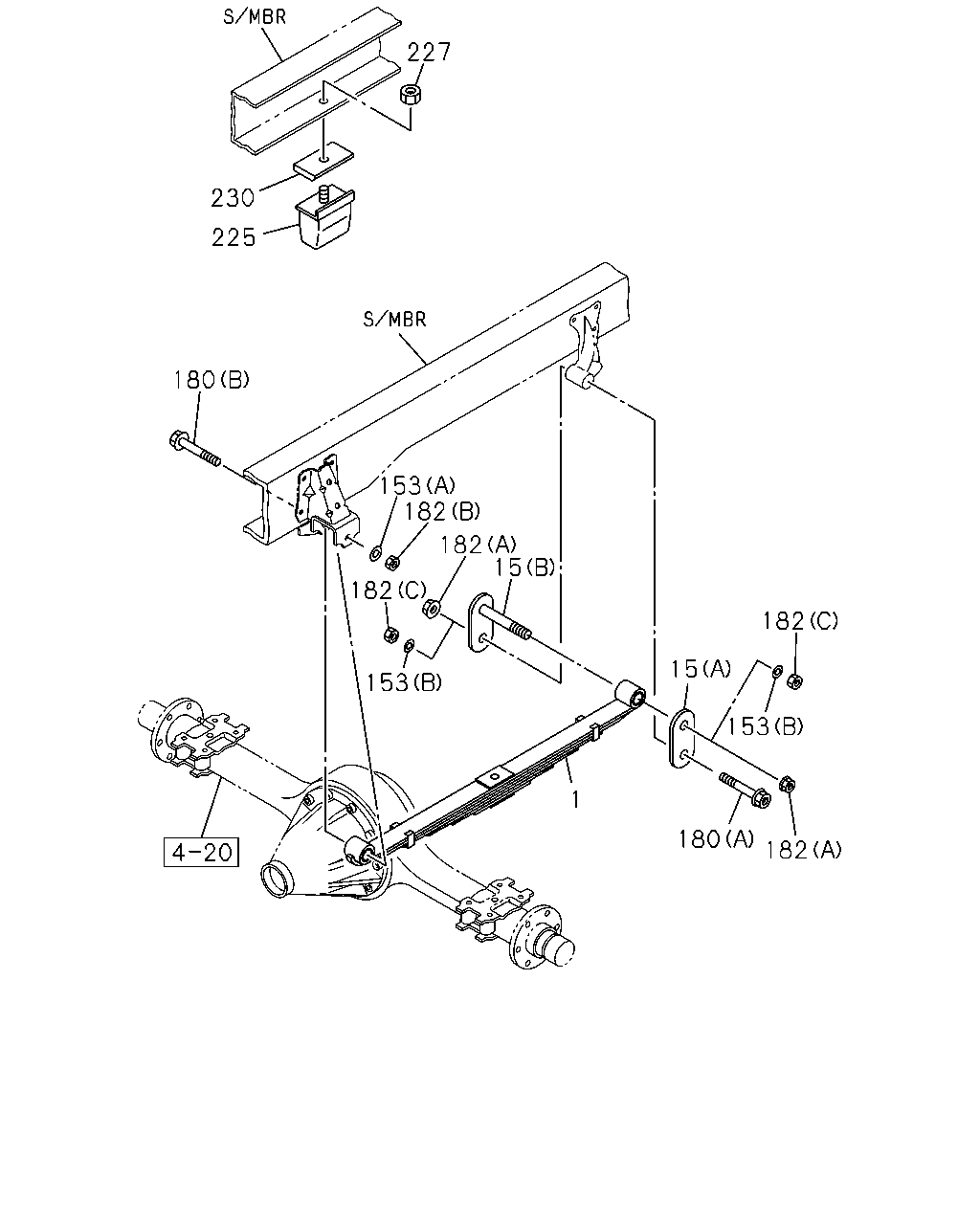

çizim 159781
227 230 180 225 153 182 153 182 182 15 182 15 153 1 180 182
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 7-LEAF 		8-98252-083-0 02 1 1309-1310
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 7-LEAF 		8-98258-484-0 02 1 1311-
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> 6-LEAF 		8-98001-619-0 02 1 1004-1309
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> 6-LEAF 		8-98253-318-0 02 1 1310-
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-652-0 02 1 0907-1003
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 1004-1308
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 1309-
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0907-
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0907-
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 0910-
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 0907-
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0910-
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0910-
180 07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0907-0909
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0910-
180 07.529 PIN; RR SPR
(B) M18X130 FLANGE 		8-97360-112-0 02 1 0907-0909
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0910-
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 0910-
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0907-
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0907-0909
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0910-
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 		8-94379-470-1 02 1 1006-1103
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 		8-98187-342-0 02 1 1104-
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 0907-0909
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0910-1003
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 		8-98021-554-0 02 1 1004-1005
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1004-1005
225 07.535 RUBBER; CUSHION,RR SPR
HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1006-1308
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1309-1410
225 07.535 RUBBER; CUSHION,RR SPR
HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1309-1410
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1411-
225 07.535 RUBBER; CUSHION,RR SPR
HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1411-
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0907-
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0907-0909
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0910-

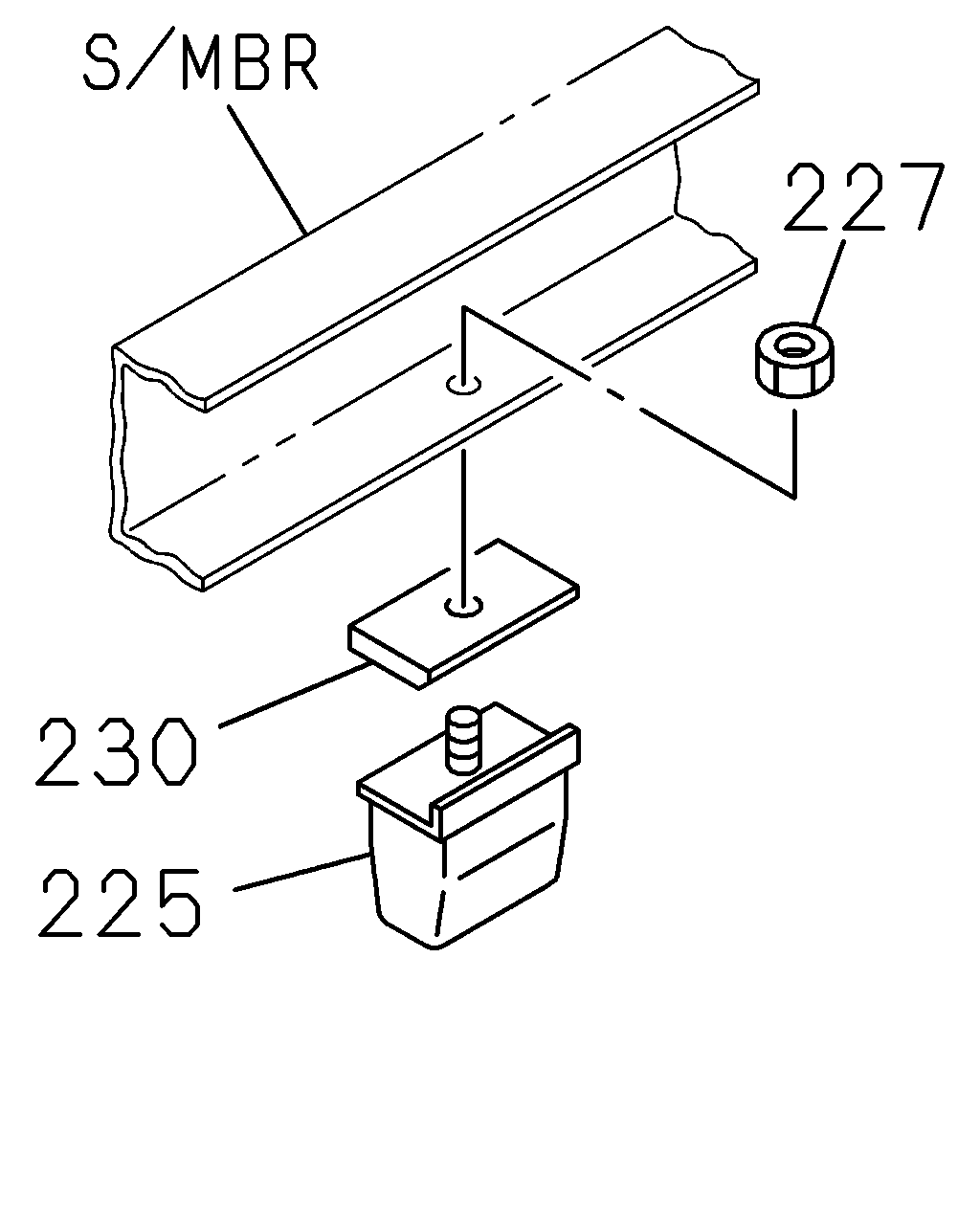

çizim 159818
227 230 225
BalonParca AdiParca NoAdetTipApplied Date
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 		8-94379-470-1 02 1 1006-1103
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 		8-98187-342-0 02 1 1104-
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 0907-0909
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0910-1003
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> 		8-98021-554-0 02 1 1004-1005
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1004-1005
225 07.535 RUBBER; CUSHION,RR SPR
HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1006-1308
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1309-1410
225 07.535 RUBBER; CUSHION,RR SPR
HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1309-1410
225 07.535 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1411-
225 07.535 RUBBER; CUSHION,RR SPR
HONG KONG EQUIPMENT(B14) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1411-
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0907-
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0907-0909
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0910-

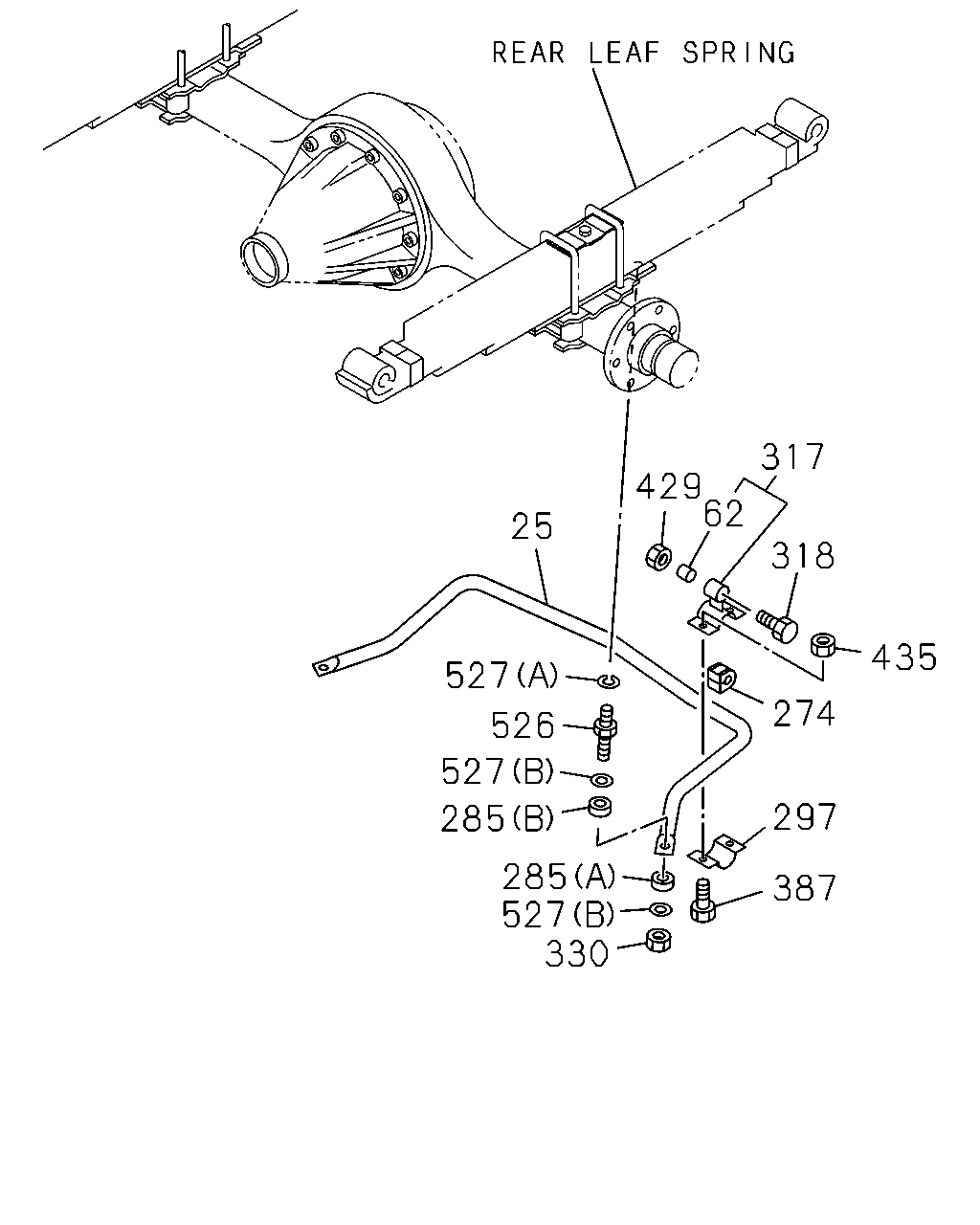

çizim 364732
317 429 25 318 62 435 274 297 387 527 526 527 285 285 527 330
BalonParca AdiParca NoAdetTipApplied Date
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97043-370-1 01 1 1305-
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1305-
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94433-867-0 02 1 1305-
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1305-
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1305-
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1305-
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1305-
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1305-
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1305-
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1305-
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1305-
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1305-
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1305-
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1305-
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5 		8-97360-055-0 04 1 1305-
