Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#52563) — 161 parça

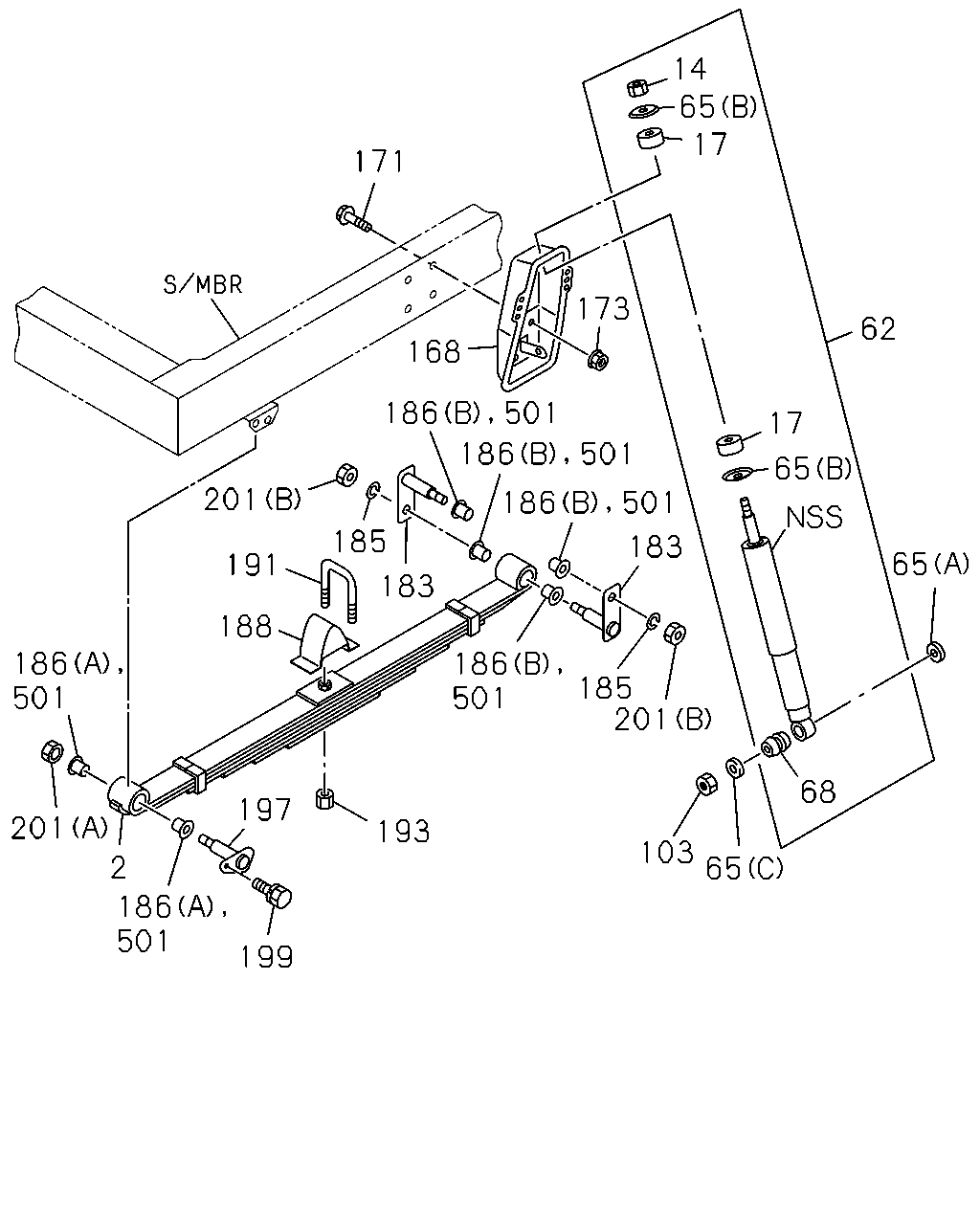

171 14 17 65 62 17 65 65 501 183 185 201 103 65 186 501 183 185 201 188 186 168 186 501 186 501 173 191 186 501 201 2 186 501 199 197 193 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98001-530-0	01	1	0907-1003
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98001-530-0	01	1	1004-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98001-531-0	01	1	0907-1003
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 2-LEAF	8-98001-531-0	01	1	1004-
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0907-1003
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10	8-94317-772-0	02	1	1004-
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1004-1201
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0907-1003
17	07.388 BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1004-
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98033-271-0	02	1	1004-1005
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98093-668-0	02	1	1006-1201
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-653-0	02	1	1202-1506
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98316-234-0	02	1	1507-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98085-708-0	02	1	0907-0909
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98085-708-0	02	1	0910-1003
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-0	02	1	1004-1005
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-1	02	1	1006-
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1204-1204
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1205-1410
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1411-1506
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1411-1506
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98316-235-0	02	1	1507-1510
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98316-235-0	02	1	1507-1510
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98316-235-0	02	1	1511-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40	0-91614-620-0	02	1	1004-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15	8-97360-056-0	02	1	1004-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0	8-97360-057-0	02	1	1004-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5	8-97360-058-0	02	1	1004-
65	07.347 WASHER; S/ABS 07.529 (A) ID=17 OD=32	9-09164-616-0	02	1	0907-1003
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (A) ID=17 OD=32	9-09164-616-0	02	1	1004-1011
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1012-
65	07.347 WASHER; S/ABS 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	0907-1003
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1004-
65	07.347 WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	0907-1003
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1004-
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1004-1201
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	0907-1003
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO	8-94224-694-0	02	1	1004-
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1004-
103	07.347 NUT; S/ABS TO LWR LINK 04.439 M12	0-91111-512-0	02	1	0907-1003
103	07.347 NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	02	1	1004-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52>	8-98002-081-0	01	1	1004-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52>	8-98039-597-0	01	1	1004-
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98002-083-0	01	1	0907-0909
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52>	8-98002-083-0	01	1	0910-1003
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-083-0	01	1	1004-
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98039-598-0	01	1	0907-0909
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52>	8-98039-598-0	01	1	0910-1003
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-598-0	01	1	1004-
171	07.395 BOLT; S/ABS BRKT 00.029 M10X30 FLANGE	0-28651-030-0	08	1	0907-1003
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	1004-
173	07.395 NUT; S/ABS 04.085 M10 FLANGE	0-91180-210-0	08	1	0907-1003
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	08	1	1004-1006
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	08	1	1007-
183	07.436 SHACKLE; FRT SUSP	8-98034-341-0	04	1	0907-1003
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98034-341-0	04	1	1004-
185	07.427 WASHER; LK,PIN ID=16.5	8-98011-489-0	04	1	0907-1003
185	07.427 WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5	8-98011-489-0	04	1	1004-
186	07.105 BUSHING; SHACKLE (B)	8-97081-531-0	08	1	0907-1003
186	07.105 BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97081-531-0	08	1	1004-1010
186	07.105 BUSHING; SHACKLE (A)	8-97259-495-0	04	1	0907-1003
186	07.105 BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97259-495-0	04	1	1004-1010
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1004-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0907-1003
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1004-
191	07.417 U-BOLT; FRT SPR L=105	8-97304-074-1	04	1	0907-1003
191	07.417 U-BOLT; FRT SPR G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=105	8-97304-074-1	04	1	1004-1410
191	07.417 U-BOLT; FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0) L=105	8-97304-074-1	04	1	1411-
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0907-1003
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.174 M14 FLANGE	8-97360-124-0	08	1	1004-
197	07.427 PIN; FRT SPR,FRT	8-97261-861-0	02	1	0907-1003
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-861-0	02	1	1004-1010
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94117-900-1	02	1	1011-
199	07.427 BOLT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0907-1003
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1004-
201	07.427 NUT; PIN LK 06.509 (B) M16	0-91110-516-0	04	1	0907-1003
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M16	0-91110-516-0	04	1	1004-
201	07.427 NUT; PIN LK (A) M16 FLANGE	8-97360-125-0	02	1	0907-1003
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE	8-97360-125-0	02	1	1004-
501	07.413 BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105	8-97081-531-0	08	1	1406-
501	07.413 BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105	8-97081-531-0	12	1	1011-1405
501	07.413 BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.105	8-97081-531-0	04	1	1406-

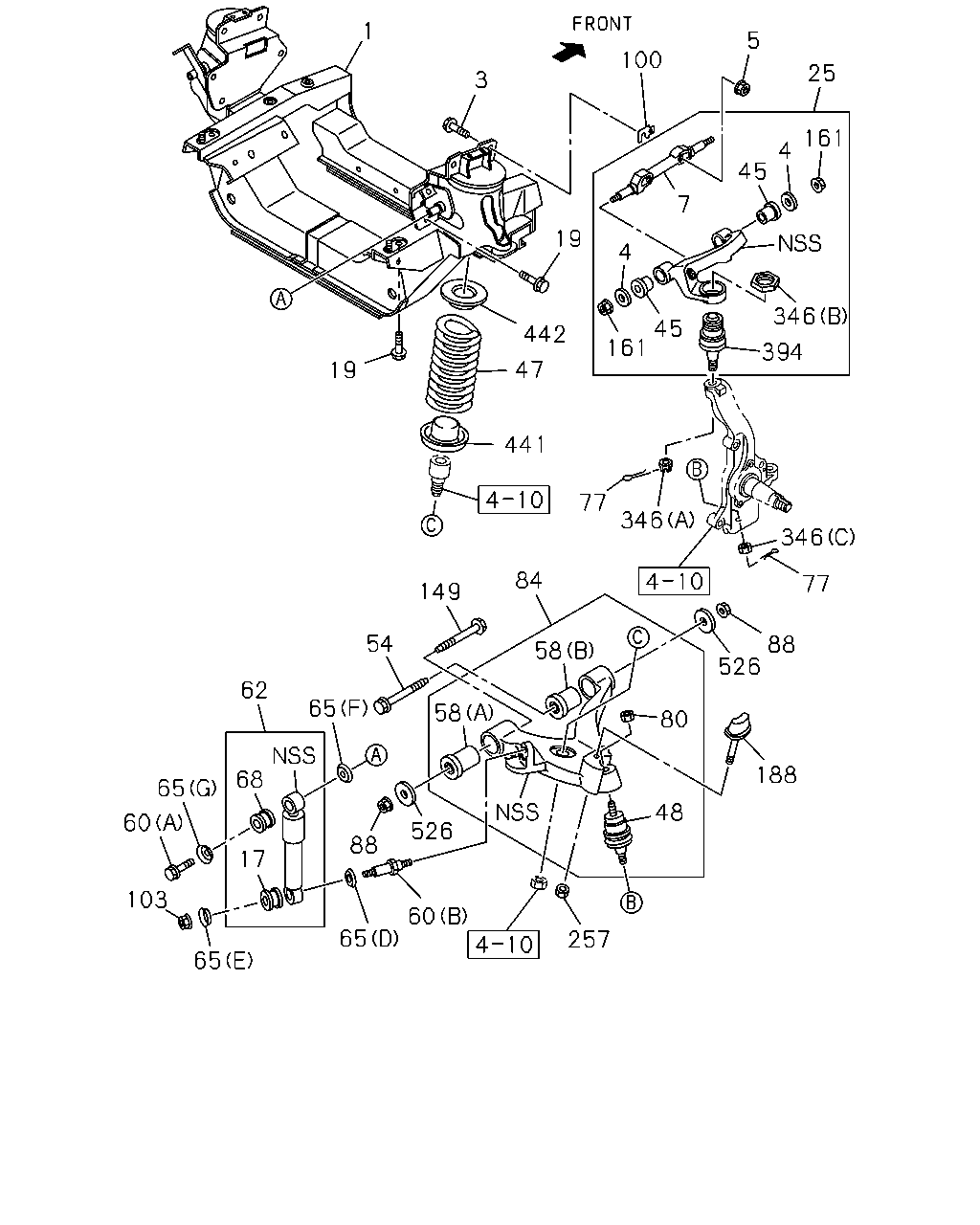

1 3 19 442 47 441 19 100 5 161 25 4 45 7 4 346 394 45 161 346 346 77 77 88 526 188 48 80 257 58 84 149 58 526 60 65 88 65 54 62 65 60 103 65 17 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.010 MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98001-258-3	01	1	1004-1306
1	07.010 MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98247-587-0	01	1	1307-
3	06.164 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.178 M16X70 FLANGE	0-28861-670-0	04	1	1004-
4	06.164 WASHER; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98021-786-0	04	1	1004-
5	06.164 NUT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	1004-
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-654-0	02	1	1004-
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1004-1201
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0907-1003
17	07.388 BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	1004-
19	07.425 BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE	0-28661-230-0	14	1	1004-
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-652-0	01	1	1004-
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-653-0	01	1	1004-
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97188-369-0	04	1	1004-
47	07.412 SPRING; COIL,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98039-621-0	02	1	1004-
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-97142-452-1	02	1	1004-
54	06.174 PIN; FULCRUM,LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 06.172	8-98021-825-1	02	1	1004-
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94336-509-1	02	1	1004-
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-049-1	02	1	1004-
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 02.343 (A) M10X20 FLANGE	0-28651-020-0	02	1	1004-
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97145-460-0	02	1	1004-
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98033-271-0	02	1	1004-1005
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98093-668-0	02	1	1006-1201
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-653-0	02	1	1202-1506
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98316-234-0	02	1	1507-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98085-708-0	02	1	0907-0909
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98085-708-0	02	1	0910-1003
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-0	02	1	1004-1005
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-708-1	02	1	1006-
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1204-1204
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1205-1410
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1411-1506
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-159-0	02	1	1411-1506
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98316-235-0	02	1	1507-1510
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98316-235-0	02	1	1507-1510
62	07.345 ABSORBER ASM; SHOCK,FRT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98316-235-0	02	1	1511-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40	0-91614-620-0	02	1	1004-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15	8-97360-056-0	02	1	1004-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0	8-97360-057-0	02	1	1004-
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5	8-97360-058-0	02	1	1004-
65	07.347 WASHER; S/ABS 07.529 (A) ID=17 OD=32	9-09164-616-0	02	1	0907-1003
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.529 (A) ID=17 OD=32	9-09164-616-0	02	1	1004-1011
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1012-
65	07.347 WASHER; S/ABS 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	0907-1003
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	04	1	1004-
65	07.347 WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	0907-1003
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	1004-
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	1004-1201
68	07.388 BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	0907-1003
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.347 TOKICO	8-94224-694-0	02	1	1004-
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 05.812 OD=3.7 L=30	0-81124-030-0	04	1	1004-
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) 00.785 M16	0-91111-516-0	02	1	1004-
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-259-0	01	1	1004-1508
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98330-120-0	01	1	1509-
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-260-0	01	1	1004-1508
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98330-121-0	01	1	1509-
88	06.174 NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.172 M22	0-91110-522-0	04	1	1004-
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=1.2	8-98029-250-0	AR	1	1004-
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=2.3	8-98029-251-0	AR	1	1004-
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=4.5	8-98029-252-0	AR	1	1004-
103	07.347 NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 07.833 M14	0-91110-514-0	02	1	1004-
103	07.347 NUT; S/ABS TO LWR LINK 04.439 M12	0-91111-512-0	02	1	0907-1003
103	07.347 NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	02	1	1004-
149	06.172 BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0) 06.174	8-98021-826-1	02	1	1004-
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 06.164 M16 FLANGE	0-91180-216-0	04	1	1004-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	1004-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0907-1003
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	1004-
257	07.346 NUT; CUSHION RUBBER FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	02	1	1004-
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) 06.861 (C) M22	0-91111-522-0	02	1	1004-
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (A) M18 SLOTTED	8-97245-632-0	02	1	1004-
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M52	8-98158-133-0	02	1	1004-
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97327-369-5	02	1	1004-
441	07.420 SEAT; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-580-2	02	1	1004-
442	07.420 INSULATOR; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-550-1	02	1	1004-
526	06.172 WASHER; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) 06.174 ID=23	0-91614-522-0	04	1	1004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
