◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#52560) — 24 parça
çizim 159702
72 35 132 8 19 14 24 23 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-98110-217-1, 98110217 		8-98061-386-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297 		8-98101-305-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-98061-392-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-98036-333-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-98036-336-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-98036-337-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-98112-931-3 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-98036-336-0 04 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-97076-372-0 01 1 -

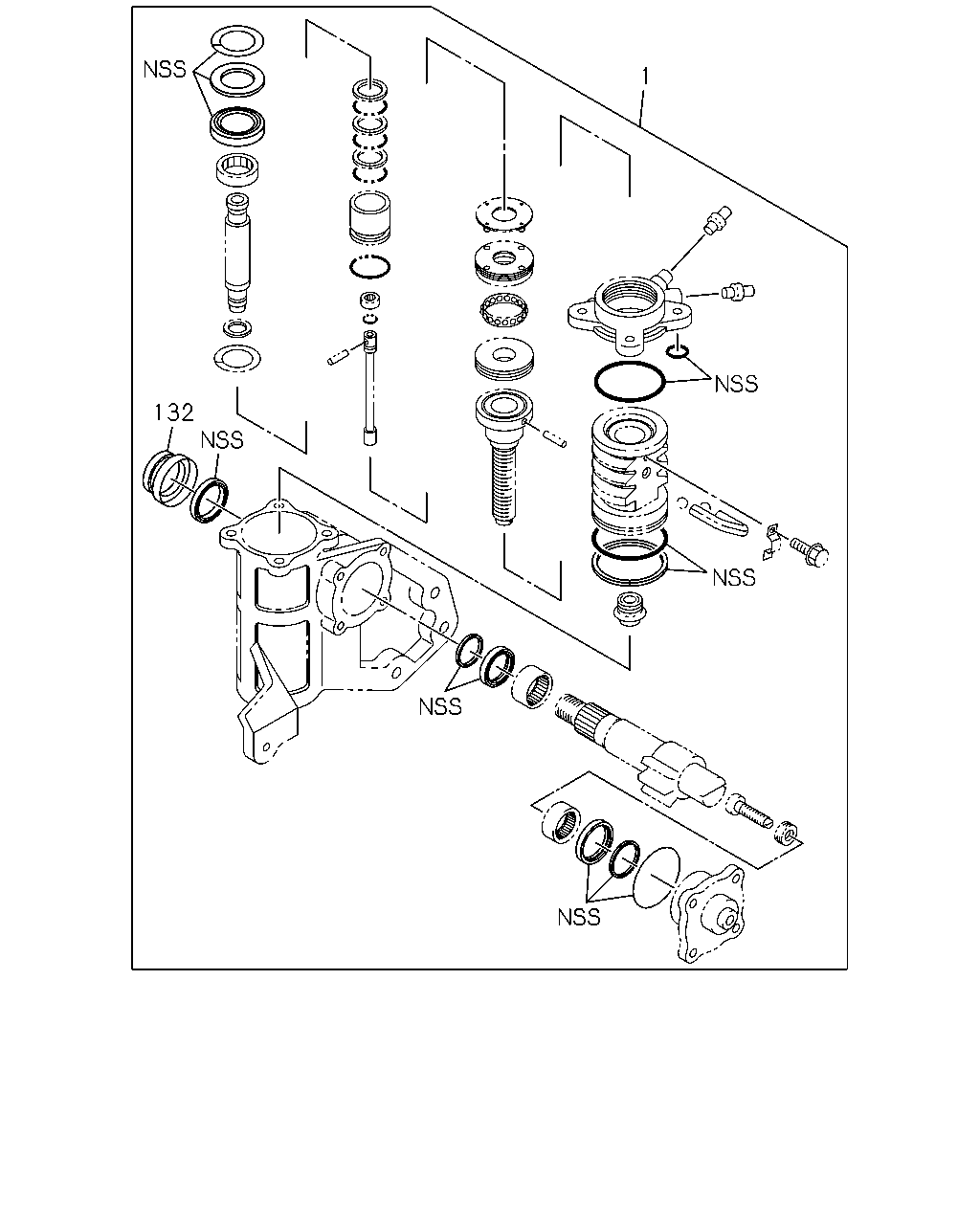

çizim 159703
132 1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-98110-217-1, 98110217 		8-97356-138-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98101-297-3, 98101297 		8-98171-736-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-98101-297-3, 98101297, C = 8-98110-217-1, 98110217 		8-97076-372-0 01 1 -

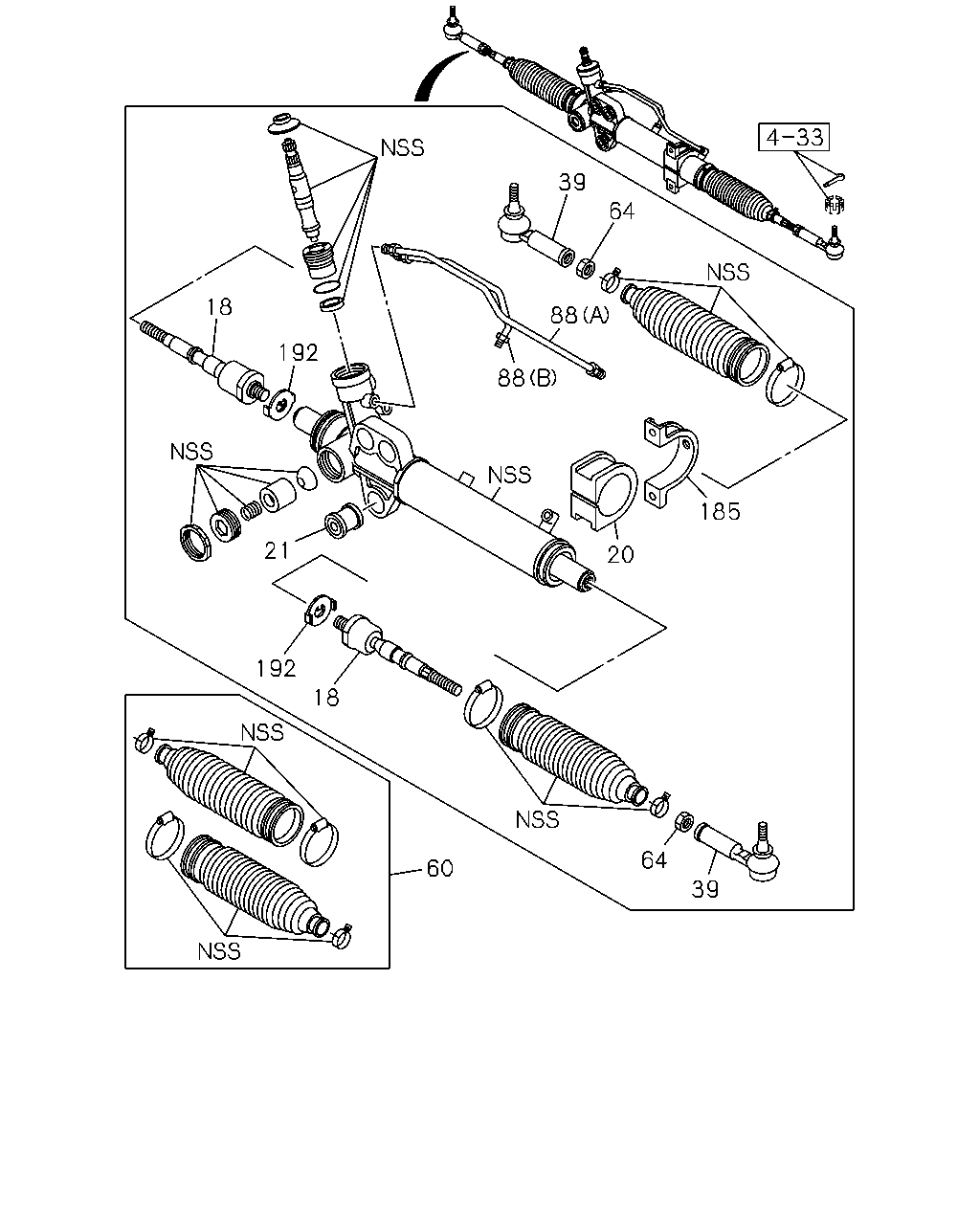

çizim 159815
39 88 88 185 20 192 18 21 192 18 60 64 39 64
BalonParca AdiParca NoAdetTipApplied Date
18 06.230 ROD ASM; INNER
ASM PART: A = 8-98001-416-3, 98001416 		8-98048-487-0 02 1 -
20 06.509 RUBBER; MTG
ASM PART: A = 8-98001-416-3, 98001416 		8-98061-373-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-98001-416-3, 98001416 		8-98061-372-0 03 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-98001-416-3, 98001416 		8-98008-838-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-98001-416-3, 98001416 		8-97357-199-0 01 1 -
64 06.242 NUT; ROD END OUTER TO INNER
03.330, M18 ASM PART: A = 8-98001-416-3, 98001416 		0-91111-518-0 02 1 -
88 06.671 PIPE; HSG TO VLV
(A) ASM PART: A = 8-98001-416-3, 98001416 		8-98048-485-0 01 1 -
88 06.671 PIPE; HSG TO VLV
(B) ASM PART: A = 8-98001-416-3, 98001416 		8-98048-486-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-98001-416-3, 98001416 		8-97373-370-0 01 1 -
192 06.521 WASHER; LK,JOINT
ASM PART: A = 8-98001-416-3, 98001416 		8-97357-196-0 02 1 -
