◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85A - POWER TAKE OFF CONTROL ▶
2-85A — POWER TAKE OFF CONTROL (#5256) — 33 parça

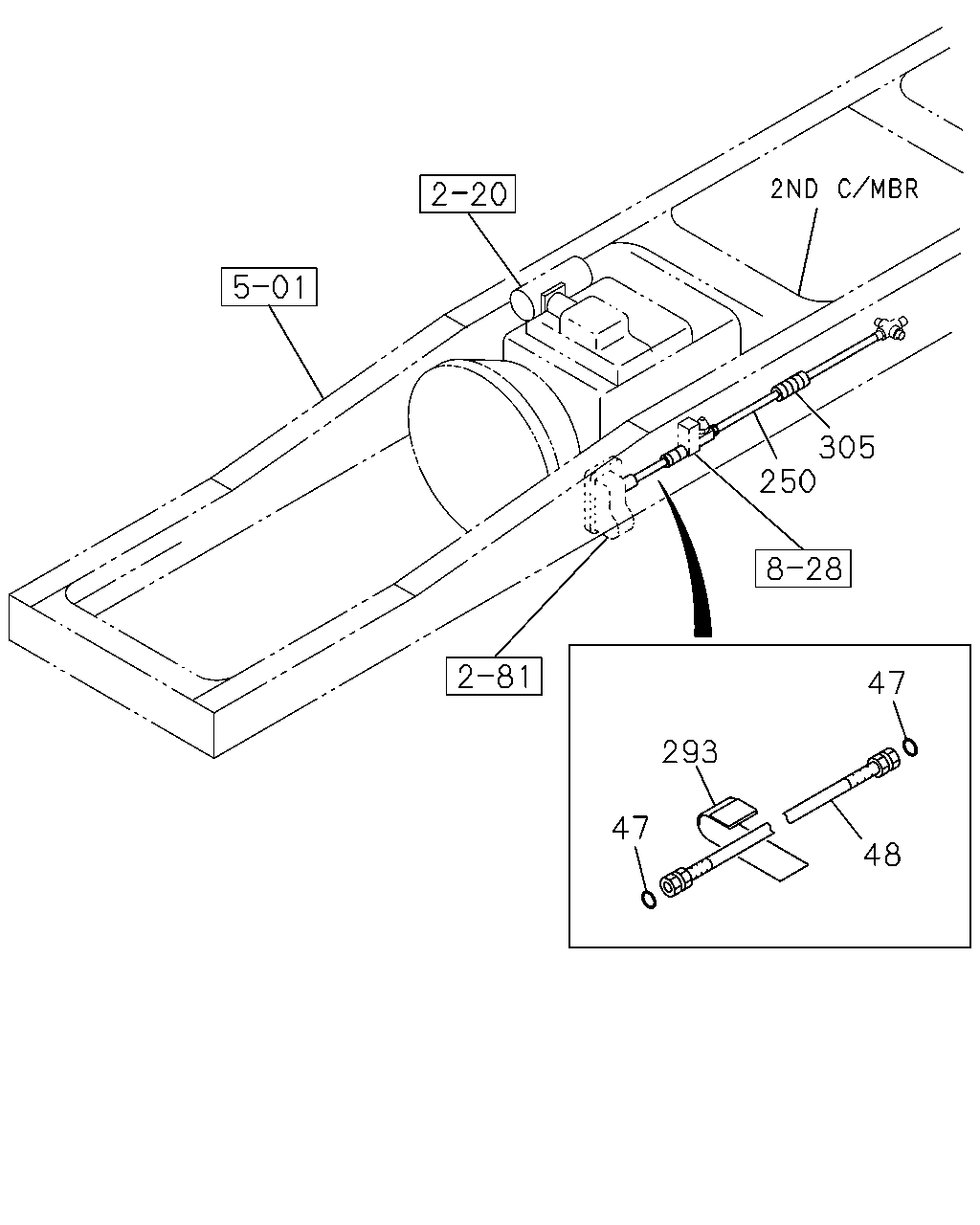

çizim 5232
305 250 47 293 47 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9603-9702 ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		0-07150-430-0 01 1 9603-9702 ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 9703-9904 ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 9905- ● ● ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911- ● ● ● ● ● ●
293 CLIP; HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=175 		1-09707-178-0 01 1 9909- ● ● ● ● ● ●
305 TUBE; CORRUGATE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ● ● ● ● ● ●

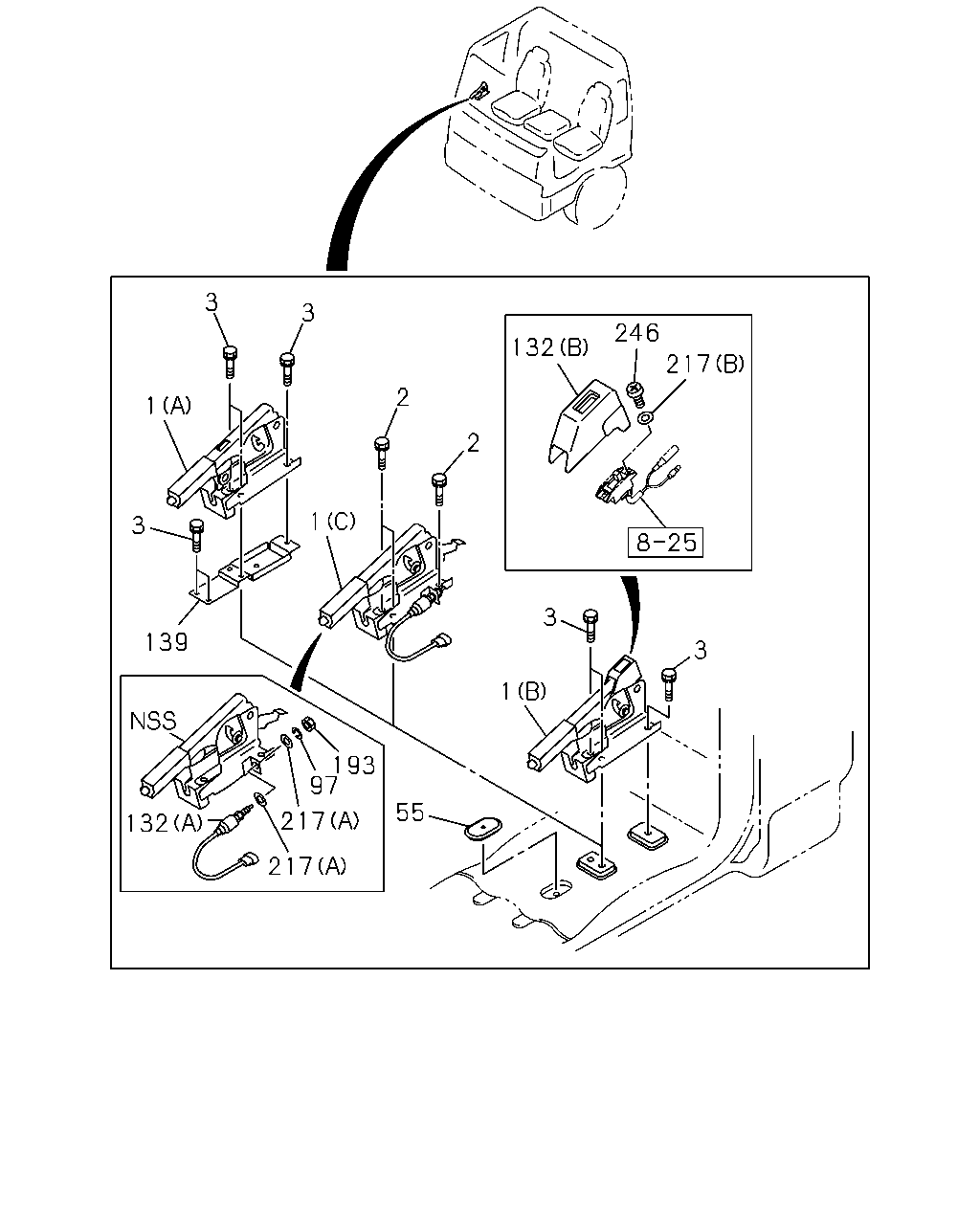

çizim 40570
3 3 246 132 217 2 1 2 1 3 3 139 3 1 193 97 55 217 132 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 9603-9904 ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 9905- ● ● ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (C) 		1-79996-093-1 01 1 9603-9904 ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (C) 		1-79996-093-1 01 1 9905- ● ● ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> (A) 		1-79907-048-1 01 1 9603-9904 ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> (A) 		1-79907-048-1 01 1 9905- ● ● ● ● ● ●
2 BOLT; PTO CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9904 ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ● ● ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9603- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9603- ● ● ● ● ● ●
97 WASHER; LK
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> ID=10.2 		9-09150-610-0 01 1 9603-9904 ● ●
97 WASHER; LK
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> ID=10.2 		9-09150-610-0 01 1 9905- ● ● ● ● ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79997-376-0 01 1 9603-9904 ● ● ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79997-376-0 01 1 9905- ● ● ● ● ● ●
132 COVER; PTO CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (A) 		1-82380-114-1 01 1 9603-9904 ● ●
132 COVER; PTO CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (A) 		1-82380-114-2 01 1 9905- ● ● ● ● ● ●
139 BRACKET; CONT BOX
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> 		1-79907-044-0 01 1 9603- ● ●
193 NUT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> M10 		9-09111-410-0 01 1 9603-9904 ● ●
193 NUT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> M10 		9-09111-410-0 01 1 9905- ● ● ● ● ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> (B) ID=4.3 		9-09160-504-0 02 1 9603-9904 ● ● ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> (B) ID=4.3 		9-09160-504-0 02 1 9905- ● ● ● ● ● ●
217 WASHER; PL
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (A) ID=10.5 OD=18 		9-09160-510-0 02 1 9603-9904 ● ●
217 WASHER; PL
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (A) ID=10.5 OD=18 		9-09160-510-0 02 1 9905- ● ● ● ● ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9603-9904 ● ● ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9905- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
