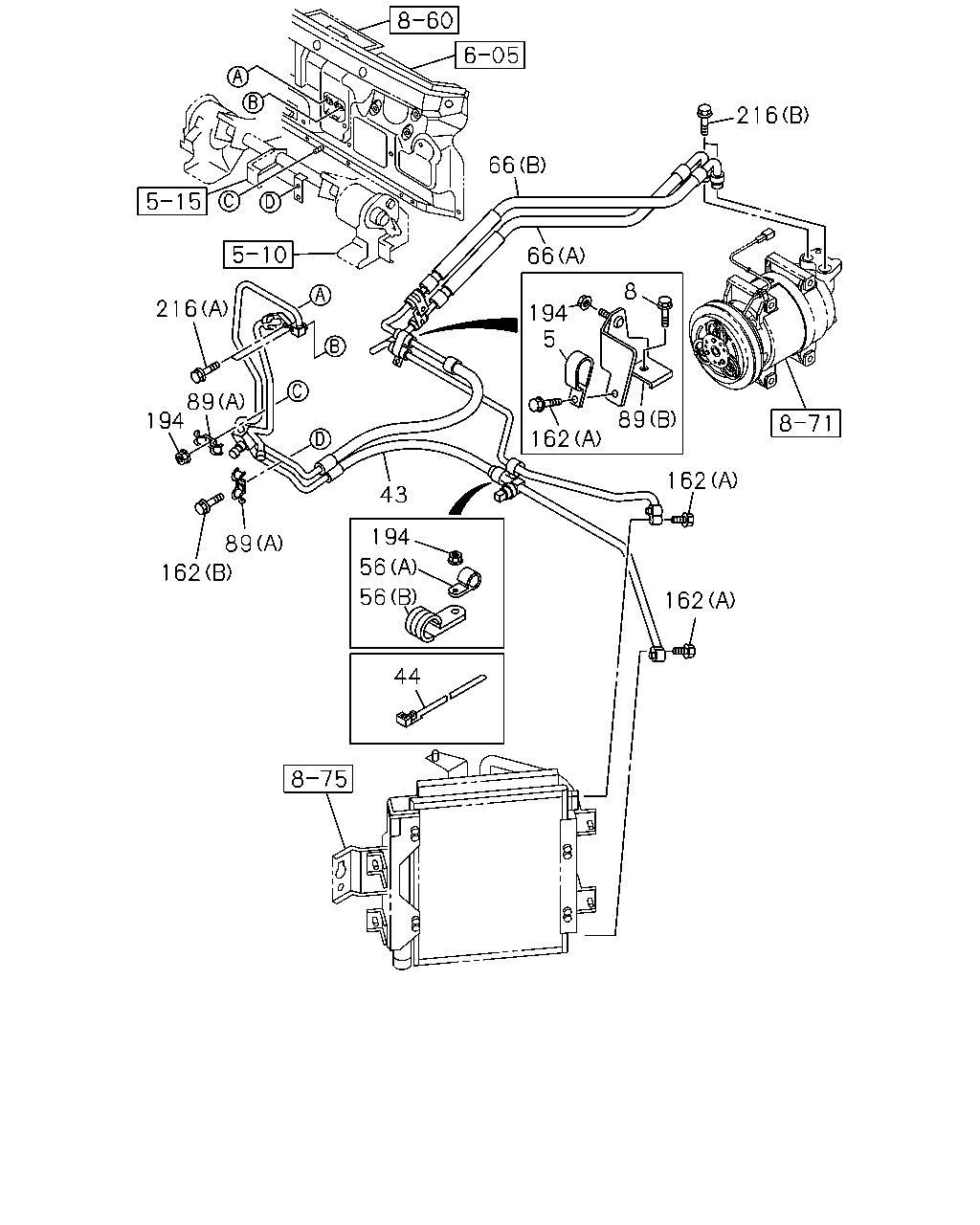

8-52 — PIPING; AIR CONDITIONING (#52558) — 36 parça

50 148 147 43 202 50 67 66 67 67 67 66 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-97386-813-4	01	1	0804-1009
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1010-
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5 IDN	1-83539-316-0	02	1	0804-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98098-289-0	01	1	0804-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98098-288-0	01	1	0804-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-629-1	01	1	1010-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7 IDN	8-97095-907-0	02	1	0804-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.225 (B) ID=14.5 IDN	8-97095-908-0	01	1	0804-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	0804-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	0804-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H IDN	8-97095-911-0	01	1	0804-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN	8-97095-909-0	01	1	0804-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	0804-
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	0804-

216 66 66 8 216 194 5 89 194 89 162 162 43 194 89 56 162 56 162 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98052-857-0	01	1	0804-
8	09.242 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-97386-813-4	01	1	0804-1009
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1010-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=170.3	1-09987-182-0	01	1	0804-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 L=350	8-94152-256-1	01	1	0804-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250 IDN	5-09707-030-1	01	1	0804-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250 IDN	5-09707-030-1	01	1	0804-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	0804-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98032-641-0	01	1	0804-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98098-289-0	01	1	0804-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98098-288-0	01	1	0804-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-629-1	01	1	1010-
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98002-365-2	01	1	0804-
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98029-613-0	02	1	0804-1009
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98151-264-0	02	1	1010-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (B) M6X20 FLANGE IDN	0-28650-620-0	01	1	0804-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	01	1	0804-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	02	1	0804-
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	03	1	0804-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	0804-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-
