◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#52555) — 117 parça

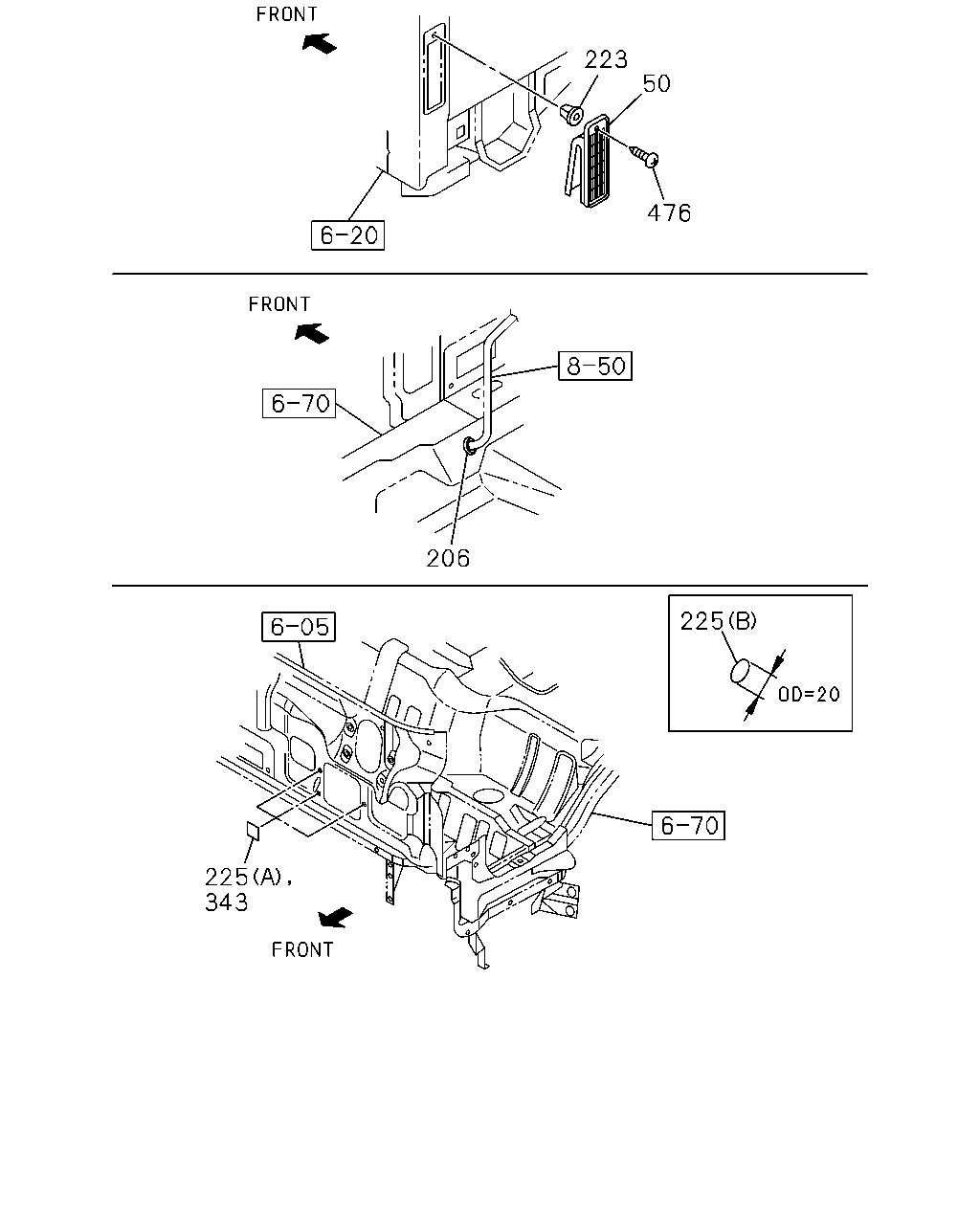

çizim 149798
223 50 476 206 225 225 343
BalonParca AdiParca NoAdetTipApplied Date
50 08.845 VALVE ASM; HTR
IDN 		8-98080-998-1 01 1 0804-
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT
IDN 		8-98019-649-0 01 1 0804-
223 08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 01 1 0804-
225 08.845 SEAL; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN 		8-97856-616-0 01 1 1303-
225 08.845 SEAL; WATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) IDN 		8-97856-616-0 03 1 0804-1302
225 08.845 SEAL; WATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) IDN 		8-97856-616-0 02 1 1303-
225 08.845 SEAL; WATER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK IDN 		5-76777-036-0 01 1 0804-1301
225 08.845 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK IDN 		5-76777-036-0 01 1 1302-
343 08.845 SEAL; AIR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) IDN 		8-97856-616-0 02 1 0804-0804
343 08.845 SEAL; AIR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) IDN 		8-97856-616-0 02 1 0804-
476 09.222 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN 		8-98062-675-0 01 1 0804-

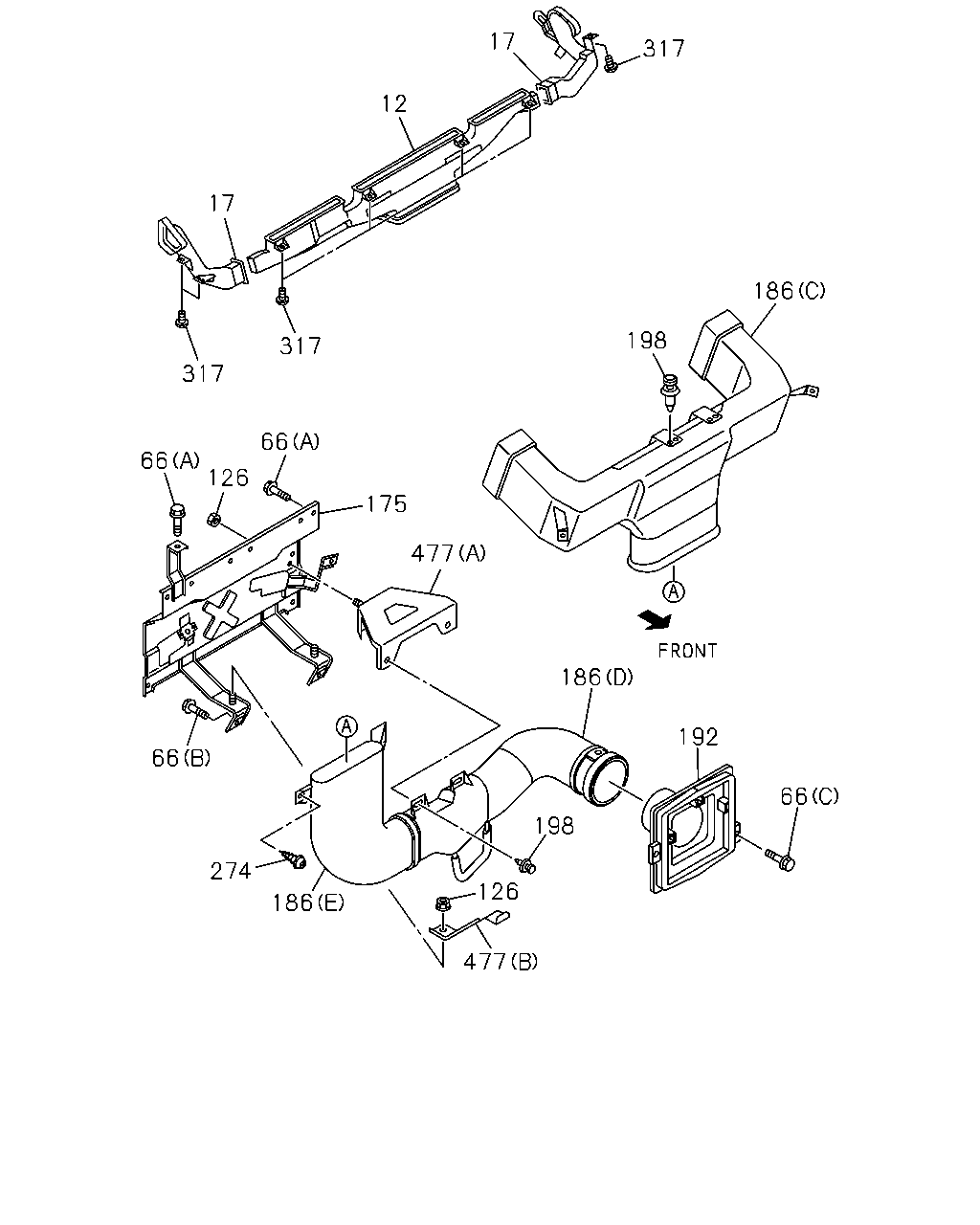

çizim 149804
477 126 198 186 274 66 192 66 186 477 175 126 66 66 317 317 17 12 17 317 186 198
BalonParca AdiParca NoAdetTipApplied Date
12 09.779 NOZZLE; DEFROSTER
IDN 		8-97585-480-4 01 1 0804-
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97585-469-0 01 1 0804-0804
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97585-469-1 01 1 0804-
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97585-475-5 01 1 0804-0804
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97585-475-5 01 1 0804-
66 08.845 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0804-0804
66 08.845 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0804-
66 08.845 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804-0804
66 08.845 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (C) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804-
66 08.845 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0804-0804
66 08.845 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0804-
126 09.262 NUT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804-0804
126 09.262 NUT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804-1001
126 09.262 NUT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 1002-
126 09.262 NUT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 1002-
175 09.262 BRACKET; HTR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98091-544-1 01 1 0804-0804
175 09.262 BRACKET; HTR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98091-544-5 01 1 0804-1206
175 09.262 BRACKET; HTR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98221-688-0 01 1 1207-
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-466-6 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-97585-466-7 01 1 0804-1410
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-98285-582-0 01 1 1411-
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-486-5 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-97585-486-6 01 1 0804-1410
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98285-585-0 01 1 1411-
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) IDN 		8-98054-363-0 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) IDN 		8-98054-363-0 01 1 0804-
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) IDN 		8-98054-371-0 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E) IDN 		8-98054-371-0 01 1 0804-
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98054-379-1 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) IDN 		8-98054-379-2 01 1 0804-
192 09.262 DUCT; RAM AIR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417 		8-98054-386-1 01 1 0804-0804
192 09.262 DUCT; RAM AIR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.417 IDN 		8-98054-386-4 01 1 0804-
198 09.787 CLIP; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264 		1-09987-144-0 05 1 0804-0804
198 09.787 CLIP; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.264 		1-09987-144-0 05 1 0804-
274 08.852 SCREW; VENT DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-0804
274 08.852 SCREW; VENT DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101
274 08.852 SCREW; VENT DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
274 08.852 SCREW; VENT DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-0804
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-0808
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0809-1101
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) IDN 		8-98091-304-0 01 1 0804-0804
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN 		8-98091-304-0 01 1 0804-
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98091-306-0 01 1 0804-0804
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98091-306-0 01 1 0804-0808
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98132-529-1 01 1 0809-1001
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98132-529-1 01 1 1002-1005
477 09.786 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98164-455-0 01 1 1006-

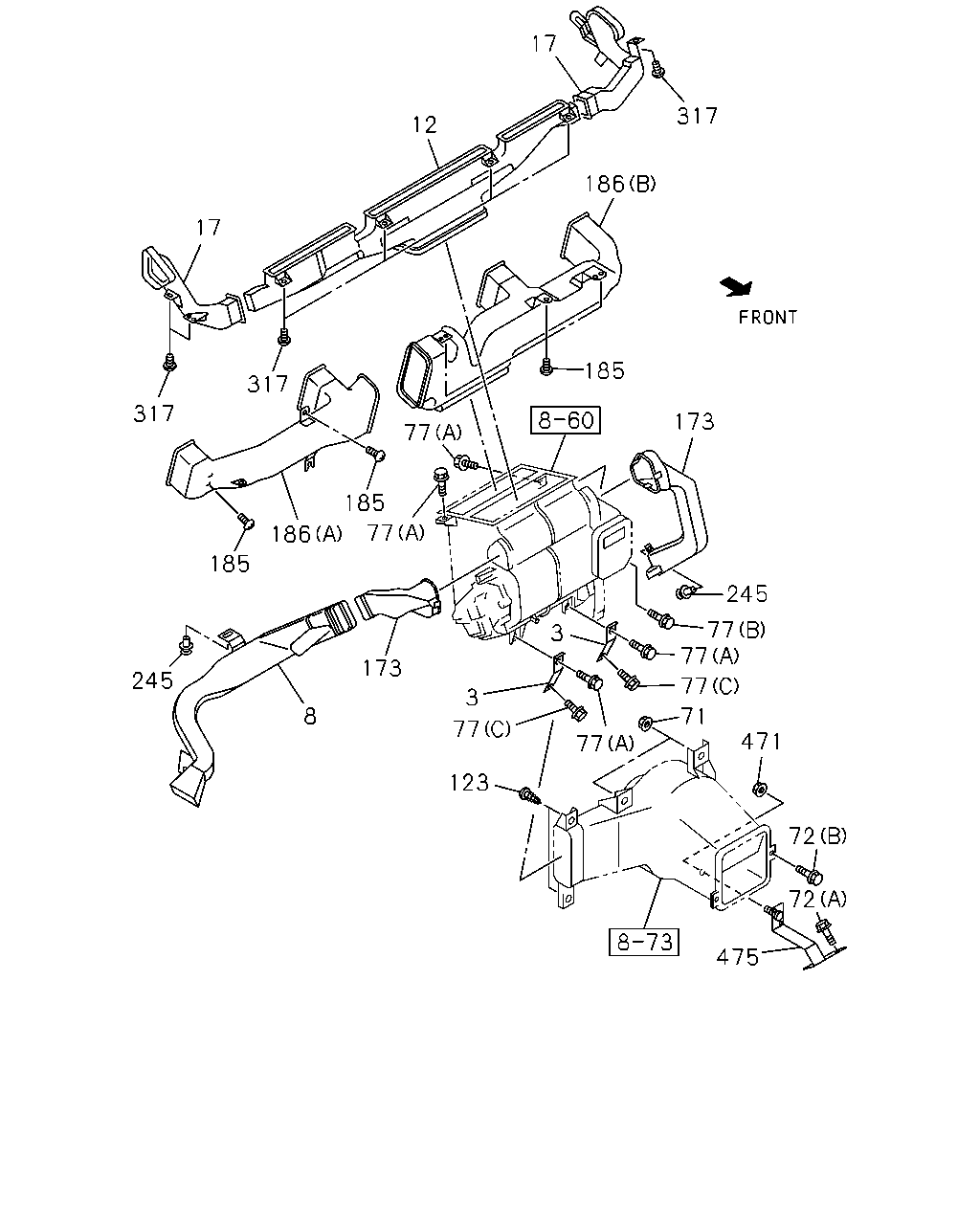

çizim 149807
17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 3 173 245 77 3 8 71 77 471 77 123 72 72 475
BalonParca AdiParca NoAdetTipApplied Date
3 08.854 BRACKET; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98082-473-0 02 1 0804-
3 08.854 BRACKET; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98082-473-0 02 1 0804-
8 09.786 DUCT; HTR AIR,DRIVER FOOT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98084-146-0 01 1 0804-0804
8 09.786 DUCT; HTR AIR,DRIVER FOOT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98084-146-0 01 1 0804-
12 09.779 NOZZLE; DEFROSTER
IDN 		8-97585-480-4 01 1 0804-
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97585-469-0 01 1 0804-0804
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97585-469-1 01 1 0804-
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97585-475-5 01 1 0804-0804
17 09.779 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97585-475-5 01 1 0804-
71 08.845 NUT; BLOWER UNIT TO DASH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804-
72 08.857 BOLT; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.085 (A) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0804-
72 08.857 BOLT; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804-
77 08.845 BOLT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 0804-
77 08.845 BOLT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 01 1 0804-1301
77 08.845 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 01 1 1302-
77 08.845 BOLT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0804-
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
173 09.786 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97585-504-3 01 1 0804-0804
173 09.786 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97585-504-3 01 1 0804-
173 09.786 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98084-145-0 01 1 0804-0804
173 09.786 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98084-145-0 01 1 0804-1411
173 09.786 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98246-555-0 01 1 1412-
185 09.262 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 0804-0804
185 09.262 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 0804-1003
185 09.262 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004-1101
185 09.262 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
185 09.262 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-466-6 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-97585-466-7 01 1 0804-1410
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-98285-582-0 01 1 1411-
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-486-5 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-97585-486-6 01 1 0804-1410
186 09.786 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98285-585-0 01 1 1411-
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) IDN 		8-98054-363-0 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) IDN 		8-98054-363-0 01 1 0804-
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) IDN 		8-98054-371-0 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E) IDN 		8-98054-371-0 01 1 0804-
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98054-379-1 01 1 0804-0804
186 09.786 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) IDN 		8-98054-379-2 01 1 0804-
245 09.786 CLIP; FOOT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264 		1-09987-144-0 02 1 0804-0804
245 09.786 CLIP; FOOT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 09.264 		1-09987-144-0 02 1 0804-
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-0804
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-0808
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0809-1101
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
317 09.264 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
471 08.866 NUT; BLOWER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 0804-
475 09.277 BRACKET; BLOWER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97387-092-2 01 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
