8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#52553) — 21 parça

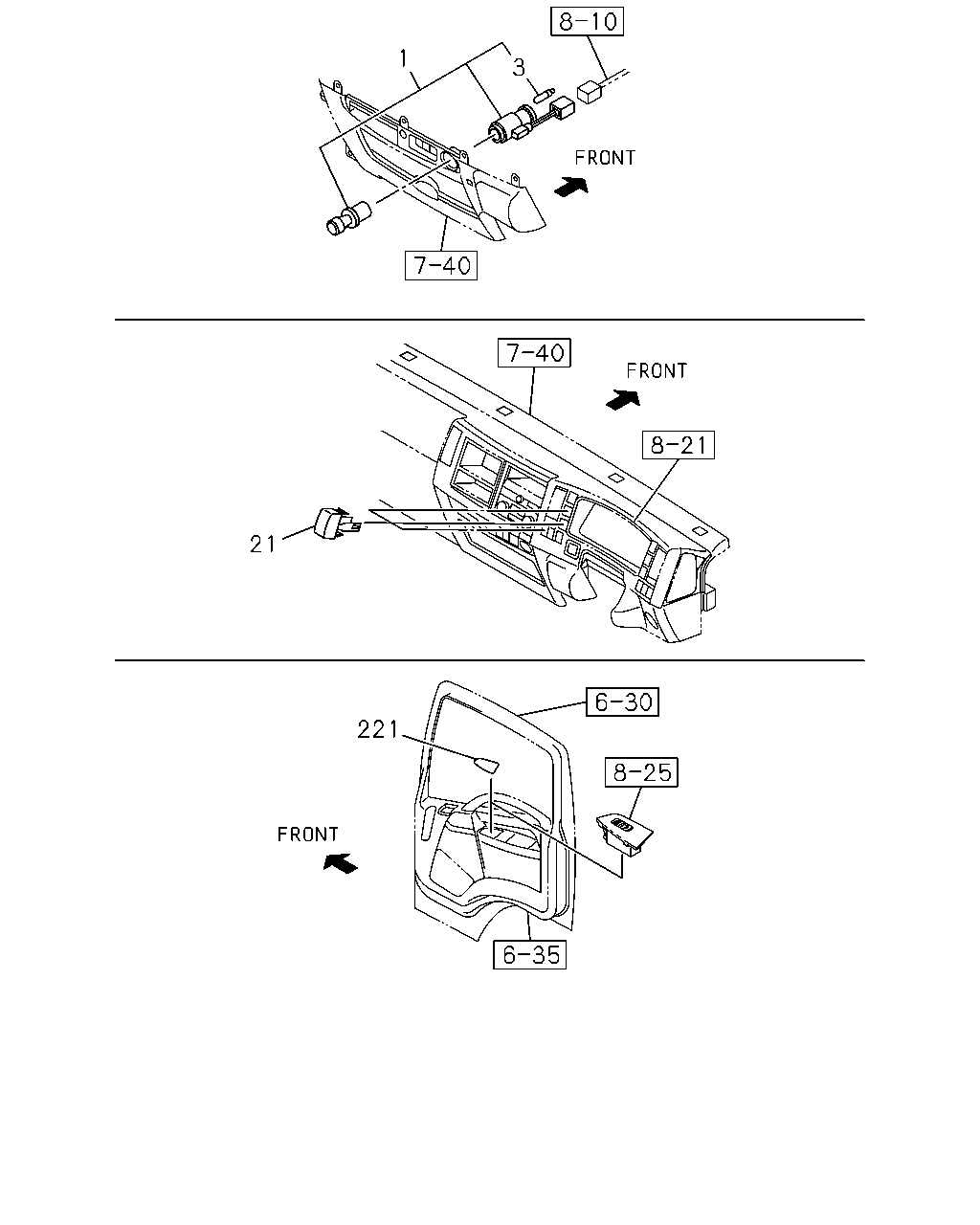

1 3 21 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.709 LIGHTER; CIGAR IDN	8-97320-325-0	01	1	0804-0906
1	09.709 LIGHTER; CIGAR IDN	8-98142-962-0	01	1	0907-
3	08.991 BULB; CIGAR LIGHTER 28V 1.8W IDN	8-97173-159-0	01	1	0804-0906
21	09.744 COVER; HOLE 16.081	8-98025-954-1	01	1	0804-
21	09.744 COVER; HOLE 16.081	8-98025-954-1	01	1	0804-
21	09.744 COVER; HOLE 16.081	8-98025-954-1	01	1	0804-
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32> IDN	8-98029-915-2	01	1	0804-
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32> IDN	8-98029-916-2	01	1	0804-

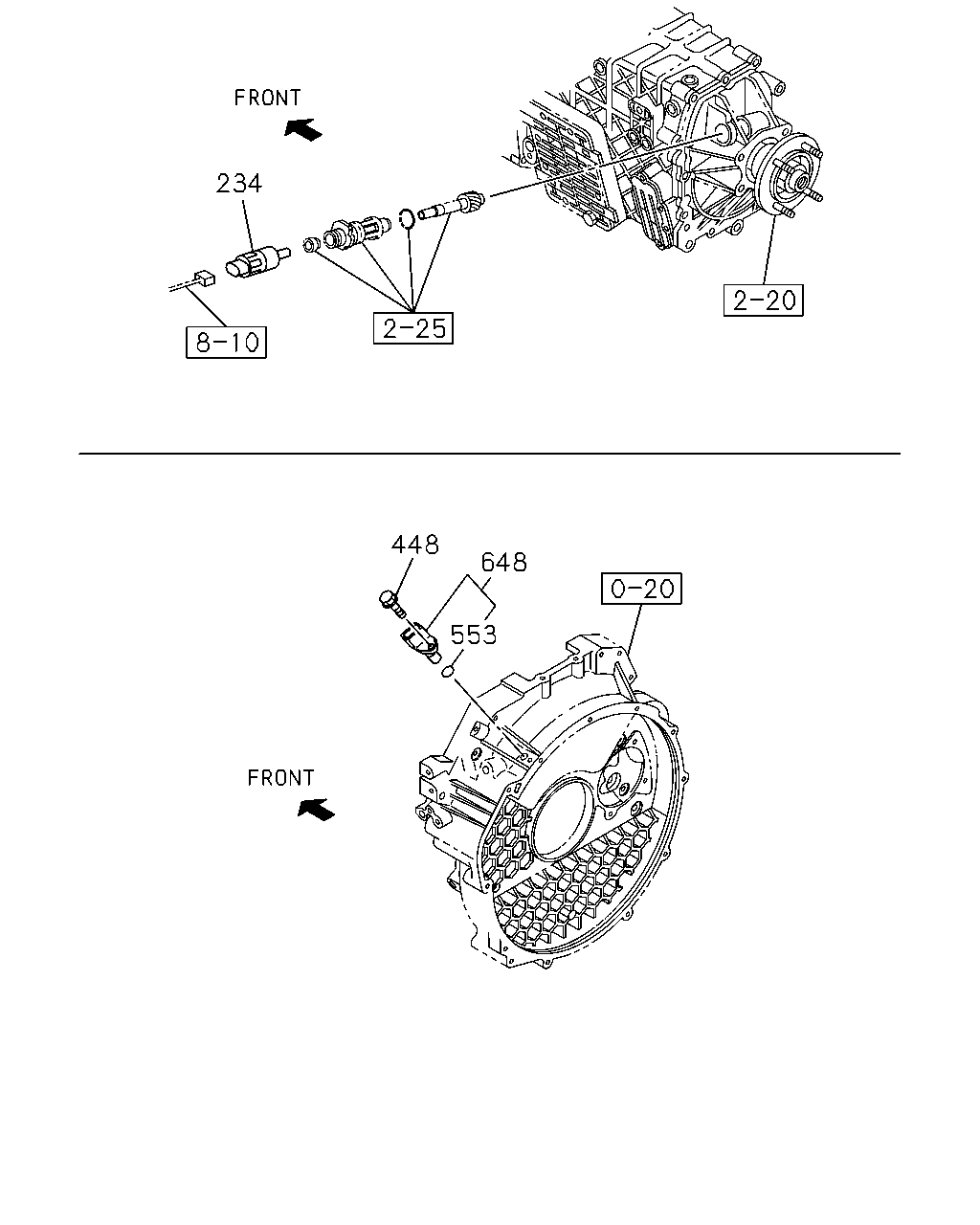

234 448 648 553

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
234	03.682 SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	0804-
448	02.500 BOLT; SENSOR 09.242 M6X16 FLANGE IDN	0-28050-616-0	01	1	0804-
553	02.500 GASKET 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	0804-
648	03.682 SENSOR; CRANK ANGLE	8-97606-943-0	01	1	0804-

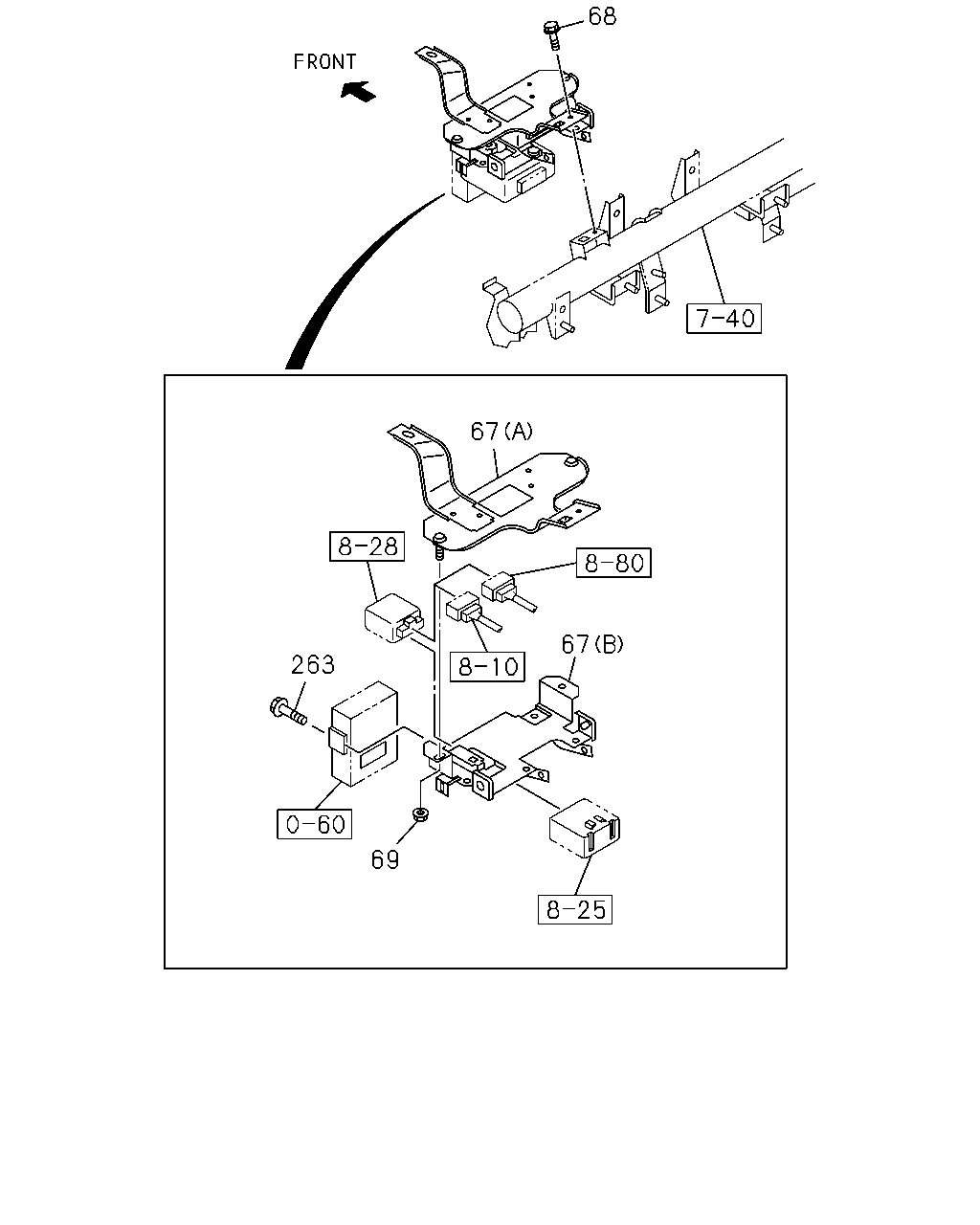

68 67 67 263 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	03.887 BRACKET; CONT UNIT (A) IDN	8-98022-170-1	01	1	0804-
67	03.887 BRACKET; CONT UNIT (B)	8-98022-206-2	01	1	0804-1111
67	03.887 BRACKET; CONT UNIT (B)	8-98203-057-0	01	1	1112-1207
67	03.887 BRACKET; CONT UNIT (B)	8-98217-377-0	01	1	1208-1212
67	03.887 BRACKET; CONT UNIT (B)	8-98237-555-0	01	1	1301-1404
67	03.887 BRACKET; CONT UNIT (B)	8-98217-377-0	01	1	1405-
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE IDN	0-28450-612-0	01	1	0804-
69	02.458 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-
263	04.115 BOLT; CONT UNIT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0804-0809
