8-10 — WIRING HARNESS AND FUSE (#52549) — 122 parça

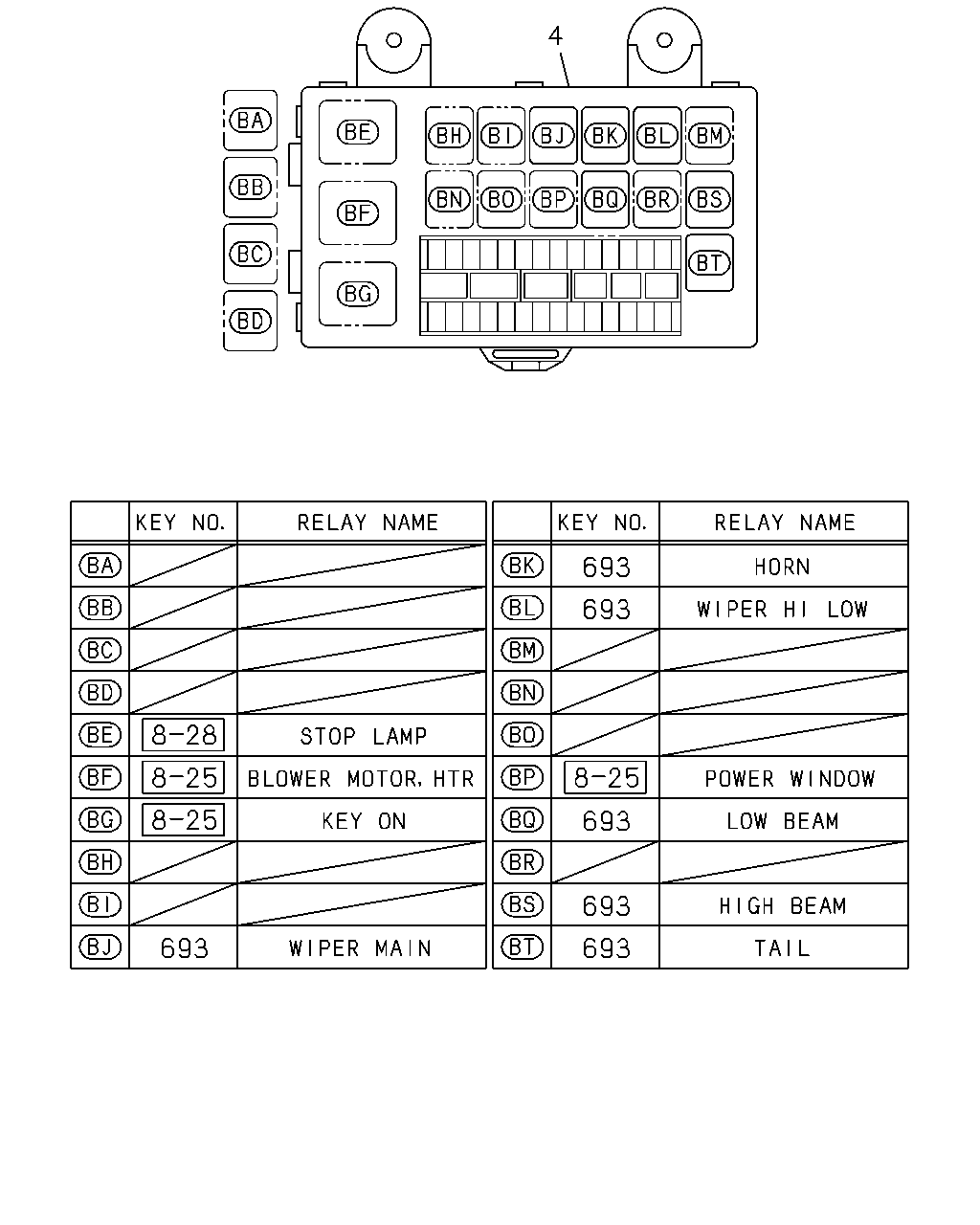

çizim 149761
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0804-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0804-

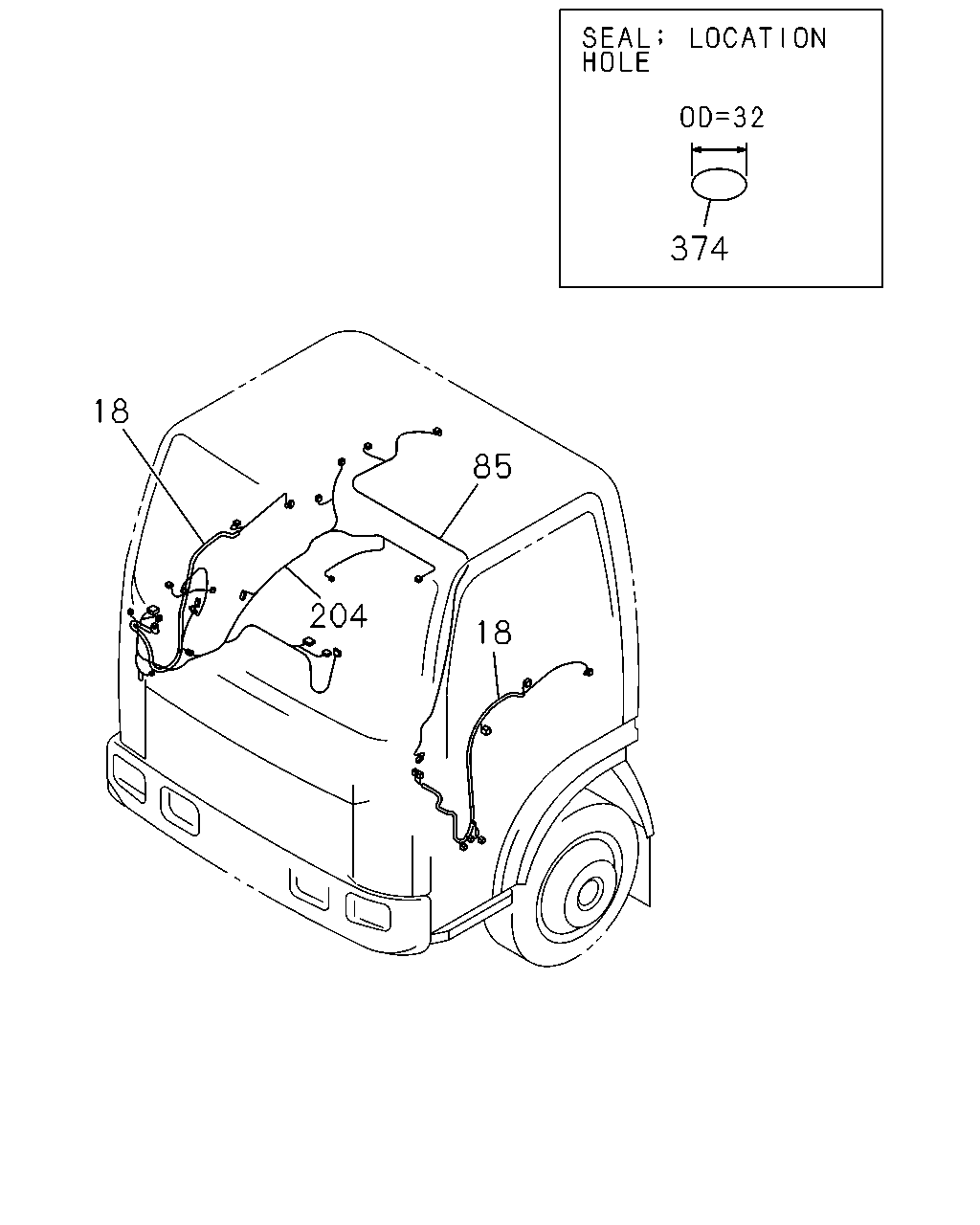

çizim 149763
374 18 85 204 18
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-076-2 01 1 0804-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-084-3 01 1 0804-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-98071-075-2 01 1 0804-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-98071-083-2 01 1 0804-
85 06.495 HARNESS; ROOM LAMP
IDN 		8-98047-149-3 01 1 0804-
204 02.559 HARNESS; CABLE,FLOOR
IDN 		8-98070-787-4 01 1 0804-
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0804-

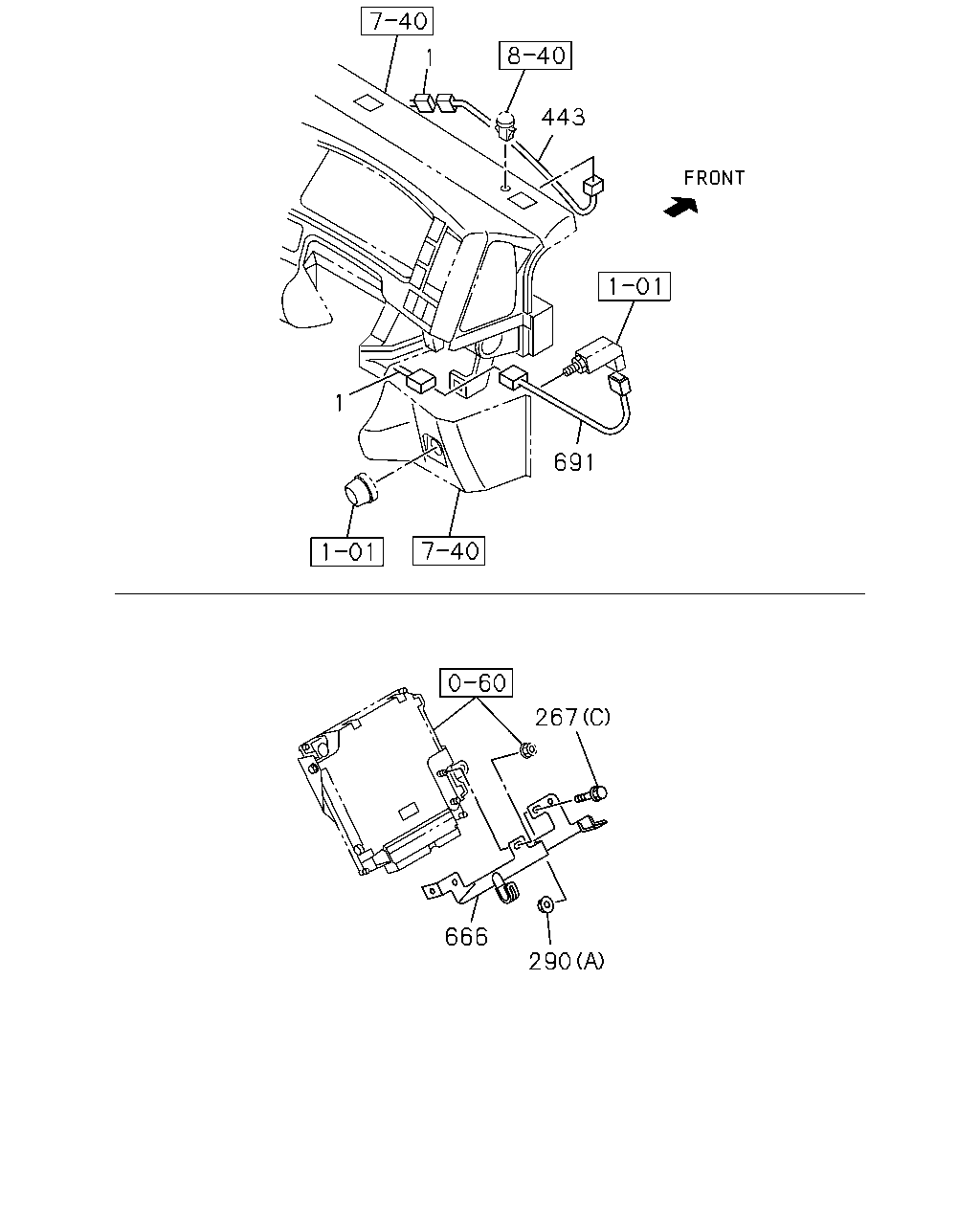

çizim 149767
1 443 1 691 267 666 290
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB 8-98087-867-5 01 1 0804-1005
1 02.480 HARNESS; CAB 8-98158-584-1 01 1 1006-1204
1 02.480 HARNESS; CAB 8-98207-655-0 01 1 1205-
267 02.483 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0804-
267 02.483 BOLT; BRKT
03.162 (C) M6X12 FLANGE 		0-28050-612-0 02 1 0804-
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 0804-
290 02.483 NUT; BRKT
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 02 1 0804-
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE IDN 		0-91180-108-0 01 1 0804-
443 02.480 HARNESS; EXT,A/C
COOLER WO/HEATER(C65) 		8-98103-712-0 01 1 0804-
666 02.483 BRACKET; CLIP 8-98110-213-0 01 1 0804-
691 02.480 HARNESS; IDLE CONT
IDN 		8-98049-014-2 01 1 0804-

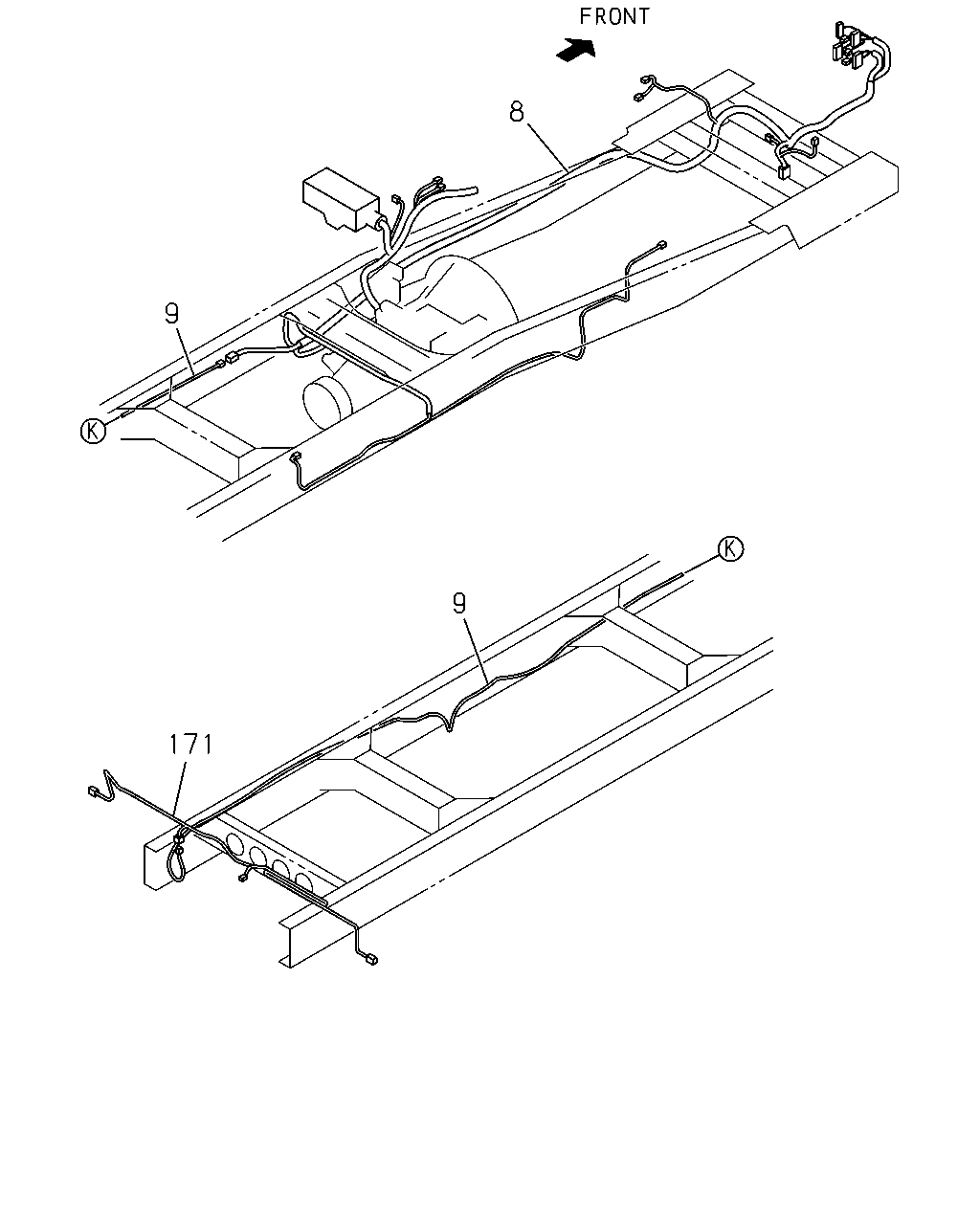

çizim 149771
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT 8-98070-282-6 01 1 0804-0804
8 02.480 HARNESS; FRAME,FRT 8-98115-312-4 01 1 0804-1409
8 02.480 HARNESS; FRAME,FRT 8-98294-279-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR 8-98067-972-1 01 1 0804-0805
9 02.480 HARNESS; FRAME,RR 8-98117-250-0 01 1 0806-
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0804-0911
171 02.596 HARNESS; CABLE,TAIL LAMP
IDN 		8-98156-028-0 01 1 0912-

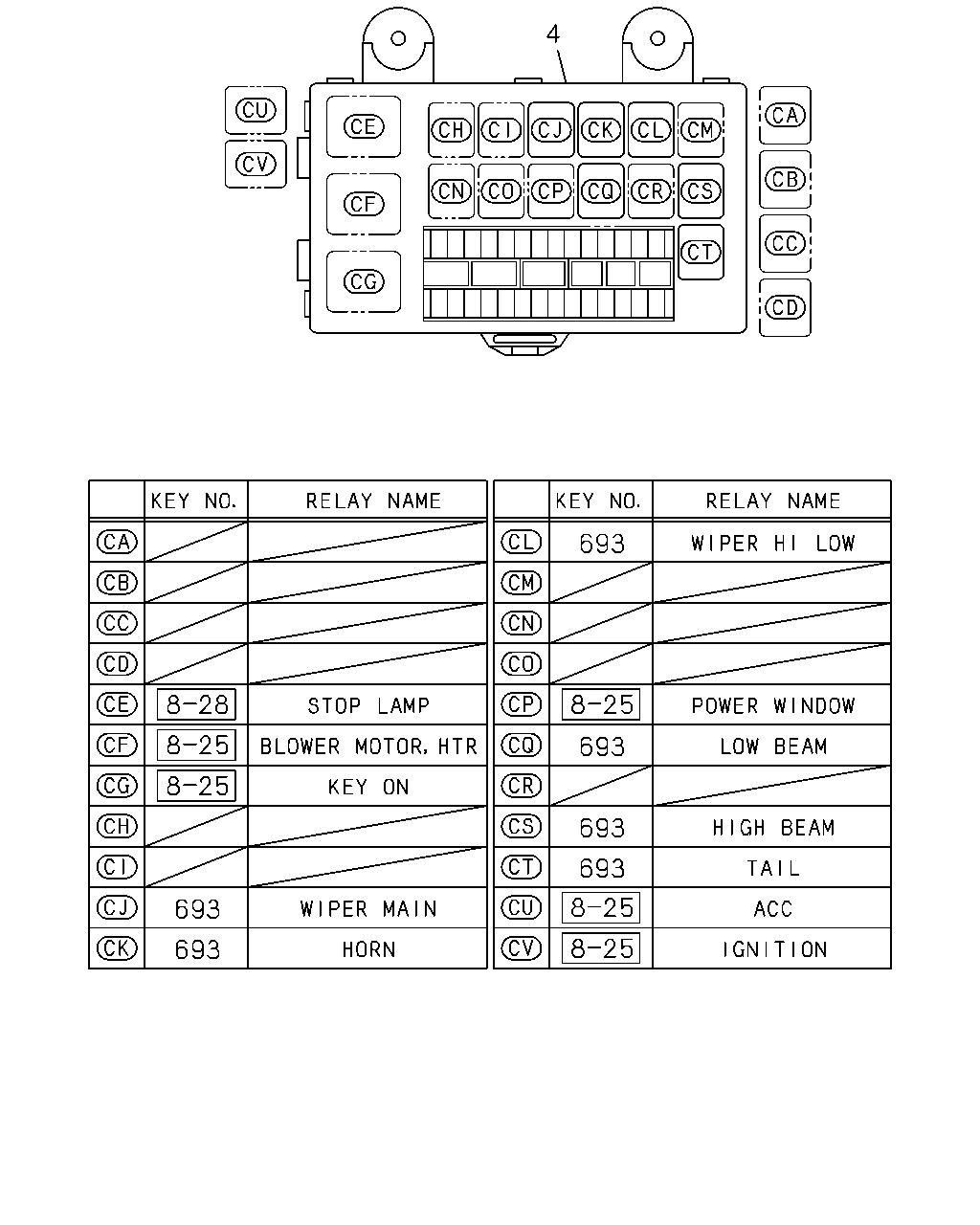

çizim 149772
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0804-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0804-

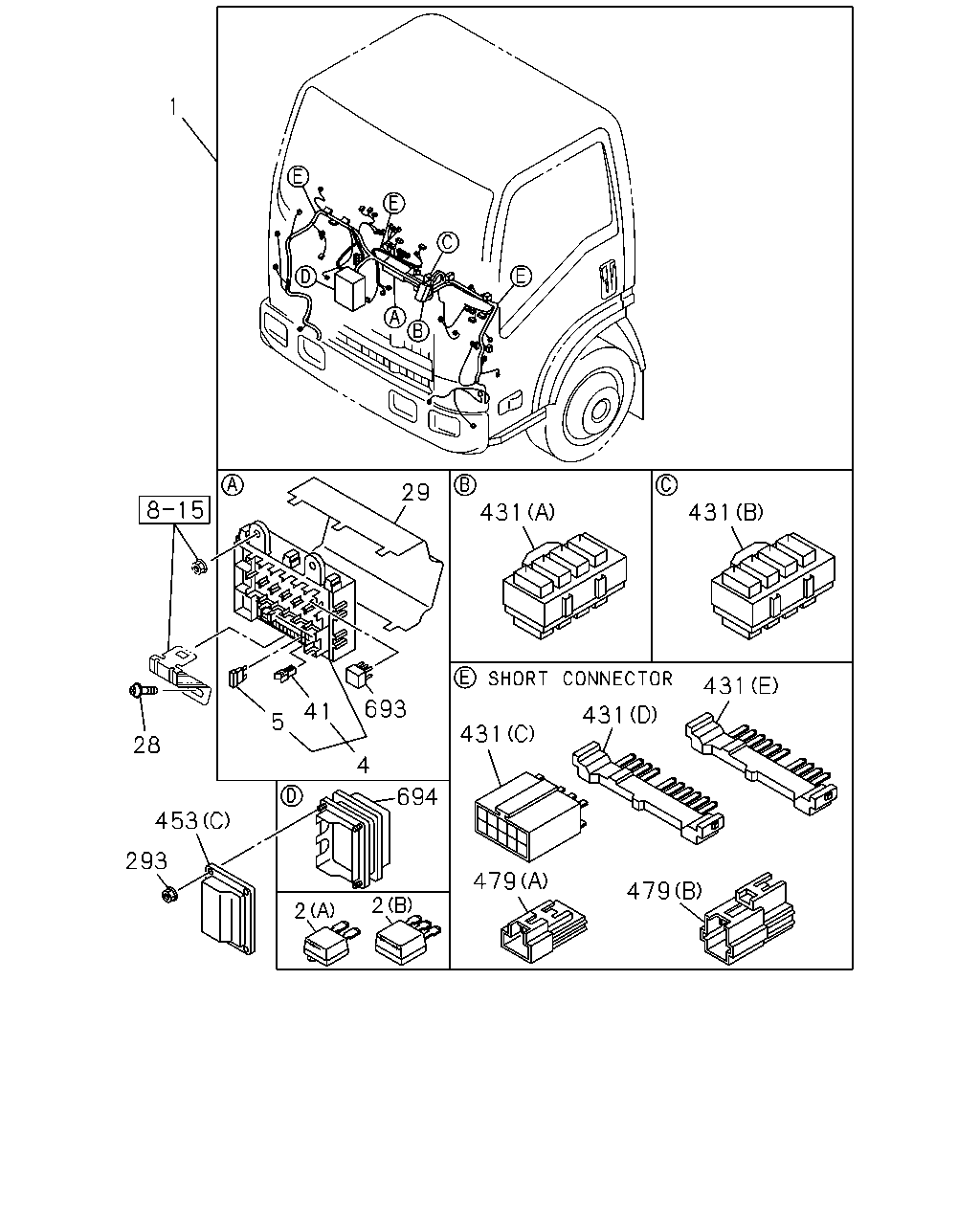

çizim 149775
1 29 431 431 431 693 41 431 5 431 28 4 694 453 293 479 479 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB 8-98087-867-5 01 1 0804-1005
1 02.480 HARNESS; CAB 8-98158-584-1 01 1 1006-1204
1 02.480 HARNESS; CAB 8-98207-655-0 01 1 1205-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A IDN 		8-94422-639-1 AR 1 0804-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A IDN 		8-94422-640-1 AR 1 0804-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0804-
5 02.485 FUSE; FACIA HARNESS
10A RED IDN 		8-98054-257-0 AR 1 0804-
5 02.485 FUSE; FACIA HARNESS
15A BLUE IDN 		8-98054-258-0 AR 1 0804-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW IDN 		8-98054-259-0 AR 1 0804-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX
IDN 		8-98056-968-0 01 1 0804-
41 08.821 PULLER; FUSE
IDN 		8-98054-260-0 01 1 0804-
293 02.559 NUT
01.062 M6 FLANGE IDN 		0-91180-106-0 04 1 0804-
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE IDN 		1-82699-598-0 02 1 0804-1005
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE IDN 		1-82699-598-0 01 1 1006-1204
431 02.530 CONNECTOR; JOINT
(E) 10P GREEN IDN 		1-82699-599-0 01 1 0804-1204
431 02.530 CONNECTOR; JOINT
(C) 10P IDN 		8-97077-943-0 02 1 0804-1204
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 0804-
431 02.530 CONNECTOR; JOINT
(B) IDN 		8-98046-206-0 01 1 0804-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 0804-
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 02 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 02 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 02 1 0805-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0805-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN 		8-98108-678-0 01 1 0804-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) IDN 		8-98108-679-0 01 1 0804-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0804-
694 02.483 BOX ASM; CONNECTOR
IDN 		8-98057-772-0 01 1 0804-

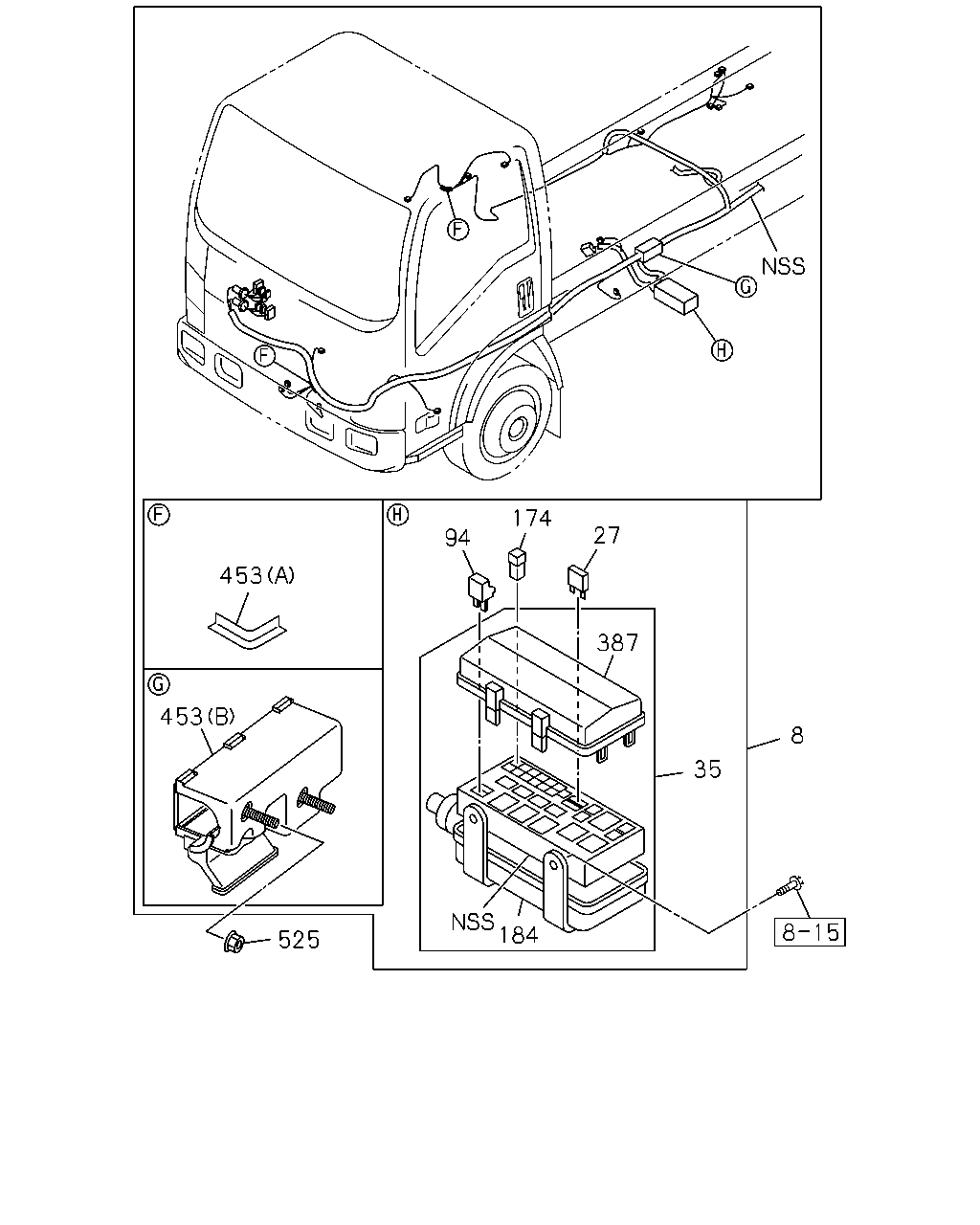

çizim 149789
174 27 94 453 387 453 8 35 184 525
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT 8-98070-282-6 01 1 0804-0804
8 02.480 HARNESS; FRAME,FRT 8-98115-312-4 01 1 0804-1409
8 02.480 HARNESS; FRAME,FRT 8-98294-279-0 01 1 1410-
27 08.965 FUSE UNIT
02.485 10A RED IDN 		8-98054-257-0 AR 1 0804-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0804-0804
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0804-0804
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0805-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0804-0804
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0804-0804
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0805-
174 08.965 FUSE; SLOW BLOW
30A PINK IDN 		8-98079-191-0 AR 1 0804-
174 08.965 FUSE; SLOW BLOW
40A GREEN IDN 		8-98079-192-0 AR 1 0804-
174 08.965 FUSE; SLOW BLOW
50A RED IDN 		8-98079-193-0 AR 1 0804-
174 08.965 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 AR 1 0804-
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98030-766-0 01 1 0804-0804
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98030-766-0 01 1 0804-0804
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98030-766-0 01 1 0805-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0804-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 0804-
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 02 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 02 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 02 1 0805-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0804-0804
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0805-
525 08.919 NUT; CLIP
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804-

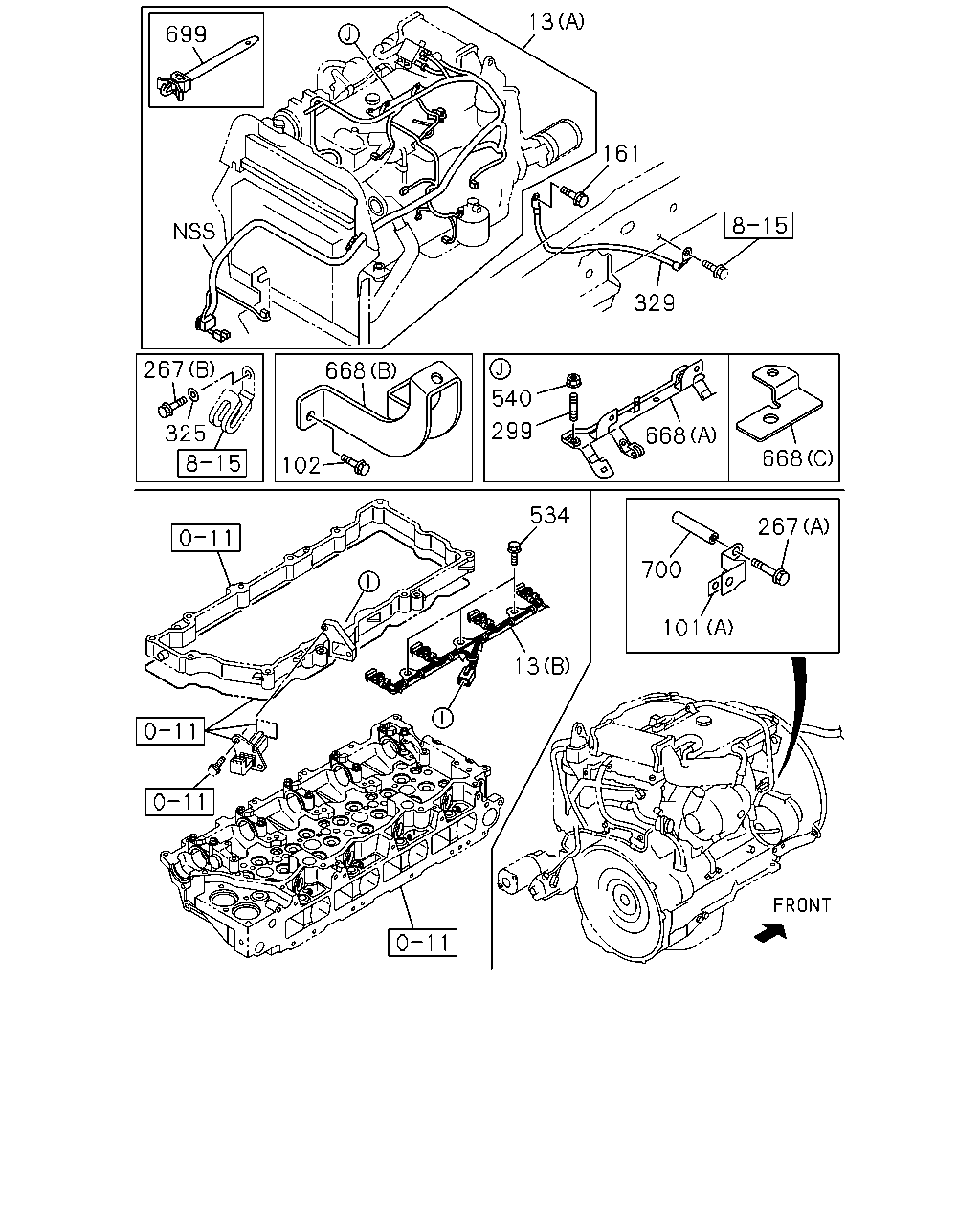

çizim 149809
101 267 700 534 13 668 668 299 540 668 102 325 267 699 13 161 329
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98076-299-7 01 1 0804-0906
13 02.525 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98149-125-0 01 1 0907-1012
13 02.525 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98178-534-0 01 1 1101-1202
13 02.525 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98209-819-0 01 1 1203-
13 02.525 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98076-298-7 01 1 0804-0906
13 02.525 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98149-126-0 01 1 0907-1012
13 02.525 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98178-535-0 01 1 1101-1202
13 02.525 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98209-820-0 01 1 1203-
13 02.525 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0804-1007
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98052-805-0 01 1 0804-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98094-483-1 01 1 0804-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
00.029 M10X16 FLANGE 		0-28151-016-0 02 1 0804-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0804-
267 02.483 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0804-
267 02.483 BOLT; BRKT
03.162 (C) M6X12 FLANGE 		0-28050-612-0 02 1 0804-
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 0804-
299 02.559 STUD; BRKT
01.062 M6X18 L=27 		0-41010-618-0 02 1 0907-1202
325 02.483 WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONT(C60) 06.168 ID=8.4 OD=18 		0-91610-608-0 01 1 0804-
329 02.480 CABLE; ENG TO FRAME 8-98039-304-2 01 1 0804-0804
329 02.480 CABLE; ENG TO FRAME 8-98102-465-0 01 1 0805-
534 02.483 BOLT
00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0804-0805
534 02.483 BOLT
00.683 M10X55 FLANGE 		8-97365-449-0 03 1 0806-
540 02.483 NUT; BRKT FIX
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0907-1202
668 02.559 BRACKET; HARNESS
(B) 		8-98011-484-0 01 1 0804-
668 02.559 BRACKET; HARNESS
(A) 		8-98061-805-1 02 1 0907-1004
668 02.559 BRACKET; HARNESS
(A) 		8-98061-805-2 01 1 1005-1202
668 02.559 BRACKET; HARNESS
(C) 		8-98205-089-0 01 1 1203-
699 02.559 CLIP; ENG HARNESS
04.128 L=213.5 		8-98000-506-1 01 1 0907-
699 02.559 CLIP; ENG HARNESS
L=146.2 		8-98052-677-0 01 1 0907-
700 02.483 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 0804-

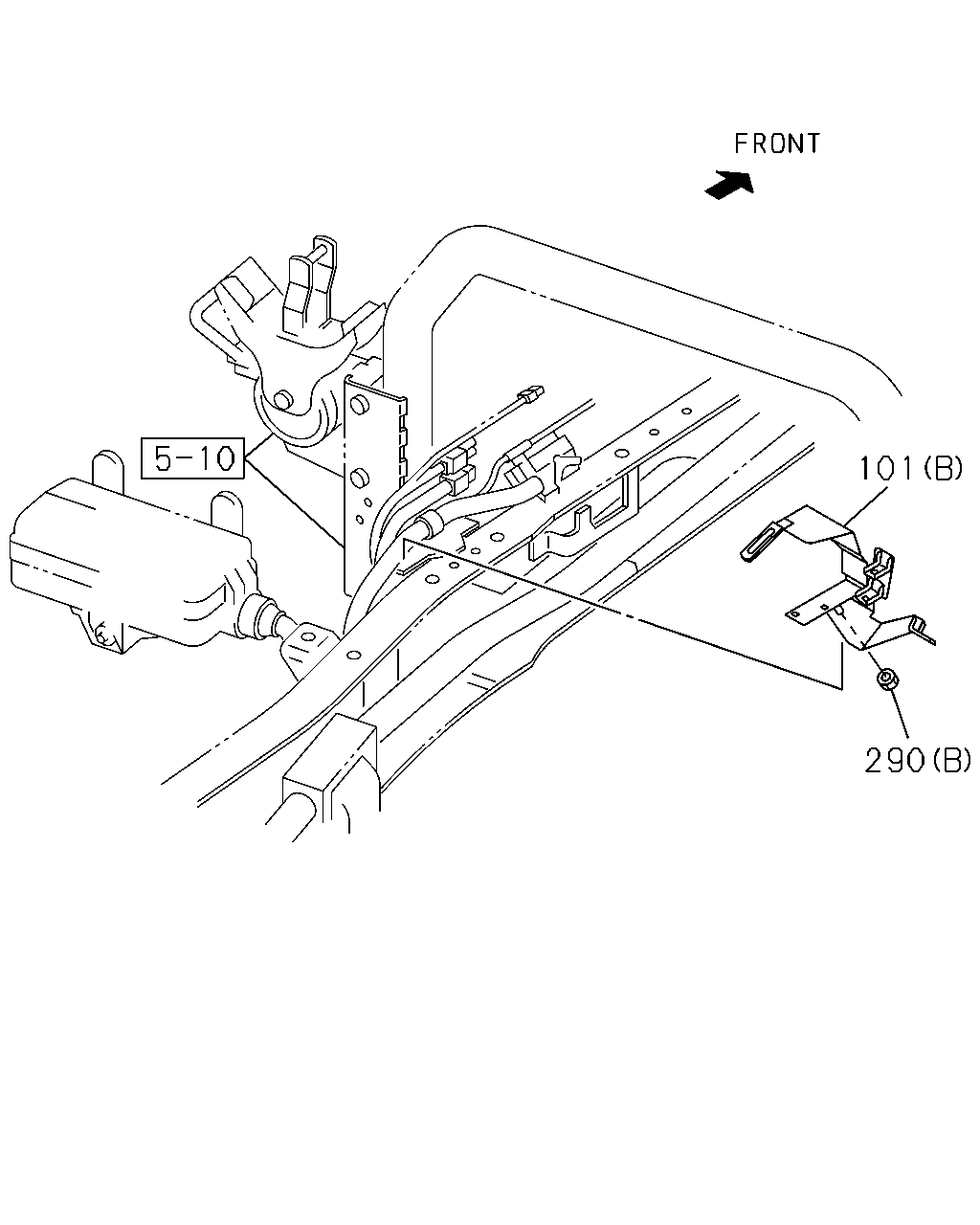

çizim 283468
101 290
BalonParca AdiParca NoAdetTipApplied Date
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98052-805-0 01 1 0804-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98094-483-1 01 1 0804-
290 02.483 NUT; BRKT
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 02 1 0804-
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE IDN 		0-91180-108-0 01 1 0804-
