7-60 — SEAT BELT (#52545) — 18 parça

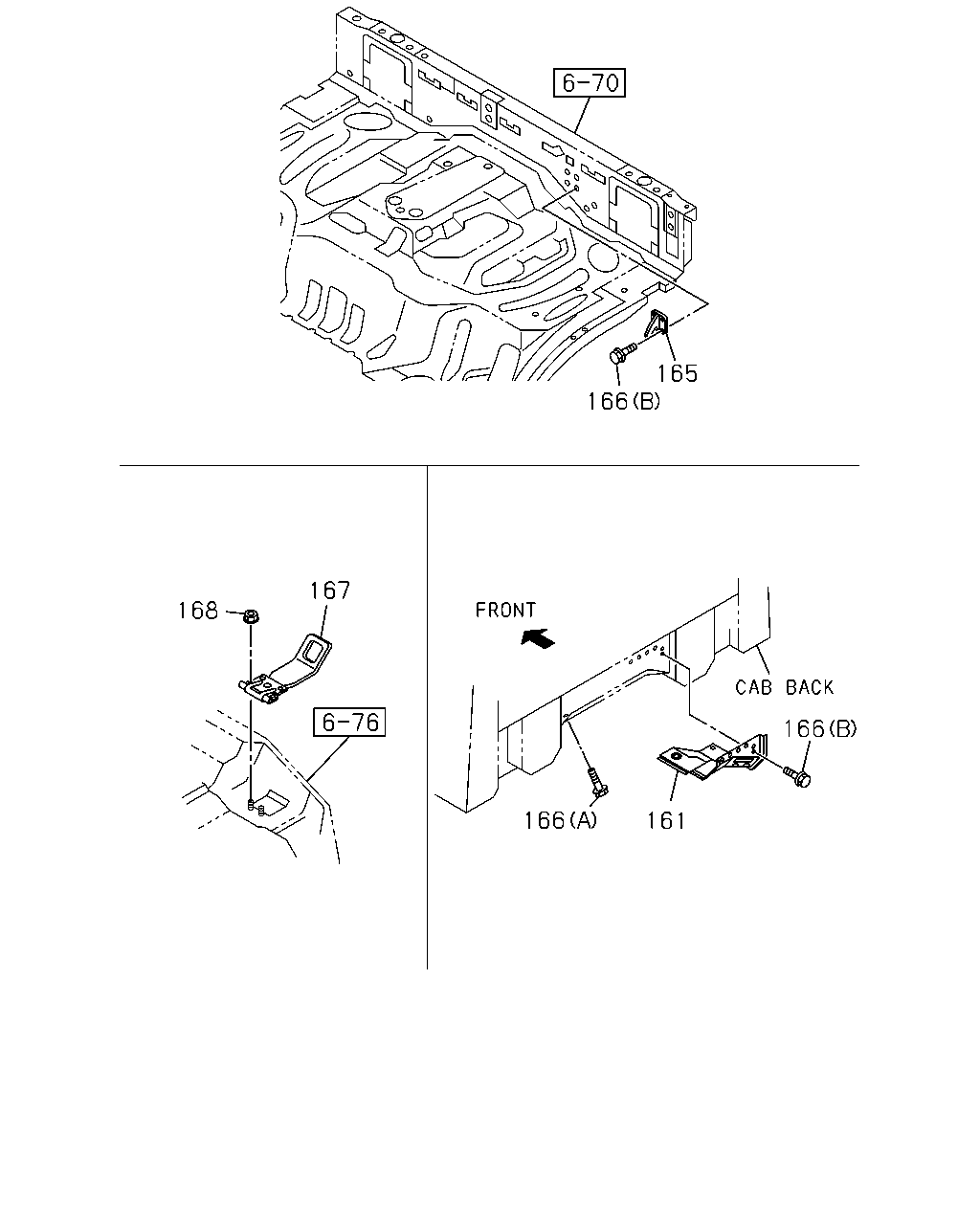

165 166 167 168 166 166 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545 IDN	8-98015-216-2	01	1	0804-
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> IDN	8-98040-143-0	01	1	0804-
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	04	1	0804-
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	05	1	0804-
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0804-
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA> IDN	8-97589-140-0	01	1	0804-
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-

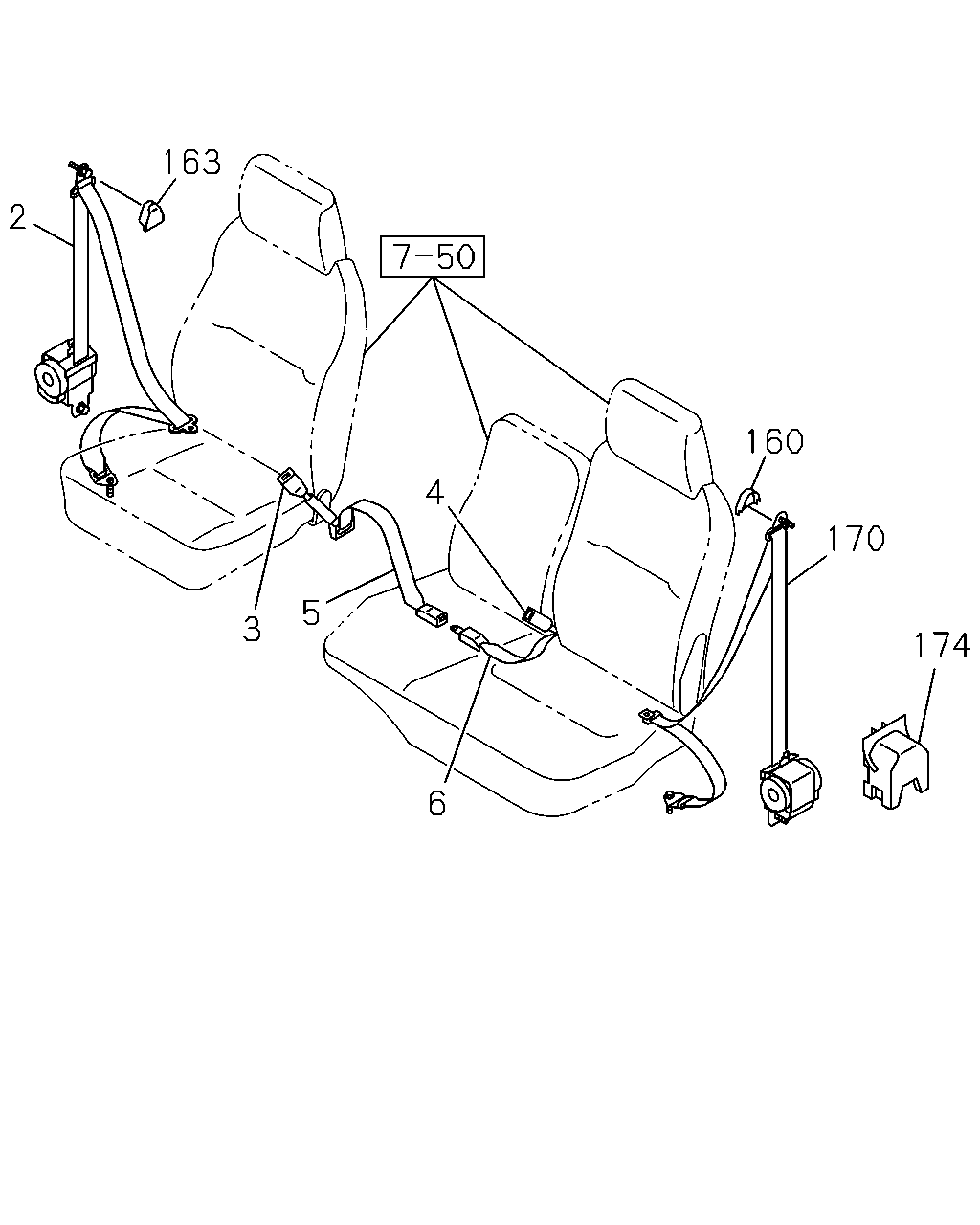

163 2 160 4 170 5 3 174 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	16.714 BELT; SEAT,TONGUE SIDE GRAY	8-97405-180-7	01	1	0804-1406
2	16.714 BELT; SEAT,TONGUE SIDE GRAY IDN	8-97428-457-1	01	1	1407-
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY IDN	8-97405-175-2	01	1	0804-
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY IDN	8-97405-178-0	01	1	0804-
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY IDN	8-97405-182-1	01	1	0804-
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY IDN	8-97411-507-2	01	1	0804-
160	16.714 COVER; THROUGH ANCHOR GRAY IDN	8-97405-991-0	01	1	0804-
163	16.714 COVER; ADJUSTER GRAY IDN	8-97405-991-0	01	1	0804-
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97405-180-7	01	1	0804-1406
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE GRAY IDN	8-97428-457-1	01	1	1407-
174	16.714 COVER; RETRACTOR,SEAT BELT IDN	8-98039-376-1	01	1	0804-
