Sayfa 7-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶

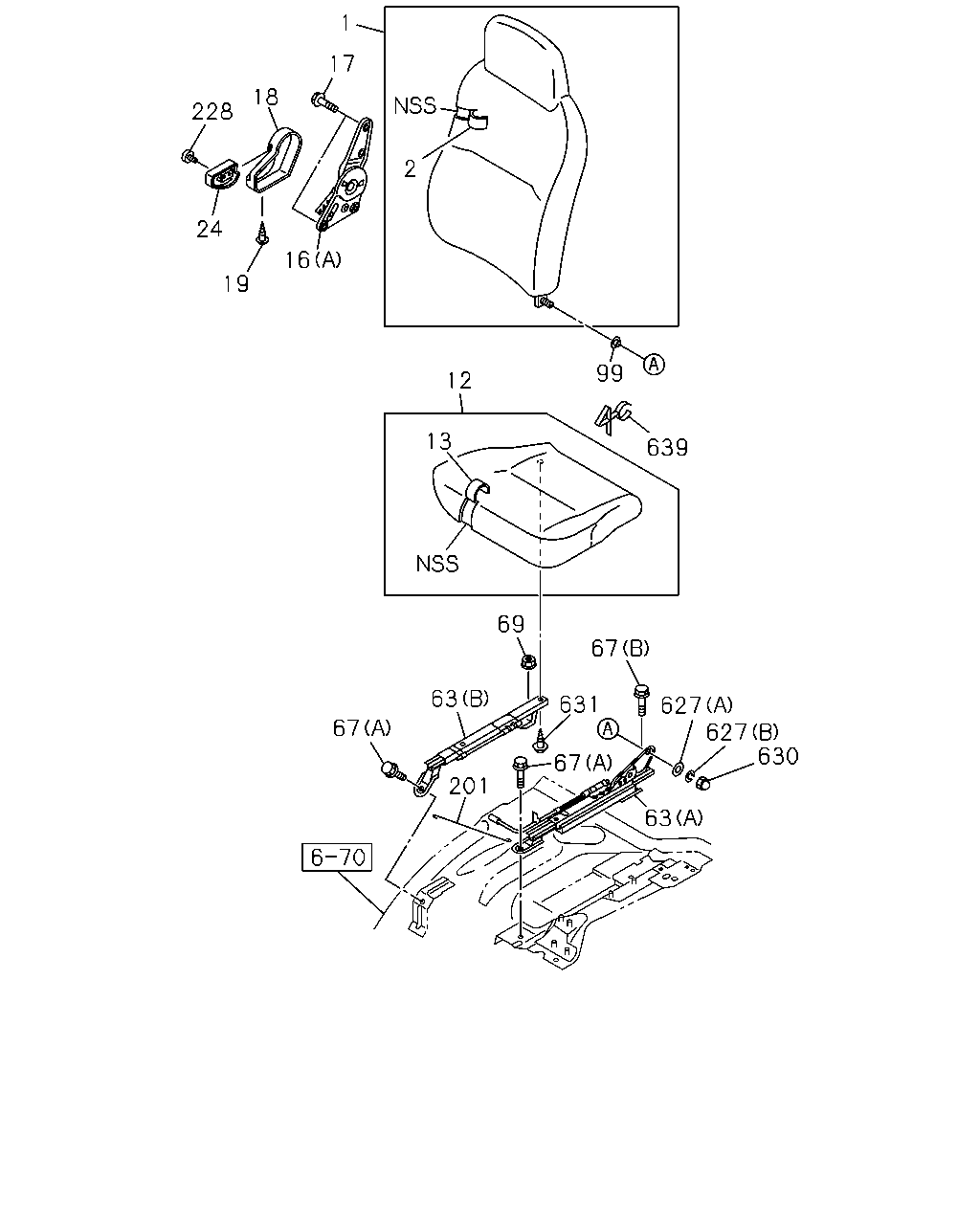

7-50 — FRONT SEAT (#52544) — 128 parça

1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-142-7	01	1	0804-
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	0804-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-145-5	01	1	0804-1009
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1010-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-313-6	01	1	0804-1009
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN	8-97421-234-1	01	1	1010-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-910-2	01	1	0804-
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	0804-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-146-1	01	1	0804-1009
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1010-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-319-2	01	1	0804-1009
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN	8-97421-253-0	01	1	1010-
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-149-0	01	1	0804-
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	0804-
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	0804-
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-322-4	01	1	0804-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-3	01	1	0804-0902
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-252-1	01	1	0903-1009
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-2	01	1	1010-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-323-3	01	1	0804-0902
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-251-1	01	1	0903-1009
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-240-2	01	1	1010-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-150-1	01	1	0804-1009
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-2	01	1	1010-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-708-1	01	1	0804-1009
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN	8-97421-247-2	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	0804-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	0804-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-328-2	01	1	0804-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-860-0	01	1	0804-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-2	01	1	0804-0902
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-260-0	01	1	0903-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-2	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-329-3	01	1	0804-0902
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-259-0	01	1	0903-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-259-2	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-151-1	01	1	0804-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-2	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-709-1	01	1	0804-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN	8-97421-267-2	01	1	1010-
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	0804-
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB IDN	8-97859-274-3	01	1	0804-
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0804-
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0804-
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0804-
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0804-
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0804-
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0804-
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0804-
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE IDN	8-98055-941-0	02	1	0804-
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE IDN	8-98055-942-0	01	1	0804-
69	16.682 NUT; FRT SEAT M10 FLANGE IDN	8-98055-961-0	01	1	0804-
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0804-0804
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0805-
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0804-
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0804-
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0804-
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0804-
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0804-
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0804-

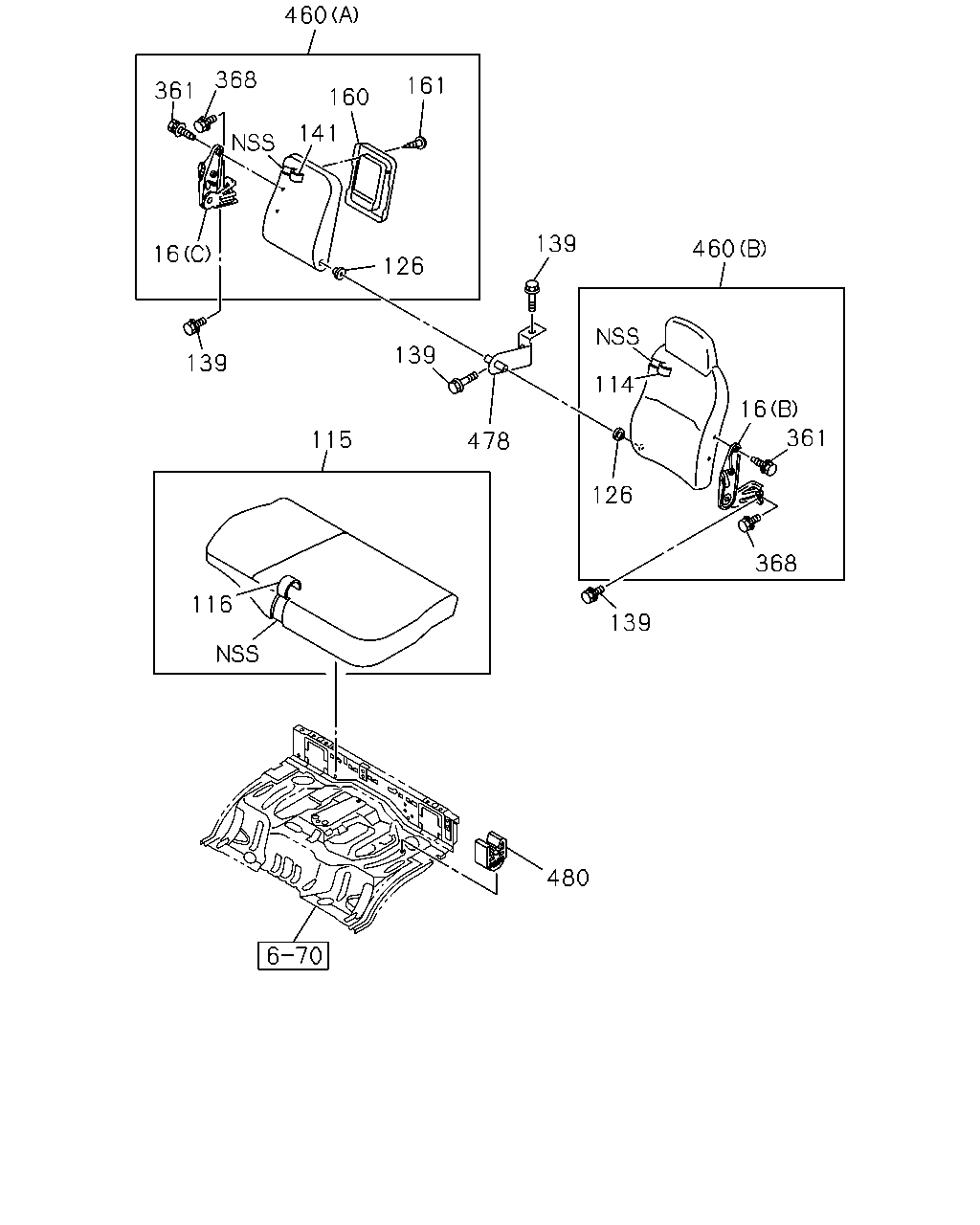

460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 115 478 126 368 116 139 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	0804-
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB IDN	8-97859-274-3	01	1	0804-
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0804-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97409-277-1	01	1	0804-0912
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-277-1	01	1	1001-1009
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY IDN	8-97421-291-0	01	1	1010-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-276-1	01	1	0804-0912
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-276-1	01	1	1001-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-720-0	01	1	1001-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-721-0	01	1	1001-1009
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-292-0	01	1	1010-
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97405-346-5	01	1	0804-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-347-3	01	1	0804-0902
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-274-0	01	1	0903-1009
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY IDN	8-97421-321-3	01	1	1010-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-344-4	01	1	0804-0902
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-273-0	01	1	0903-0912
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-706-0	01	1	1001-1009
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-320-3	01	1	1010-
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-343-4	01	1	0804-0912
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-705-2	01	1	1001-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-290-3	01	1	0804-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-291-2	01	1	0804-0902
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-289-0	01	1	0903-1009
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY IDN	8-97421-341-2	01	1	1010-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-288-2	01	1	0804-0902
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-288-0	01	1	0903-0912
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-735-0	01	1	1001-1009
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-340-2	01	1	1010-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-287-2	01	1	0804-0912
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-734-1	01	1	1001-
126	16.686 BUSHING; HINGE,RECLINING IDN	8-98069-558-0	02	1	0804-
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	0804-
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97409-334-1	01	1	0804-0912
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-334-1	01	1	1001-1009
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY IDN	8-97421-305-1	01	1	1010-
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-336-1	01	1	0804-0912
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-336-2	01	1	1001-
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-726-0	01	1	1001-
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-727-0	01	1	1001-1009
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-306-0	01	1	1010-
160	16.650 CONSOLE; UPR,BACK CENTER GRAY IDN	8-97405-361-1	01	1	0804-
161	16.650 SCREW; CONSOLE M4X12 IDN	8-94279-351-0	03	1	0804-0812
161	16.650 SCREW; CONSOLE M4X12 IDN	8-94279-351-0	04	1	0901-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0804-
368	16.682 BOLT; SEAT 16.679 M8X20 W/PL WASHER	8-98031-841-0	01	1	0804-0804
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER IDN	8-94279-217-0	01	1	0804-0804
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER IDN	8-94279-217-0	02	1	0805-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-335-4	01	1	0804-0912
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97405-335-4	01	1	1001-1009
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY IDN	8-97421-278-0	01	1	1010-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-338-2	01	1	0804-0912
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97405-338-3	01	1	1001-1009
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY IDN	8-97421-299-1	01	1	1010-
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-334-4	01	1	0804-0912
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97405-334-4	01	1	1001-
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-337-2	01	1	0804-0912
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97405-337-4	01	1	1001-
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-691-0	01	1	1001-
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-697-2	01	1	1001-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-692-0	01	1	1001-1009
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-279-0	01	1	1010-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-698-1	01	1	1001-1009
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-300-1	01	1	1010-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA IDN	8-98002-092-0	01	1	0804-
480	16.716 CLIP; CUSHION IDN	8-94279-977-0	05	1	0804-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
