7-40 — INSTRUMENT PANEL AND BOX (#52540) — 183 parça

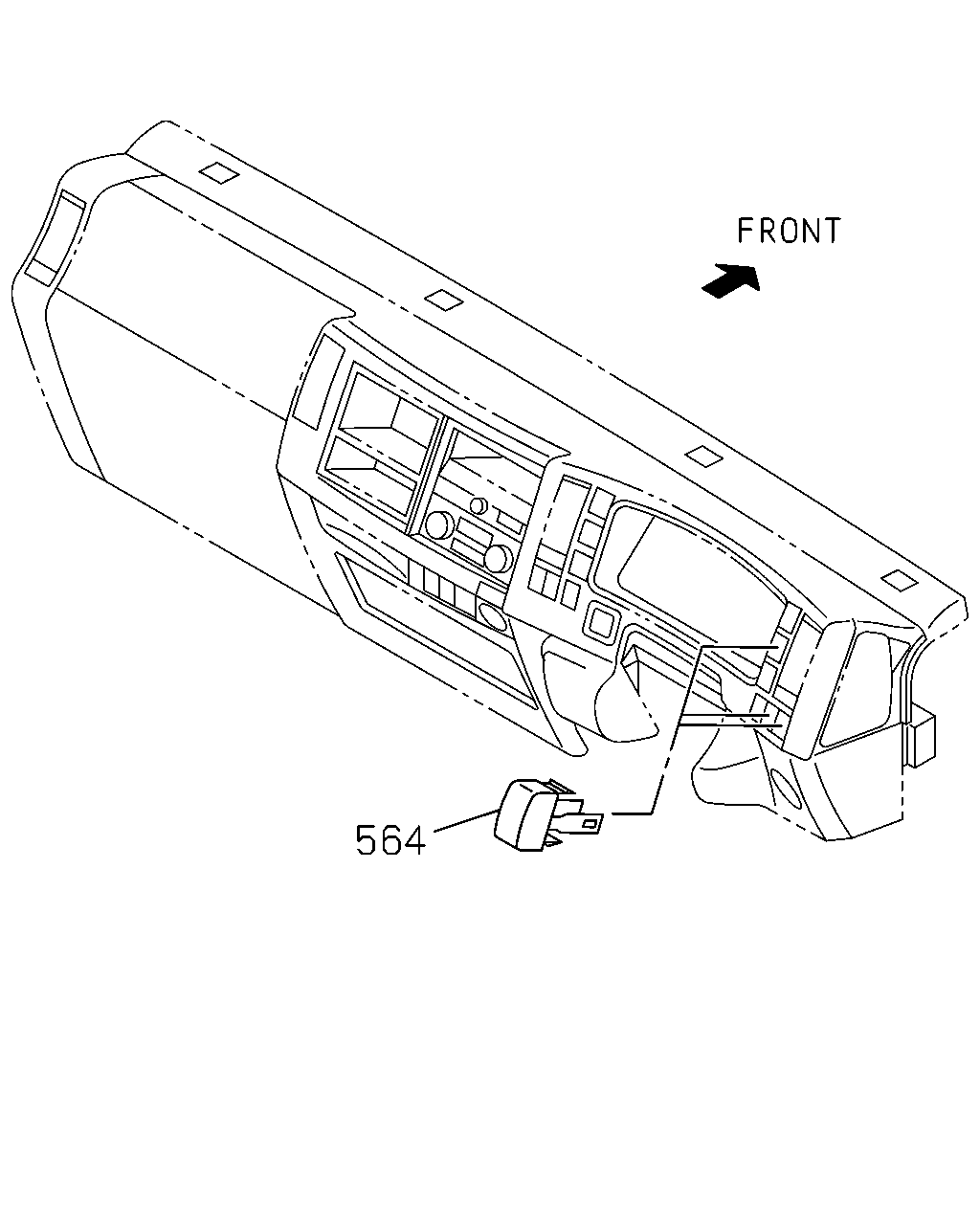

çizim 149747
564
BalonParca AdiParca NoAdetTipApplied Date
564 16.081 COVER; SW 8-98025-954-1 03 1 0804-

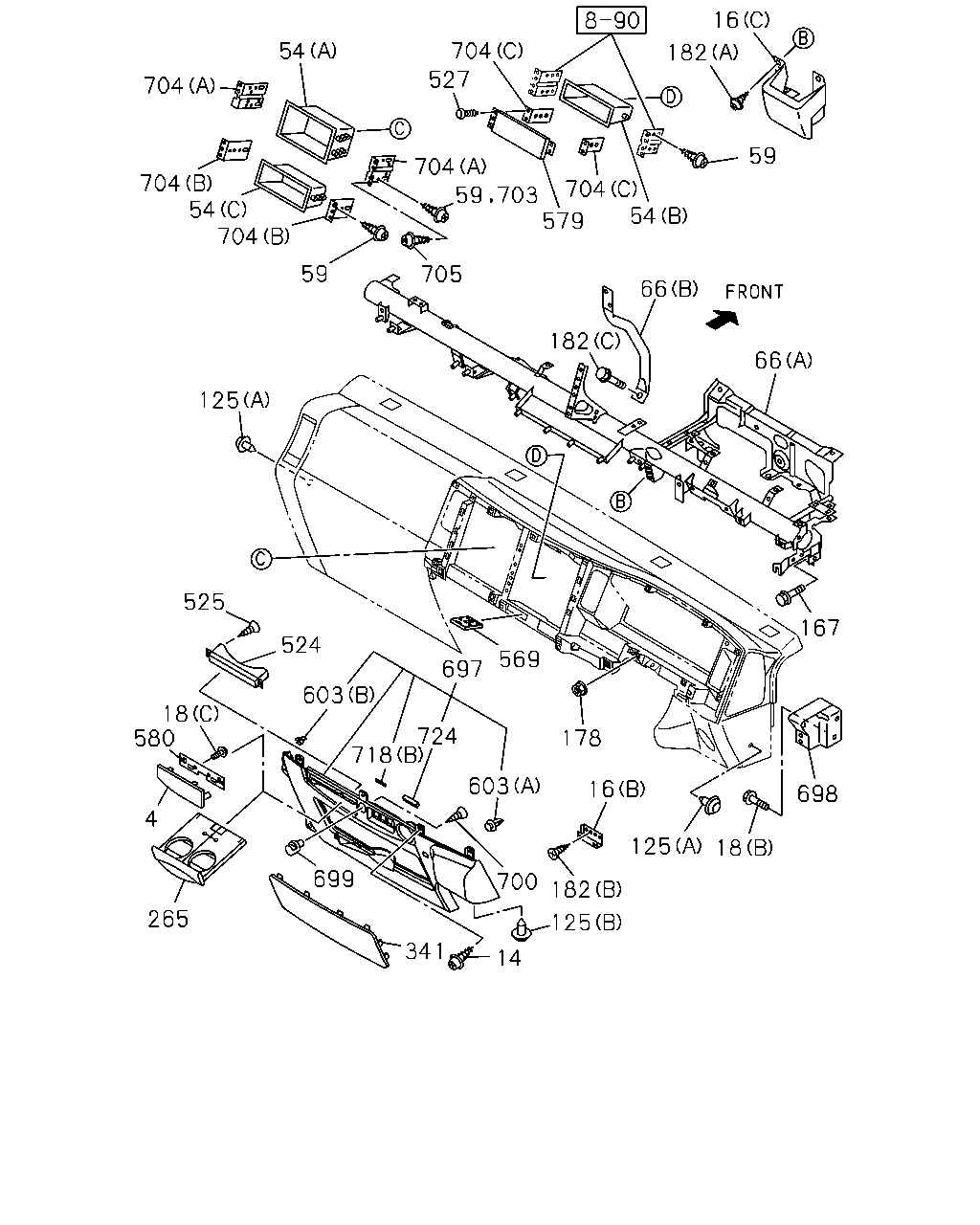

çizim 149758
16 704 54 182 527 704 59 704 704 54 704 704 54 579 59 705 66 182 66 125 525 167 524 569 697 603 18 580 724 718 178 603 16 698 4 125 18 699 700 182 265 125 341 14 59 703
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY IDN 		8-97407-898-1 01 1 0804-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 0804-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804-0810
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 0811-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804-0810
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 0811-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0804-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 0804-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 0804-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-2 01 1 0804-0808
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-2 01 1 0809-0810
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK IDN 		8-97408-865-2 01 1 0809-0810
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 0811-
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 0811-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-
66 16.085 REINFORCEMENT; INST PANEL
(B) IDN 		8-97585-578-1 01 1 0804-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-363-0 01 1 0804-0808
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98106-831-3 01 1 0809-1204
66 16.085 REINFORCEMENT; INST PANEL
(A) IDN 		8-98199-358-1 01 1 1205-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0804-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0804-0808
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0809-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0809-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(C) GRAY IDN 		8-97419-968-1 02 1 1002-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0804-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE IDN 		0-91180-106-0 03 1 0804-
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0804-
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-0810
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0811-1101
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0804-0909
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910-
341 16.110 LID; FUSE BOX
02.483 GRAY IDN 		8-97406-265-3 01 1 0804-1205
341 16.110 LID; FUSE BOX
GRAY IDN 		8-97423-658-0 01 1 1206-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0804-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0804-0810
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.742 DARK GRAY 		8-97098-326-0 01 1 0811-
569 16.100 HOLDER; CARD
IDN 		8-97410-276-1 01 1 0804-
579 16.080 COVER; INST PNL
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97408-909-0 01 1 0804-0808
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> IDN 		8-98091-546-0 01 1 0804-
603 16.090 CLIP; COVER
16.165 (A) IDN 		8-98004-025-0 01 1 0804-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 05 1 0804-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 05 1 0804-
697 16.080 PANEL; INST CENTER
GRAY IDN 		8-97405-256-8 01 1 0804-1205
697 16.080 PANEL; INST CENTER
GRAY IDN 		8-97423-656-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE
IDN 		8-98089-256-1 01 1 0804-
698 16.085 BRACKET; INST BAR SIDE
IDN 		8-98089-257-1 01 1 0804-
699 16.081 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 0804-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0804-
704 16.085 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 0804-
704 16.085 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 0804-
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98073-822-0 02 1 0804-0808
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) IDN 		8-98107-549-0 02 1 0809-0810
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) IDN 		8-98107-549-0 02 1 0811-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0804-0810
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0811-1101
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0811
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
718 16.100 SEAL; COVER
(B) 5X30 IDN 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 IDN 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 IDN 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 IDN 		8-98097-696-0 01 1 0804-
724 16.085 INSULATOR; INST PANEL
IDN 		8-98200-042-0 01 1 1110-

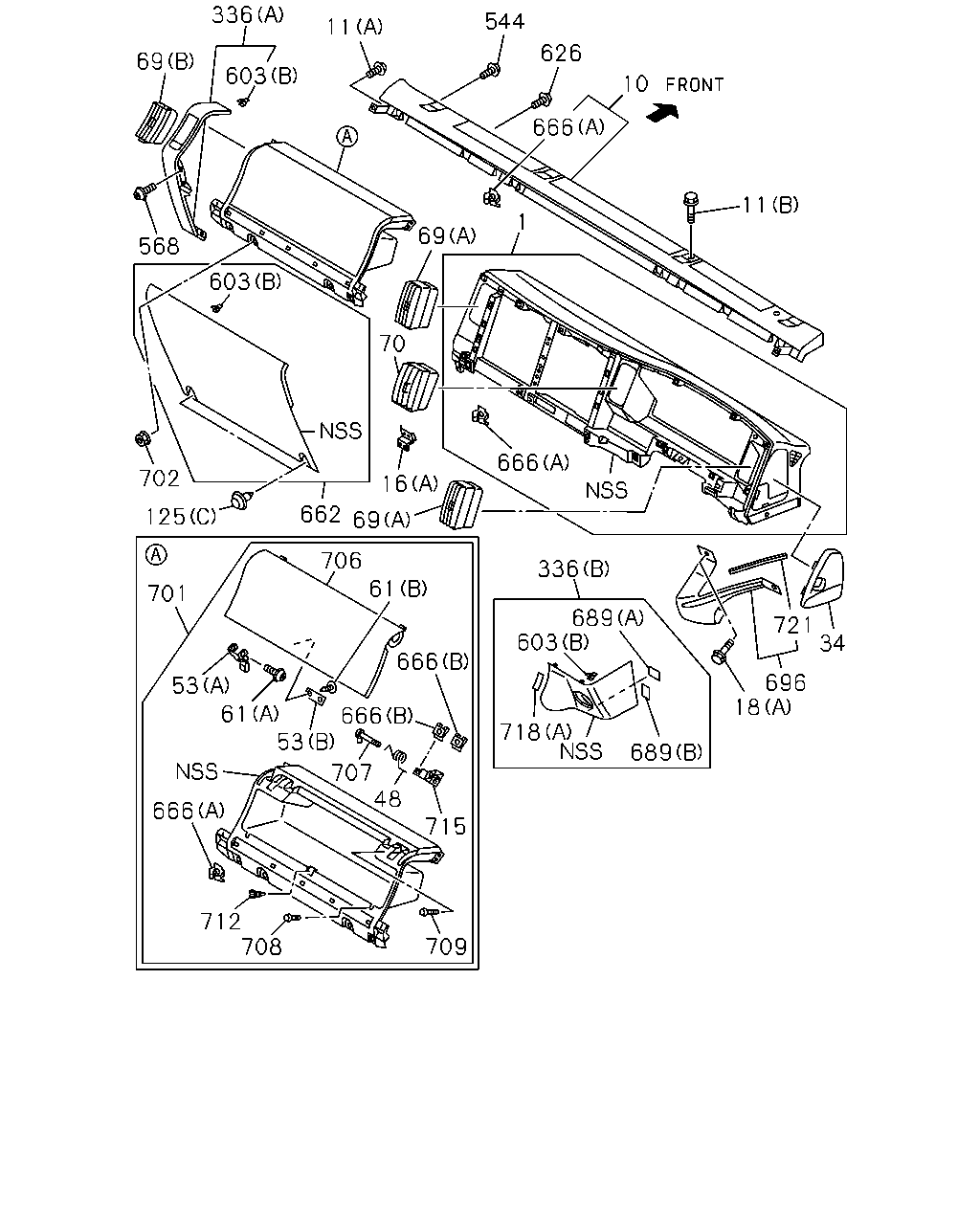

çizim 149762
11 34 721 696 18 689 718 603 689 336 666 666 61 706 61 53 53 701 666 712 708 709 715 48 707 666 69 662 125 702 603 70 568 69 33 603 11 544 666 626 69 10 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY IDN 		8-97405-253-8 01 1 0804-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0804-1003
10 16.069 PANEL ASM; GARNISH
GRAY IDN 		8-97419-683-5 01 1 1004-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0804-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0804-1101
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
16 16.085 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 0804-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804-0810
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 0811-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804-0810
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 0811-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0804-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
34 16.085 LID; OIL TANK
GRAY IDN 		8-97405-260-1 01 1 0804-
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-98034-986-0 01 1 0804-1311
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-97926-410-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-98270-763-0 01 1 1406-
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-98034-987-0 01 1 0804-1311
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-97926-411-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-98270-764-0 01 1 1406-
53 16.115 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0805-1405
53 16.115 STRIKER; GLOVE BOX
(B) IDN 		8-98270-765-0 01 1 1406-
61 16.100 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 0805-1405
61 16.100 SCREW; GLOVE BOX
(B) M4X85 IDN 		8-97926-404-0 02 1 1406-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) IDN 		8-98028-561-2 02 1 0804-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) IDN 		8-98028-562-2 01 1 0804-
70 09.264 GRILLE; CENTER,AIR OUTLET
IDN 		8-98028-563-2 01 1 0804-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0804-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0804-0808
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0809-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0809-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(C) GRAY IDN 		8-97419-968-1 02 1 1002-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY IDN 		8-97405-259-4 01 1 0804-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0804-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
16.165 (A) IDN 		8-98004-025-0 01 1 0804-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 05 1 0804-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 05 1 0804-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0804-
662 16.081 COVER; LWR,INST PANEL
GRAY IDN 		8-97405-258-2 01 1 0804-
666 16.085 INSERT; INST PANEL
(A) IDN 		8-98037-629-0 15 1 0804-
666 16.085 INSERT; INST PANEL
(B) IDN 		8-98038-450-0 04 1 0804-1311
666 16.085 INSERT; INST PANEL
(B) M5 IDN 		8-97926-400-0 04 1 1312-
666 16.085 INSERT; INST PANEL
(A) IDN 		8-98037-629-0 02 1 0804-1003
666 16.085 INSERT; INST PANEL
(A) IDN 		8-98037-629-0 02 1 0804-1003
666 16.085 INSERT; INST PANEL
(A) IDN 		8-98037-629-0 02 1 1004-
689 09.743 SEAL; INST
(A) 7X31 IDN 		8-98061-777-0 01 1 0804-
689 09.743 SEAL; INST
(B) 18X170 IDN 		8-98061-778-1 01 1 0804-
696 16.085 BRACKET; KNEE
IDN 		8-97589-189-4 01 1 0804-1211
696 16.085 BRACKET; KNEE
IDN 		8-98199-366-0 01 1 1212-
701 16.100 TRAY; INST
GRAY 		8-97405-261-4 01 1 0804-0804
701 16.100 TRAY; INST
GRAY IDN 		8-97415-542-6 01 1 0805-1405
701 16.100 TRAY; INST
GRAY IDN 		8-97429-702-1 01 1 1406-
702 16.069 NUT; TRAY
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804-
706 16.081 LID; TRAY INST
GRAY 		8-97405-372-2 01 1 0804-0804
706 16.081 LID; TRAY INST
GRAY IDN 		8-97415-541-0 01 1 0805-1405
706 16.081 LID; TRAY INST
GRAY IDN 		8-97429-992-0 01 1 1406-
707 09.744 SHAFT; TRAY INST LID
IDN 		8-98035-730-1 02 1 0804-1311
707 09.744 SHAFT; TRAY INST LID
IDN 		8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID
IDN 		8-98010-867-1 02 1 0804-
709 16.085 SCREW; TRAY INST
M5X16 TAPPING IDN 		0-71040-516-0 04 1 0804-
712 16.110 LOCK; TRAY INST LID
IDN 		8-98031-846-0 01 1 0804-
715 16.081 SUPPORT; TRAY,HINGE
IDN 		8-98034-928-0 01 1 0804-1311
715 16.081 SUPPORT; TRAY,HINGE
IDN 		8-97926-396-0 01 1 1312-
715 16.081 SUPPORT; TRAY,HINGE
IDN 		8-98034-929-0 01 1 0804-1311
715 16.081 SUPPORT; TRAY,HINGE
IDN 		8-97926-397-0 01 1 1312-
718 16.100 SEAL; COVER
(B) 5X30 IDN 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 IDN 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 IDN 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 IDN 		8-98097-696-0 01 1 0804-
721 16.650 FINISHER; BRKT,KNEE
L=95 IDN 		8-97995-992-0 01 1 0804-1211
721 16.650 FINISHER; BRKT,KNEE
L=75 IDN 		8-98176-240-0 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
