◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#5254) — 97 parça
çizim 41475
457 365 88 457 118 457 118 88 115 16 118 118 457 253 254 283 253 458 33 243 35 34 46 71 33 162 34 71 46 34 242 34
BalonParca AdiParca NoAdetTipApplied Date A B C
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9604-9904 ● ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
(B) M14X45 		0-20801-445-0 01 1 9604-9904 ● ●
33 BOLT; BRKT,3RD RELAY LEVER
(B) M14X45 		0-20801-445-0 01 1 9905- ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
(A) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9604-9904 ● ●
33 BOLT; BRKT,3RD RELAY LEVER
(A) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9905- ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-118-0 04 1 9604-9904 ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-118-0 04 1 9905- ● ● ●
35 RING; SNAP,RELAY LEVER
OD=23.5 		9-09180-122-0 01 1 9604-9904 ● ●
35 RING; SNAP,RELAY LEVER
OD=23.5 		9-09180-122-0 01 1 9905- ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-172-0 02 1 9604-9904 ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-172-0 02 1 9905- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-188-0 01 1 9604-9904 ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-188-0 01 1 9905- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-568-0 01 1 9604-9904 ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-568-0 01 1 9905- ● ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9604-9904 ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9905- ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9604-9904 ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9905- ● ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9604-9904 ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9905- ● ● ●
162 LEVER; RELAY 1-33651-622-1 01 1 9604-9904 ● ●
162 LEVER; RELAY 1-33651-622-1 01 1 9905- ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M8 FLANGE 		5-09440-005-0 04 1 9604-9904 ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M8 FLANGE 		5-09440-005-0 04 1 9905- ● ● ●
243 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 01 1 9604-9904 ● ●
243 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 01 1 9905- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9604-9904 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9905- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9604-9606 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9904 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9905- ● ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9604-9904 ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9905- ● ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9604-9904 ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-627-1 01 1 9604-9904 ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-627-1 01 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-665-0 01 1 9604-9904 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-665-0 01 1 9905- ● ● ●
457 GASKET 1-09623-594-0 04 1 9604-9904 ● ●
457 GASKET 1-09623-594-0 04 1 9905- ● ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-572-2 01 1 9604-9904 ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-572-2 01 1 9905- ● ● ●

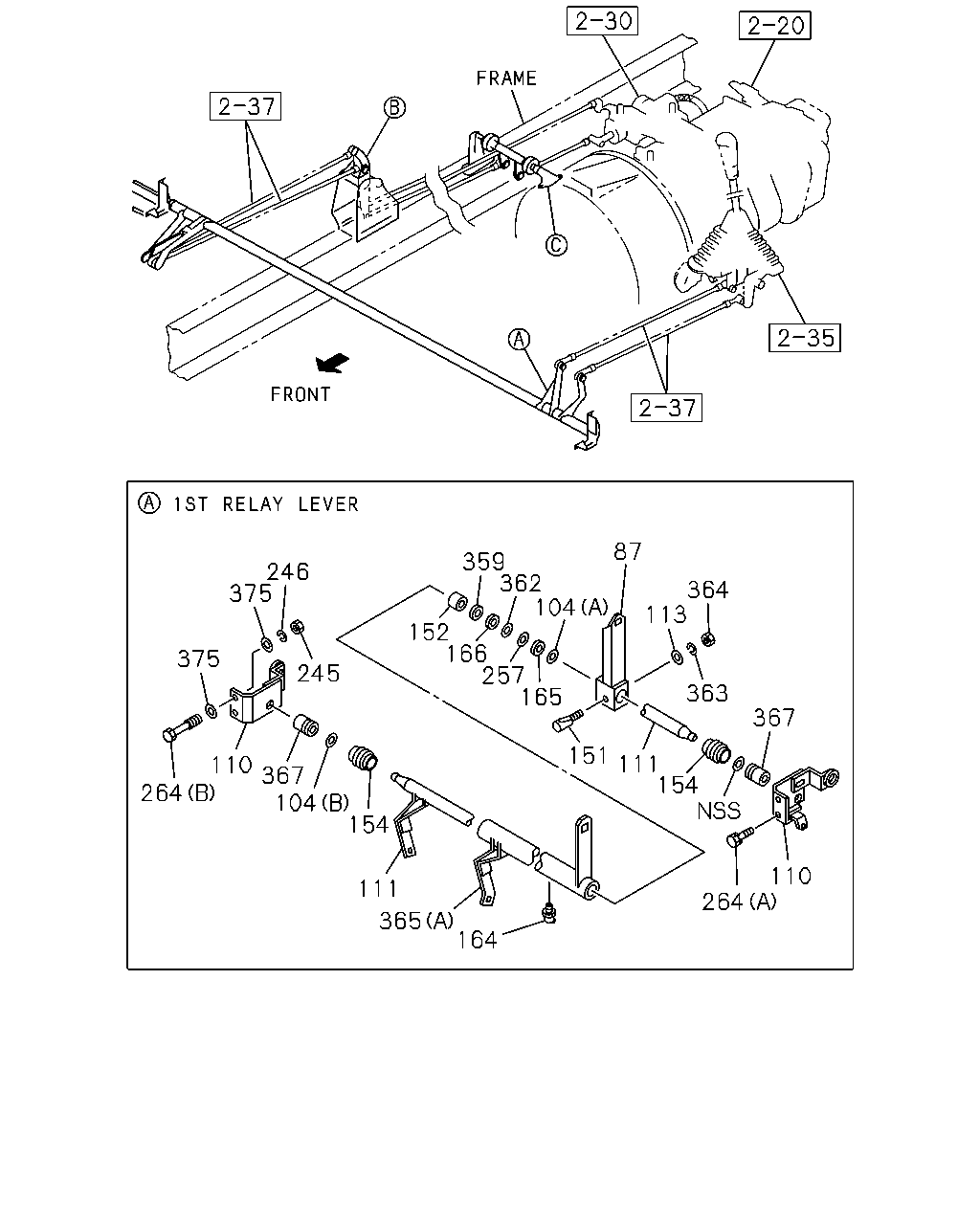

çizim 42064
87 359 362 104 246 375 364 113 152 166 257 165 375 245 363 367 151 111 154 110 367 264 104 154 110 111 264 365 164
BalonParca AdiParca NoAdetTipApplied Date A B C
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9604-9904 ● ●
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9905- ● ● ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9604-9904 ● ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9905- ● ● ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9604-9904 ● ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9905- ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9604-9904 ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9905- ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9604-9904 ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9905- ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9604-9904 ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9905- ● ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9604-9904 ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9905- ● ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9604-9904 ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9905- ● ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9604-9904 ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9905- ● ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9604-9904 ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9905- ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9604-9904 ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9905- ● ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9604-9904 ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9905- ● ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9604-9904 ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9905- ● ● ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9604-9904 ● ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9905- ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9604-9904 ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9905- ● ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9604-9904 ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9905- ● ● ●
264 BOLT; BRKT,RELAY LEVER
(A) M10X30 FLANGE 		0-28681-030-0 02 1 9604-9904 ● ●
264 BOLT; BRKT,RELAY LEVER
(A) M10X30 FLANGE 		0-28681-030-0 02 1 9905- ● ● ●
264 BOLT; BRKT,RELAY LEVER
(B) M10X100 		1-09980-547-0 02 1 9604-9904 ● ●
264 BOLT; BRKT,RELAY LEVER
(B) M10X100 		1-09980-547-0 02 1 9905- ● ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9604-9904 ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9905- ● ● ●
362 SHIM 1-09503-172-0 AR 1 9604-9904 ● ●
362 SHIM 1-09503-172-0 AR 1 9905- ● ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9604-9904 ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9905- ● ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9604-9904 ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-627-1 01 1 9604-9904 ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-627-1 01 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-665-0 01 1 9604-9904 ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-665-0 01 1 9905- ● ● ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9604-9904 ● ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9905- ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9604-9904 ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
