◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#52528) — 54 parça

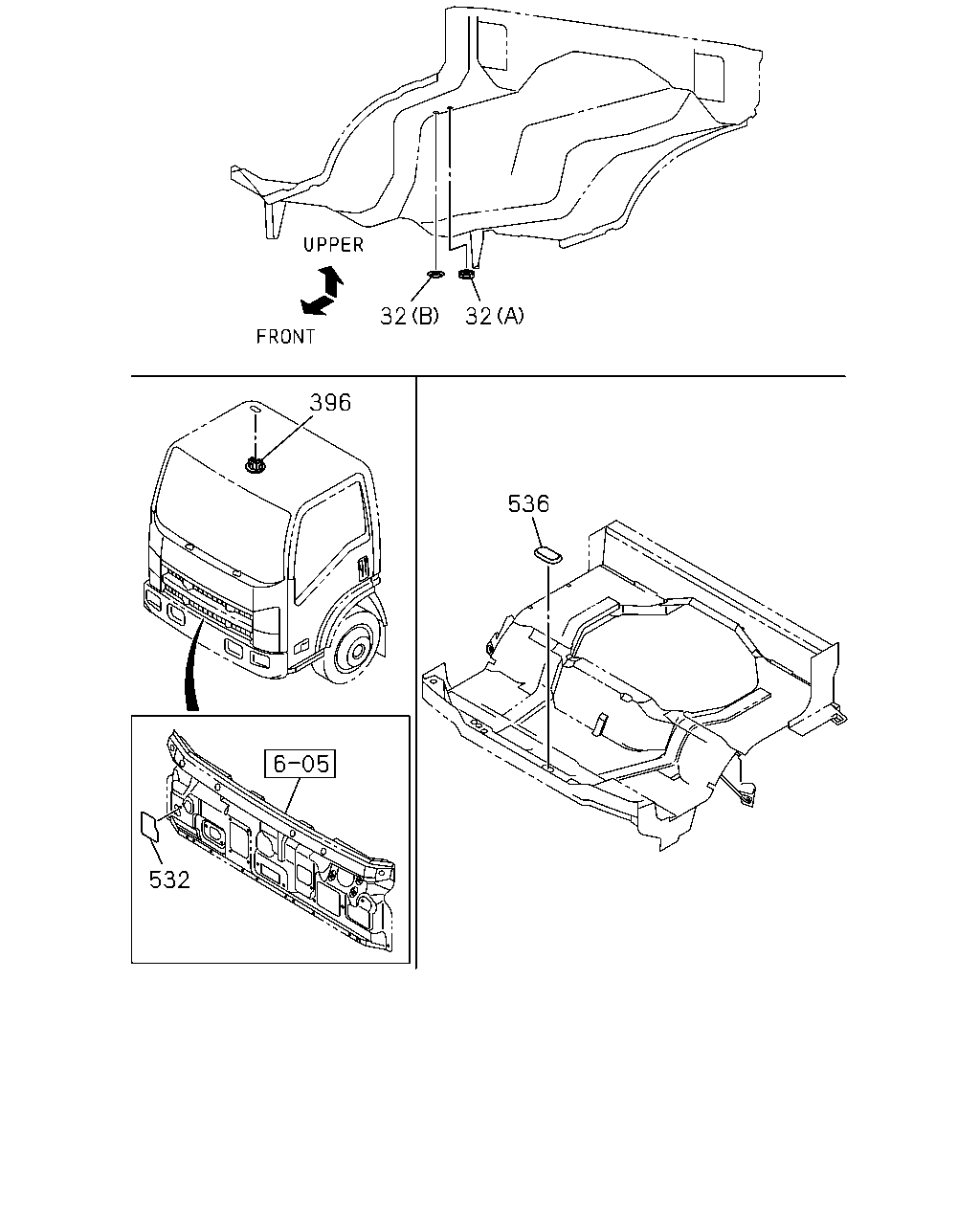

çizim 149731
32 32 396 536 532
BalonParca AdiParca NoAdetTipApplied Date
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 IDN 		8-97898-423-0 02 1 0804-
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2 IDN 		8-94492-493-0 02 1 0804-0908
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 IDN 		8-94279-040-0 02 1 0909-
396 16.547 GROMMET; LOCATION HOLE
IDN 		8-98054-990-0 02 1 0804-
532 16.520 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 0804-
536 16.549 PLUG; CABLE,PTO
04.008 IDN 		8-98029-219-1 01 1 0804-

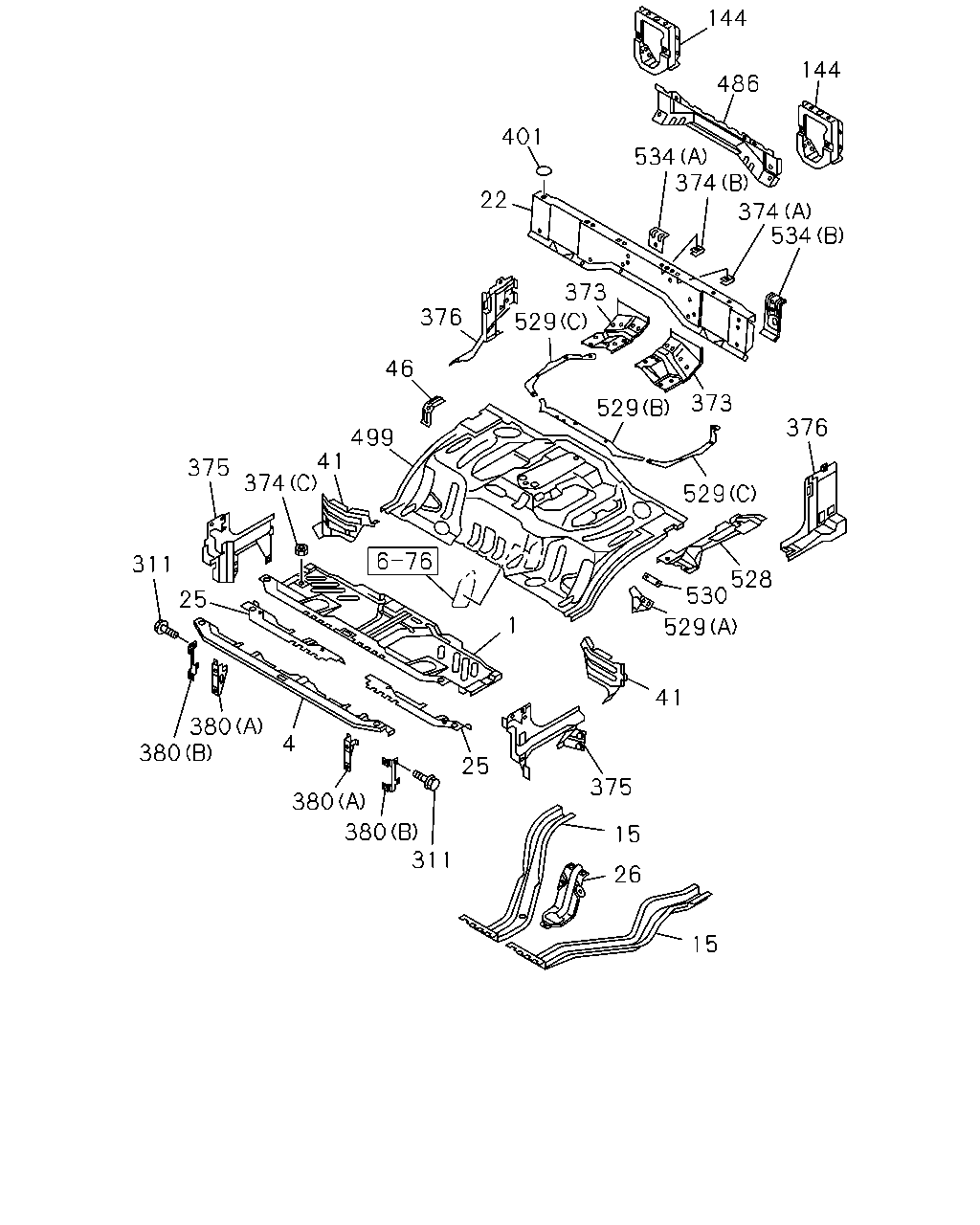

çizim 149780
144 144 486 401 534 374 22 374 534 373 376 529 46 373 529 376 499 41 374 375 529 311 528 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date
1 16.545 PANEL; FLOOR 8-97583-820-4 01 1 0804-0804
1 16.545 PANEL; FLOOR 8-98112-870-0 01 1 0804-
4 16.545 FRAME; FLOOR,FRT 8-98059-495-0 01 1 0804-0805
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0806-
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 0804-
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 0804-
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97587-394-4 01 1 0804-
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 0804-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
IDN 		8-97583-823-0 01 1 0804-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
IDN 		8-98107-587-0 01 1 0804-
26 16.545 PANEL; GEAR CONT REINF
IDN 		8-97589-382-1 01 1 0804-
41 16.545 SUPPORT; STEP,RR
IDN 		8-97583-880-1 01 1 0804-
41 16.545 SUPPORT; STEP,RR
IDN 		8-97583-881-1 01 1 0804-
46 16.545 BRACKET; FRT SEAT,RR OUTER
IDN 		8-97583-834-0 01 1 0804-
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> IDN 		8-97589-544-3 02 1 0804-
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> IDN 		8-97589-544-3 02 1 0804-
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> IDN 		8-98112-244-2 02 1 0804-
311 16.545 BOLT; BRKT
02.500 M6X16 		0-52000-616-0 04 1 0804-0804
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805-
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 0804-
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 0804-
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 0804-
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0804-
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0804-
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 0804-
375 16.545 CLOSING; PILLAR
IDN 		8-97583-882-3 01 1 0804-
375 16.545 CLOSING; PILLAR
IDN 		8-97583-883-2 01 1 0804-
376 16.545 CLOSING; PILLAR,LWR
IDN 		8-97583-888-2 01 1 0804-
376 16.545 CLOSING; PILLAR,LWR
IDN 		8-97584-618-2 01 1 0804-
380 16.545 BRACKET; HEAD LAMP
(A) IDN 		8-97589-384-4 01 1 0804-
380 16.545 BRACKET; HEAD LAMP
(A) IDN 		8-97589-385-3 01 1 0804-
380 16.545 BRACKET; HEAD LAMP
(B) IDN 		8-98029-288-0 01 1 0804-
380 16.545 BRACKET; HEAD LAMP
(B) IDN 		8-98029-289-0 01 1 0804-
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 IDN 		8-97224-683-0 01 1 0804-
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> IDN 		8-98030-614-2 01 1 0804-
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0804-
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> IDN 		8-97587-390-4 01 1 0804-1207
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> IDN 		8-98205-116-0 01 1 1208-
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-828-6 01 1 0804-1207
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1208-
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-619-4 01 1 0804-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) IDN 		8-97589-249-0 01 1 0804-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) IDN 		8-97589-467-1 01 1 0804-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) IDN 		8-97589-468-1 01 1 0804-
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) IDN 		8-98030-358-0 01 1 0804-
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> IDN 		8-97589-255-0 01 1 0804-
534 16.545 REINFORCEMENT; SEAT BACK
(B) IDN 		8-97583-851-3 01 1 0804-
534 16.545 REINFORCEMENT; SEAT BACK
(A) IDN 		8-98019-181-2 01 1 0804-
