Isuzu WW
▶
TRUCKS
▶
NQR
▶
51399 - NQR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

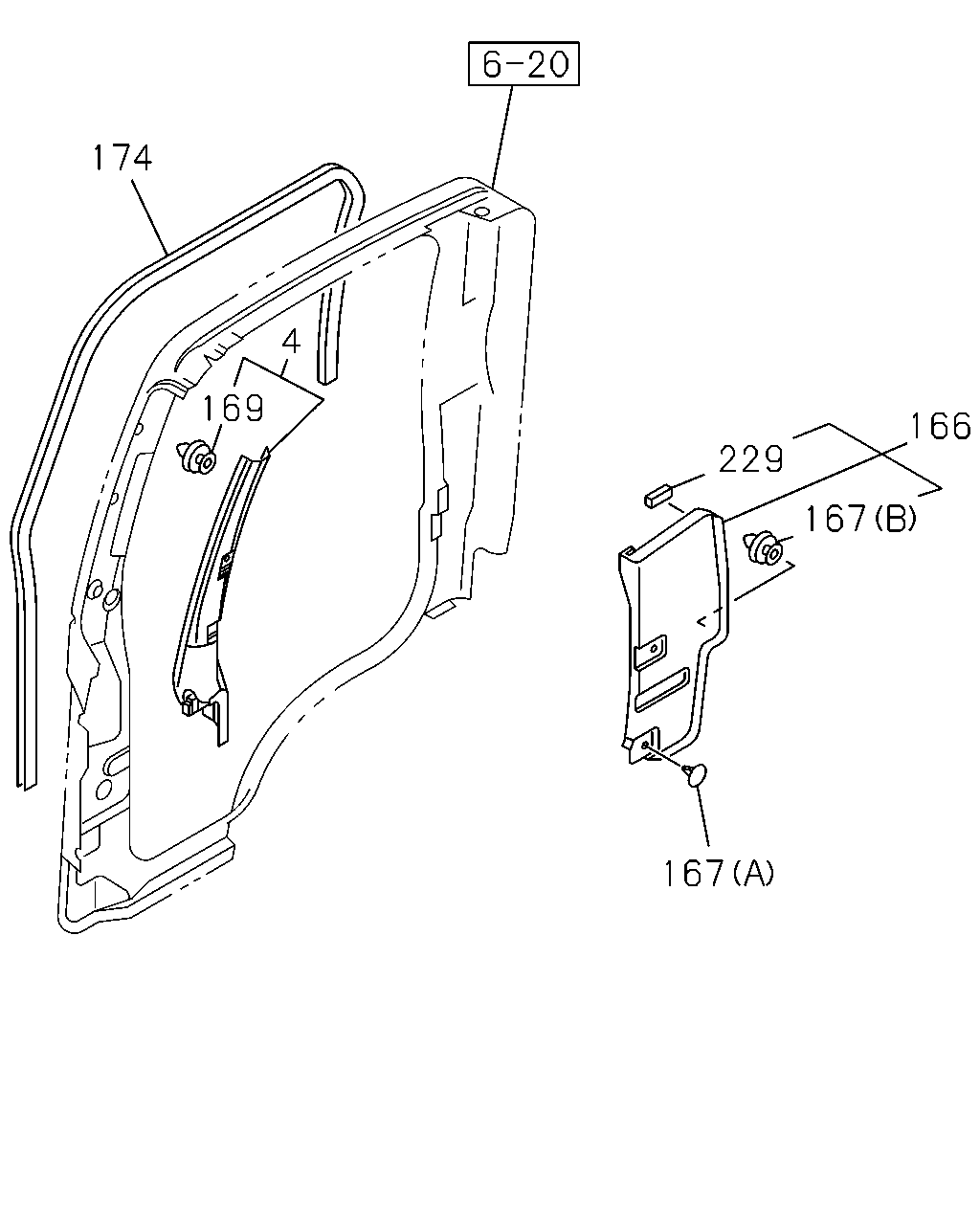

6-43 — SIDE TRIM
(#52524) — 12 parça
174
4
169
166
229
167
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
16.165 COVER; TRIM,FRT SIDE
DARK GRAY IDN
8-97405-254-2
01
1
0804-
4
16.165 COVER; TRIM,FRT SIDE
DARK GRAY IDN
8-97405-255-2
01
1
0804-
166
16.578 TRIM; RR PILLAR
GRAY IDN
8-97405-297-2
01
1
0804-
166
16.578 TRIM; RR PILLAR
GRAY IDN
8-97412-727-0
01
1
0804-
167
16.578 CLIP; TRIM,RR PILLAR
(A) GRAY IDN
8-97406-421-0
04
1
0804-
167
16.578 CLIP; TRIM,RR PILLAR
(B) IDN
8-98059-610-0
06
1
0804-
169
16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK
8-94279-974-1
04
1
0804-
174
16.507 FINISHER; BODY SIDE
DARK GRAY
8-97405-283-3
01
1
0804-0912
174
16.507 FINISHER; BODY SIDE
L=2609 IDN
8-98154-665-0
01
1
1001-
174
16.507 FINISHER; BODY SIDE
DARK GRAY
8-97405-288-3
01
1
0804-0912
174
16.507 FINISHER; BODY SIDE
L=2609 IDN
8-98154-666-0
01
1
1001-
229
16.585 SEAL
IDN
8-98081-818-0
01
1
0804-
