Sayfa 2-30 - Isuzu EPC

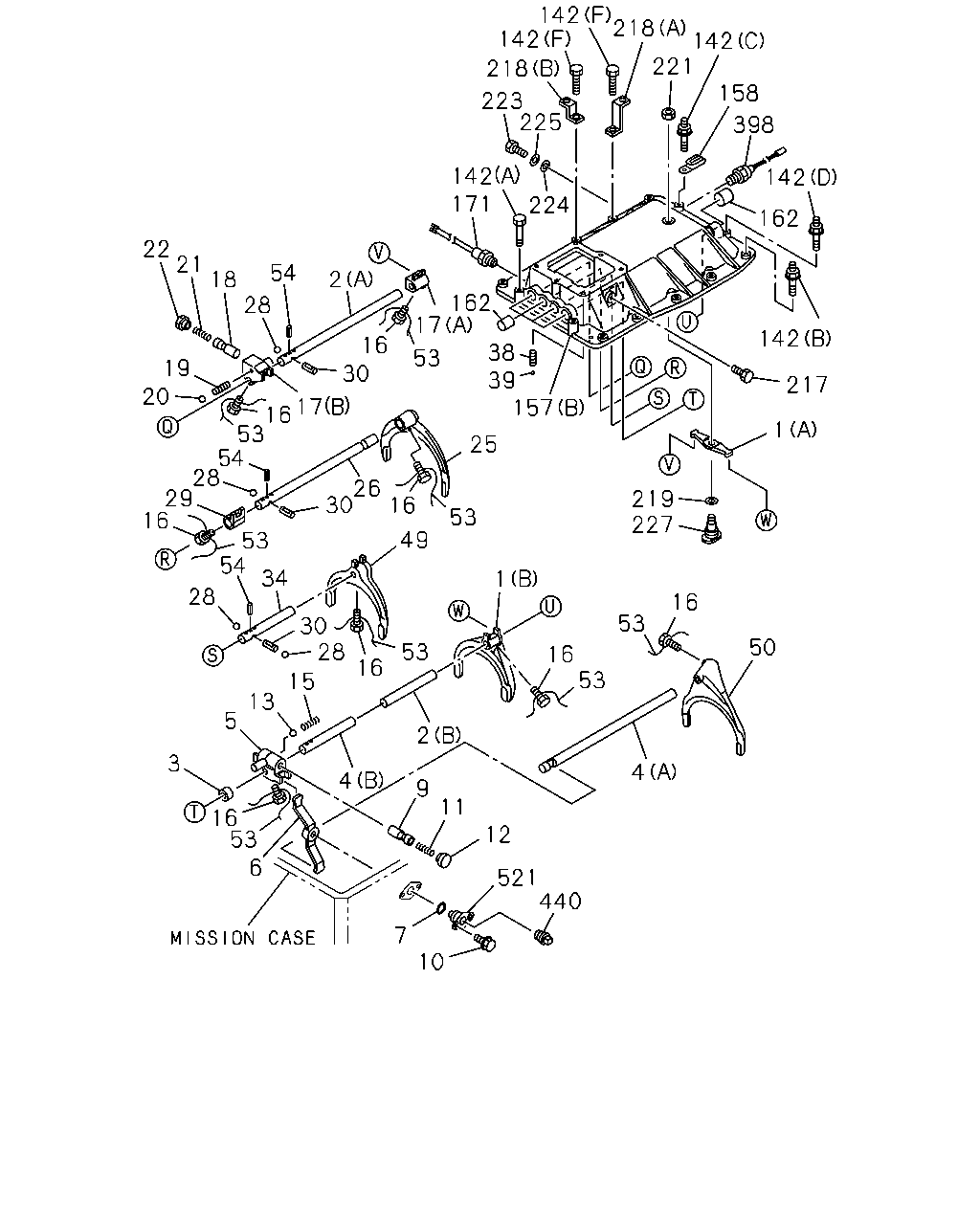

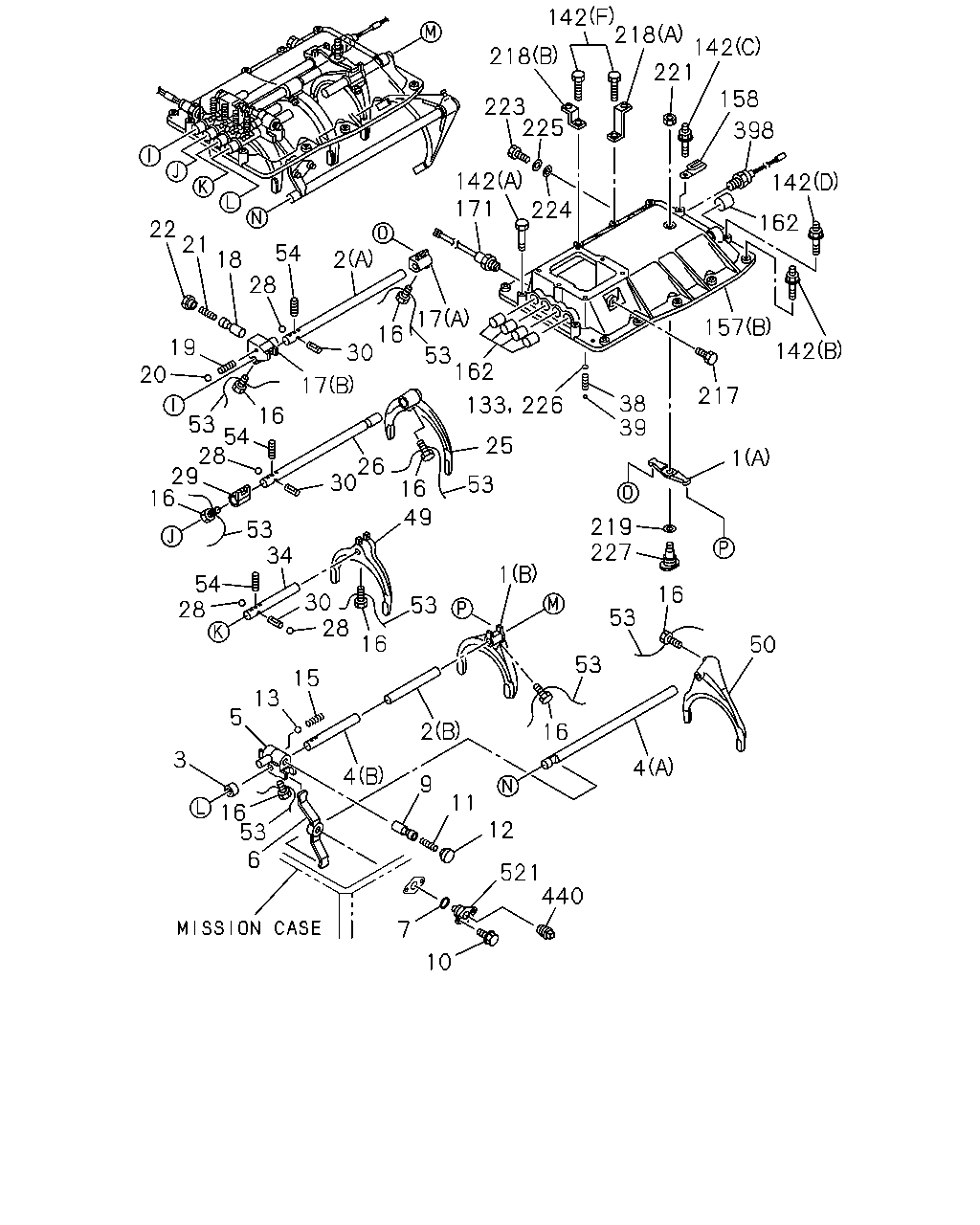

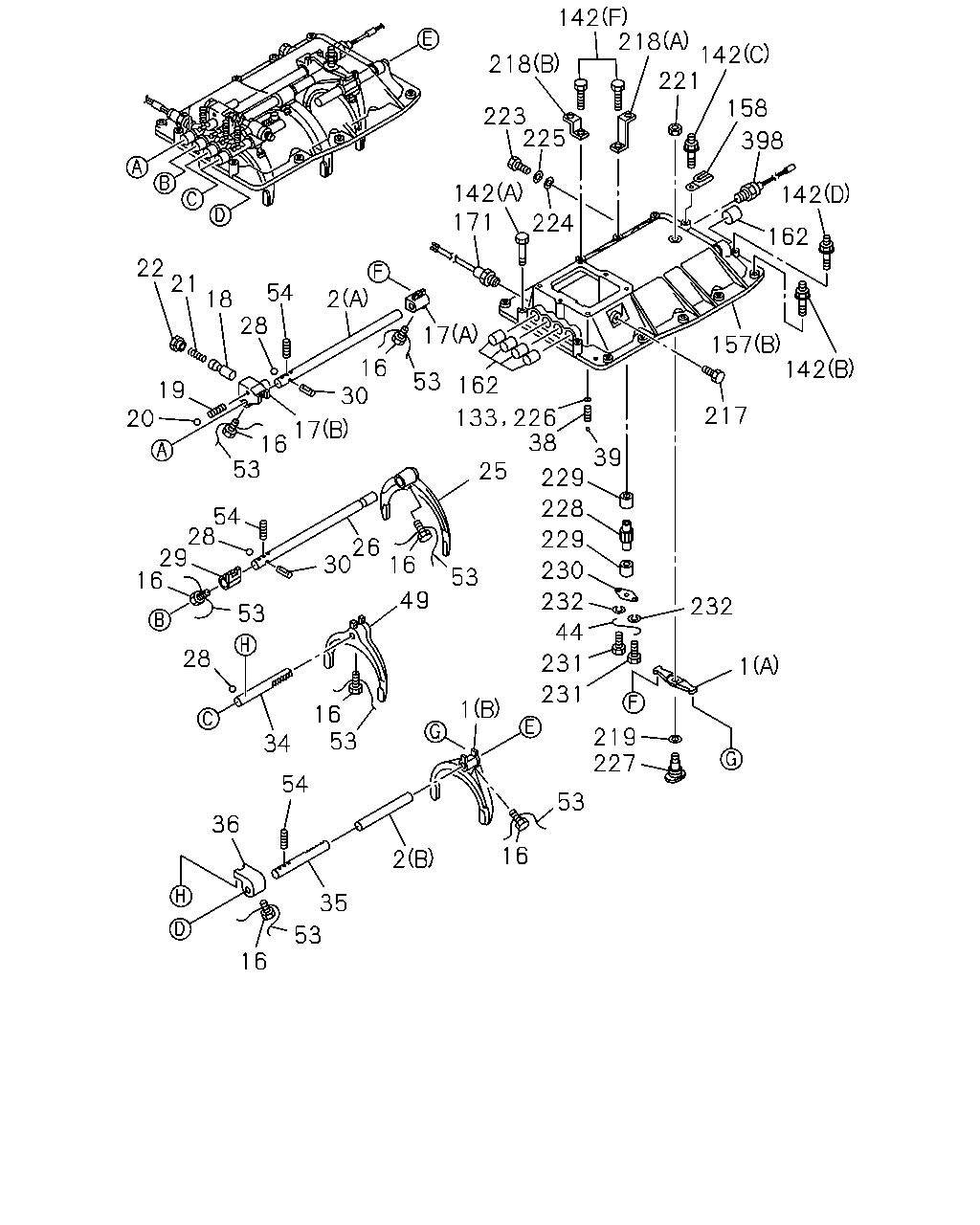

2-30 — GEAR SHIFTER AND QUADRANT BOX (#5252) — 547 parça

142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 22 21 162 17 54 18 28 2 142 16 30 38 39 157 53 19 20 217 17 16 53 54 28 29 16 1 25 26 30 219 227 16 53 53 54 49 34 1 28 16 53 30 28 50 53 16 53 16 15 13 5 2 3 4 4 9 16 53 6 11 12 521 440 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9604-9610	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9611-	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9604-	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9905-			●
1	ARM; SHIFT,1ST & REV (B)	1-33511-175-1	01	1	9905-			●
2	ROD; SHIFT,1ST & REV (B)	1-33531-298-1	01	1	9604-9604	●	●
2	ROD; SHIFT,1ST & REV (B) '960422-	1-33531-400-1	01	1	9604-9904	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	9905-	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-366-1	01	1	9604-9604	●	●
2	ROD; SHIFT,1ST & REV (A) '960422-	1-33531-399-1	01	1	9604-9610	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	9611-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-408-1	01	1	9905-			●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9604-9904		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9905-		●	●
4	ROD; SHIFT,6TH (B)	1-33531-328-1	01	1	9604-9604		●
4	ROD; SHIFT,6TH (B) '960422-	1-33531-405-1	01	1	9604-9904		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	9905-		●	●
4	ROD; SHIFT,6TH (A)	1-33531-336-1	01	1	9604-9604		●
4	ROD; SHIFT,6TH (A) '960422-	1-33531-407-1	01	1	9604-		●
4	ROD; SHIFT,6TH (A)	1-33531-414-1	01	1	9905-			●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9604-9904		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9905-		●	●
6	LEVER; RELAY	9-33511-402-1	01	1	9604-9904		●
6	LEVER; RELAY	9-33511-402-1	01	1	9905-		●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9604-9904		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9905-		●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9604-9904		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9905-		●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9604-9904		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9905-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9604-9904		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9905-		●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9904		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-		●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9604-9904		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9905-		●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9604-9904		●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9905-		●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	07	1	9604-9803	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	07	1	9804-	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9604-9803		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9804-9904		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9905-		●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-2	01	1	9604-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9604-9610	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9611-	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-3	01	1	9604-9904		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9905-		●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9905-			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	9604-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9604-9904		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9905-		●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9604-9904	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9905-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9604-9904	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9905-	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9604-9904	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9905-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9904	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9604-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-184-1	01	1	9905-			●
26	ROD; SHIFT,2ND & 3RD	1-33531-365-1	01	1	9604-9604	●	●
26	ROD; SHIFT,2ND & 3RD '960422-	1-33531-401-1	01	1	9604-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-410-1	01	1	9905-			●
28	BALL; INTER LK	9-00097-501-0	03	1	9604-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9604-9904		●
28	BALL; INTER LK	9-00097-501-0	04	1	9905-		●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	9604-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9604-9904		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9905-		●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9604-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9604-9904		●
30	PIN; INTER LK	9-33534-003-0	03	1	9905-		●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-369-0	01	1	9604-9604	●
34	ROD; SHIFT,4TH & 5TH ARM '960422-	1-33531-403-1	01	1	9604-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-368-1	01	1	9604-9604		●
34	ROD; SHIFT,4TH & 5TH ARM '960422-	1-33531-402-1	01	1	9604-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-412-1	01	1	9905-			●
38	SPRING; DETENT	1-09580-379-0	03	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9604-9904		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-		●	●
39	BALL; DETENT	1-09843-012-0	03	1	9604-	●
39	BALL; DETENT	1-09843-012-0	04	1	9604-9904		●
39	BALL; DETENT	1-09843-012-0	04	1	9905-		●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-465-0	01	1	9604-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9604-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-369-1	01	1	9905-			●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9604-9904		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9905-		●	●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-9904	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9905-	●	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-9904		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9905-		●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9604-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9604-9904		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9905-		●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9604-9904	●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9905-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9604-9904	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9905-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	9604-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9604-		●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	9905-			●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9604-9904	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9905-	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9604-9904	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9905-	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9604-9904	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9905-	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9604-9904	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9905-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9604-9904	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9905-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9604-9904	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9905-	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9604-9904	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9905-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9604-9904	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9905-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9604-9904	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9905-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9604-9904	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9905-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9604-9904	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9604-9904	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9905-	●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9604-9904	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9905-	●	●	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	9604-9904		●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	9905-		●	●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9604-9904		●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9905-		●	●

142 218 142 221 218 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 17 157 16 30 19 20 142 53 162 17 217 38 39 53 54 28 29 16 16 25 1 26 30 53 16 49 219 227 53 34 1 54 28 16 30 28 53 53 16 50 53 15 13 5 2 16 3 4 9 4 16 53 6 11 12 521 440 7 10 133 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9604-9610	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9611-	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9604-	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9905-			●
1	ARM; SHIFT,1ST & REV (B)	1-33511-175-1	01	1	9905-			●
2	ROD; SHIFT,1ST & REV (B)	1-33531-298-1	01	1	9604-9604	●	●
2	ROD; SHIFT,1ST & REV (B) '960422-	1-33531-400-1	01	1	9604-9904	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	9905-	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-366-1	01	1	9604-9604	●	●
2	ROD; SHIFT,1ST & REV (A) '960422-	1-33531-399-1	01	1	9604-9610	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	9611-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-408-1	01	1	9905-			●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9604-9904		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9905-		●	●
4	ROD; SHIFT,6TH (B)	1-33531-328-1	01	1	9604-9604		●
4	ROD; SHIFT,6TH (B) '960422-	1-33531-405-1	01	1	9604-9904		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	9905-		●	●
4	ROD; SHIFT,6TH (A)	1-33531-336-1	01	1	9604-9604		●
4	ROD; SHIFT,6TH (A) '960422-	1-33531-407-1	01	1	9604-		●
4	ROD; SHIFT,6TH (A)	1-33531-414-1	01	1	9905-			●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9604-9904		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9905-		●	●
6	LEVER; RELAY	9-33511-402-1	01	1	9604-9904		●
6	LEVER; RELAY	9-33511-402-1	01	1	9905-		●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9604-9904		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9905-		●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9604-9904		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9905-		●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9604-9904		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9905-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9604-9904		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9905-		●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9904		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-		●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9604-9904		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9905-		●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9604-9904		●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9905-		●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	07	1	9604-9803	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	07	1	9804-	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9604-9803		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9804-9904		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9905-		●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-2	01	1	9604-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9604-9610	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9611-	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-3	01	1	9604-9904		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9905-		●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9905-			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	9604-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9604-9904		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9905-		●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9604-9904	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9905-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9604-9904	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9905-	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9604-9904	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9905-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9904	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9604-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-184-1	01	1	9905-			●
26	ROD; SHIFT,2ND & 3RD	1-33531-365-1	01	1	9604-9604	●	●
26	ROD; SHIFT,2ND & 3RD '960422-	1-33531-401-1	01	1	9604-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-410-1	01	1	9905-			●
28	BALL; INTER LK	9-00097-501-0	03	1	9604-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9604-9904		●
28	BALL; INTER LK	9-00097-501-0	04	1	9905-		●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	9604-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9604-9904		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9905-		●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9604-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9604-9904		●
30	PIN; INTER LK	9-33534-003-0	03	1	9905-		●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-369-0	01	1	9604-9604	●
34	ROD; SHIFT,4TH & 5TH ARM '960422-	1-33531-403-1	01	1	9604-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-368-1	01	1	9604-9604		●
34	ROD; SHIFT,4TH & 5TH ARM '960422-	1-33531-402-1	01	1	9604-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-412-1	01	1	9905-			●
38	SPRING; DETENT	1-09580-379-0	03	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9604-9904		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-		●	●
39	BALL; DETENT	1-09843-012-0	03	1	9604-	●
39	BALL; DETENT	1-09843-012-0	04	1	9604-9904		●
39	BALL; DETENT	1-09843-012-0	04	1	9905-		●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-465-0	01	1	9604-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9604-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-369-1	01	1	9905-			●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9604-9904		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9905-		●	●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-9904	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9905-	●	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-9904		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9905-		●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9604-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9604-9904		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9905-		●	●
133	SEAT; SPR	1-33549-072-0	03	1	9905-	●
133	SEAT; SPR	1-33549-072-0	04	1	9905-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9604-9904	●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9905-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9604-9904	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9905-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	9604-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9604-		●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	9905-			●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9604-9904	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9905-	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9604-9904	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9905-	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9604-9904	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9905-	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9604-9904	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9905-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9604-9904	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9905-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9604-9904	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9905-	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9604-9904	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9905-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9604-9904	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9905-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9604-9904	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9905-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9604-9904	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9905-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9604-9904	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
226	SPRING; REV INHIBITOR	1-33549-072-0	03	1	9604-9904	●
226	SPRING; REV INHIBITOR	1-33549-072-0	04	1	9604-9904		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9604-9904	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9905-	●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9604-9904	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9905-	●	●	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	9604-9904		●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	9905-		●	●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9604-9904		●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9905-		●	●

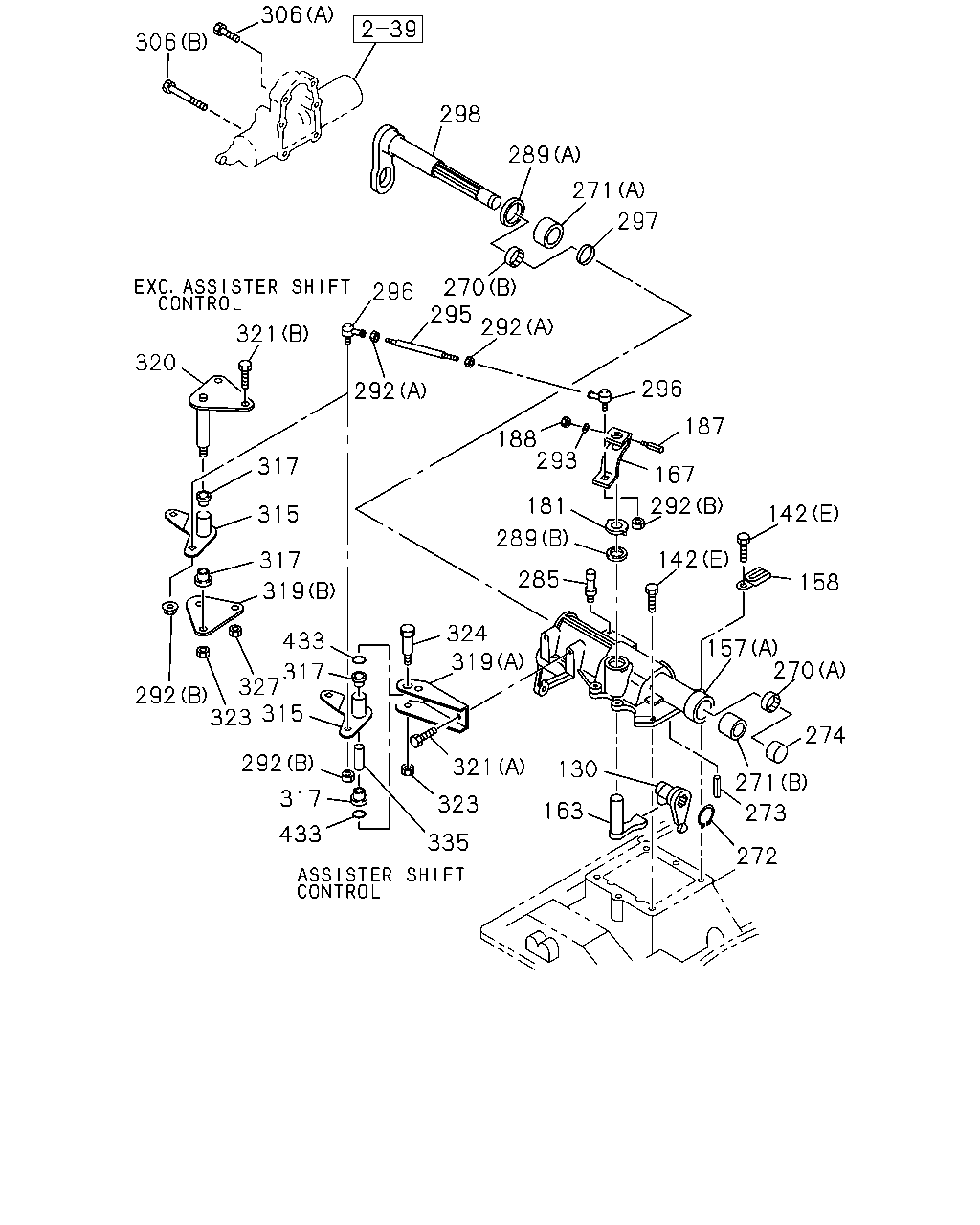

306 306 298 289 271 297 270 295 292 296 321 320 296 292 187 188 293 317 167 181 292 142 315 289 142 317 285 158 319 324 319 157 433 270 317 327 315 292 323 274 292 321 130 271 317 323 163 273 433 335 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-124-0	01	1	9604-9904	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-124-0	01	1	9905-	●	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-119-0	01	1	9604-9904	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-119-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9604-9904	●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9905-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9604-9904	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9905-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	9604-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9604-		●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	9905-			●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9604-9904	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9905-	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9604-9904	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9905-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9604-9904	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9905-	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9604-9904	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9905-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9604-9904	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9905-	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9604-9804	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-9904	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9905-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9604-9904	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9905-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9604-9904	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9905-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9604-9904	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9905-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9604-9904	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9905-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9604-9904	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9905-	●	●	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9604-9904	●	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9905-	●	●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9604-9904	●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9905-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9604-9904	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9905-	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9604-9904	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9905-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	9604-9904	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	9905-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	9604-9904	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	9905-	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9604-9804	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9805-9904	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9905-	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9604-9904	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9905-	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9604-9904	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9905-	●	●	●
295	ROD; LINK,RELAY LEVER ASSISTER SHIFT CONTROL<WX8>	9-08400-815-0	01	1	9604-9904	●	●
295	ROD; LINK,RELAY LEVER ASSISTER SHIFT CONTROL<WX8>	9-08400-815-0	01	1	9905-	●	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9604-9904	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9905-	●	●	●
296	ROD END	1-09760-108-0	02	1	9604-9904	●	●
296	ROD END	1-09760-108-0	02	1	9905-	●	●	●
297	STOPPER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33537-020-0	01	1	9604-9904	●
297	STOPPER; SELECT 8PE1S(59L) P60 PROP SHAFT<C2M> ASSISTER SHIFT CONTROL<WX8>	1-33537-020-0	01	1	9905-	●
297	STOPPER; SELECT 10PE1N(61L) P90 PROP SHAFT(C5T) ASSISTER SHIFT CONTROL<WX8>	1-33537-020-0	01	1	9905-	●
297	STOPPER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33537-012-0	01	1	9604-9904	●
297	STOPPER; SELECT 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33537-012-0	01	1	9905-	●
297	STOPPER; SELECT 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33537-012-0	01	1	9905-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9604-9904	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9905-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-146-0	01	1	9604-9904	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-146-0	01	1	9905-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> (A) M10X45 FLANGE	0-28181-045-0	02	1	9604-9904	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> (A) M10X45 FLANGE	0-28181-045-0	02	1	9905-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> (B) M10X80 FLANGE	0-28181-080-0	04	1	9604-9904	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> (B) M10X80 FLANGE	0-28181-080-0	04	1	9905-	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-643-0	01	1	9604-9807	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-727-0	01	1	9808-9904	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-727-0	01	1	9905-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-674-0	01	1	9604-9807	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-747-0	01	1	9808-9904	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-747-0	01	1	9905-	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9604-9904	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9905-	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-591-0	01	1	9604-9904	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-591-0	01	1	9905-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9604-9807	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-640-0	01	1	9808-9904	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-640-0	01	1	9905-	●	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-527-1	01	1	9604-9807	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-625-0	01	1	9808-9810	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-630-0	01	1	9811-9904	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-630-0	01	1	9905-	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> (A) M10X22 FLANGE	0-28181-022-0	02	1	9604-9904	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> (A) M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B) M10X80	0-10806-080-0	02	1	9604-9904	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B) M10X80	0-10806-080-0	02	1	9905-	●	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9604-9807	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9808-9904	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9905-	●	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> M10X60	0-10811-060-0	01	1	9604-9904	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> M10X60	0-10811-060-0	01	1	9905-	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9905-	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9604-9904	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-203-0	01	1	9604-9807	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-217-0	01	1	9808-9810	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-220-0	01	1	9811-9904	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-220-0	01	1	9905-	●	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9604-9807	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9808-9904	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9905-	●	●	●

142 218 142 221 218 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 17 157 16 30 142 53 162 19 20 217 38 17 16 53 39 229 25 228 54 28 29 16 229 26 30 16 230 53 49 232 232 53 44 28 231 1 231 1 16 53 219 227 34 54 53 36 16 2 35 53 16 133 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9604-9610	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9611-	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9604-	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9905-			●
1	ARM; SHIFT,1ST & REV (B)	1-33511-175-1	01	1	9905-			●
2	ROD; SHIFT,1ST & REV (B)	1-33531-298-1	01	1	9604-9604	●	●
2	ROD; SHIFT,1ST & REV (B) '960422-	1-33531-400-1	01	1	9604-9904	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	9905-	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-366-1	01	1	9604-9604	●	●
2	ROD; SHIFT,1ST & REV (A) '960422-	1-33531-399-1	01	1	9604-9610	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	9611-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-408-1	01	1	9905-			●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	07	1	9604-9803	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	07	1	9804-	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9604-9803		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9804-9904		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9905-		●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-2	01	1	9604-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9604-9610	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9611-	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-3	01	1	9604-9904		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9905-		●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9905-			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	9604-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9604-9904		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9905-		●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9604-9904	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9905-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9604-9904	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9905-	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9604-9904	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9905-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9604-9904	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9905-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9604-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-184-1	01	1	9905-			●
26	ROD; SHIFT,2ND & 3RD	1-33531-365-1	01	1	9604-9604	●	●
26	ROD; SHIFT,2ND & 3RD '960422-	1-33531-401-1	01	1	9604-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-410-1	01	1	9905-			●
28	BALL; INTER LK	9-00097-501-0	03	1	9604-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9604-9904		●
28	BALL; INTER LK	9-00097-501-0	04	1	9905-		●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	9604-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9604-9904		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9905-		●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9604-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9604-9904		●
30	PIN; INTER LK	9-33534-003-0	03	1	9905-		●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-369-0	01	1	9604-9604	●
34	ROD; SHIFT,4TH & 5TH ARM '960422-	1-33531-403-1	01	1	9604-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-368-1	01	1	9604-9604		●
34	ROD; SHIFT,4TH & 5TH ARM '960422-	1-33531-402-1	01	1	9604-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-412-1	01	1	9905-			●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-326-1	01	1	9604-9604	●
35	ROD; SHIFT,4TH & 5TH BLOCK '960422-	1-33531-404-1	01	1	9604-	●
36	BLOCK; SHIFT,4TH & 5TH	1-33511-367-1	01	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	03	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9604-9904		●
38	SPRING; DETENT	1-09580-379-0	04	1	9905-		●	●
39	BALL; DETENT	1-09843-012-0	03	1	9604-	●
39	BALL; DETENT	1-09843-012-0	04	1	9604-9904		●
39	BALL; DETENT	1-09843-012-0	04	1	9905-		●	●
44	WIRE; LK L=200	9-08351-020-0	01	1	9604-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-465-0	01	1	9604-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9604-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-369-1	01	1	9905-			●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-9904	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9905-	●	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-9904		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9905-		●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9604-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9604-9904		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9905-		●	●
133	SEAT; SPR	1-33549-072-0	03	1	9905-	●
133	SEAT; SPR	1-33549-072-0	04	1	9905-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9604-9904	●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	9905-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9905-	●	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9604-9904	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	9905-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9604-9904	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	9905-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9604-9904	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	9604-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9604-9904	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	9905-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9604-		●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	9905-			●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9604-9904	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9905-	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9604-9904	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9905-	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9604-9904	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9905-	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9604-9904	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9905-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9604-9904	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9905-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9604-9904	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9905-	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9604-9904	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9905-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9604-9904	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9905-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9604-9904	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9905-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9604-9904	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9905-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9604-9904	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
226	SPRING; REV INHIBITOR	1-33549-072-0	03	1	9604-9904	●
226	SPRING; REV INHIBITOR	1-33549-072-0	04	1	9604-9904		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9604-9904	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9905-	●	●	●
228	PINION; 4TH & 5TH SHIFT	1-33539-019-0	01	1	9604-	●
229	BEARING; NEEDLE,PINION	1-09811-202-0	02	1	9604-	●
230	COVER; BRG,PINION	1-33539-018-0	01	1	9604-	●
231	BOLT; BRG COVER,PINION M8X20	1-09050-005-1	02	1	9604-	●
232	WASHER; LK,BRG COVER ID=8.2	9-09150-508-0	02	1	9604-	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9604-9904	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
