◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#52519) — 47 parça

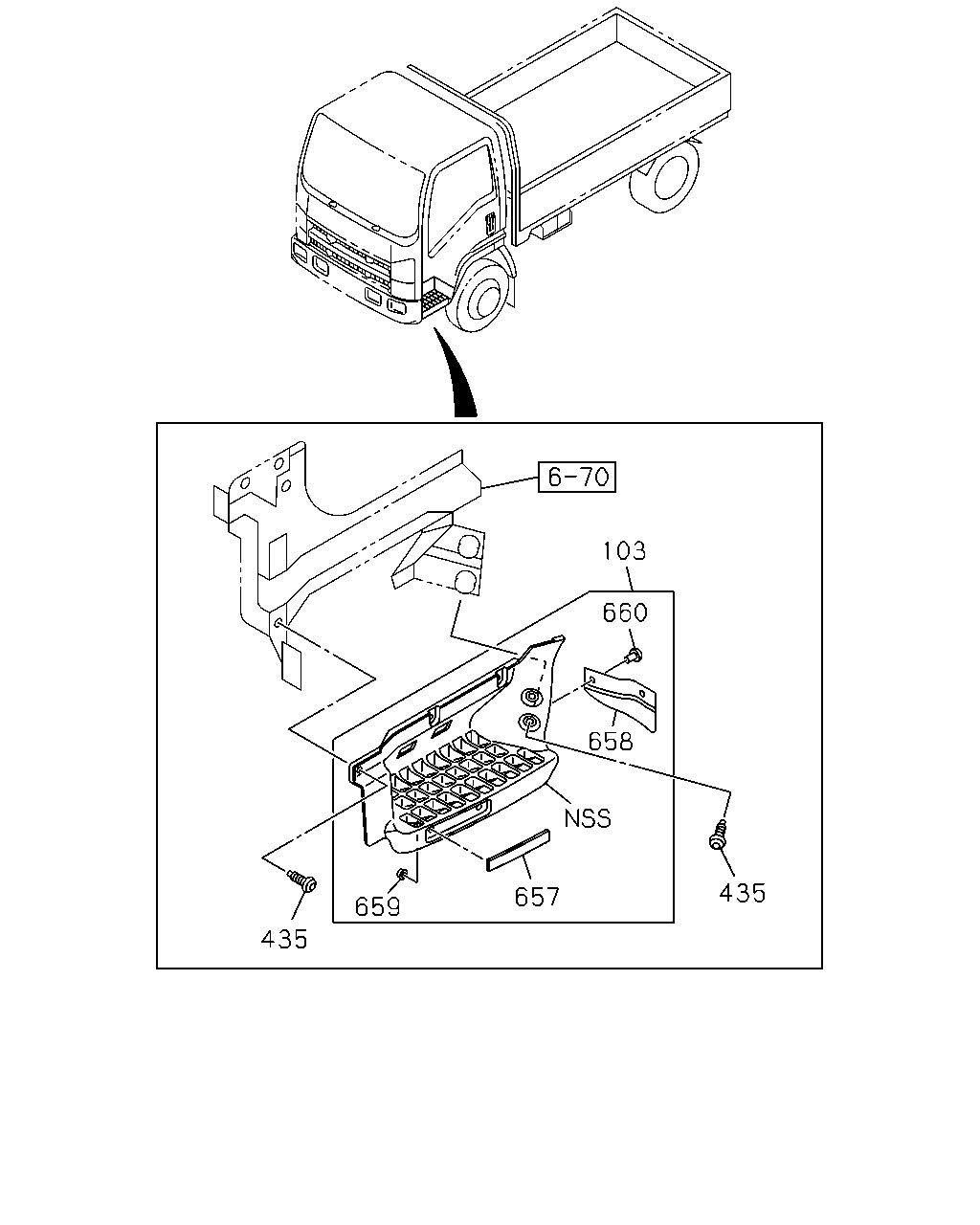

çizim 149709
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP
IDN 		8-98022-774-3 01 1 0804-
103 08.228 PLATE; STEP
IDN 		8-98022-775-3 01 1 0804-
435 08.225 BOLT; RR STEP
M8X18 IDN 		8-98004-345-0 12 1 0804-
657 16.585 REFLECTOR; REFLEX
AMBER IDN 		8-97378-910-0 02 1 0804-
658 08.228 FLAP; STEP
IDN 		8-98037-560-1 02 1 0804-
659 08.131 CLIP; SPRING NUT
IDN 		8-97811-510-0 04 1 0804-
660 08.131 CLIP; FLAP
IDN 		8-98111-558-0 04 1 0804-

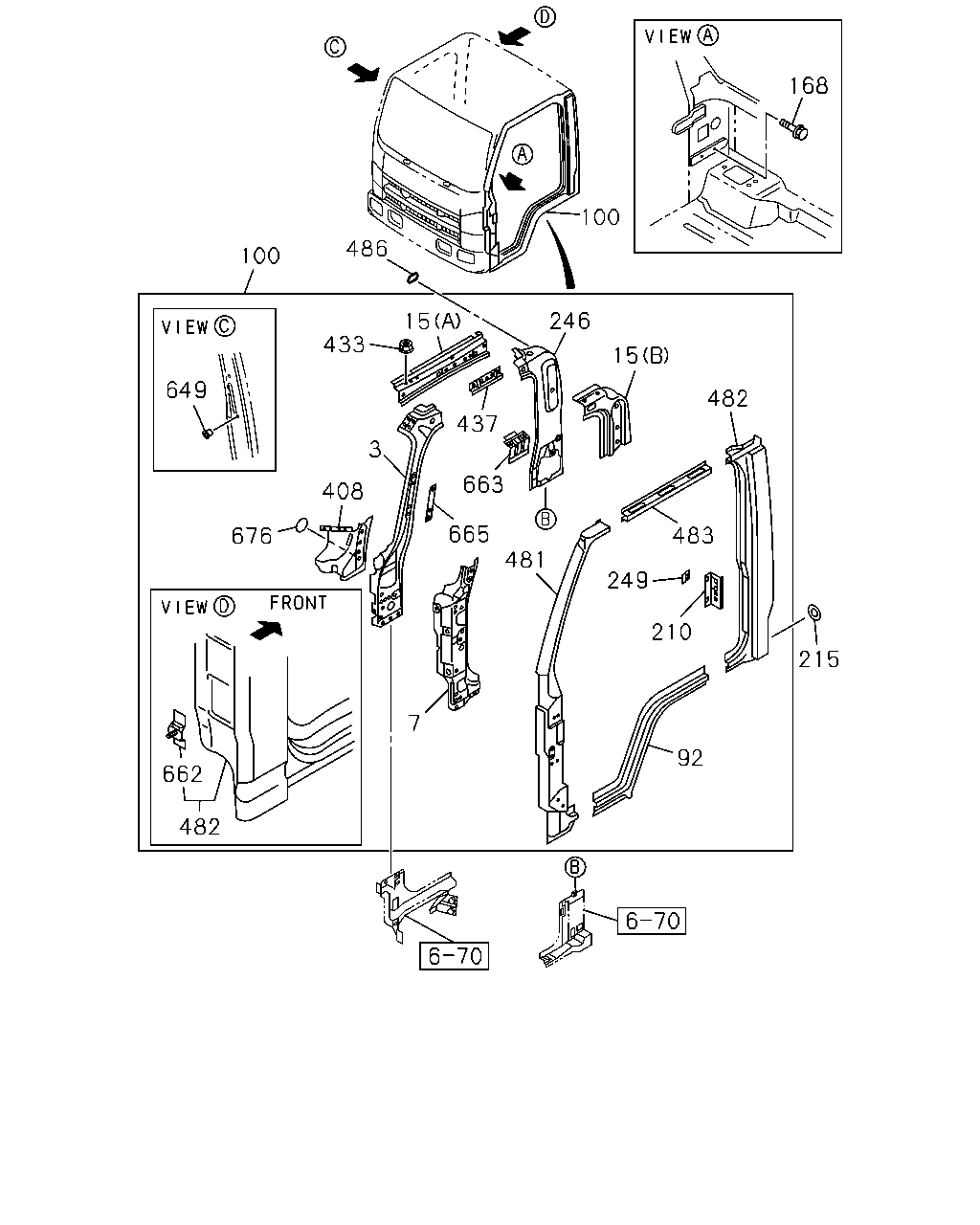

çizim 149726
168 100 486 100 246 15 433 15 649 482 437 3 663 408 665 483 676 481 249 210 215 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0804-
3 16.592 PANEL; CLOSING,FRT PILLAR
IDN 		8-98058-237-1 01 1 0804-
7 16.570 REINFORCEMENT; HINGE
IDN 		8-97585-240-3 01 1 0804-
7 16.570 REINFORCEMENT; HINGE
IDN 		8-97585-244-4 01 1 0804-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0804-
15 16.592 PANEL; CANT RAIL SIDE
(A) IDN 		8-97585-295-2 01 1 0804-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0804-
15 16.592 PANEL; CANT RAIL SIDE
(B) IDN 		8-97585-303-2 01 1 0804-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0804-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0804-
100 16.570 PANEL ASM; BODY SIDE
IDN 		8-97585-200-9 01 1 0804-
100 16.570 PANEL ASM; BODY SIDE
IDN 		8-97586-023-5 01 1 0804-
168 16.570 BOLT; BODY SIDE PANEL
M6X16 IDN 		0-38050-616-0 08 1 0804-0804
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804-
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0804-
210 16.588 PANEL; DOOR STRIKER REINF
IDN 		8-97585-261-4 01 1 0804-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 IDN 		8-94122-971-0 01 1 0804-
246 16.575 PANEL; RR PILLAR,INNER
IDN 		8-97585-301-3 01 1 0804-
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0804-
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 0804-
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0804-
408 16.570 GUSSET; PILLAR
IDN 		8-97585-317-4 01 1 0804-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 0804-
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0804-
437 08.155 BRACKET; ROOF RAIL
IDN 		8-98039-020-0 01 1 0804-
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 0804-
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 0804-
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 0804-
482 16.570 PANEL; SIDE RR PILLAR 8-98055-472-0 01 1 0804-0811
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 0812-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0804-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0804-
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE IDN 		8-98059-421-0 04 1 0804-
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK IDN 		5-76777-036-0 04 1 0804-
649 16.570 NUT; POP
09.647 M5 POP NUT IDN 		8-97249-574-0 02 1 0804-
662 16.570 BRACKET; DUCT
IDN 		8-97584-611-1 01 1 0804-
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 0804-
663 08.228 BRACKET; AIR
IDN 		8-97585-208-2 01 1 0804-
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 0804-
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK IDN 		5-76777-036-0 01 1 0804-
