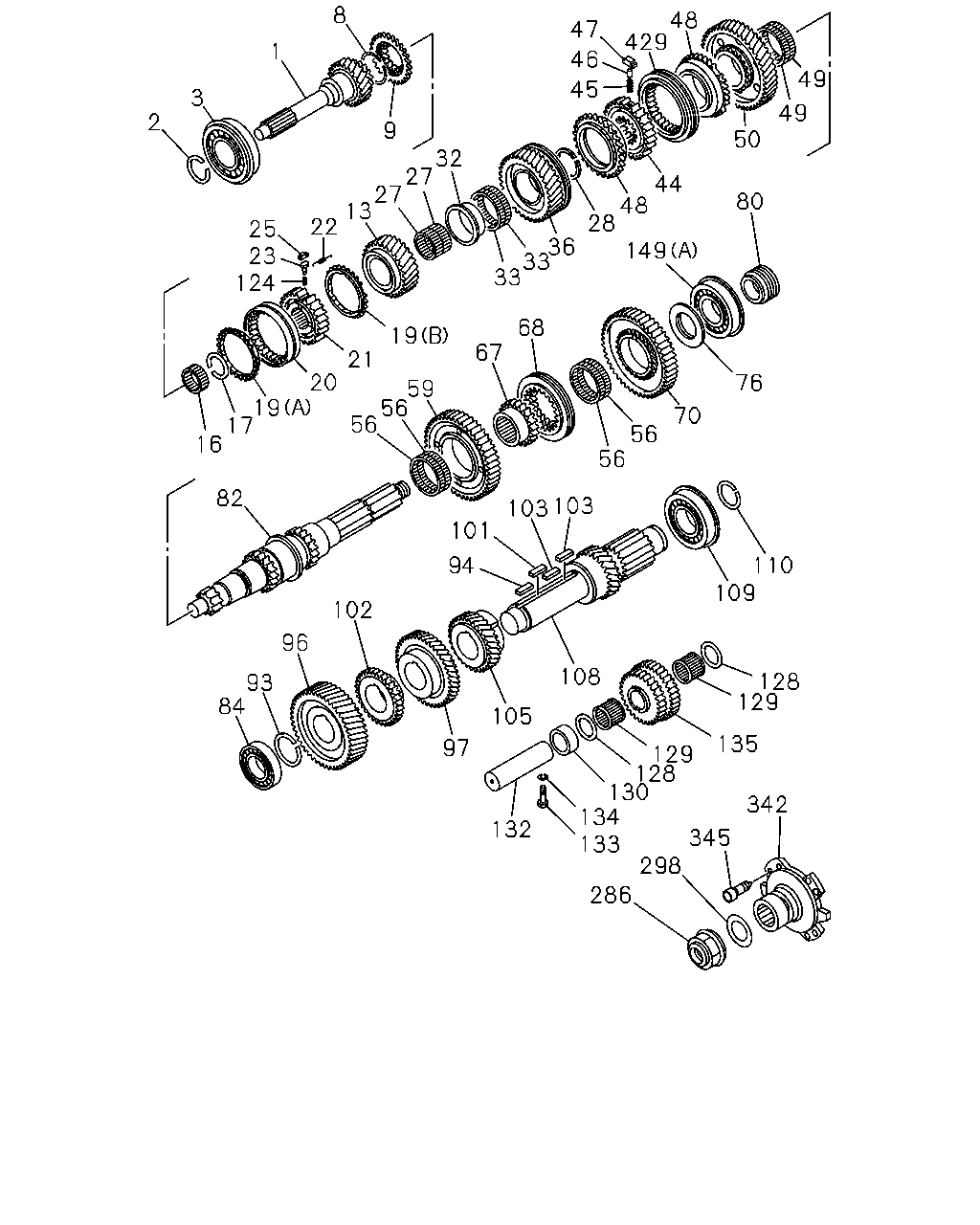

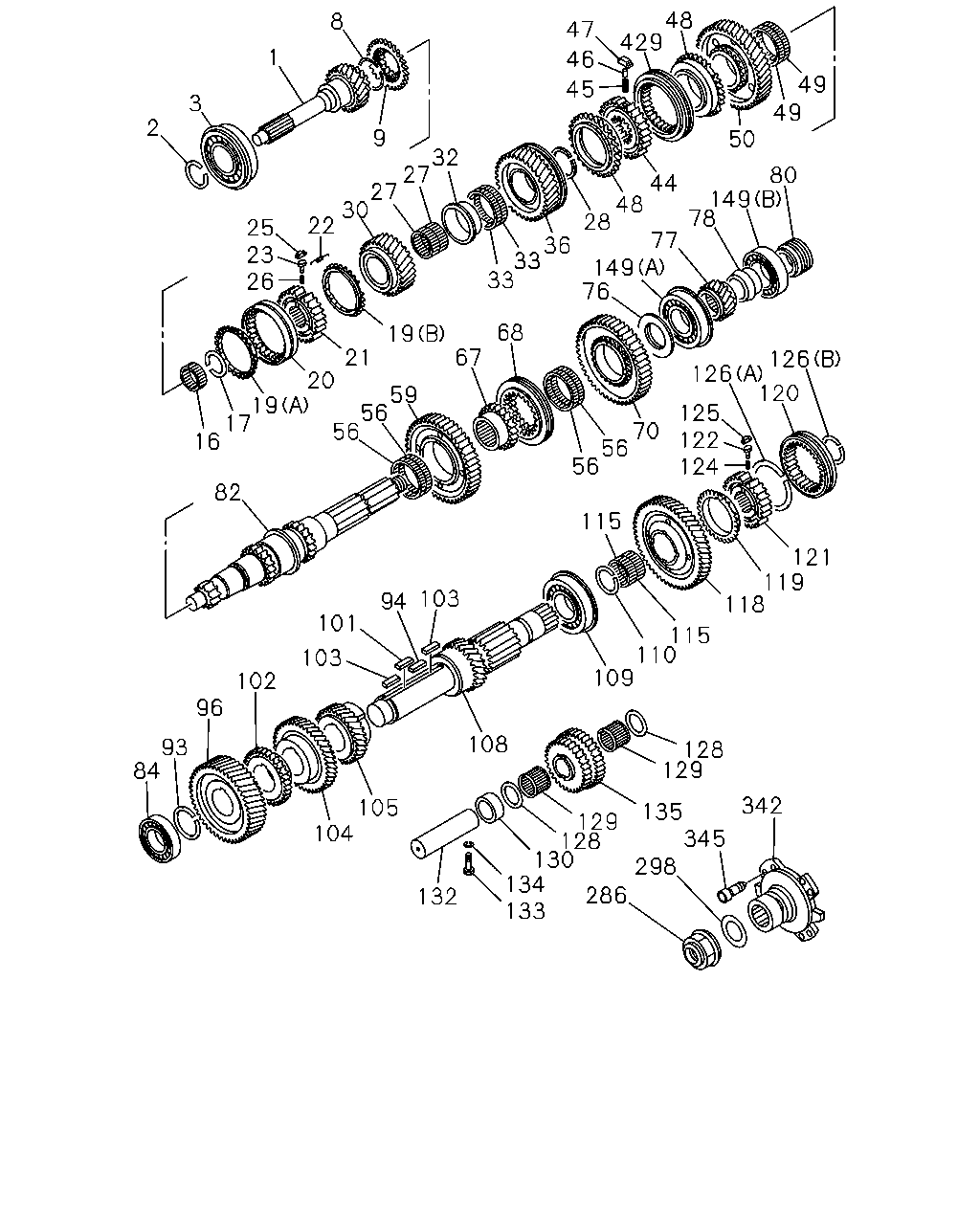

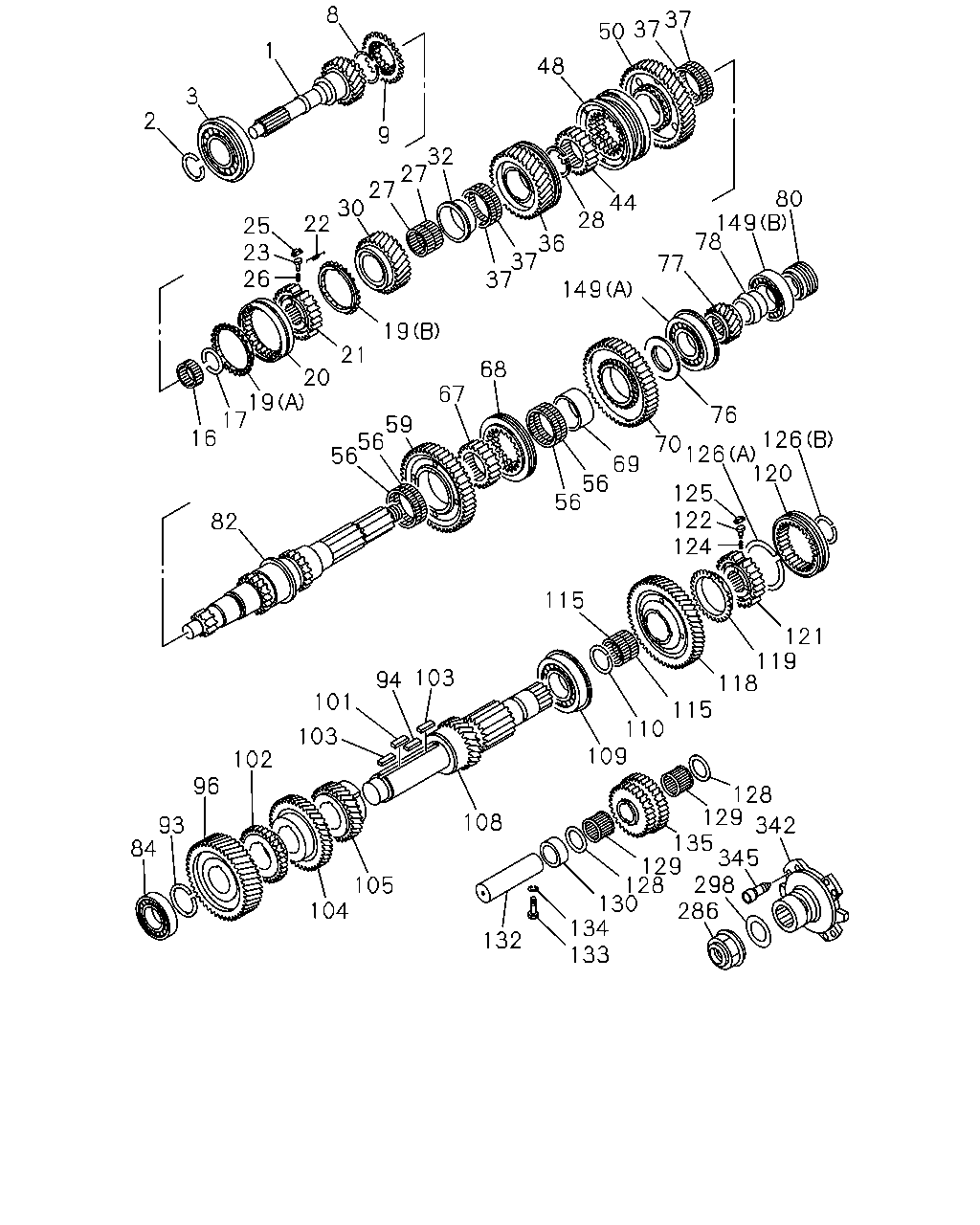

2-26 — MANUAL TRANSMISSION GEAR (#5251) — 559 parça

8 37 50 37 1 48 3 2 9 32 27 27 30 22 80 149 78 44 28 25 23 26 36 37 37 77 149 19 21 68 20 67 19 17 16 76 59 56 56 126 120 70 126 69 56 56 125 122 124 82 115 121 119 118 115 110 109 103 94 101 103 102 96 128 129 135 345 129 130 286 134 133 108 93 84 342 105 104 132 128 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9604-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	9604-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9905-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9905-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9604-9904	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9905-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9604-9904	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9905-	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9604-9904	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9905-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9604-9904	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9905-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9604-9904	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9905-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	9604-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9604-9904	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9905-	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9604-9904	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	9905-	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9604-9904	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9905-9908	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9604-9904	●	●
20	SLEEVE	1-33262-097-1	01	1	9905-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9604-9904	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9905-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9604-9904	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9905-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9604-9904	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9905-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9604-9904	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9905-	●	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9604-9904		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9905-		●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9604-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9604-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9905-			●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9905-			●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9604-9904	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9905-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-546-1	01	1	9604-9606		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9607-		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9905-			●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	9604-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9905-			●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-409-1	01	1	9604-9810	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	9811-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-408-1	01	1	9604-9810		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9811-		●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9905-			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	9905-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-209-3	01	1	9604-9907	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	9908-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9905-			●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-445-1	02	1	9604-9704	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-485-0	02	1	9705-9706	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-467-0	02	1	9707-9807	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-507-1	02	1	9808-9907	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-523-0	02	1	9908-9909	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	9910-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9905-			●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	9604-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9905-			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-353-0	04	1	9604-9711	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9604-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-410-0	04	1	9905-			●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9604-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9905-			●
67	HUB; CLU,1ST TO REV	1-33261-208-1	01	1	9604-9606	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	9607-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9905-			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9604-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9905-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9905-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9604-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9905-			●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	9604-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9905-			●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	9604-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	9905-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9604-9904		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9905-		●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9604-9904	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9905-	●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-268-0	01	1	9604-9908	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	9909-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9604-9908		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	9909-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9905-9908			●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	9909-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9604-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9604-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9905-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9905-			●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9604-9904	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9905-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9604-9904	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9905-	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9604-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9604-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9905-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9604-9904	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9905-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9604-9904	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9905-	●	●	●
103	KEY; COUNTER GEAR L=50	1-09735-010-0	01	1	9604-9904	●	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	9905-	●	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9604-9904	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9905-	●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9604-		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9905-			●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	9604-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9604-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9905-			●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	9604-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9604-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9905-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9604-9904	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9905-	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9604-9904	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9905-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9604-9904	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9905-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9604-9904		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9905-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9604-9904		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9905-		●	●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	9604-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	9905-			●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9604-9904		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9905-		●	●
120	SLEEVE	1-33262-098-2	01	1	9604-9904		●
120	SLEEVE	1-33262-098-2	01	1	9905-		●	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9604-9904		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9905-		●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9604-9904		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9905-		●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9604-9904	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9905-	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9604-9904		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9905-		●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9604-9904		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9905-		●	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9604-9904		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9905-		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9604-9904	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9905-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9604-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9604-9904	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9905-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9604-9904	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9905-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9604-9904	●	●
132	SHAFT; REV	1-33351-012-2	01	1	9905-	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9604-9904	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9905-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9604-9904	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9905-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	9604-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9905-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9604-9904	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9905-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9604-9904	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9905-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9604-9904		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9905-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9604-9904		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9905-		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9604-9904	●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9905-9908	●	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	9909-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9604-9904	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9905-	●	●	●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9606-9904	●	●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9905-	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9604-9904	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9905-	●	●	●

48 429 8 47 1 46 49 49 45 3 2 9 50 32 27 27 30 22 80 149 78 44 48 28 25 23 26 77 149 76 36 33 33 68 19 67 21 126 120 126 20 59 56 56 19 17 16 125 122 124 70 56 56 82 115 121 119 118 103 94 101 115 110 109 103 102 96 108 93 84 128 129 342 105 104 135 345 298 129 128 130 134 133 286 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9604-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	9604-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9905-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9905-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9604-9904	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9905-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9604-9904	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9905-	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9604-9904	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9905-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9604-9904	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9905-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9604-9904	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9905-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	9604-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9604-9904	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9905-	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9604-9904	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	9905-	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9604-9904	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9905-9908	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9604-9904	●	●
20	SLEEVE	1-33262-097-1	01	1	9905-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9604-9904	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9905-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9604-9904	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9905-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9604-9904	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9905-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9604-9904	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9905-	●	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9604-9904		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9905-		●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9604-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9604-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9905-			●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9905-			●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9604-9904	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9905-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-546-1	01	1	9604-9606		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9607-		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9905-			●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	9604-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9905-			●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-353-0	02	1	9604-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	9712-	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	9604-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-409-1	01	1	9604-9810	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	9811-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-408-1	01	1	9604-9810		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9811-		●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9905-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-209-3	01	1	9604-9907	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	9908-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9905-			●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9604-9907	●	●
45	SPRING; BLOCK INSERT ASSISTER SHIFT CONTROL<WX8> D=3.8	1-09580-395-0	06	1	9908-	●	●
45	SPRING; BLOCK INSERT EXC. ASSISTER SHIFT CONTROL<WX8> D=3.8	1-09580-395-0	03	1	9908-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-9907	●	●
46	PLUNGER; DETENT,SYN ASSISTER SHIFT CONTROL<WX8>	1-33269-037-1	06	1	9908-	●	●
46	PLUNGER; DETENT,SYN EXC. ASSISTER SHIFT CONTROL<WX8>	1-33269-037-1	03	1	9908-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-9907	●	●
47	BLOCK; INDEX,SYN ASSISTER SHIFT CONTROL<WX8>	1-33269-035-1	06	1	9908-	●	●
47	BLOCK; INDEX,SYN EXC. ASSISTER SHIFT CONTROL<WX8>	1-33269-035-1	03	1	9908-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-445-1	02	1	9604-9704	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-485-0	02	1	9705-9706	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-467-0	02	1	9707-9807	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-507-1	02	1	9808-9907	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-523-0	02	1	9908-9909	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	9910-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9905-			●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-353-0	02	1	9604-9711	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	9712-	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	9604-	●	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	9604-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9905-			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-353-0	04	1	9604-9711	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9604-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-410-0	04	1	9905-			●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9604-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9905-			●
67	HUB; CLU,1ST TO REV	1-33261-208-1	01	1	9604-9606	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	9607-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9905-			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9604-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9905-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9604-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9905-			●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	9604-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9905-			●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	9604-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	9905-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9604-9904		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9905-		●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9604-9904	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9905-	●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-268-0	01	1	9604-9908	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	9909-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9604-9908		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	9909-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9905-9908			●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	9909-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9604-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9604-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9905-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9905-			●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9604-9904	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9905-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9604-9904	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9905-	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9604-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9604-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9905-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9604-9904	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9905-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9604-9904	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9905-	●	●	●
103	KEY; COUNTER GEAR L=50	1-09735-010-0	01	1	9604-9904	●	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	9905-	●	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9604-9904	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9905-	●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9604-		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9905-			●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	9604-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9604-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9905-			●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	9604-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9604-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9905-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9604-9904	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9905-	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9604-9904	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9905-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9604-9904	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9905-	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9604-9904		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9905-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9604-9904		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9905-		●	●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	9604-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	9905-			●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9604-9904		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9905-		●	●
120	SLEEVE	1-33262-098-2	01	1	9604-9904		●
120	SLEEVE	1-33262-098-2	01	1	9905-		●	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9604-9904		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9905-		●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9604-9904		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9905-		●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9604-9904	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9905-	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9604-9904		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9905-		●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9604-9904		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9905-		●	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9604-9904		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9905-		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9604-9904	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9905-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9604-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9604-9904	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9905-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9604-9904	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9905-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9604-9904	●	●
132	SHAFT; REV	1-33351-012-2	01	1	9905-	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9604-9904	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9905-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9604-9904	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9905-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	9604-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9905-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9604-9904	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9905-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9604-9904	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9905-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9604-9904		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9905-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9604-9904		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9905-		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9604-9904	●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9905-9908	●	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	9909-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9604-9904	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9905-	●	●	●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9606-9904	●	●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9905-	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9604-9904	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9905-	●	●	●
429	SLEEVE; 2ND & 3RD	1-33262-187-2	01	1	9604-0010	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0011-	●	●

8 48 429 47 49 1 46 45 3 49 2 9 50 32 27 27 13 44 48 28 80 22 25 23 124 36 33 33 149 68 19 67 21 20 76 59 56 56 19 17 16 70 56 56 82 103 103 101 94 110 109 102 96 108 128 129 93 84 105 135 97 129 128 130 134 133 342 132 345 298 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9604-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	9604-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9905-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9905-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9604-9904	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9905-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9604-9904	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9905-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9604-9904	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9905-	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9604-9904	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9905-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9604-9904	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9905-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	9604-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9604-9904	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9905-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	9604-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9604-9904	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9905-	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9604-9904	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	9905-	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9604-9904	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9905-9908	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9604-9904	●	●
20	SLEEVE	1-33262-097-1	01	1	9905-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9604-9904	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9905-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9604-9904	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9905-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9604-9904	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9905-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9604-9904	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9905-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9604-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9604-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9905-			●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9905-			●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9604-9904	●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9905-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	9604-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9905-			●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-353-0	02	1	9604-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	9712-	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	9604-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-409-1	01	1	9604-9810	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	9811-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-408-1	01	1	9604-9810		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9811-		●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9905-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-209-3	01	1	9604-9907	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	9908-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9905-			●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9604-9907	●	●
45	SPRING; BLOCK INSERT ASSISTER SHIFT CONTROL<WX8> D=3.8	1-09580-395-0	06	1	9908-	●	●
45	SPRING; BLOCK INSERT EXC. ASSISTER SHIFT CONTROL<WX8> D=3.8	1-09580-395-0	03	1	9908-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9604-9907	●	●
46	PLUNGER; DETENT,SYN ASSISTER SHIFT CONTROL<WX8>	1-33269-037-1	06	1	9908-	●	●
46	PLUNGER; DETENT,SYN EXC. ASSISTER SHIFT CONTROL<WX8>	1-33269-037-1	03	1	9908-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9604-9907	●	●
47	BLOCK; INDEX,SYN ASSISTER SHIFT CONTROL<WX8>	1-33269-035-1	06	1	9908-	●	●
47	BLOCK; INDEX,SYN EXC. ASSISTER SHIFT CONTROL<WX8>	1-33269-035-1	03	1	9908-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-445-1	02	1	9604-9704	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-485-0	02	1	9705-9706	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-467-0	02	1	9707-9807	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-507-1	02	1	9808-9907	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-523-0	02	1	9908-9909	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	9910-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9905-			●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-353-0	02	1	9604-9711	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	9712-	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	9604-	●	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	9604-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9604-		●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9905-			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-353-0	04	1	9604-9711	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9604-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-410-0	04	1	9905-			●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9604-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9905-			●
67	HUB; CLU,1ST TO REV	1-33261-208-1	01	1	9604-9606	●	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	9607-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9905-			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9604-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9905-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9604-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9905-			●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	9604-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9905-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9604-9904	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9905-	●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-268-0	01	1	9604-9908	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	9909-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9604-9908		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	9909-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9905-9908			●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	9909-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9604-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9604-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9905-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9905-			●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9604-9904	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9905-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9604-9904	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9905-	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9604-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9604-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9905-			●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	9604-	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9604-9904	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9905-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9604-9904	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9905-	●	●	●
103	KEY; COUNTER GEAR L=50	1-09735-010-0	01	1	9604-9904	●	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	9905-	●	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9604-9904	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9905-	●	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	9604-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9604-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9905-			●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	9604-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9604-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9905-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9604-9904	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9905-	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9604-9904	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9905-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9604-9904	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9905-	●	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9604-9904	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9905-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9604-9904	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9905-	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9604-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9604-9904	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9905-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9604-9904	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9905-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9604-9904	●	●
132	SHAFT; REV	1-33351-012-2	01	1	9905-	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9604-9904	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9905-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9604-9904	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9905-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	9604-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9905-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9604-9904	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9905-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9604-9904	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9905-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9604-9904		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9905-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9604-9904		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9905-		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9604-9904	●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9905-9908	●	●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	9909-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9604-9904	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9905-	●	●	●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9606-9904	●	●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9905-	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9604-9904	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9905-	●	●	●
429	SLEEVE; 2ND & 3RD	1-33262-187-2	01	1	9604-0010	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
