4-80 — ROAD WHEEL (#52508) — 58 parça

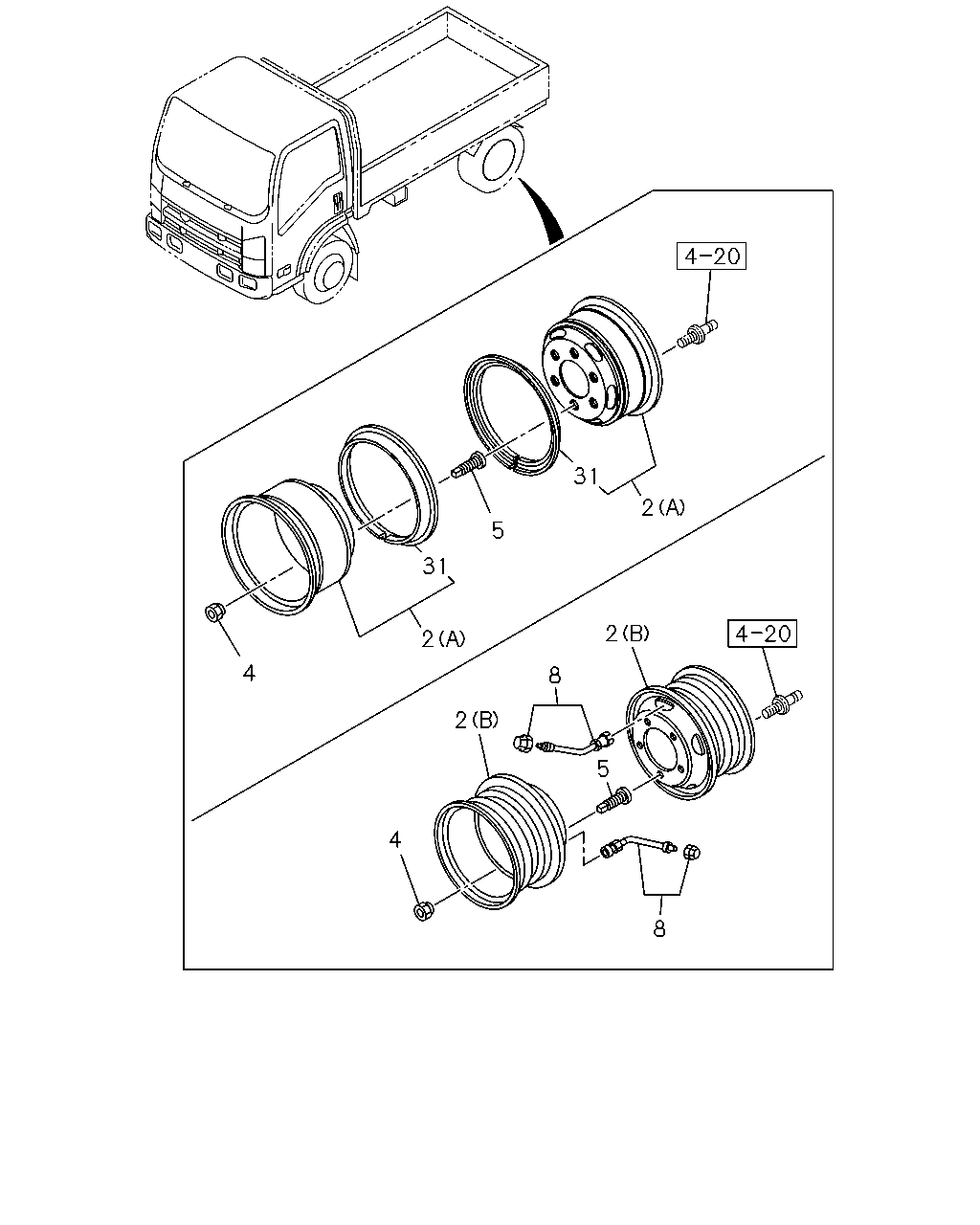

4 31 2 2 4 8 2 8 5 31 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0804-1005
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	02	1	1006-1010
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1011-
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0804-1010
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	04	1	1006-1010
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1011-
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0804-
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0804-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD IDN	8-97359-805-0	06	1	0804-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD IDN	8-97359-806-0	06	1	0804-
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) IDN	8-98221-112-0	01	1	1207-
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) IDN	8-98221-112-0	02	1	1207-
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) IDN	8-98221-112-0	04	1	1207-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	0810-

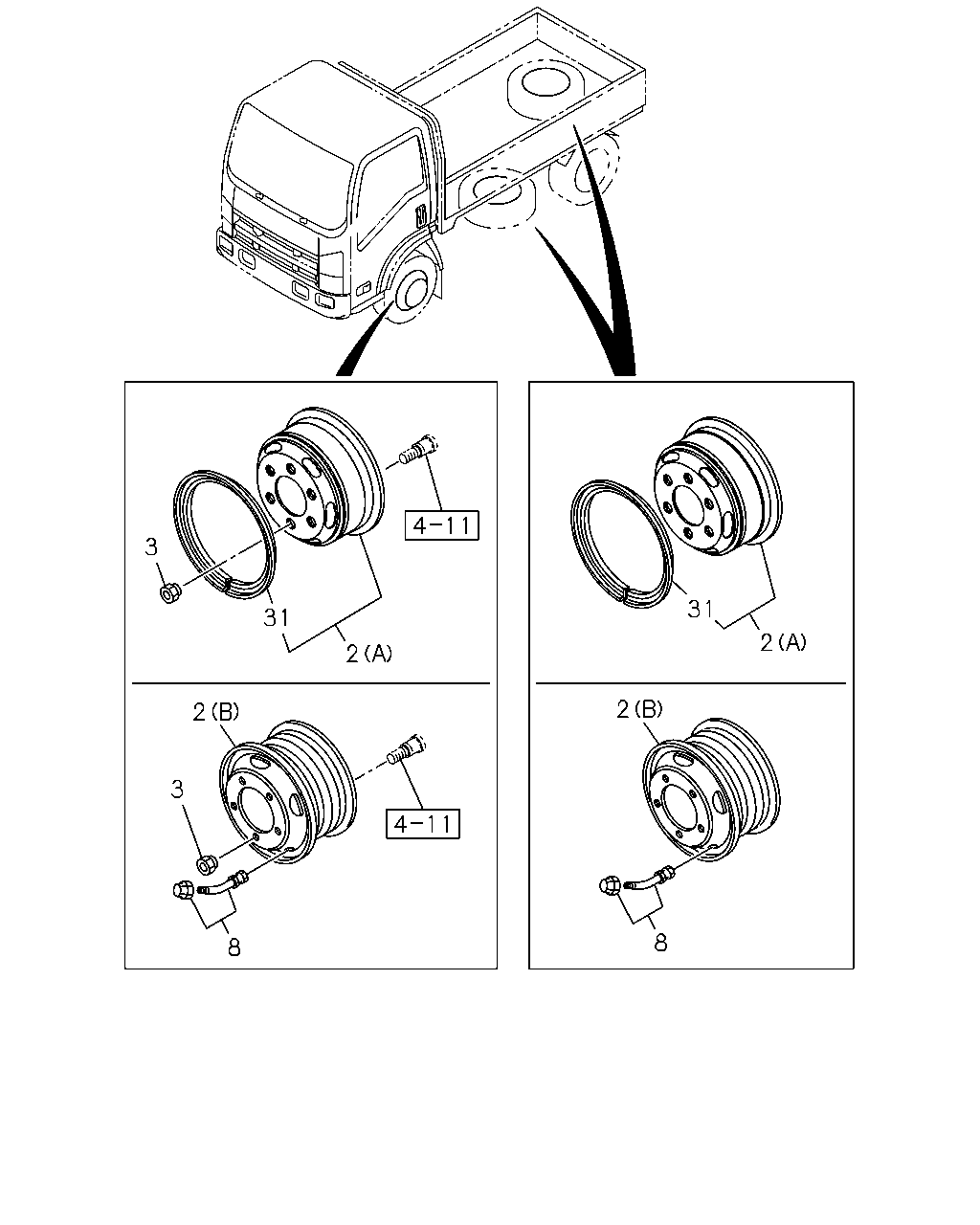

3 31 2 2 3 8 2 31 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	01	1	0810-
2	05.803 WHEEL; DISC FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	0804-0809
2	05.803 WHEEL; DISC FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE	1-42350-417-0	06	1	0810-
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0804-1005
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	02	1	1006-1010
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1011-
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0804-1010
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	04	1	1006-1010
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1011-
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0804-
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0804-
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) IDN	8-98221-112-0	01	1	1207-
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) IDN	8-98221-112-0	02	1	1207-
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) IDN	8-98221-112-0	04	1	1207-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	0810-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	0804-0809
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	0810-
