Isuzu WW
▶
TRUCKS
▶
NNR
▶
51158 - NNR/NPR EU-R EXC.EU5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-08 - CLUTCH MASTER CYLINDER
▶

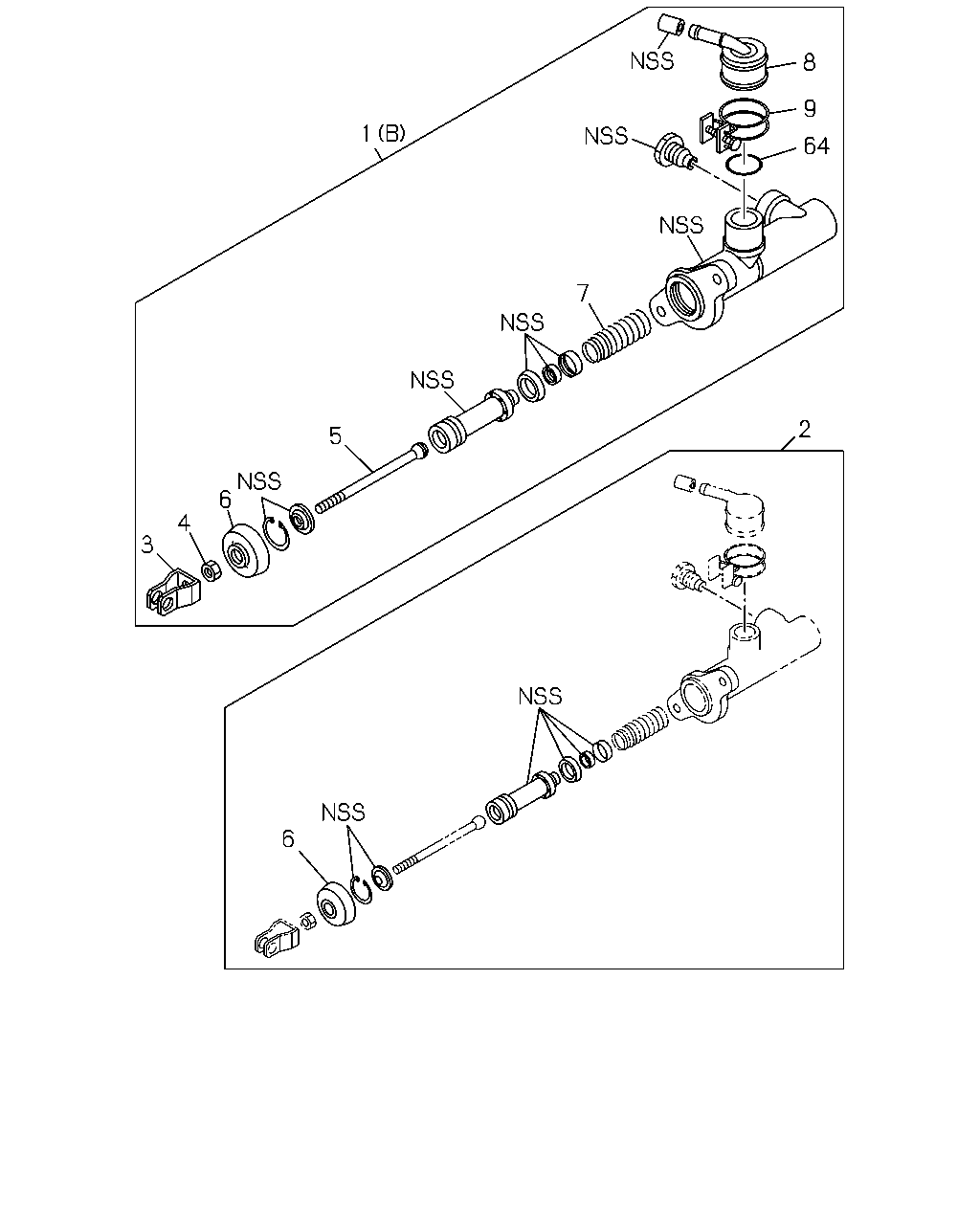

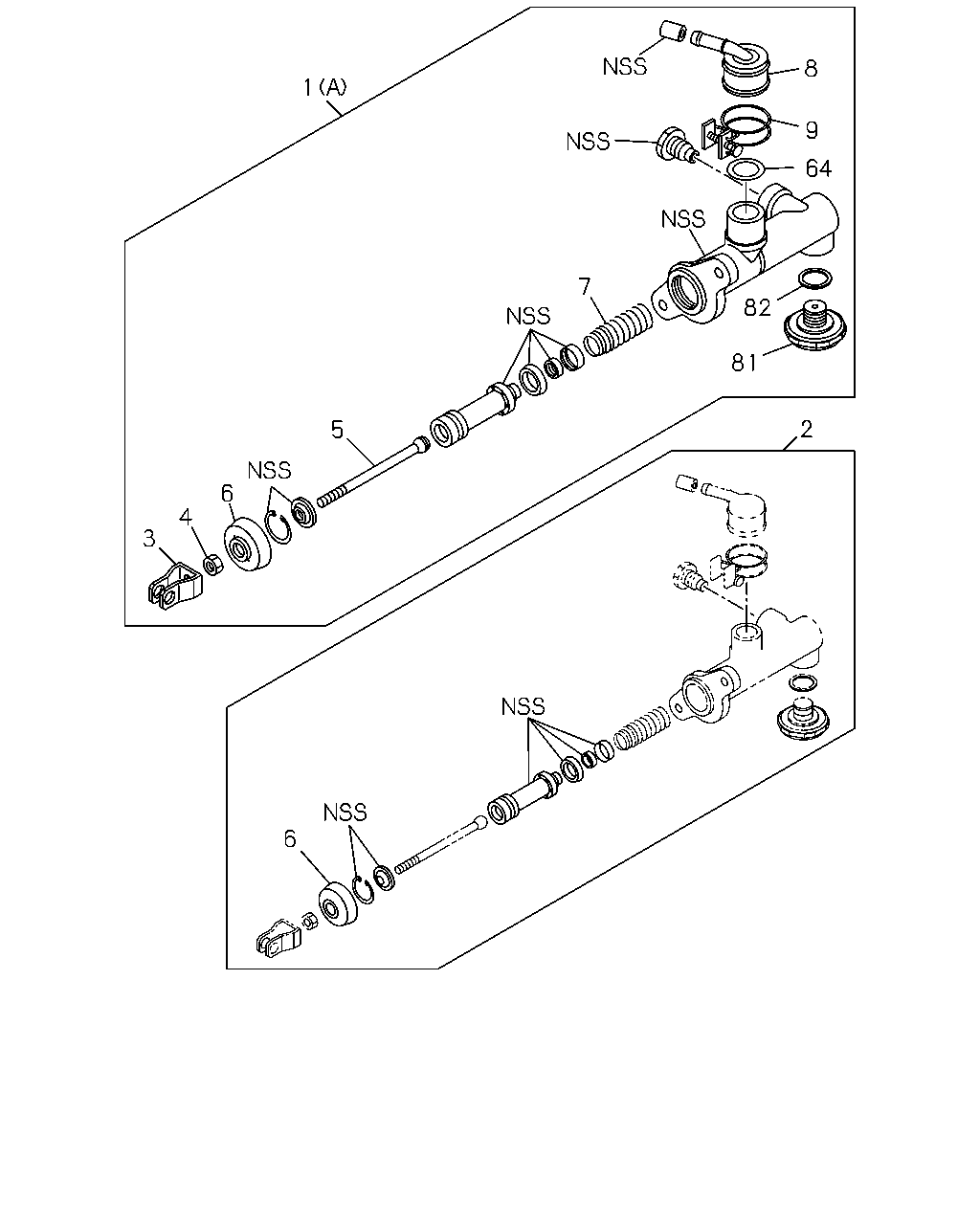

2-08 — CLUTCH MASTER CYLINDER
(#52503) — 52 parça
Tümü
A - M/T MYY5T
B - M/T MZZ6F
C - M/T MYY6S
◀
[208A] 4JJ1 EXC.POWER ASSIST CLUTCH (20 parça)
[208A] POWER ASSIST CLUTCH (14 parça)
[208A] 4HK1 EXC.POWER ASSIST CLUTCH (18 parça)
▶
8
1
9
64
7
82
81
2
5
6
4
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)
8-98098-250-0
01
1
0712-
●
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)
8-98062-277-0
01
1
0712-
●
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)
8-97300-210-0
01
1
0712-0803
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)
8-98117-641-0
01
1
0804-
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97162-963-0
01
1
0712-0803
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98117-639-0
01
1
0804-
●
2
00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-221-0
01
1
0712-
●
●
●
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
5-87831-597-0
01
1
0712-0803
●
●
●
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
5-87832-226-0
01
1
0804-
●
●
●
3
00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-770-0
01
1
0712-
●
●
●
4
00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8
0-91111-508-0
01
1
0712-
●
●
●
5
00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-768-0
01
1
0712-
●
●
●
6
00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-94412-200-0
01
1
0712-
●
●
●
7
00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98077-784-0
01
1
0712-
●
●
●
7
00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-780-0
01
1
0712-
●
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97163-191-0
01
1
0712-
●
●
●
9
00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-773-0
01
1
0712-
●
●
●
64
00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-767-0
01
1
0712-
●
●
●
81
00.777 DAMPER; MASTER CYL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97190-913-0
01
1
0712-
●
●
82
00.777 GASKET; DAMPER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97191-396-0
01
1
0712-
●
●
1
8
9
64
7
2
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)
8-98098-250-0
01
1
0712-
●
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)
8-98062-277-0
01
1
0712-
●
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)
8-97300-210-0
01
1
0712-0803
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)
8-98117-641-0
01
1
0804-
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97162-963-0
01
1
0712-0803
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98117-639-0
01
1
0804-
●
2
00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-221-0
01
1
0712-
●
●
●
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
5-87831-597-0
01
1
0712-0803
●
●
●
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
5-87832-226-0
01
1
0804-
●
●
●
7
00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98077-784-0
01
1
0712-
●
●
●
7
00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-780-0
01
1
0712-
●
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97163-191-0
01
1
0712-
●
●
●
9
00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-773-0
01
1
0712-
●
●
●
64
00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-767-0
01
1
0712-
●
●
●
8
9
1
64
7
2
5
6
4
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)
8-98098-250-0
01
1
0712-
●
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)
8-98062-277-0
01
1
0712-
●
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)
8-97300-210-0
01
1
0712-0803
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)
8-98117-641-0
01
1
0804-
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97162-963-0
01
1
0712-0803
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98117-639-0
01
1
0804-
●
2
00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-221-0
01
1
0712-
●
●
●
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
5-87831-597-0
01
1
0712-0803
●
●
●
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
5-87832-226-0
01
1
0804-
●
●
●
3
00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-770-0
01
1
0712-
●
●
●
4
00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8
0-91111-508-0
01
1
0712-
●
●
●
5
00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-768-0
01
1
0712-
●
●
●
6
00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-94412-200-0
01
1
0712-
●
●
●
7
00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98077-784-0
01
1
0712-
●
●
●
7
00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)
8-97167-780-0
01
1
0712-
●
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97163-191-0
01
1
0712-
●
●
●
9
00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-773-0
01
1
0712-
●
●
●
64
00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-767-0
01
1
0712-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
