4 |
03.130 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
4 |
03.130 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0712-0906 |
|
● |
|
| |
4 |
03.130 NUT; BRKT
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907- |
● |
|
|
| |
4 |
03.130 NUT; BRKT
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907- |
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0712-0906 |
● |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0907- |
● |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0712-0804 |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0712-0804 |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0805-0906 |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0805-0906 |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0907- |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0907- |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
0907- |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0907- |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
0712-0906 |
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
0907- |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
POOR QUALITY DIESEL FUEL(KF0)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
POOR QUALITY DIESEL FUEL(KF0)
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
08 |
1 |
0712-0906 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
08 |
1 |
0712-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
04.930
(C)
ID=16
|
8-94238-568-0 |
08 |
1 |
0907-0911 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
08 |
1 |
0907-0911 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
(C)
ID=16
|
8-98008-098-0 |
08 |
1 |
0912- |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
08 |
1 |
0912- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0712-0801 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0712-0801 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0802-0906 |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0907-1107 |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108- |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108- |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
02.559
(F)
L=250
|
5-09707-030-1 |
01 |
1 |
0712-0906 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(F)
L=250
|
5-09707-030-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
02.559
(F)
L=250
|
5-09707-030-1 |
01 |
1 |
0907-1107 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(F)
L=250
|
5-09707-030-1 |
01 |
1 |
0907-1107 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
02.559
(F)
L=250
|
5-09707-030-1 |
01 |
1 |
1108- |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(F)
L=250
|
5-09707-030-1 |
01 |
1 |
1108- |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W)
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907-0910 |
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907-0910 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907-0910 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0911- |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0911- |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FUEL TANK 100 LITTER<N02>
FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0911- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
03 |
1 |
0712-0801 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
0802-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
0907- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
04 |
1 |
0712-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
02 |
1 |
0907-0911 |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
03.483
(E)
L=450
|
1-09707-142-1 |
01 |
1 |
0712-0906 |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
03.483
(E)
L=450
|
1-09707-142-1 |
01 |
1 |
0907- |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=45 H=31 L=35
|
1-09701-273-0 |
01 |
1 |
0712-0906 |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=45 H=31 L=35
|
1-09701-273-0 |
01 |
1 |
0907-1107 |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1108- |
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0712-0712 |
● |
● |
● |
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER(8GF)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0712-0712 |
● |
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0910 |
● |
● |
● |
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0910 |
● |
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0911- |
● |
● |
● |
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0911- |
● |
● |
● |
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0911- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(E)
|
8-98105-710-0 |
01 |
1 |
0911- |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98105-710-0 |
01 |
1 |
0911- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(F)
|
8-98105-757-1 |
01 |
1 |
0911- |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
|
8-98105-757-1 |
01 |
1 |
0911- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-98099-502-0 |
01 |
1 |
0911- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
03.003
(D)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(D)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
03.003
(D)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907- |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(D)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-0910 |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-0910 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
EXC. POOR QUALITY DIESEL FUEL(KF0)
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0911-1009 |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAMESTRAIGHT TYPE<7KJ>
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0911-1009 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1010- |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
EXC. POOR QUALITY DIESEL FUEL(KF0)
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1010- |
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAMESTRAIGHT TYPE<7KJ>
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1010- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1010- |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-565-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-565-1 |
01 |
1 |
0907- |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98037-758-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98037-758-0 |
01 |
1 |
0907-0910 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98037-758-0 |
01 |
1 |
0911- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-564-2 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-564-4 |
01 |
1 |
0907- |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-563-2 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-563-4 |
01 |
1 |
0907- |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-974-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98070-974-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-974-0 |
01 |
1 |
0907- |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
0907- |
● |
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-936-3 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98046-936-3 |
01 |
1 |
0907- |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-681-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-681-1 |
01 |
1 |
0907- |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-638-3 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-638-3 |
01 |
1 |
0907- |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-486-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-486-1 |
01 |
1 |
0907- |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98070-976-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98070-976-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98070-976-0 |
01 |
1 |
0907- |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98070-975-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98070-975-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98070-975-0 |
01 |
1 |
0907- |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98036-483-0 |
01 |
1 |
0712-0906 |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98036-483-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(C)
|
8-98036-483-0 |
01 |
1 |
0907- |
● |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
(C)
|
8-98036-483-0 |
01 |
1 |
0907- |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(C)
|
8-98036-483-0 |
01 |
1 |
0907- |
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
0907- |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
0907- |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-937-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98046-937-1 |
01 |
1 |
0907- |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-639-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-639-0 |
01 |
1 |
0907- |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98082-163-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98082-163-1 |
01 |
1 |
0907- |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-487-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-487-1 |
01 |
1 |
0907- |
● |
● |
|
| |
48 |
03.162 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
48 |
03.162 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0712-0906 |
|
● |
|
| |
48 |
03.162 BOLT; BRKT
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0907- |
● |
|
|
| |
48 |
03.162 BOLT; BRKT
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0907- |
|
● |
|
| |
48 |
03.162 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
48 |
03.162 BOLT; BRKT
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
● |
● |
|
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
M10
|
0-91111-510-0 |
02 |
1 |
0712-0906 |
|
|
● |
| |
51 |
03.162 NUT; CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
00.787
M10
|
0-91111-510-0 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
51 |
03.162 NUT; CLIP,PIPE
4JJ1-TCS ENG(LFB)
00.787
M10
|
0-91111-510-0 |
02 |
1 |
0907- |
|
|
● |
| |
51 |
03.162 NUT; CLIP,PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
00.787
M10
|
0-91111-510-0 |
02 |
1 |
0907- |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
02 |
1 |
0802-0906 |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
01 |
1 |
0907- |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
(B)
|
8-98038-801-0 |
02 |
1 |
0712-0906 |
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98038-801-0 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCS ENG(LFB)
(B)
|
8-98038-801-0 |
02 |
1 |
0907- |
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98038-801-0 |
02 |
1 |
0907- |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
03 |
1 |
0712-0801 |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
01 |
1 |
0802-0906 |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
02 |
1 |
0907- |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
(D)
|
8-98106-967-2 |
01 |
1 |
0911- |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98106-967-2 |
01 |
1 |
0911- |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
(E)
|
8-98106-968-1 |
01 |
1 |
0911- |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98106-968-1 |
01 |
1 |
0911- |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(B)
|
8-97389-774-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97389-774-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
(B)
|
8-97389-774-0 |
01 |
1 |
0907- |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97389-774-0 |
01 |
1 |
0907- |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
(C)
|
8-97389-796-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97389-796-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(C)
|
8-97389-796-0 |
01 |
1 |
0907-0910 |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97389-796-0 |
01 |
1 |
0907-0910 |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-97389-796-0 |
01 |
1 |
0911- |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAMESTRAIGHT TYPE<7KJ>
(C)
|
8-97389-796-0 |
01 |
1 |
0911- |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W)
(C)
|
8-98072-316-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98072-316-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(C)
|
8-98072-316-0 |
01 |
1 |
0907- |
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98072-316-0 |
01 |
1 |
0907- |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
0907- |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907- |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907- |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98087-851-0 |
01 |
1 |
0712-0906 |
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98087-851-1 |
01 |
1 |
0907-1107 |
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98177-420-0 |
01 |
1 |
1108- |
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
(D)
|
8-97389-806-1 |
01 |
1 |
0712-0906 |
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97389-806-1 |
01 |
1 |
0712-0906 |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(D)
|
8-97389-806-2 |
01 |
1 |
0907- |
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97389-806-2 |
01 |
1 |
0907- |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
(D)
|
8-98072-317-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98072-317-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(D)
|
8-98072-317-1 |
01 |
1 |
0907- |
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98072-317-1 |
01 |
1 |
0907- |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98090-524-0 |
01 |
1 |
0712-0906 |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98090-524-1 |
01 |
1 |
0907- |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98065-058-0 |
01 |
1 |
0712-0712 |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98093-616-0 |
01 |
1 |
0801-0906 |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98093-616-0 |
01 |
1 |
0907- |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MYY5T(RSM),M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0712- |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0712- |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=200
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=200
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907- |
● |
● |
|
| |
66 |

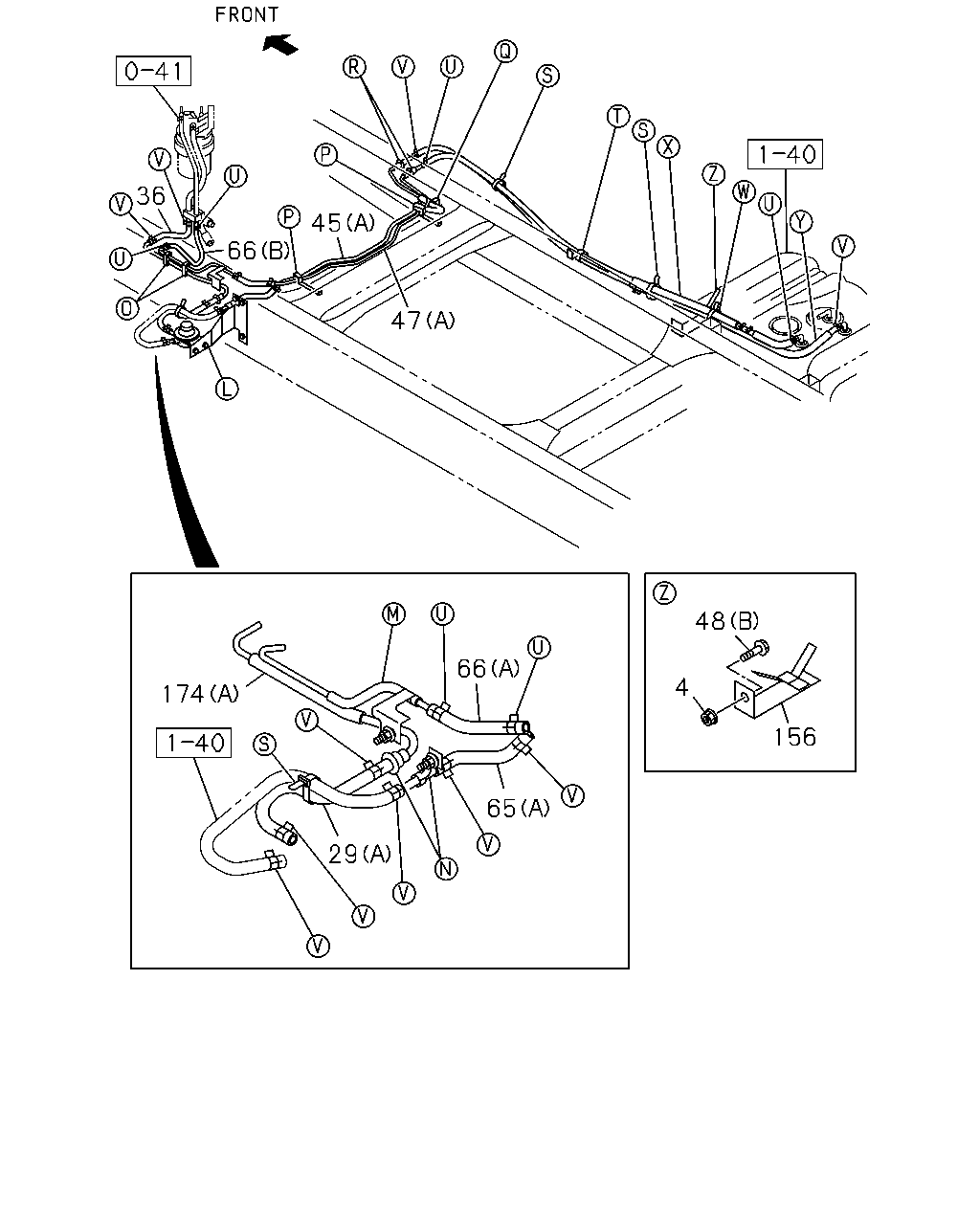

03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-567-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-567-2 |
01 |
1 |
0907- |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-566-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-566-2 |
01 |
1 |
0907- |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97389-808-2 |
01 |
1 |
0712-0906 |
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97389-808-3 |
01 |
1 |
0907-1107 |
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98177-419-0 |
01 |
1 |
1108- |
|
● |
|
| |
72 |

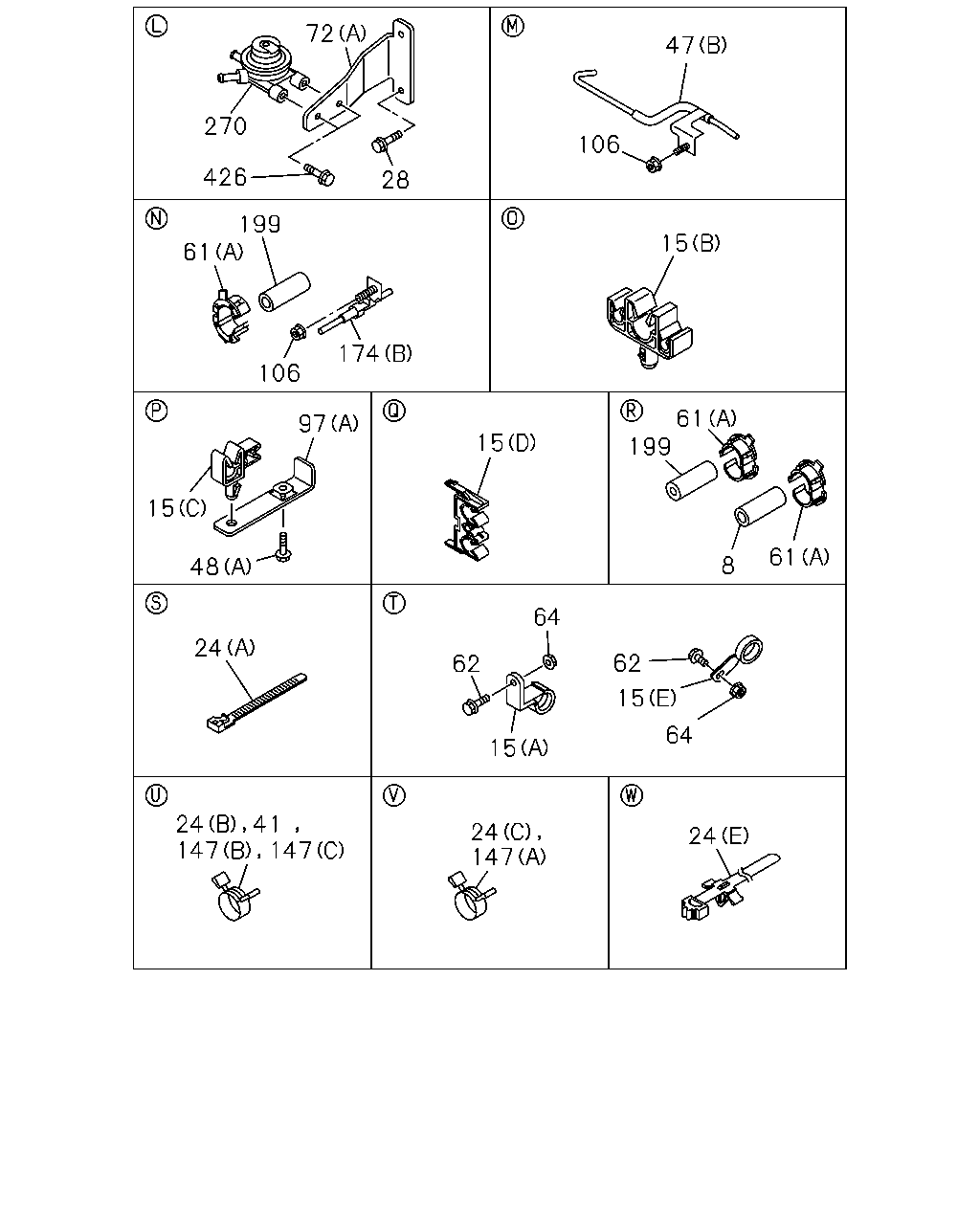

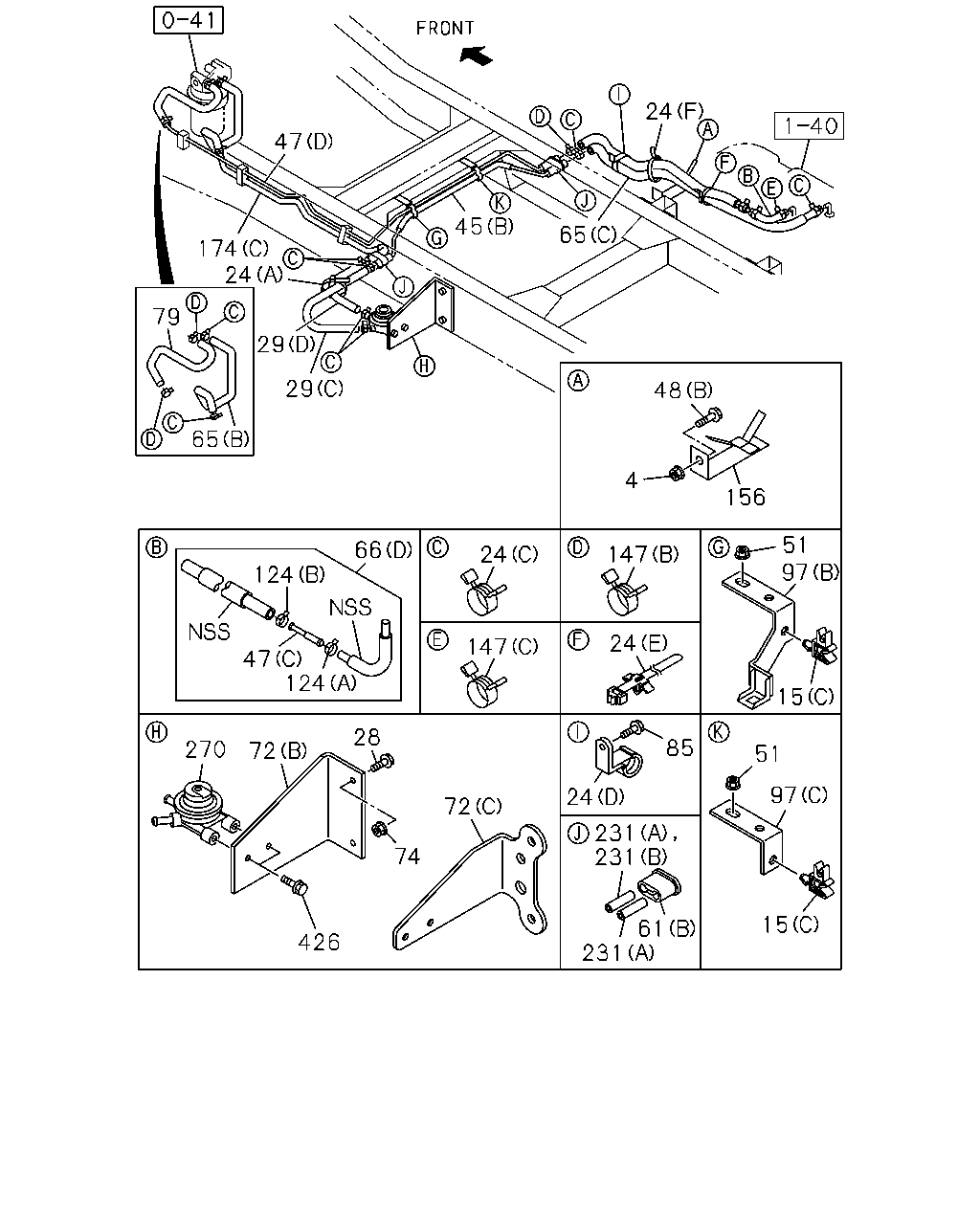

03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
(B)
|
8-98028-752-2 |
01 |
1 |
0712-0712 |
● |
● |
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98028-752-2 |
01 |
1 |
0801-0803 |
● |
● |
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98107-370-0 |
01 |
1 |
0804-0910 |
● |
● |
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAMESTRAIGHT TYPE<7KJ>
(C)
|
8-98107-370-0 |
01 |
1 |
0911- |
● |
● |
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98107-370-0 |
01 |
1 |
0911- |
● |
|
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98084-815-1 |
01 |
1 |
0712-0712 |
● |
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98084-815-1 |
01 |
1 |
0801-0910 |
● |
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
|
8-98084-815-1 |
01 |
1 |
0801-0910 |
● |
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98084-815-1 |
01 |
1 |
0911- |
● |
● |
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98084-815-1 |
01 |
1 |
0911- |
● |
● |
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0712-0712 |
● |
● |
● |
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0801-0910 |
● |
● |
● |
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAMESTRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0911- |
● |
● |
● |
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0911- |
● |
|
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
|
8-97389-778-1 |
01 |
1 |
0712-0906 |
|
|
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97389-778-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB)
|
8-97389-778-1 |
01 |
1 |
0907- |
|
|
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97389-778-1 |
01 |
1 |
0907- |
● |
● |
|
| |
85 |
03.162 BOLT; CLIP,FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0906 |
|
● |
|
| |
85 |
03.162 BOLT; CLIP,FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0907- |
|
● |
|
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
0712-0906 |
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98039-929-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCS ENG(LFB)
(B)
|
8-98039-929-1 |
01 |
1 |
0907- |
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98039-929-1 |
01 |
1 |
0907- |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98006-480-1 |
01 |
1 |
0712-0906 |
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98006-480-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCS ENG(LFB)
(C)
|
8-98006-480-1 |
01 |
1 |
0907- |
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98006-480-1 |
01 |
1 |
0907- |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
0907- |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
0712-0906 |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
0907- |
● |
● |
|
| |
124 |
03.162 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(A)
ID=13
|
8-94238-571-0 |
01 |
1 |
0712-0906 |
● |
● |
● |
| |
124 |
03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ>
01.219
(A)
ID=13
|
8-94238-571-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
124 |
03.162 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
01.219
(A)
ID=13
|
8-94238-571-0 |
01 |
1 |
0907-0911 |
● |
|
● |
| |
124 |
03.162 CLIP; HOSE
4HK1-TCS ENG(RJS)
01.219
(A)
ID=13
|
8-94238-571-0 |
01 |
1 |
0907-0911 |
● |
|
|
| |
124 |
03.162 CLIP; HOSE
01.219
(A)
ID=13
|
8-94238-571-0 |
01 |
1 |
0907-0911 |
|
● |
|
| |
124 |
03.162 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(A)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
|
● |
| |
124 |
03.162 CLIP; HOSE
4HK1-TCS ENG(RJS)
(A)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
|
|
| |
124 |
03.162 CLIP; HOSE
(A)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
● |
|
| |
124 |
03.162 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=12
|
8-97358-961-0 |
01 |
1 |
0712-0906 |
● |
● |
● |
| |
124 |
03.162 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ>
(B)
ID=12
|
8-97358-961-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
124 |
03.162 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(B)
ID=12
|
8-97358-961-0 |
01 |
1 |
0907-1002 |
● |
|
● |
| |
124 |
03.162 CLIP; HOSE
4HK1-TCS ENG(RJS)
(B)
ID=12
|
8-97358-961-0 |
01 |
1 |
0907-1002 |
● |
|
|
| |
124 |
03.162 CLIP; HOSE
(B)
ID=12
|
8-97358-961-0 |
01 |
1 |
0907-1002 |
|
● |
|
| |
124 |
03.162 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
1003- |
● |
|
● |
| |
124 |
03.162 CLIP; HOSE
4HK1-TCS ENG(RJS)
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
1003- |
● |
|
|
| |
124 |
03.162 CLIP; HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
1003- |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1002 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003- |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003- |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003- |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003- |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003- |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
03 |
1 |
0712-0906 |
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
03 |
1 |
0712-0906 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
01.219
(B)
ID=12
|
8-94238-610-0 |
03 |
1 |
0907-0911 |
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
03 |
1 |
0907-0911 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
01.240
(B)
ID=12
|
8-98150-358-0 |
03 |
1 |
0912- |
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
03 |
1 |
0912- |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(C)
ID=13
|
8-94238-571-0 |
01 |
1 |
0712-0906 |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(C)
ID=13
|
8-94238-571-0 |
01 |
1 |
0907-0911 |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(C)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0712-0801 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0802-0802 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0802-0802 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0802-0910 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0802-0910 |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0802-0910 |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0911-0911 |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0911-0911 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0912-1002 |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0912-1002 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
1003- |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
0712-0801 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0802-0906 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0910 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0911-0911 |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1003- |
● |
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1003- |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
01 |
1 |
0907-0911 |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
0912- |
● |
● |
|
| |
156 |
03.162 BRACKET; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
|
8-98041-250-1 |
01 |
1 |
0712-0906 |
● |
|
|
| |
156 |
03.162 BRACKET; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98041-250-1 |
01 |
1 |
0712-0906 |
|
● |
|
| |
156 |
03.162 BRACKET; FUEL HOSE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
|
8-98041-250-2 |
01 |
1 |
0907- |
● |
|
|
| |
156 |
03.162 BRACKET; FUEL HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98041-250-2 |
01 |
1 |
0907- |
|
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(C)
|
8-98070-972-0 |
01 |
1 |
0712-0906 |
|
|
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98070-972-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB)
(C)
|
8-98070-972-0 |
01 |
1 |
0907- |
|
|
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98070-972-0 |
01 |
1 |
0907- |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98033-844-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98033-844-1 |
01 |
1 |
0907- |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
0907- |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
0907- |
● |
● |
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0712-0906 |
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0712-0906 |
● |
● |
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCS ENG(LFB)
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0907- |
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0907- |
● |
● |
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0712-0906 |
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0712-0906 |
● |
● |
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCS ENG(LFB)
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0907- |
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0907- |
● |
● |
|
| |
270 |
03.900 PUMP ASM; FUEL
|
8-98018-187-4 |
01 |
1 |
0712- |
● |
● |
● |
| |
426 |
03.330 BOLT; FUEL PUMP
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0712-0903 |
● |
● |
● |
| |
426 |
03.330 BOLT; FUEL PUMP
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0904- |
● |
● |
● |
