Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#5249) — 198 parça

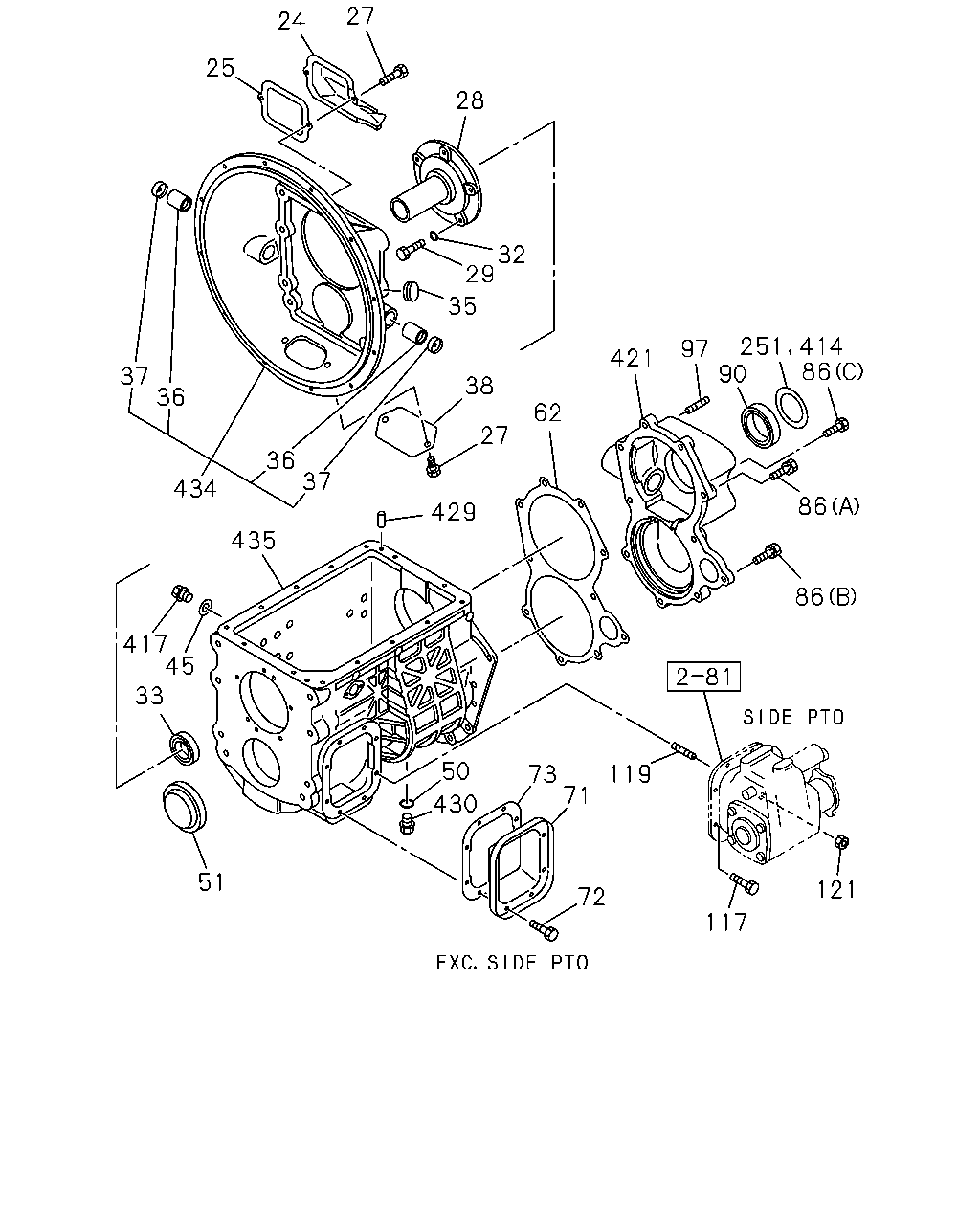

27 24 25 28 86 32 29 35 90 97 86 421 37 36 38 86 27 104 36 37 102 86 434 429 86 435 101 100 104 417 45 33 103 50 119 73 71 430 51 121 72 117 251 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9604-9904	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9905-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9604-9904	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9905-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9604-9904	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9905-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-1	01	1	9604-9904	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9905-	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	05	1	9604-9904	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9905-	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9604-9904	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9905-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9604-9904	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9905-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9604-9904	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9905-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9604-9904	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9905-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9604-9904	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9905-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9604-9904	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9905-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9604-9904	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9604-9904	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9604-9707	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-0	01	1	9708-9904	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9905-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9604-9904	●	●
71	COVER; SIDE,TRANS CASE 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9905-	●	●
71	COVER; SIDE,TRANS CASE 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9905-	●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9604-9904	●	●
72	BOLT; SIDE COVER 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9905-	●	●
72	BOLT; SIDE COVER 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9905-	●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9604-9904	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9905-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9905-	●		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9604-	●
86	BOLT; RR COVER (B) M14X20	1-09044-078-0	01	1	9604-	●
86	BOLT; RR COVER (C) M16X40	9-09804-155-0	01	1	9604-9904	●
86	BOLT; RR COVER (C) M16X40	9-09804-155-0	01	1	9905-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9604-9904		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9905-		●	●
86	BOLT; RR COVER (B) M12X65	1-09044-077-0	02	1	9604-9904		●
86	BOLT; RR COVER (B) M12X65	1-09044-077-0	02	1	9905-0011		●	●
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	0012-		●	●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9604-9904		●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9905-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9604-9904	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9905-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9604-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9604-9904		●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9905-		●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9604-9904		●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-		●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9604-9904		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9905-		●	●
103	RETAINER; BRG	9-33151-014-0	01	1	9604-9904		●
103	RETAINER; BRG	9-33151-014-0	01	1	9905-		●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9604-9904		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9905-		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9604-9904	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9905-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9604-9904	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9905-	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9604-9904	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	9912-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9604-9904	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9905-9911	●	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9912-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9604-9802	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9904	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9905-	●	●	●
421	COVER; RR,TRANS	1-33131-111-1	01	1	9604-9604	●
421	COVER; RR,TRANS '960416-	1-33131-188-1	01	1	9604-	●
421	COVER; RR,TRANS	1-33131-123-1	01	1	9604-9605		●
421	COVER; RR,TRANS	1-33131-191-1	01	1	9606-9904		●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9905-		●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9604-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9905-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9604-9904	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	9604-9904	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	9905-	●	●	●
435	CASE; TRANS	1-33111-241-3	01	1	9604-	●
435	CASE; TRANS	1-33111-260-0	01	1	9604-		●
435	CASE; TRANS	1-33111-224-1	01	1	9905-			●

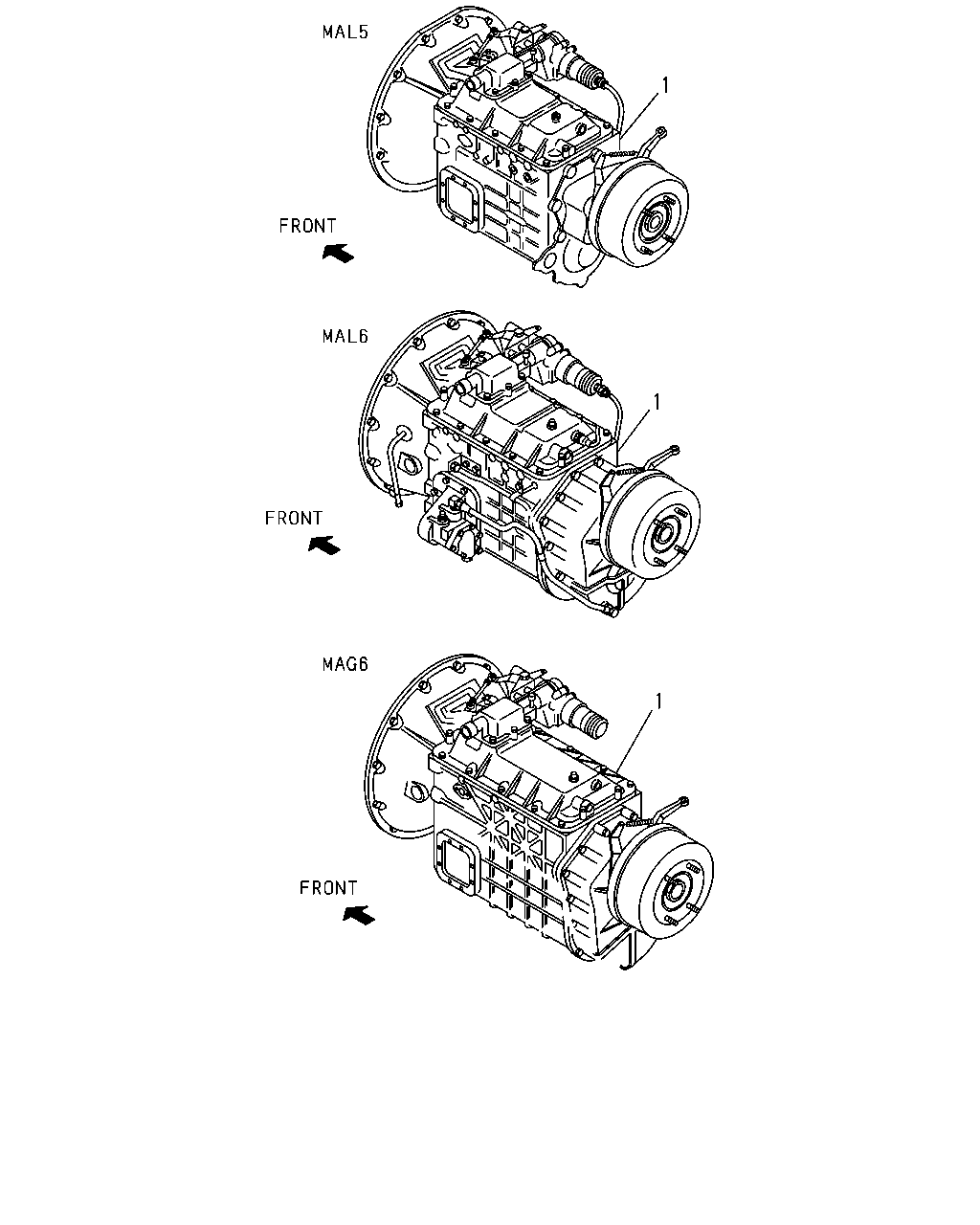

1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33040-588-0	01	1	9604-9904	●
1	TRANSMISSION ASM; MANUAL 8PE1S(59L) ASSISTER SHIFT CONTROL<WX8>	1-33042-082-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33040-587-0	01	1	9604-9904	●
1	TRANSMISSION ASM; MANUAL 8PE1S(59L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-081-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) ASSISTER SHIFT CONTROL<WX8>	1-33042-086-0	01	1	9905-0001	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) ASSISTER SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33042-086-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-085-0	01	1	9905-0001	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTER SHIFT CONTROL<WX8>	1-33042-085-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33043-052-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTERSHIFT CONTROL<WX8>	1-33043-052-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTER SHIFT CONTROL<WX8>	1-33043-053-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-053-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33040-592-0	01	1	9604-9904		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33042-144-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33040-591-0	01	1	9604-9904		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-143-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33042-148-0	01	1	9905-0001			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) ASSISTER SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33042-148-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-147-0	01	1	9905-0001			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTER SHIFT CONTROL<WX8>	1-33042-147-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTER SHIFT CONTROL<WX8>	1-33043-056-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33043-056-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTERSHIFT CONTROL<WX8>	1-33043-056-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> P90 PROP SHAFT(C5T) ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-057-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTER SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-33042-086-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, ASSISTERSHIFT CONTROL<WX8>	1-33042-085-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTER SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-33042-148-0	01	1	0002-			●
1	TRANSMISSION ASM; MANUAL 10PE1N(61L) P90 PROP SHAFT(C5T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, ASSISTERSHIFT CONTROL<WX8>	1-33042-147-0	01	1	0002-			●

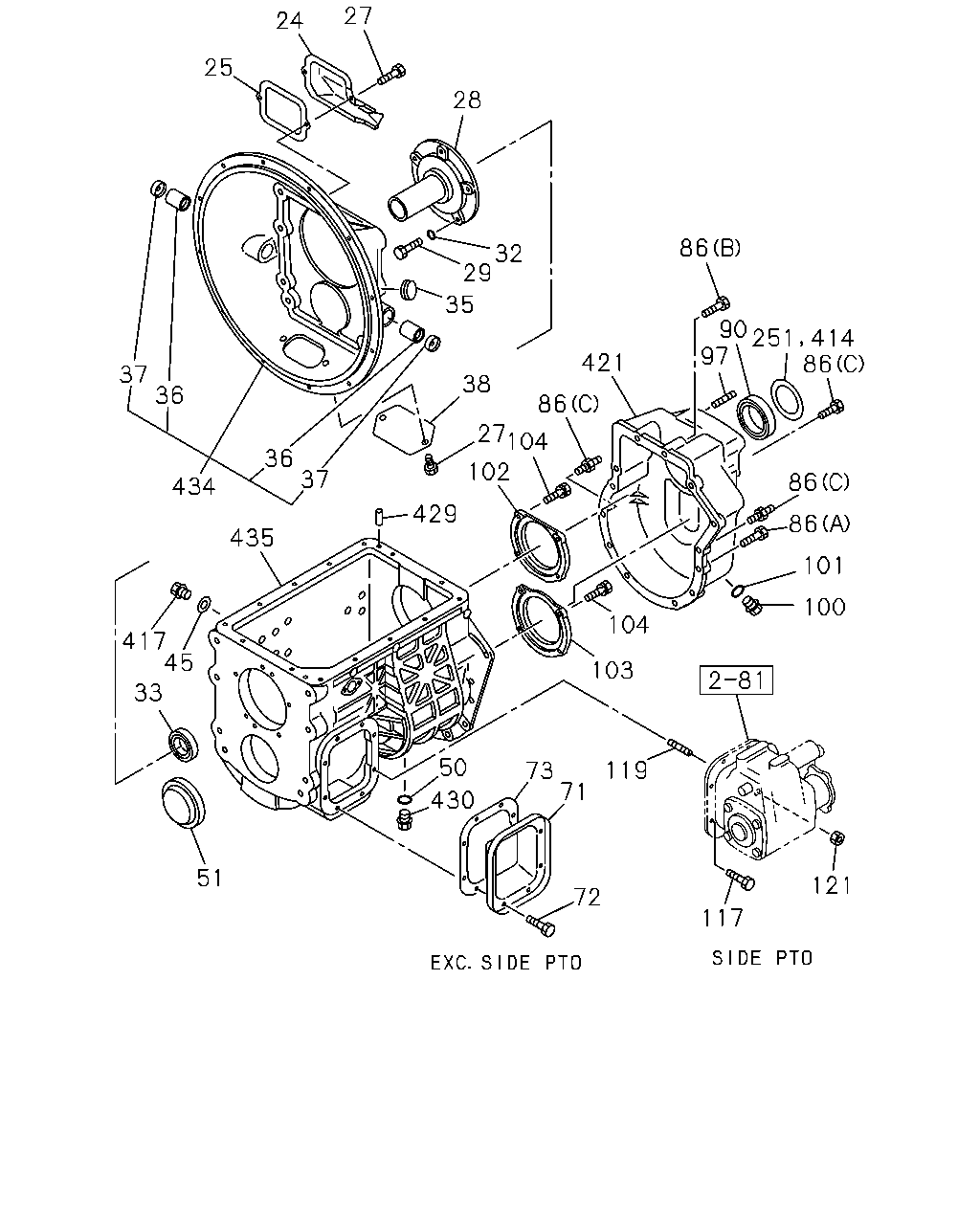

27 24 25 28 32 29 35 90 86 97 421 37 36 38 62 27 36 37 434 86 429 435 86 417 45 33 50 119 73 71 430 51 121 72 117 251 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9604-9904	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9905-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9604-9904	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9905-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9604-9904	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9905-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-1	01	1	9604-9904	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9905-	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	05	1	9604-9904	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9905-	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9604-9904	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9905-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9604-9904	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9905-	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9604-9904	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9905-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9604-9904	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9905-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9604-9904	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9905-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9604-9904	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9905-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9604-9904	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9604-9904	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9604-9707	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-0	01	1	9708-9904	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9905-	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-026-0	01	1	9604-9904	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-026-0	01	1	9905-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9604-9904	●	●
71	COVER; SIDE,TRANS CASE 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9905-	●	●
71	COVER; SIDE,TRANS CASE 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9905-	●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9604-9904	●	●
72	BOLT; SIDE COVER 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9905-	●	●
72	BOLT; SIDE COVER 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9905-	●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9604-9904	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 8PE1S(59L) P60 PROP SHAFT<C2M> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9905-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 10PE1N(61L) P90 PROP SHAFT(C5T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9905-	●		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9604-	●
86	BOLT; RR COVER (B) M14X20	1-09044-078-0	01	1	9604-	●
86	BOLT; RR COVER (C) M16X40	9-09804-155-0	01	1	9604-9904	●
86	BOLT; RR COVER (C) M16X40	9-09804-155-0	01	1	9905-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9604-9904		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9905-		●	●
86	BOLT; RR COVER (B) M12X65	1-09044-077-0	02	1	9604-9904		●
86	BOLT; RR COVER (B) M12X65	1-09044-077-0	02	1	9905-0011		●	●
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	0012-		●	●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9604-9904		●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9905-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9604-9904	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9905-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9604-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9604-9904	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9905-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9604-9904	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9905-	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9604-9904	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	9912-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9604-9904	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9905-9911	●	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9912-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9604-9802	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9904	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9905-	●	●	●
421	COVER; RR,TRANS	1-33131-111-1	01	1	9604-9604	●
421	COVER; RR,TRANS '960416-	1-33131-188-1	01	1	9604-	●
421	COVER; RR,TRANS	1-33131-123-1	01	1	9604-9605		●
421	COVER; RR,TRANS	1-33131-191-1	01	1	9606-9904		●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9905-		●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9604-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9905-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9604-9904	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	9604-9904	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	9905-	●	●	●
435	CASE; TRANS	1-33111-241-3	01	1	9604-	●
435	CASE; TRANS	1-33111-260-0	01	1	9604-		●
435	CASE; TRANS	1-33111-224-1	01	1	9905-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
