◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51158 - NNR/NPR EU-R EXC.EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#52478) — 35 parça

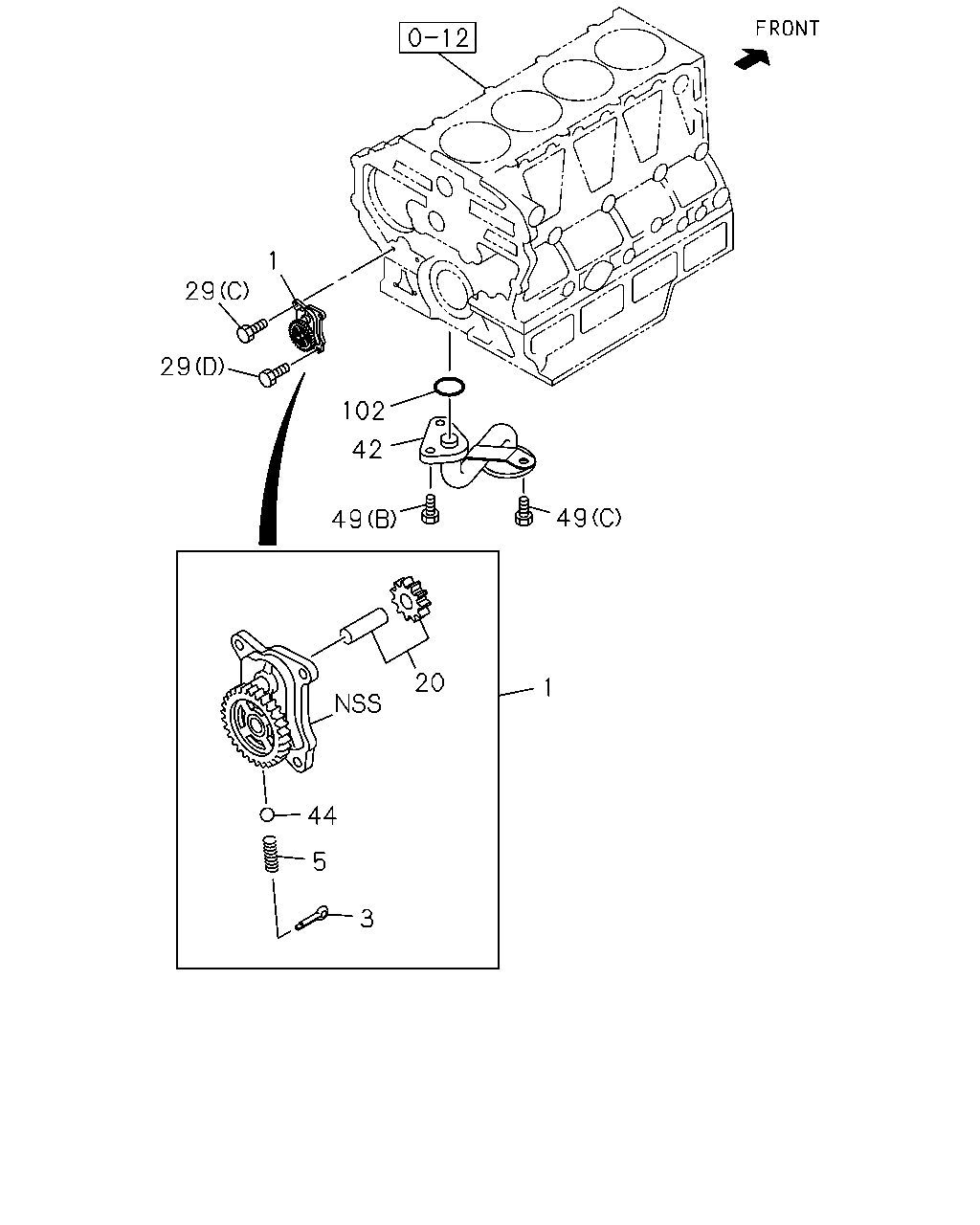

çizim 156812
1 29 29 102 42 49 49 20 1 44 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97381-553-3 01 1 0712-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 0712- ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0712-0906 ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 0907- ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0712- ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 0712- ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0712- ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 0712- ●
29 01.652 BOLT; OIL PUMP
06.174 (C) M8X25 FLANGE 		0-28060-825-0 02 1 0712- ●
29 01.652 BOLT; OIL PUMP
(D) M8X30 FLANGE 		0-28060-830-0 02 1 0712- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97373-119-0 01 1 0712-1203 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-98213-868-0 01 1 1204- ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 0712- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0712-1403 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 0712- ●
49 01.531 BOLT; STRAINER,OIL PUMP
(C) M10X80 		8-97071-956-0 01 1 0712- ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 0712- ●

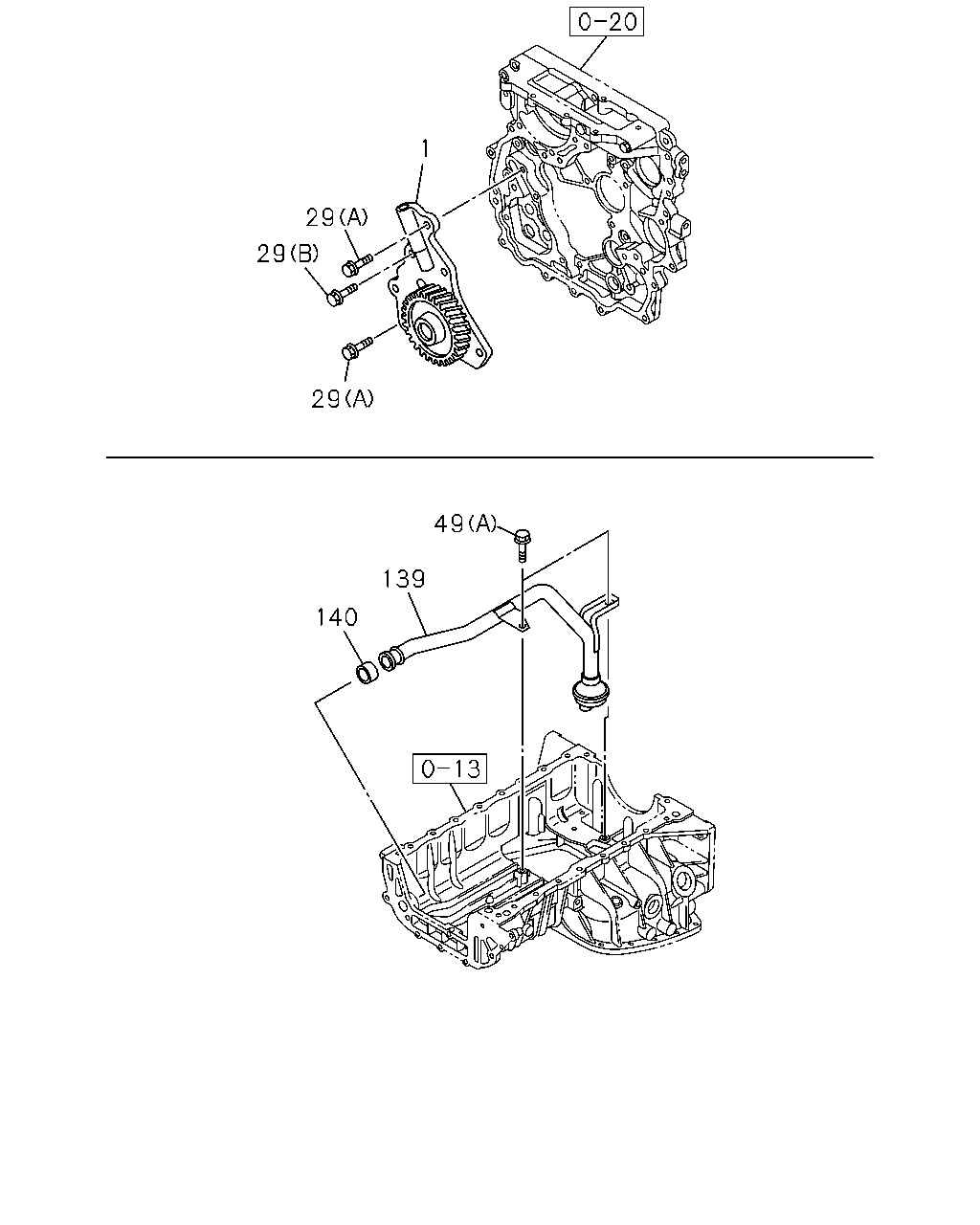

çizim 156830
1 29 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97381-553-3 01 1 0712-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 0712- ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0712- ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 0712- ●
29 01.652 BOLT; OIL PUMP
06.174 (C) M8X25 FLANGE 		0-28060-825-0 02 1 0712- ●
29 01.652 BOLT; OIL PUMP
(D) M8X30 FLANGE 		0-28060-830-0 02 1 0712- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0712-1403 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 0712- ●
49 01.531 BOLT; STRAINER,OIL PUMP
(C) M10X80 		8-97071-956-0 01 1 0712- ●
139 01.639 PIPE; OIL STRAINER 8-98016-890-0 01 1 0712-1010 ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1011- ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
