Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#52473) — 209 parça

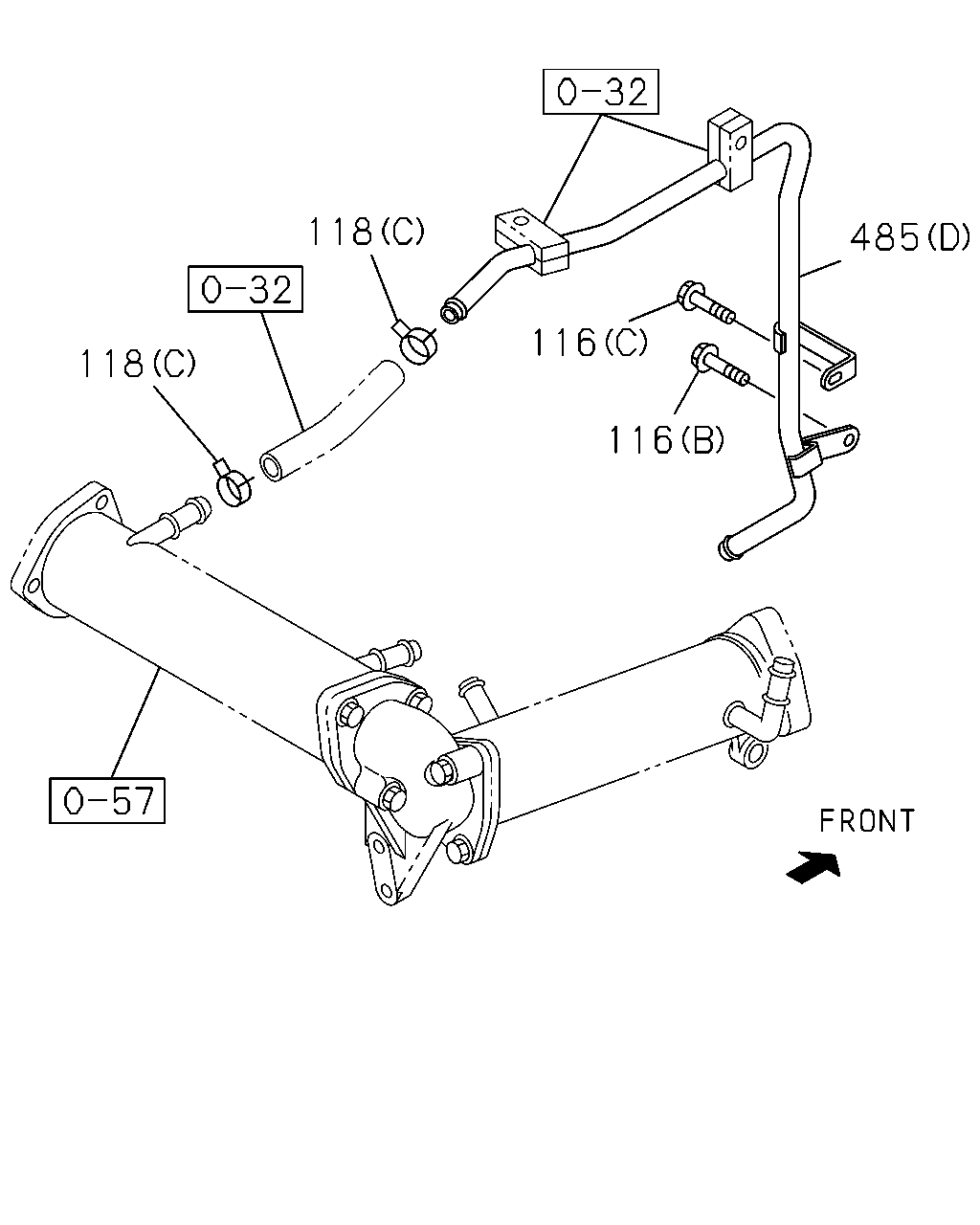

118 485 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0712-	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0712-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0712-		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0712-1003		●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-		●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0712-	●
118	03.342 CLIP; WATER HOSE 03.162 (D) ID=15.5	8-94221-519-0	02	1	0712-	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0712-		●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0712-		●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0712-	●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0712-	●

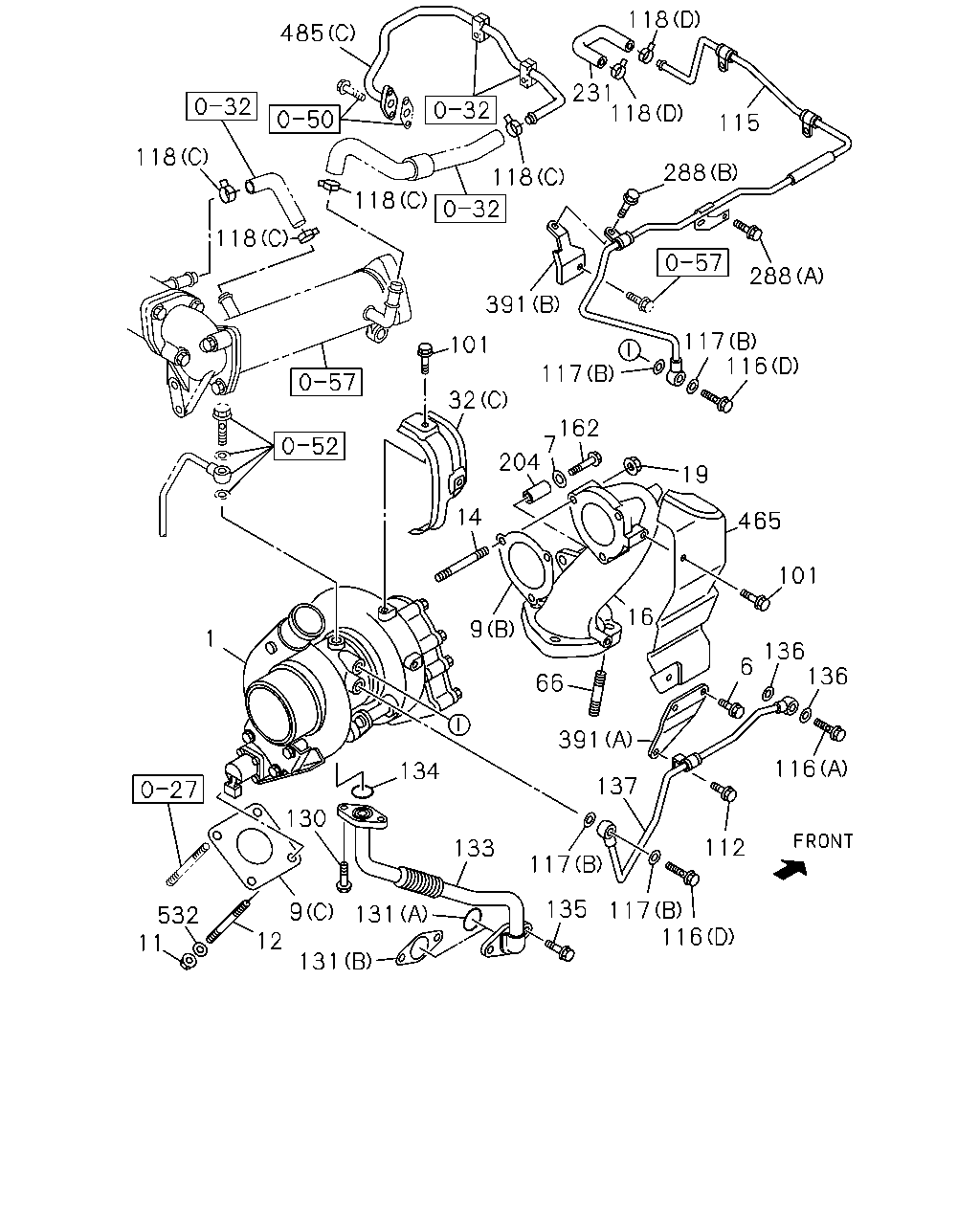

118 485 231 118 115 118 288 118 118 118 288 391 117 116 101 117 32 162 7 204 19 14 465 101 16 9 1 136 136 6 66 391 116 134 137 130 112 133 117 135 117 116 9 12 131 532 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0712-		●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0712-	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0712-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	0712-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97376-758-0	01	1	0712-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98046-241-0	01	1	0712-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0712-		●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0712-0805	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0712-		●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0712-0805	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0712-0903		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	0712-	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0712-0910		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-		●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0712-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0712-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0712-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0712-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98031-888-3	01	1	0712-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0712-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0712-	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0712-	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0712-0802		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0712-	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0712-	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0712-0904	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0712-		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0712-1003		●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-		●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0712-	●
118	03.342 CLIP; WATER HOSE 03.162 (D) ID=15.5	8-94221-519-0	02	1	0712-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0712-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0712-1006	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0712-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1007-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0712-	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0712-	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0712-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0712-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0712-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0712-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0712-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0712-	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	0712-	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	0712-	●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	0712-	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	0712-	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0712-		●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0712-		●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0712-	●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0712-	●
532	03.407 WASHER; TURBOCHARGER 03.613 ID=10	1-09503-033-1	04	1	0712-0805	●

138 117 117 138 117 117 118 137 488 117 118 231 118 21 118 21 485 485 21 115 118 118 119 118 33 118 118 488 118 488 9 14 173 18 16 534 217 66 33 251 217 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	0712-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97376-758-0	01	1	0712-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98046-241-0	01	1	0712-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0712-0903		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	0712-	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0712-0910		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-		●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0712-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0712-0903		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0712-0809		●
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0712-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0712-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0712-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0712-0802		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0712-0904	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0712-		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0712-1003		●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-		●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0712-	●
118	03.342 CLIP; WATER HOSE 03.162 (D) ID=15.5	8-94221-519-0	02	1	0712-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0712-0802		●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0712-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0712-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0712-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0712-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0712-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0712-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0712-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0712-	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0712-		●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0712-		●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0712-		●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0712-	●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0712-	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0712-		●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0712-		●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0712-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0712-0903		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-		●

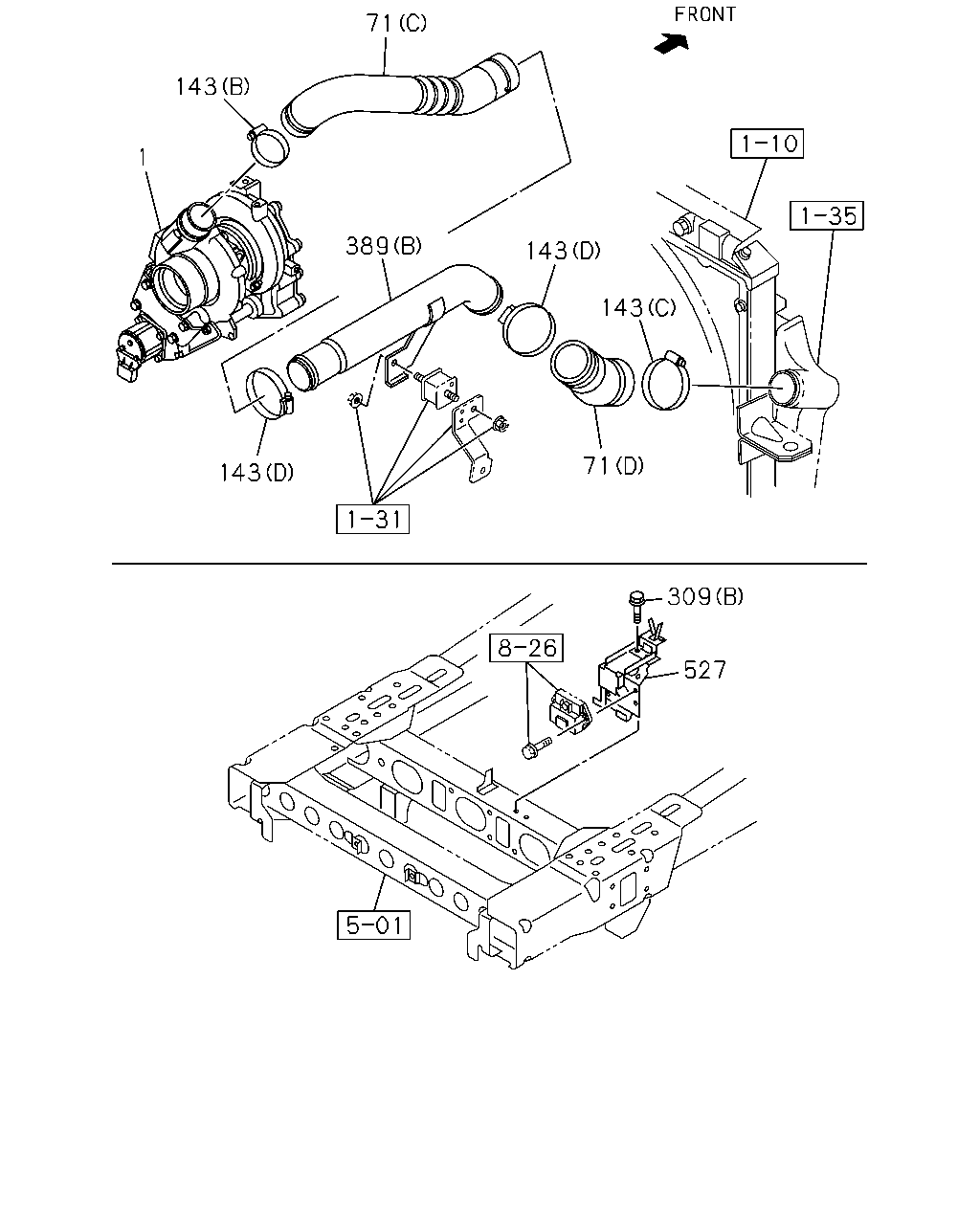

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0712-		●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0712-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-1	01	1	0712-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98055-062-1	01	1	0712-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98006-133-1	01	1	0712-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98039-732-2	01	1	0712-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0712-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65	1-09707-204-0	04	1	0712-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	0811-0812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0712-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (D) ID=58-76	1-09707-203-0	02	1	0712-0811	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=55-75	8-98133-349-0	02	1	0812-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-	●
309	03.342 BOLT; TURBOCHARGER 03.417 (A) M8X28 FLANGE	8-98043-528-0	02	1	0712-		●
309	03.342 BOLT; TURBOCHARGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (A)	8-98036-505-1	01	1	0712-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (B)	8-98042-688-1	01	1	0712-	●
527	03.373 BRACKET; TURBOCHARGER	8-98100-583-0	01	1	0712-	●

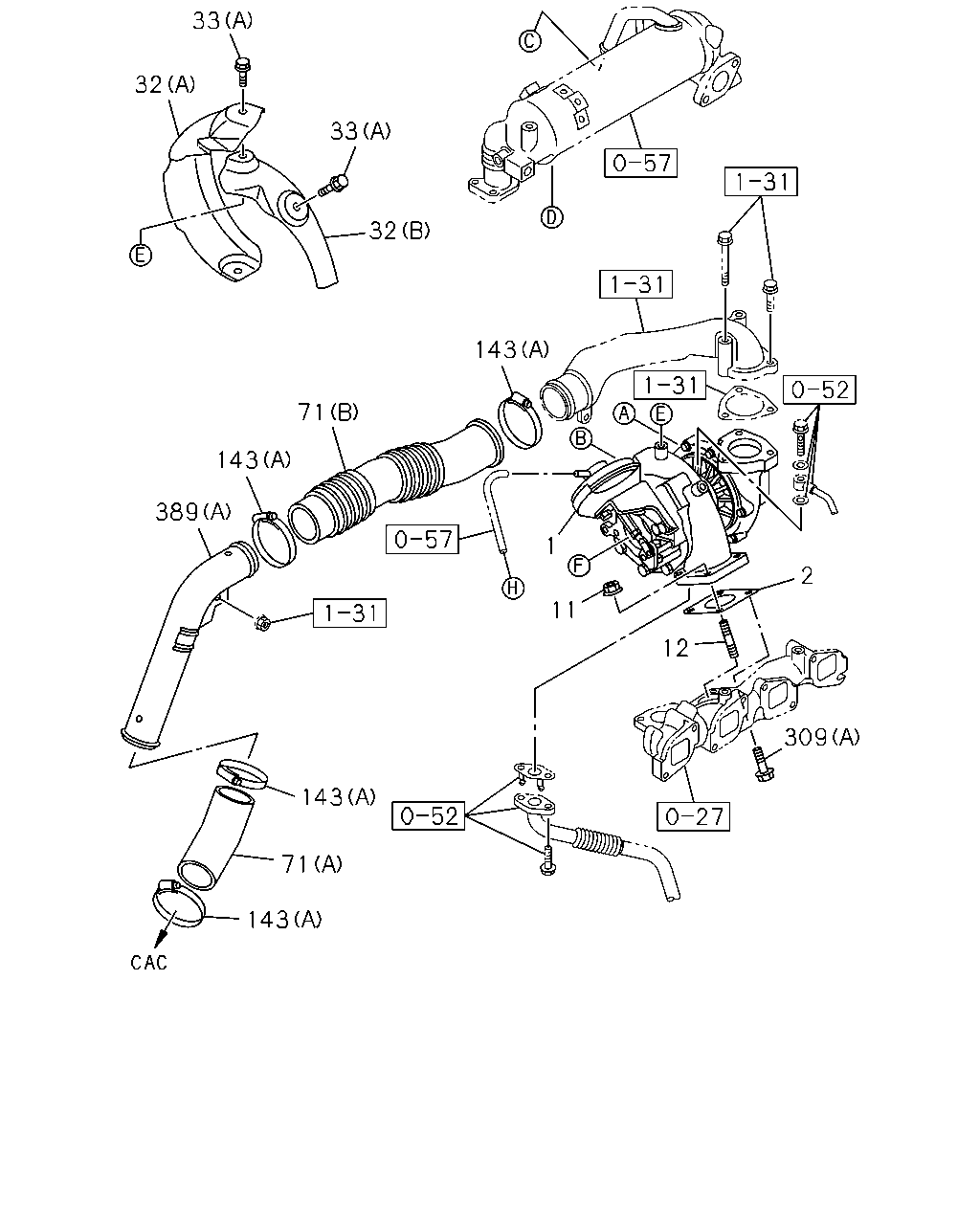

33 32 33 32 143 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0712-		●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0712-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0712-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0712-		●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0712-0805	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0712-		●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0712-0805	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0712-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0712-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98031-888-3	01	1	0712-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0712-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-1	01	1	0712-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98055-062-1	01	1	0712-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98006-133-1	01	1	0712-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98039-732-2	01	1	0712-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0712-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65	1-09707-204-0	04	1	0712-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	0811-0812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0712-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (D) ID=58-76	1-09707-203-0	02	1	0712-0811	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=55-75	8-98133-349-0	02	1	0812-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-	●
309	03.342 BOLT; TURBOCHARGER 03.417 (A) M8X28 FLANGE	8-98043-528-0	02	1	0712-		●
309	03.342 BOLT; TURBOCHARGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (A)	8-98036-505-1	01	1	0712-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC (B)	8-98042-688-1	01	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
