◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#52462) — 188 parça

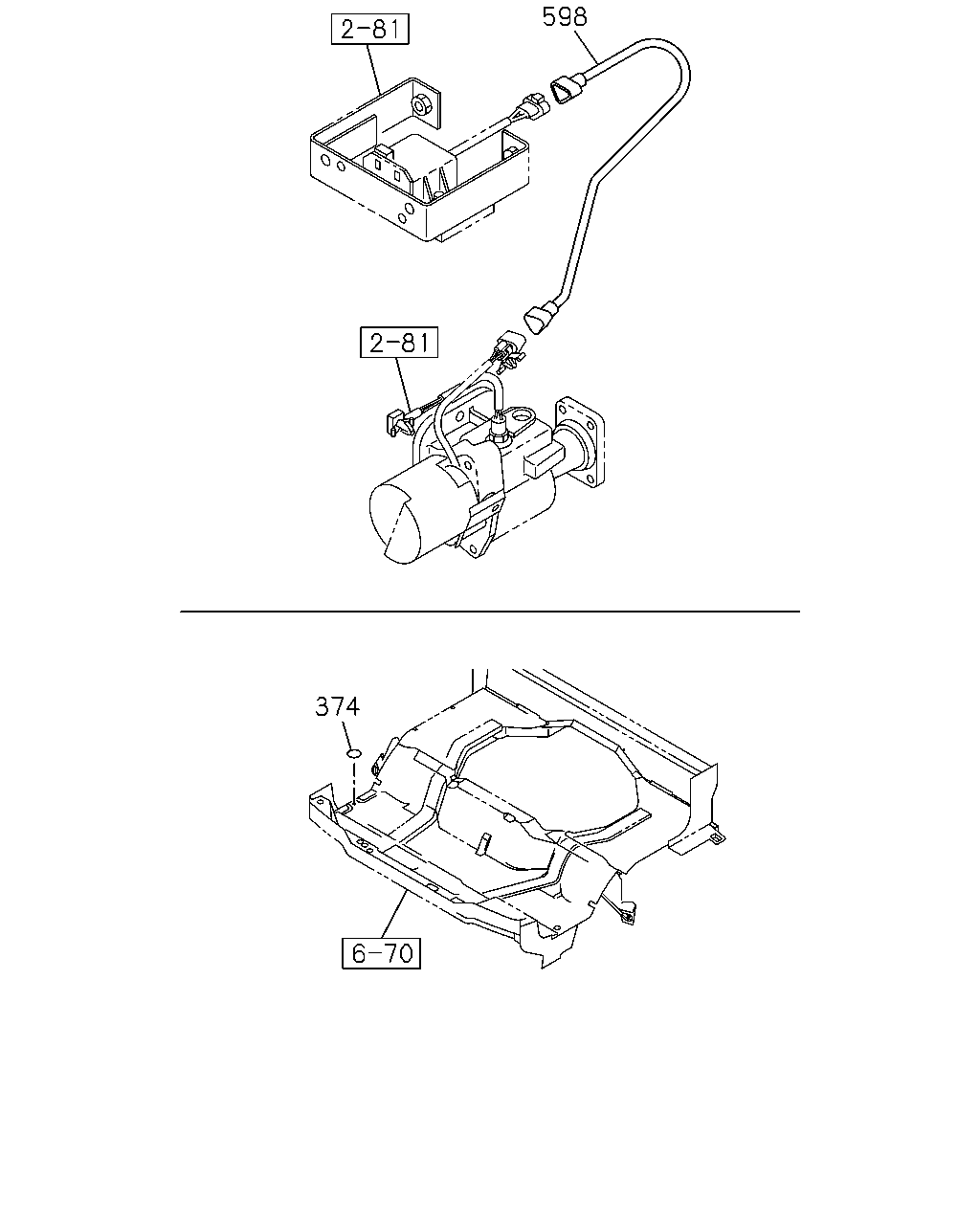

çizim 59050
598 374
BalonParca AdiParca NoAdetTipApplied Date A B
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0810- ● ●
598 02.480 HARNESS; EXT,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98123-454-1 01 1 0810-1506 ●
598 02.480 HARNESS; EXT,PTO
WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98123-454-1 01 1 1507- ●

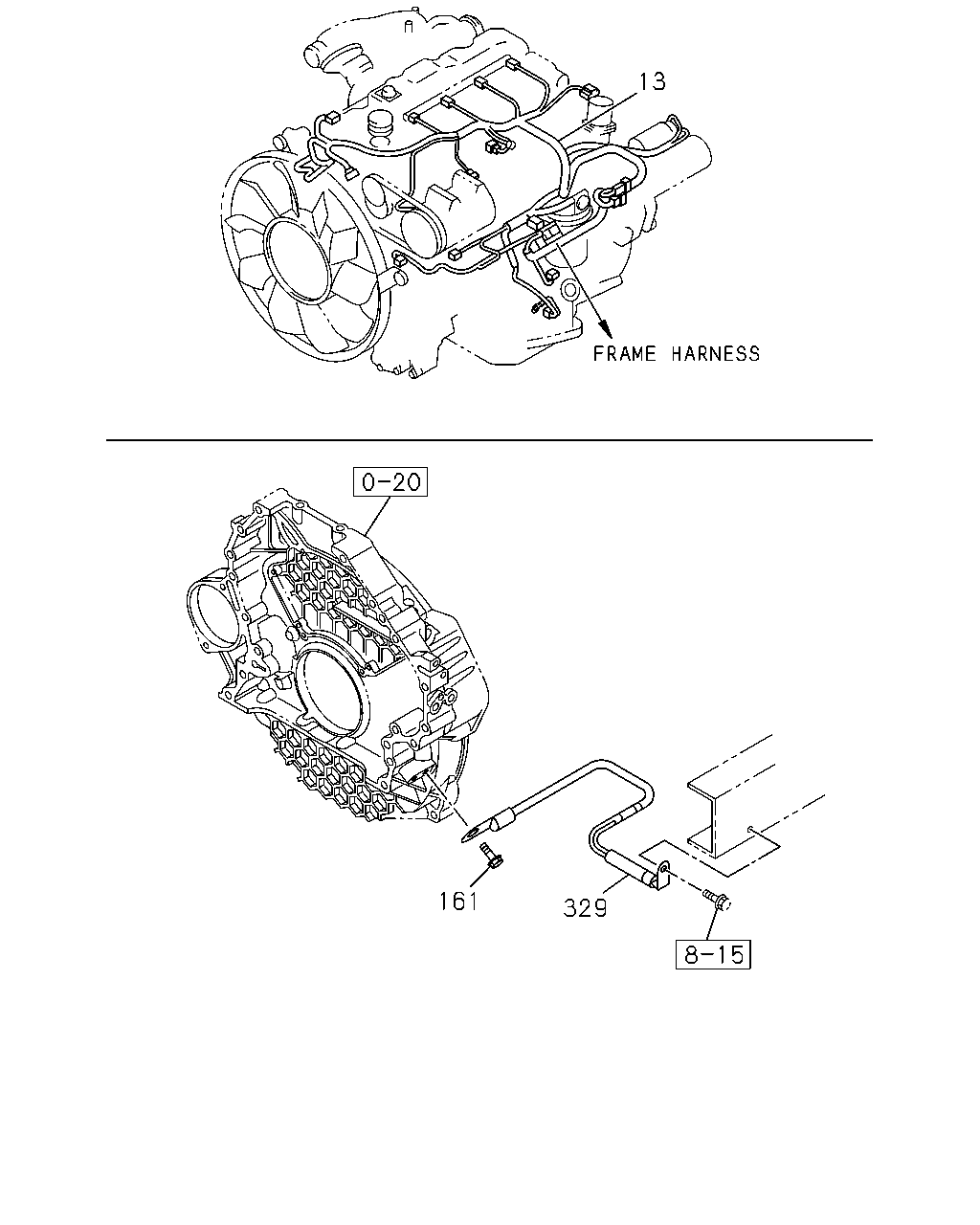

çizim 59051
13 161 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG 8-97356-988-1 01 1 0810- ● ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0810- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98123-064-0 01 1 0810- ● ●

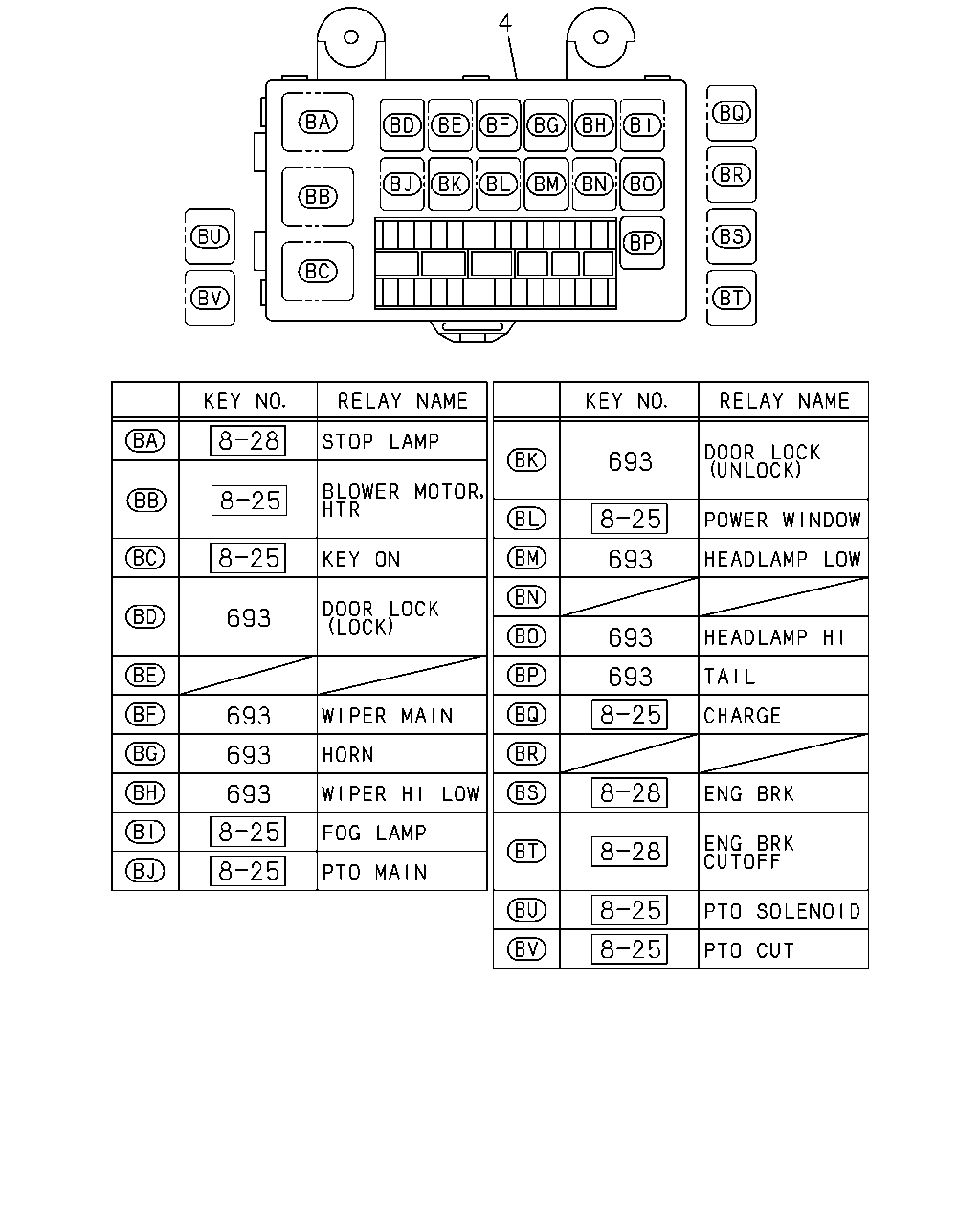

çizim 59057
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810- ● ●

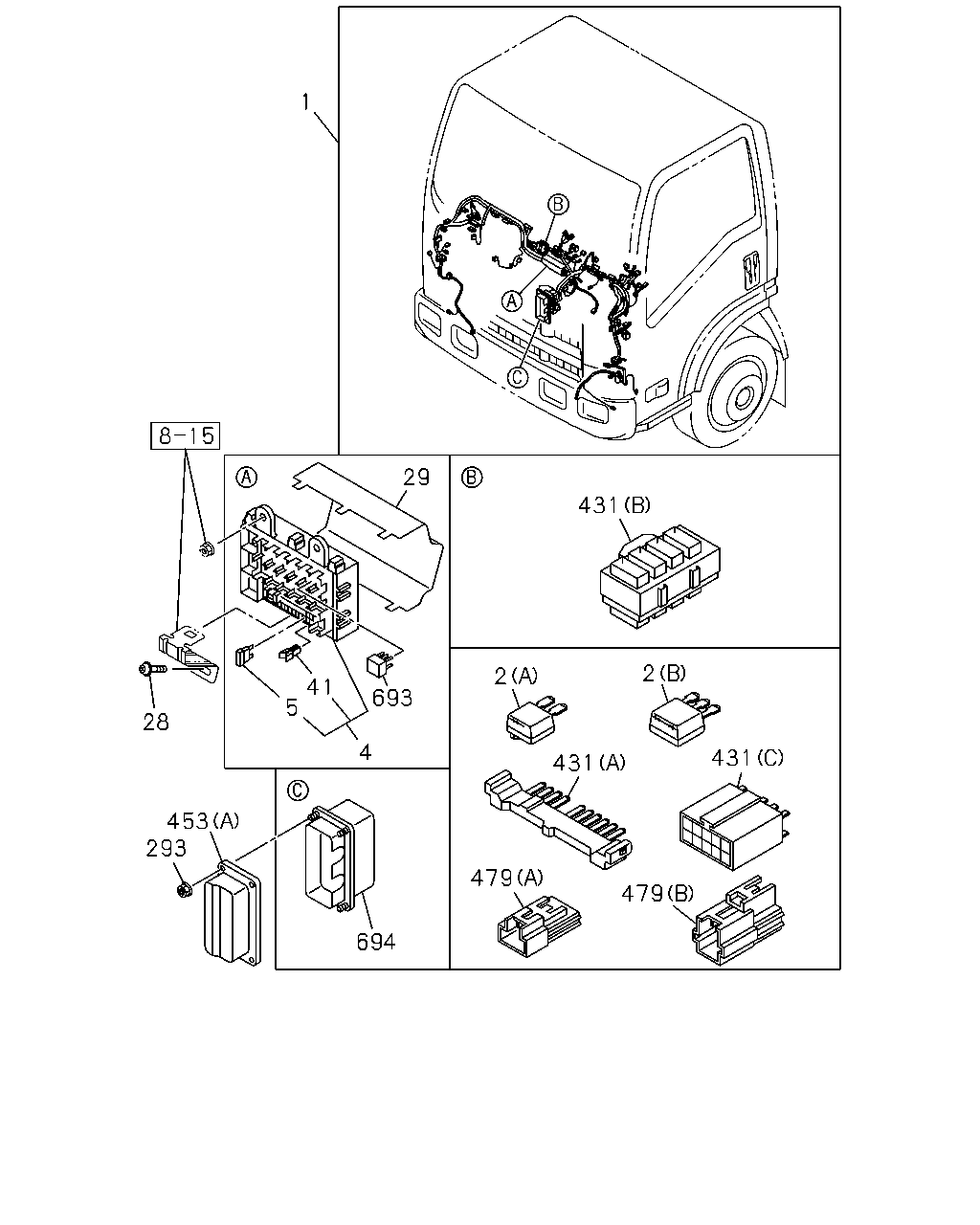

çizim 59478
1 29 431 2 2 41 5 693 28 4 431 431 453 293 479 479 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6> 		8-98291-058-0 01 1 1504- ●
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6>,POWER TAKE OFFCONTROL ELECTRIC(7GR) 		8-98291-057-0 01 1 1504- ●
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-057-0 01 1 1504- ●
1 02.480 HARNESS; CAB
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-777-0 01 1 1504- ●
1 02.480 HARNESS; CAB
EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98298-776-0 01 1 1504- ●
1 02.480 HARNESS; CAB
EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-776-0 01 1 1504- ●
1 02.480 HARNESS; CAB
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98106-626-6 01 1 0810-1503 ●
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98106-626-6 01 1 1504- ●
1 02.480 HARNESS; CAB
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98106-625-6 01 1 0810-1503 ● ●
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98106-625-6 01 1 1504- ●
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> 		8-98106-625-6 01 1 1504- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0810- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0810- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0810- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0810- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0810- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0810-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0810- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0810- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0810- ● ●
431 02.530 CONNECTOR; JOINT
(A) 10P BLUE 		1-82699-598-0 01 1 0810-1003 ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0810- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0810- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 0810-1101 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 02 1 0810-1101 ●
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 01 1 0810-1101 ●
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 1102- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0810- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0810- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) 		8-98108-678-0 01 1 0810- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B) 		8-98108-679-0 01 1 0810- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810- ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-640-0 01 1 0810- ● ●

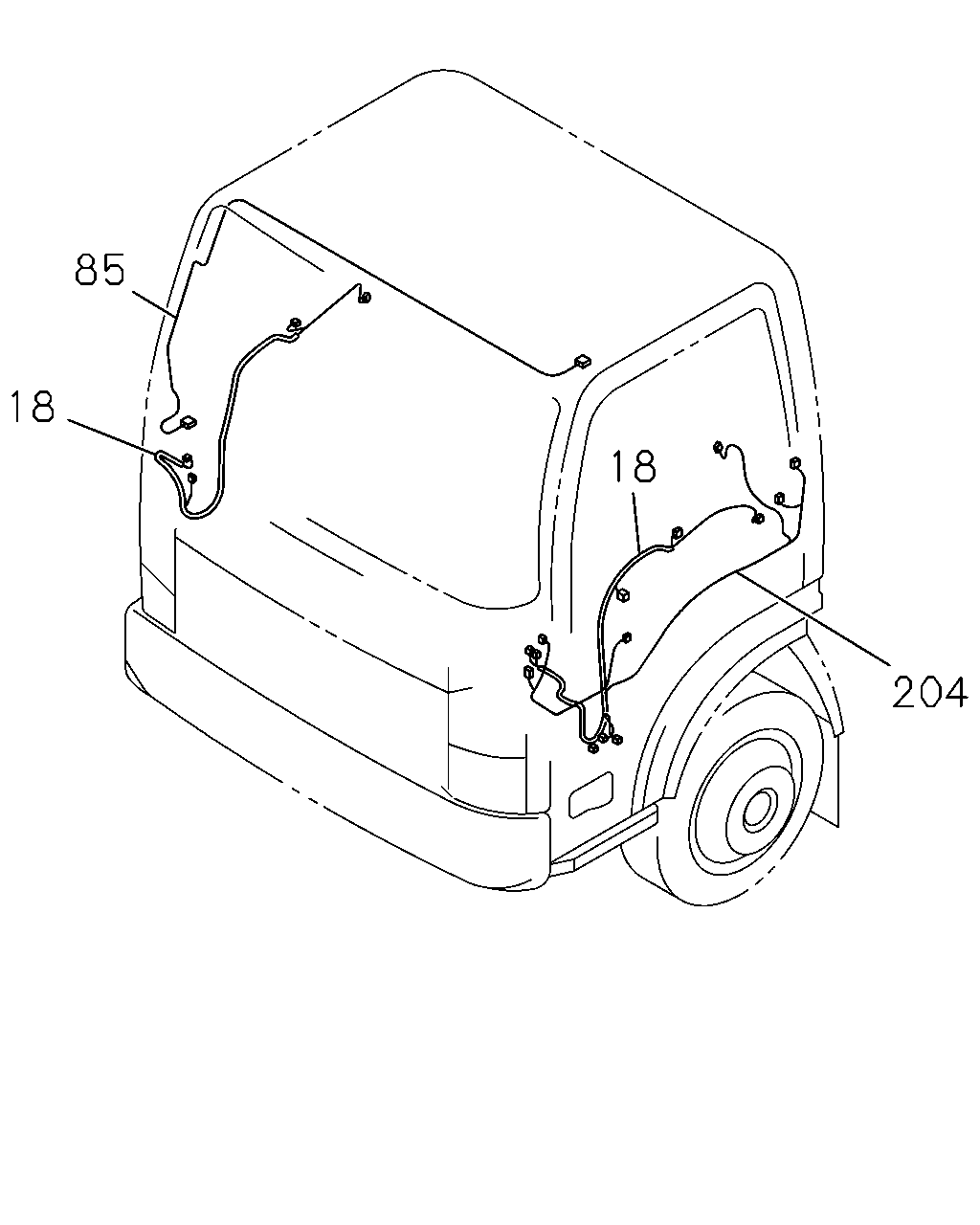

çizim 59479
85 18 18 204
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-592-3 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-600-3 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-080-3 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-088-3 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-079-2 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-087-2 01 1 0810- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98050-518-3 01 1 0810- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 0810- ● ●

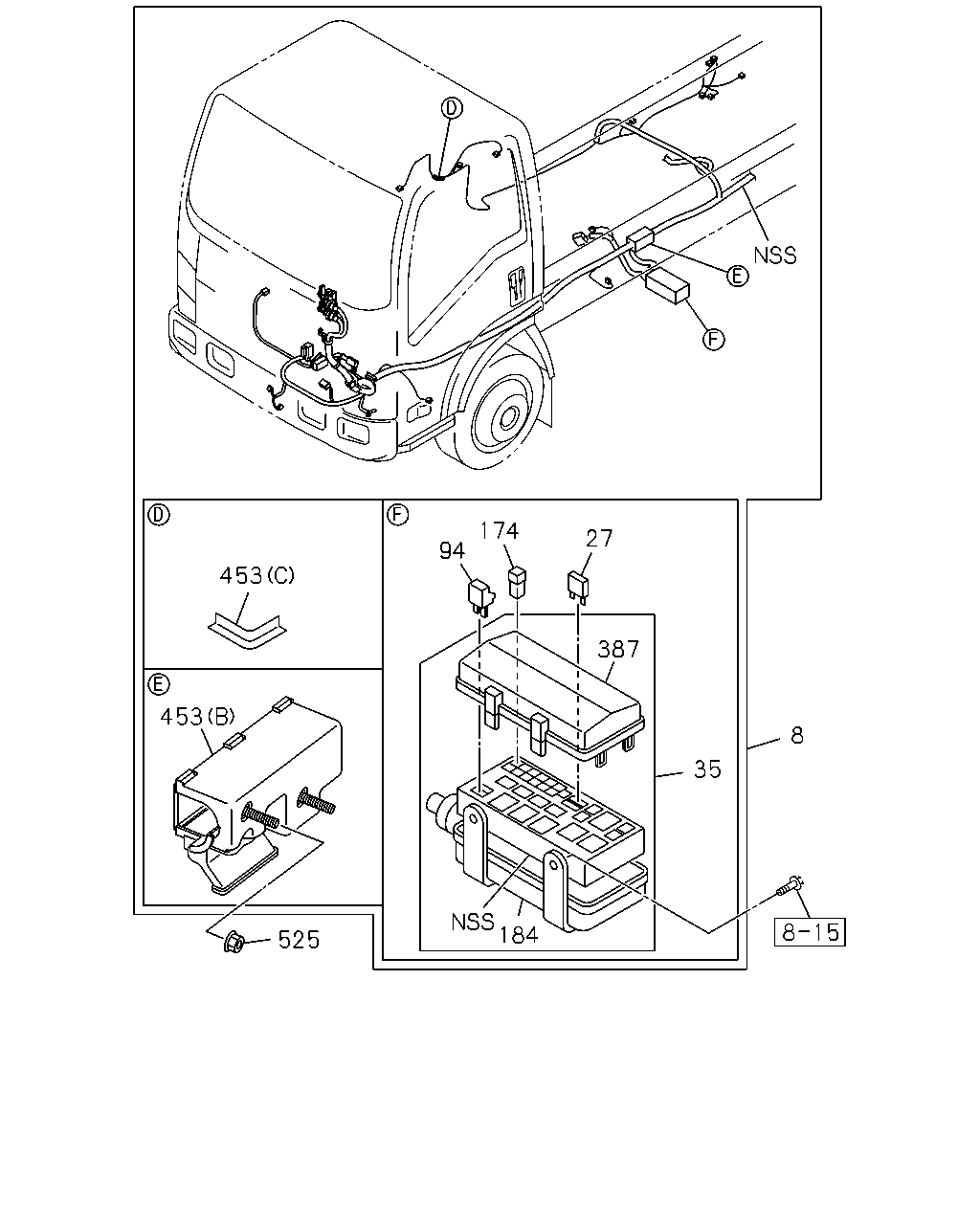

çizim 59481
174 27 94 453 387 453 8 35 184 525
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98245-268-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98245-268-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-402-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98294-402-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-98245-266-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98245-266-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HYDRO BRAKE BOOSTER(7QQ) 		8-98245-266-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-98294-400-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98294-400-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HYDRO BRAKE BOOSTER(7QQ) 		8-98294-400-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98245-269-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-403-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98156-021-2 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98156-021-2 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98180-745-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> MINI BUS CHASSIS(V4B) EXC. RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> MINI BUS CHASSIS(V4B) EXC. RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98156-022-2 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-398-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-398-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-398-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98124-657-6 01 1 0810-1101 ●
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98180-750-1 01 1 1102-1409 ●
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98294-407-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. DUMP CHASSIS(V4D) 		8-98126-190-3 01 1 0810-1007 ●
8 02.480 HARNESS; FRAME,FRT 8-98126-190-3 01 1 0810-1007 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98126-190-5 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98126-190-5 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) 		8-98126-190-5 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98180-743-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) HYDRO BRAKE BOOSTER(7QQ) 		8-98294-395-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0810-1306 ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 04 1 1307- ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0810- ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 02 1 0810- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0810- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0810-1101 ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0810- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0810- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0810- ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0810- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 0810-1101 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 02 1 0810-1101 ●
453 02.483 PROTECTOR; HARNESS
EXC. DUMP CHASSIS(V4D) (C) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 01 1 0810-1101 ●
453 02.483 PROTECTOR; HARNESS
DUMP CHASSIS(V4D) (C) 		8-94417-716-0 02 1 1102- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0810- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0810- ● ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ● ●

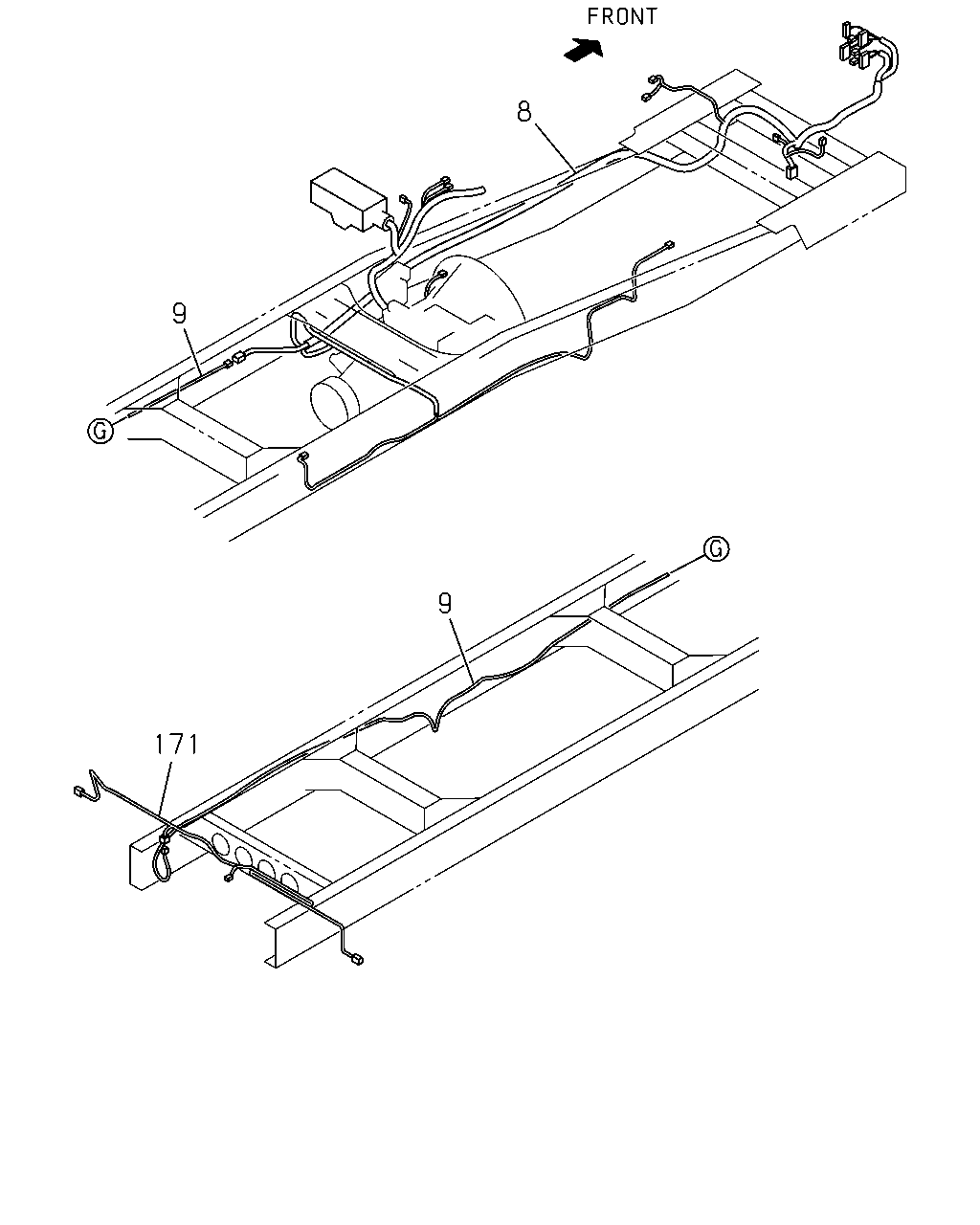

çizim 101598
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98245-268-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98245-268-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-402-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98294-402-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-98245-266-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98245-266-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HYDRO BRAKE BOOSTER(7QQ) 		8-98245-266-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-98294-400-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98294-400-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HYDRO BRAKE BOOSTER(7QQ) 		8-98294-400-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98245-269-0 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-403-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98156-021-2 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98156-021-2 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98180-745-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> MINI BUS CHASSIS(V4B) EXC. RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98180-745-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D),FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> MINI BUS CHASSIS(V4B) EXC. RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, HYDRO BRAKE BOOSTER(7QQ) 		8-98294-397-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98156-022-2 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98180-746-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-398-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. EXHAUST BRAKE<NF8>,DUMP CHASSIS(V4D) ,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-398-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) EXC. EXHAUST BRAKE<NF8>,RR BODY FLAT BED<RS6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-398-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98124-657-6 01 1 0810-1101 ●
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98180-750-1 01 1 1102-1409 ●
8 02.480 HARNESS; FRAME,FRT
DUMP CHASSIS(V4D) 		8-98294-407-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. DUMP CHASSIS(V4D) 		8-98126-190-3 01 1 0810-1007 ●
8 02.480 HARNESS; FRAME,FRT 8-98126-190-3 01 1 0810-1007 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98126-190-5 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98126-190-5 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) 		8-98126-190-5 01 1 1008-1101 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98180-743-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1102-1306 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) HYDRO BRAKE BOOSTER(7QQ) 		8-98180-743-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. DUMP CHASSIS(V4D) 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98294-395-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) HYDRO BRAKE BOOSTER(7QQ) 		8-98294-395-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98117-247-0 01 1 0810- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98117-248-0 01 1 0810- ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-249-0 01 1 0810- ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 0810-0810 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 0811- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0810-0911 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 0912- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
