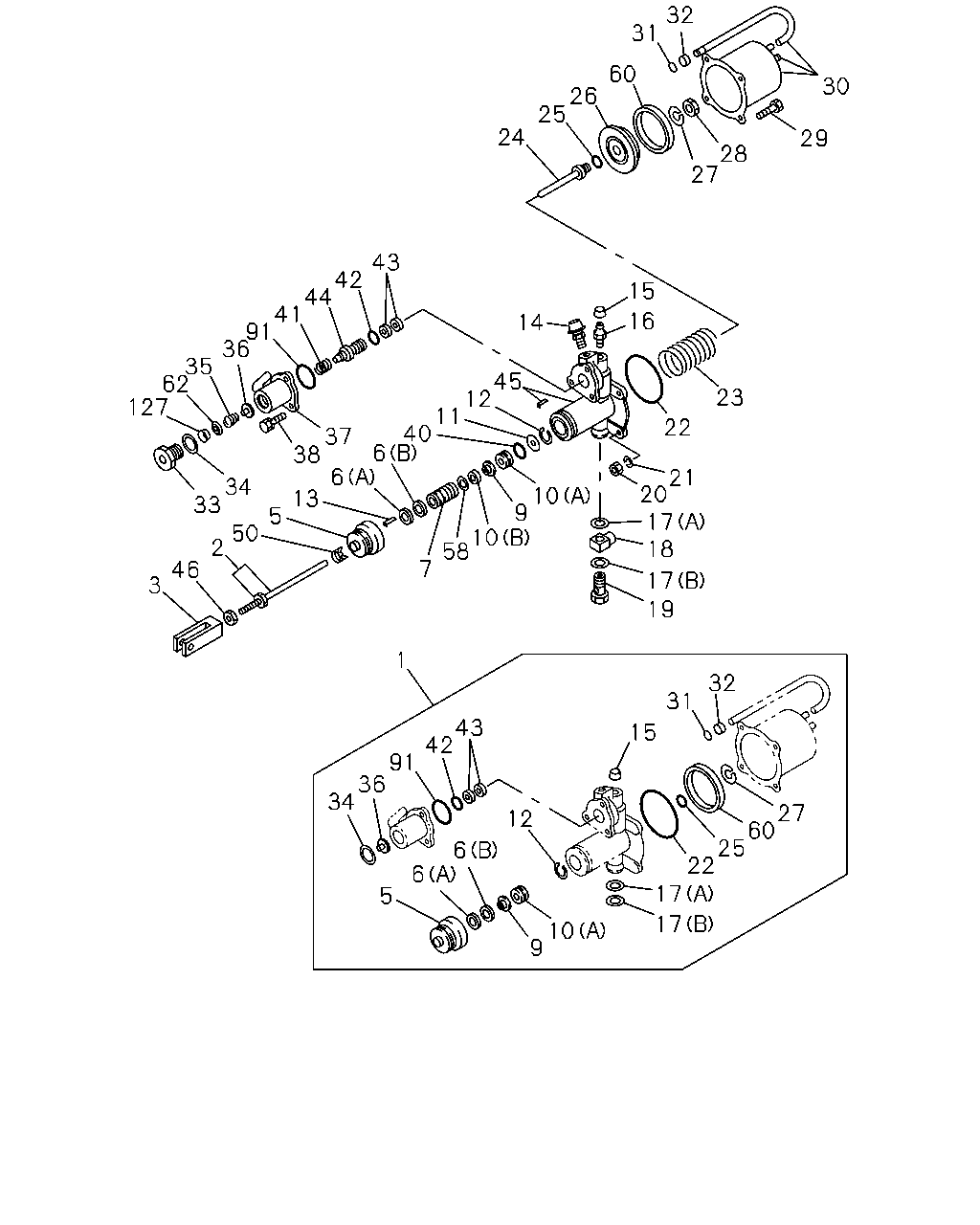

2-07 — CLUTCH BOOSTER; MINIPACK (#5246) — 117 parça

32 31 60 30 26 25 24 29 28 27 43 42 44 41 91 36 15 16 14 35 62 127 45 12 23 11 40 6 22 37 38 6 21 20 17 18 34 33 10 9 10 58 13 5 50 2 7 46 3 17 19 1 32 31 43 42 15 91 36 34 12 27 60 25 22 17 6 6 5 17 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER	1-31829-355-0	01	1	9604-9904
1	REPAIR KIT; CLU BOOSTER 8PE1S(59L)	1-31829-355-0	01	1	9905-0005
1	REPAIR KIT; CLU BOOSTER 8PE1S(59L)	1-31829-596-0	01	1	0006-
1	REPAIR KIT; CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-522-0	01	1	0002-0011
1	REPAIR KIT; CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-523-0	01	1	0012-
1	REPAIR KIT; CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-354-0	01	1	9905-0011
1	REPAIR KIT; CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-500-0	01	1	0012-
2	ROD; PUSH,CLU BOOSTER	1-31824-159-0	01	1	9604-0011
2	ROD; PUSH,CLU BOOSTER 8PE1S(59L)	1-31824-159-0	01	1	0012-
2	ROD; PUSH,CLU BOOSTER 10PE1N(61L)	1-31824-208-0	01	1	0012-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	9604-
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9604-0011
5	GUARD; PISTON,CLU BOOSTER 8PE1S(59L)	1-31829-174-0	01	1	0012-
5	GUARD; PISTON,CLU BOOSTER 10PE1N(61L)	1-31829-503-0	01	1	0012-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9604-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9604-
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9604-9904
7	PISTON; CLU BOOSTER 8PE1S(59L)	1-31821-013-0	01	1	9905-0005
7	PISTON; CLU BOOSTER 8PE1S(59L)	1-31829-048-0	01	1	0006-
7	PISTON; CLU BOOSTER 10PE1N(61L)	1-31821-048-0	01	1	9905-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	9604-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	9604-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-300-0	01	1	9604-9904
10	RETAINER; PISTON,CLU BOOSTER 8PE1S(59L) (B)	1-31829-300-0	01	1	9905-0005
10	RETAINER; PISTON,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> (B)	1-31829-428-0	01	1	0002-0011
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0012-
10	RETAINER; PISTON,CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> (B)	1-31829-293-0	01	1	9905-0011
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9604-
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9604-
13	PIN; SPR	1-31829-109-0	01	1	9604-
14	COVER; EXH,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-102-0	01	1	9604-0005
14	COVER; EXH,CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-102-0	01	1	0006-0011
14	COVER; EXH,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-365-0	01	1	0002-0011
14	COVER; EXH,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-365-0	01	1	0012-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9604-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9604-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9604-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9604-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9604-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9604-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	9604-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	9604-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	9604-9904
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 8PE1S(59L)	1-09623-322-0	01	1	9905-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 10PE1N(61L)	1-31829-281-0	01	1	9905-
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	9604-9904
23	SPRING; SHELL,CLU BOOSTER 8PE1S(59L)	1-31829-110-0	01	1	9905-0005
23	SPRING; SHELL,CLU BOOSTER 8PE1S(59L)	1-31829-358-0	01	1	0006-
23	SPRING; SHELL,CLU BOOSTER 10PE1N(61L)	1-31829-350-0	01	1	9905-
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	9604-9904
24	ROD; PUSH,CLU BOOSTER 8PE1S(59L)	1-31829-340-0	01	1	9905-
24	ROD; PUSH,CLU BOOSTER 10PE1N(61L)	1-31824-158-0	01	1	9905-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9604-9904
25	GASKET; PUSH ROD,CLU BOOSTER 8PE1S(59L)	1-09623-321-0	01	1	9905-
25	GASKET; PUSH ROD,CLU BOOSTER 10PE1N(61L)	1-31829-277-0	01	1	9905-
26	PISTON; SHELL,CLU BOOSTER	1-31821-017-0	01	1	9604-9904
26	PISTON; SHELL,CLU BOOSTER 8PE1S(59L)	1-31821-017-0	01	1	9905-
26	PISTON; SHELL,CLU BOOSTER 10PE1N(61L)	1-31821-060-0	01	1	9905-0011
26	PISTON; SHELL,CLU BOOSTER 10PE1N(61L)	1-31821-072-0	01	1	0012-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9604-9904
27	SPRING; CLU BOOSTER 8PE1S(59L)	1-31829-111-0	01	1	9905-
27	SPRING; CLU BOOSTER 10PE1N(61L)	1-31829-291-0	01	1	9905-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9604-9904
28	NUT; PUSH ROD,CLU BOOSTER 8PE1S(59L)	9-88510-365-0	01	1	9905-
28	NUT; PUSH ROD,CLU BOOSTER 10PE1N(61L)	1-31829-290-0	01	1	9905-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	9604-
30	SHELL; CYL,CLU BOOSTER	1-31811-061-0	01	1	9604-9904
30	SHELL; CYL,CLU BOOSTER 8PE1S(59L)	1-31811-061-0	01	1	9905-
30	SHELL; CYL,CLU BOOSTER 10PE1N(61L)	1-31811-076-0	01	1	9905-0011
30	SHELL; CYL,CLU BOOSTER 10PE1N(61L)	1-31811-117-0	01	1	0012-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	9604-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	9604-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9604-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9604-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9604-0011
35	SPRING; POPPET VLV,CLU BOOSTER 8PE1S(59L)	1-31829-077-0	01	1	0012-
35	SPRING; POPPET VLV,CLU BOOSTER 10PE1N(61L)	1-31829-451-0	01	1	0012-
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9604-0011
36	VALVE; POPPET,CLU BOOSTER 8PE1S(59L)	1-31829-016-0	01	1	0012-
36	VALVE; POPPET,CLU BOOSTER 10PE1N(61L)	1-31829-452-0	01	1	0012-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	9604-0005
37	BODY; UPR,VLV,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-085-0	01	1	0006-0011
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0012-
37	BODY; UPR,VLV,CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-066-0	01	1	0006-0011
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9604-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9604-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-299-0	01	1	9604-9904
41	SPRING; DIAPH,CLU BOOSTER 8PE1S(59L)	1-31829-299-0	01	1	9905-
41	SPRING; DIAPH,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-288-0	01	1	0002-0005
41	SPRING; DIAPH,CLU BOOSTER 10PE1N(61L)	1-31829-288-0	01	1	0006-
41	SPRING; DIAPH,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-458-0	01	1	0012-
41	SPRING; DIAPH,CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-422-0	01	1	9905-0005
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-148-0	01	1	9604-
42	GASKET; FITTING,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-123-0	01	1	0002-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9604-
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-058-0	01	1	9604-
44	PISTON; UPR VLV,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-082-0	01	1	0002-
45	PLATE; END,CLU BOOSTER	1-31811-057-0	01	1	9604-9904
45	PLATE; END,CLU BOOSTER 8PE1S(59L)	1-31811-057-1	01	1	9905-
45	PLATE; END,CLU BOOSTER 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-121-0	01	1	0002-
45	PLATE; END,CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-067-0	01	1	9905-
46	NUT; PUSH ROD,CLU BOOSTER 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31824-126-0	02	1	0012-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9604-0011
46	NUT; PUSH ROD,CLU BOOSTER 8PE1S(59L) M10	9-09111-410-0	01	1	0012-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-168-0	01	1	9604-0011
50	CLAMP; PISTON GUARD,CLU BOOSTER 8PE1S(59L)	1-31829-168-0	01	1	0012-
50	CLAMP; PISTON GUARD,CLU BOOSTER 10PE1N(61L)	1-31829-504-0	01	1	0012-
58	WASHER; PISTON,CLU BOOSTER	1-31829-301-0	01	1	9604-9904
58	WASHER; PISTON,CLU BOOSTER 8PE1S(59L)	1-31829-301-0	01	1	9905-0005
58	WASHER; PISTON,CLU BOOSTER 10PE1N(61L)	1-31829-294-0	01	1	9905-0011
60	GASKET; SHELL,CLU BOOSTER	1-31829-058-0	01	1	9604-9904
60	GASKET; SHELL,CLU BOOSTER 8PE1S(59L)	1-31829-058-0	01	1	9905-
60	GASKET; SHELL,CLU BOOSTER 10PE1N(61L)	1-31829-292-0	01	1	9905-0011
60	GASKET; SHELL,CLU BOOSTER 10PE1N(61L)	1-31829-454-0	01	1	0012-
62	RETAINER; POPPET	1-31829-489-0	01	1	0006-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9604-
127	FILTER; POPPET	1-31829-495-0	01	1	0006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
