7-50 — FRONT SEAT (#52457) — 161 parça

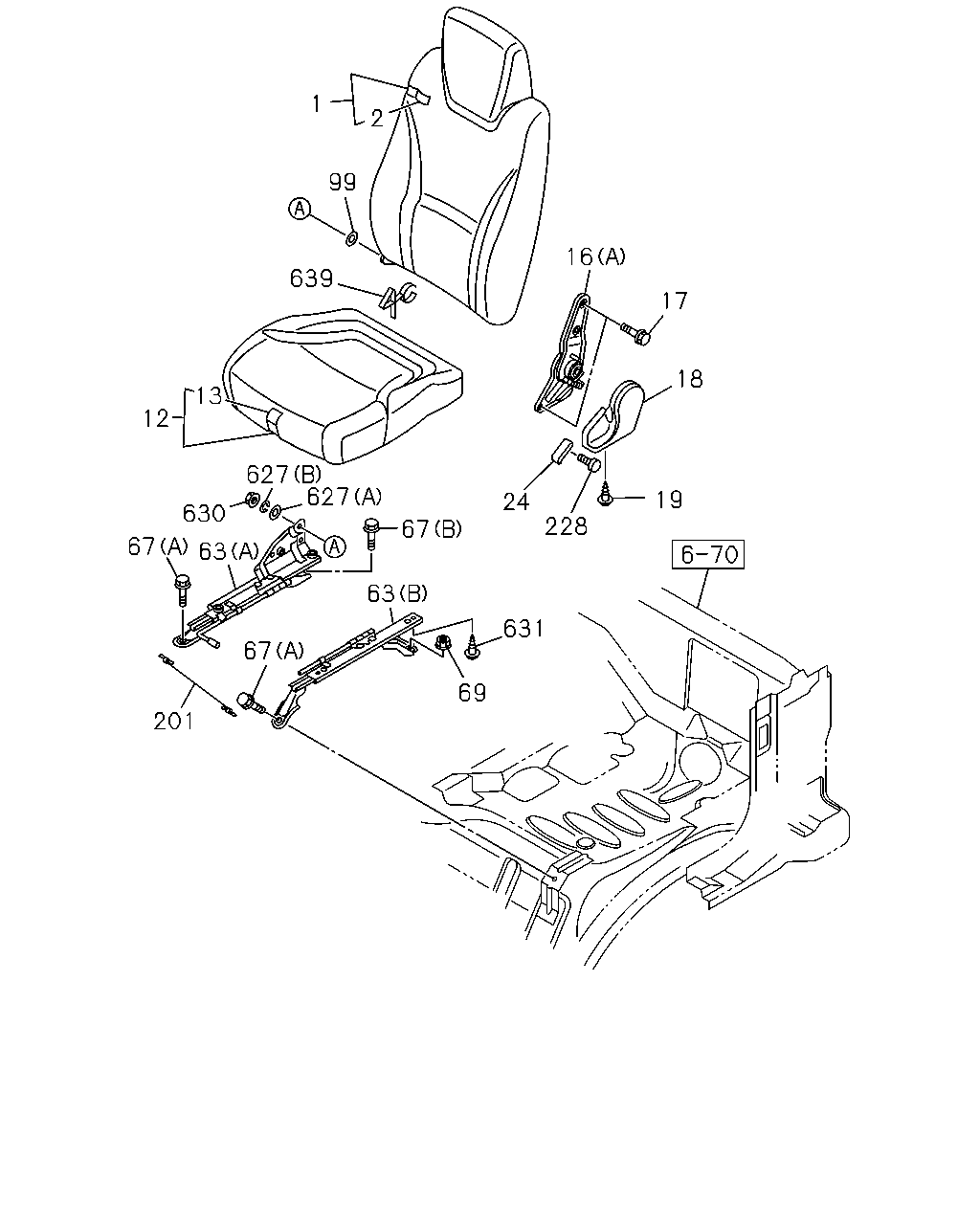

çizim 59065
1 2 99 16 639 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-357-4 01 1 0810-1009 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-237-1 01 1 1010- ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-156-3 01 1 0810-1009 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-236-1 01 1 1010- ● ●
1 16.720 BACK ASM; SEAT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-160-7 01 1 0810- ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-155-5 01 1 0810- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-358-2 01 1 0810-1009 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-256-0 01 1 1010- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-157-1 01 1 0810-1009 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-255-0 01 1 1010- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-038-2 01 1 0810- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-152-2 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-394-2 01 1 0810-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-250-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-359-3 01 1 0810-0902 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-254-1 01 1 0903-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-243-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-712-1 01 1 0810-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-249-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-158-2 01 1 0810-0902 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-253-1 01 1 0903-1009 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-242-2 01 1 1010- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-165-0 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-163-3 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-710-0 01 1 0810- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-153-3 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-395-2 01 1 0810-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-270-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-360-3 01 1 0810-0902 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-262-0 01 1 0903-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-262-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-713-1 01 1 0810-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-269-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-159-2 01 1 0810-0902 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-261-0 01 1 0903-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-261-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-166-0 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-164-2 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-711-0 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-154-2 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0810-0810 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0811- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-273-3 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-274-3 01 1 0810- ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0810-0810 ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0811- ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 0810-0810 ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 0811- ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0810-0810 ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0811- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 0810-0810 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 0811- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-98002-907-2 01 1 0810-0810 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-98002-907-2 01 1 0811- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-98002-908-1 01 1 0810-0810 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-98002-908-1 01 1 0811- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0810- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0810- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0810- ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0810-0810 ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0811- ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0810-0810 ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0811- ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0810-0810 ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0811- ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0810-0810 ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0811- ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0810-0810 ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0811- ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0810-0810 ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0811- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0810-0810 ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0811- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0810-0810 ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0811- ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 0810- ● ●

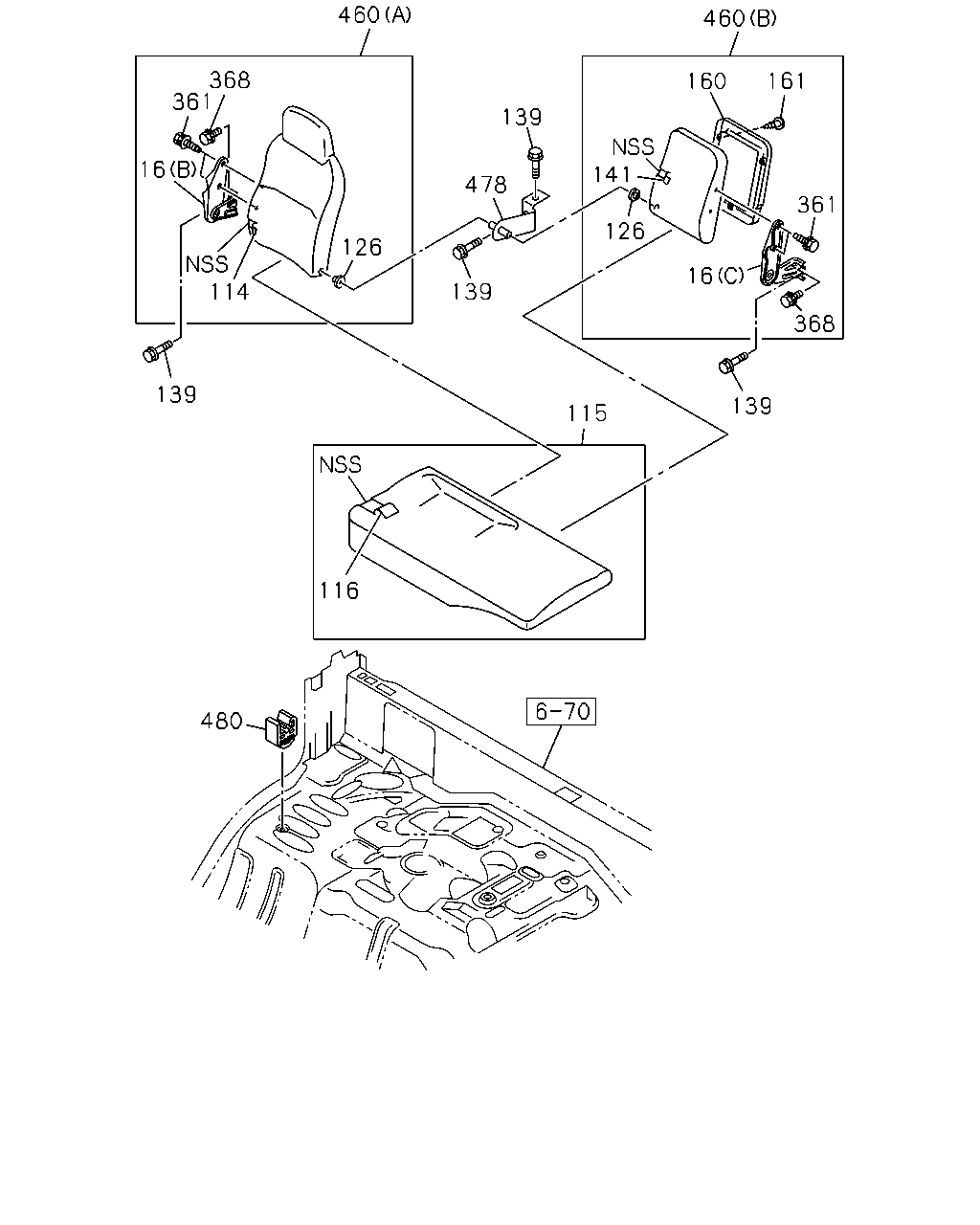

çizim 59067
460 460 368 361 161 160 139 141 16 478 361 126 126 114 16 13 368 139 139 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-395-2 01 1 0810-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-270-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-360-3 01 1 0810-0902 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-262-0 01 1 0903-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-262-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-713-1 01 1 0810-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-269-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-159-2 01 1 0810-0902 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-261-0 01 1 0903-1009 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-261-2 01 1 1010- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-166-0 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-164-2 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-711-0 01 1 0810- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-154-2 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0810-0810 ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0811- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-273-3 01 1 0810- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-274-3 01 1 0810- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-725-0 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-296-0 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-724-0 01 1 1001- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97409-364-1 01 1 0810-0912 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-364-1 01 1 1001-1009 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-295-0 01 1 1010- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-169-1 01 1 0810-0912 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-169-1 01 1 1001- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-048-3 02 1 0810-0810 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-048-3 01 1 0811-0812 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-048-3 01 1 0811-0812 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-048-3 01 1 0901-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-278-0 01 1 0901-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-327-3 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-047-3 01 1 0810-0902 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-277-0 01 1 0903-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-710-0 01 1 1001-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-326-3 01 1 1010- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97411-537-5 01 1 0810- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97411-536-3 01 1 0810-0912 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-709-2 01 1 1001- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-366-2 02 1 0810-0810 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-366-2 01 1 0811-0812 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-366-2 01 1 0811-0812 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-366-2 01 1 0901-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-293-0 01 1 0901-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-347-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-365-2 01 1 0810-0902 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-292-0 01 1 0903-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-739-0 01 1 1001-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-346-2 01 1 1010- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-168-3 01 1 0810- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-167-2 01 1 0810-0912 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-738-1 01 1 1001- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0810- ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0810- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-729-0 01 1 1001-1009 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-308-0 01 1 1010- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-728-0 01 1 1001- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97409-368-1 01 1 0810-0912 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-368-1 01 1 1001-1009 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-307-1 01 1 1010- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-171-1 01 1 0810-0912 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-171-2 01 1 1001- ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 0810- ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 03 1 0810-0812 ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0901- ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0810- ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0810- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-696-0 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-283-0 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97418-700-1 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-302-1 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-695-0 01 1 1001- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY 		8-97418-699-2 01 1 1001- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97406-045-4 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97406-045-4 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-282-0 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97406-046-2 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97406-046-3 01 1 1001-1009 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-301-1 01 1 1010- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97411-538-4 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97411-538-4 01 1 1001- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97411-539-2 01 1 0810-0912 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97411-539-4 01 1 1001- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 0810- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
