◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#52450) — 19 parça
çizim 59255
48 47 48
BalonParca AdiParca NoAdetTipApplied Date A B
47 08.808 PLATE; CAUTION,DUMP CONT
SAUDI ARABIA EQUIPMENT(GH3) DUMP CHASSIS(V4D) EXC. CAUTION SPANISH<YN1> 		8-98096-342-0 01 1 1103- ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) CAUTION SPANISH<YN1> 		8-98096-341-0 01 1 0810-1102 ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) CAUTION SPANISH<YN1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98096-341-0 01 1 1103- ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) EXC. CAUTION SPANISH<YN1> 		8-97115-792-0 01 1 0810-1102 ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) EXC. SAUDI ARABIA EQUIPMENT(GH3),CAUTION SPANISH<YN1> 		8-97115-792-0 01 1 1103- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) (B) 		8-94313-054-0 01 1 0810- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 0810- ● ●

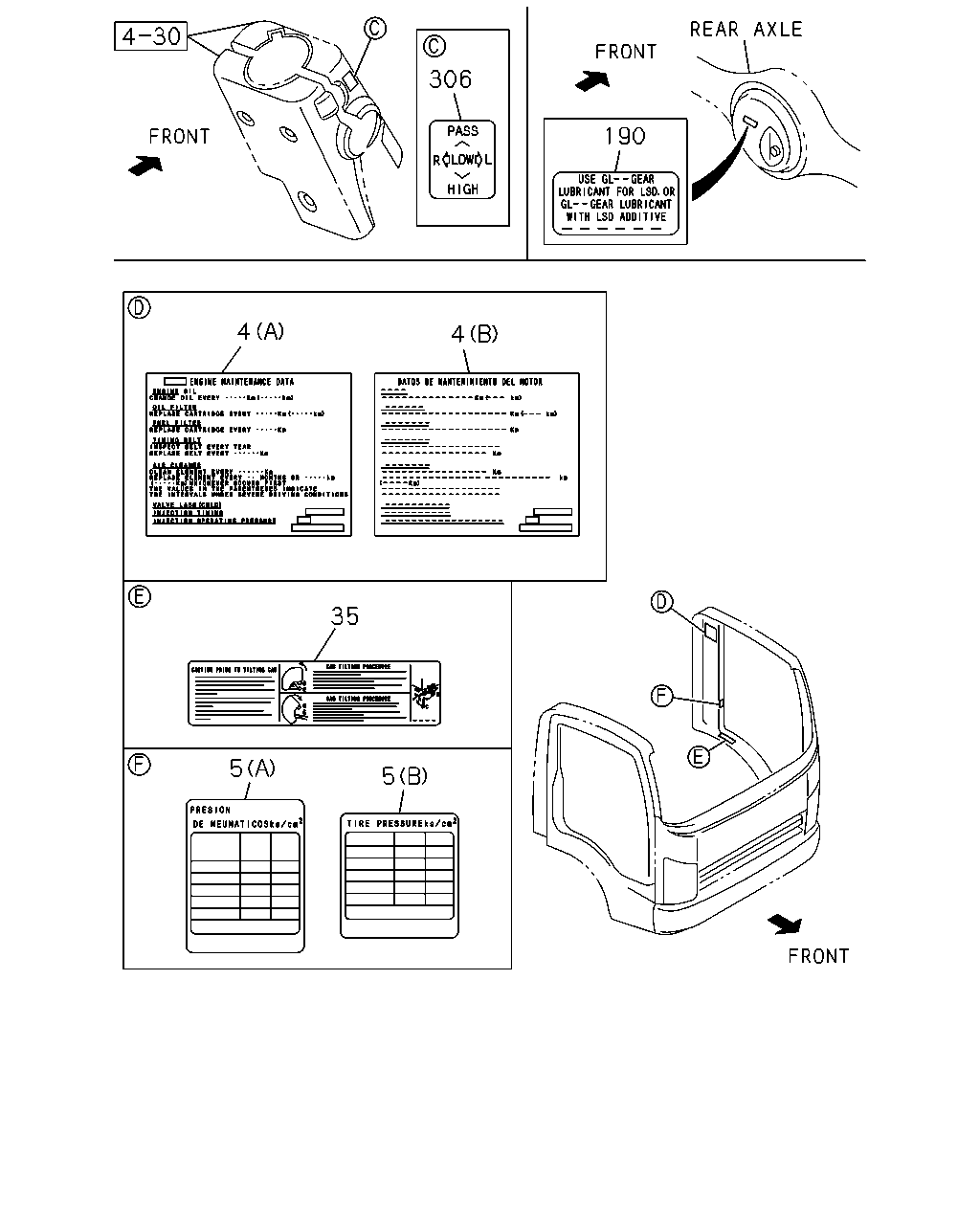

çizim 101524
306 190 4 4 35 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 0810- ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 0810- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0811- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0811- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0810- ● ●
35 08.808 PLATE; CAUTION,CAB
SAUDI ARABIA EQUIPMENT(GH3) MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98105-131-0 01 1 0810- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(GH3),CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0810- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0810- ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 0810- ● ●

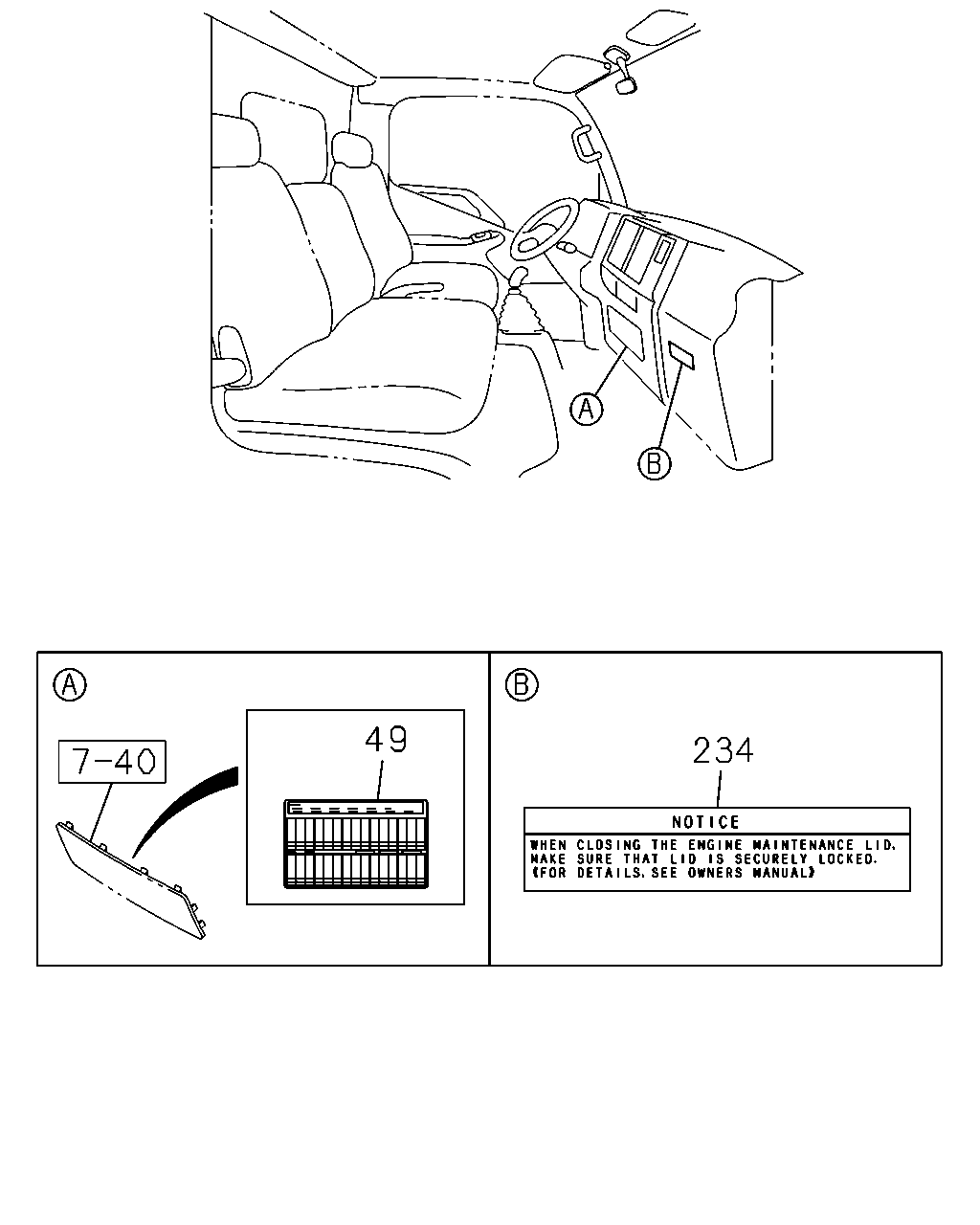

çizim 101525
49 234
BalonParca AdiParca NoAdetTipApplied Date A B
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0810- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0810- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
