Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#5245) — 222 parça

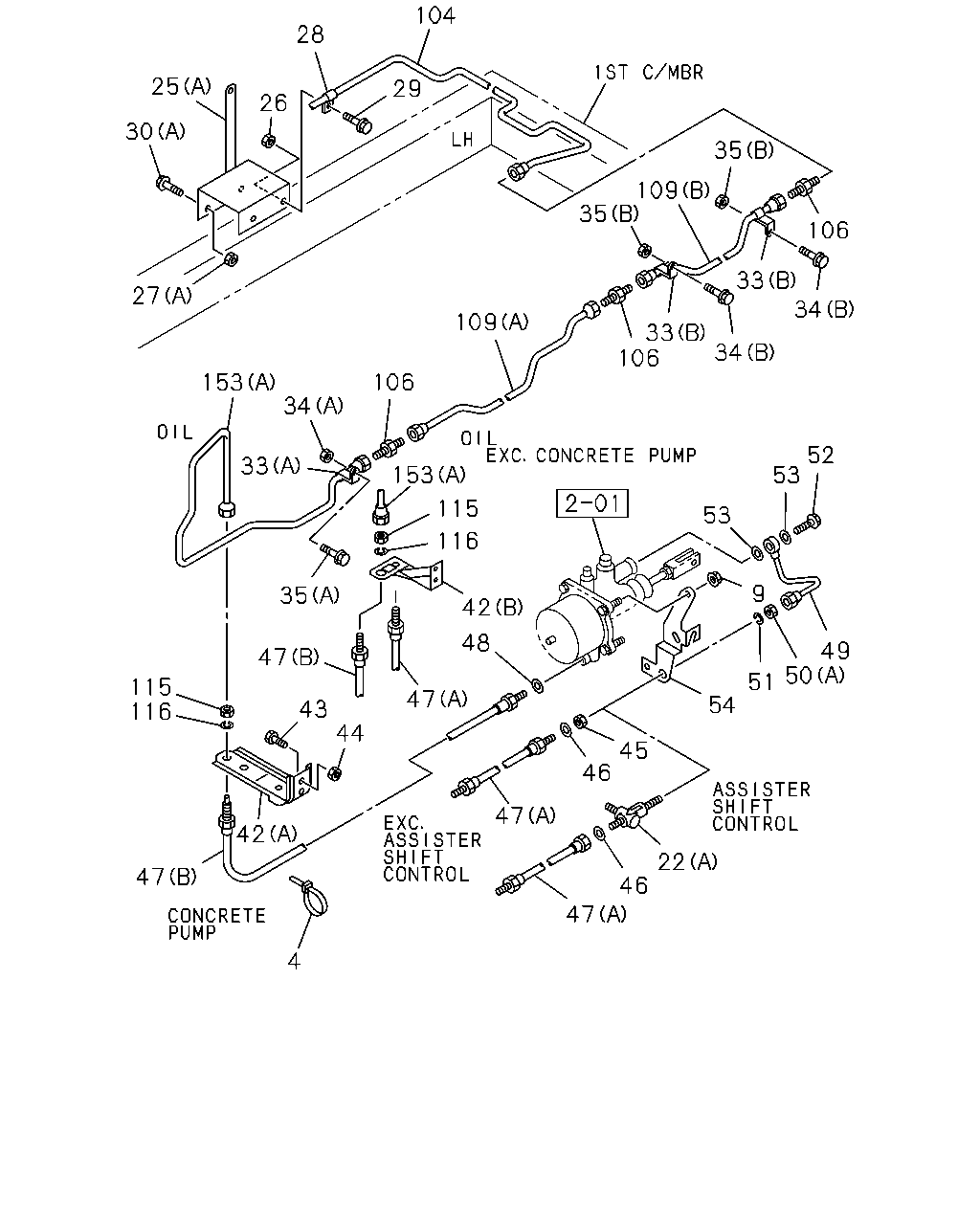

104 28 25 29 26 30 35 109 35 106 33 34 27 109 33 34 106 153 106 34 52 53 33 153 115 53 116 9 35 42 48 49 50 47 51 115 116 47 54 43 44 45 46 47 42 22 46 47 47 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9604-9605	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9604-9904		●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	9604-9904		●	●
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	9905-	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (A)	1-09656-181-1	01	1	9604-		●	●
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9604-9702		●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904		●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9604-9904		●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0002-	●	●	●
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9604-9904		●	●
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
27	NUT; BRKT (C) M8 FLANGE	8-94279-517-0	04	1	9604-9611		●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904		●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9604-9606		●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904		●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
28	CLIP; OIL PIPE ID=9 L=20	9-09524-835-0	01	1	9604-9904		●	●
28	CLIP; OIL PIPE ID=9 L=20	9-09524-835-0	01	1	9905-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9604-9606		●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9904		●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9604-9606		●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904		●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-9904		●	●
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9604-9904		●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-0001	●	●	●
33	CLIP; OIL PIPE 10PE1N(61L) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0002-	●	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9604-9904		●	●
33	CLIP; OIL PIPE EXC. CONCRETE PUMP<RA5> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9604-9904		●	●
33	CLIP; OIL PIPE 8PE1S(59L) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-0001	●	●	●
33	CLIP; OIL PIPE EXC. CONCRETE PUMP<RA5> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-0001	●	●	●
33	CLIP; OIL PIPE 8PE1S(59L) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0002-	●	●	●
33	CLIP; OIL PIPE 8PE1S(59L) EXC. CONCRETE PUMP<RA5> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0002-	●	●	●
33	CLIP; OIL PIPE 10PE1N(61L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0002-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0002-	●	●	●
34	BOLT; PIPE CLIP 10PE1N(61L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-		●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	9604-9606		●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904		●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0001	●	●	●
34	BOLT; PIPE CLIP 10PE1N(61L) (A) M8X30 FLANGE	0-28680-830-0	01	1	0002-	●	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	0002-	●	●	●
34	BOLT; PIPE CLIP (B) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904		●	●
34	BOLT; PIPE CLIP 8PE1S(59L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
35	NUT; PIPE CLIP 10PE1N(61L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	03	1	9905-		●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	03	1	9905-	●
35	NUT; PIPE CLIP (A) M8	9-09110-508-0	01	1	9604-9606		●	●
35	NUT; PIPE CLIP (A) M8 FLANGE	0-91150-108-0	01	1	9607-9904		●	●
35	NUT; PIPE CLIP (A) M8 FLANGE	0-91150-108-0	01	1	9905-0001	●	●	●
35	NUT; PIPE CLIP 10PE1N(61L) (A) M8 FLANGE	0-91150-108-0	01	1	0002-	●	●	●
35	NUT; PIPE CLIP (A) M8 FLANGE	0-91150-108-0	01	1	0002-	●	●	●
35	NUT; PIPE CLIP (B) M8	9-09110-508-0	02	1	9604-9606		●	●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) M8	9-09110-508-0	02	1	9604-9606		●	●
35	NUT; PIPE CLIP (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904		●	●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904		●	●
35	NUT; PIPE CLIP 8PE1S(59L) (B) M8 FLANGE	0-91150-108-0	02	1	9905-0001	●	●	●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) M8 FLANGE	0-91150-108-0	02	1	9905-0001	●	●	●
35	NUT; PIPE CLIP 8PE1S(59L) (B) M8 FLANGE	0-91150-108-0	02	1	0002-	●	●	●
35	NUT; PIPE CLIP 8PE1S(59L) EXC. CONCRETE PUMP<RA5> (B) M8 FLANGE	0-91150-108-0	02	1	0002-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT CONCRETE PUMP<RA5> (A)	1-47475-815-3	01	1	9604-9904		●	●
42	BRACKET; FLEX HOSE,CLU CONT CONCRETE PUMP<RA5> (A)	1-47475-815-3	01	1	9905-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. CONCRETE PUMP<RA5> (B)	1-47477-546-0	01	1	9604-9904		●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. CONCRETE PUMP<RA5> (B)	1-47477-546-1	01	1	9905-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9604-9606		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9904		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9604-9606		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9904		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9604-9904		●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9905-	●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. CONCRETE PUMP<RA5>,ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9604-9904		●	●
45	NUT; FLEX HOSE,CLU CONT EXC. CONCRETE PUMP<RA5>,ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9905-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9604-9904		●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9905-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. CONCRETE PUMP<RA5>,ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9604-9904		●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. CONCRETE PUMP<RA5>,ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07806-500-1	01	1	9604-9904		●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07806-500-1	01	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT CONCRETE PUMP<RA5> (B) L=500	1-09364-329-0	01	1	9604-9904		●	●
47	HOSE; FLEX,CLU CONT CONCRETE PUMP<RA5> (B) L=500	1-09364-329-0	01	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT EXC. CONCRETE PUMP<RA5> (B) L=550	1-09364-434-0	01	1	9604-9904		●	●
47	HOSE; FLEX,CLU CONT EXC. CONCRETE PUMP<RA5> (B) L=550	1-09364-434-0	01	1	9905-	●	●	●
47	HOSE; FLEX,CLU CONT EXC. CONCRETE PUMP<RA5>,ASSISTER SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	9604-9904		●	●
47	HOSE; FLEX,CLU CONT EXC. CONCRETE PUMP<RA5>,ASSISTER SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	9905-	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9604-9904		●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CONCRETE PUMP<RA5> L=293	1-49114-730-1	01	1	9604-9608		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CONCRETE PUMP<RA5> L=293	1-49117-734-0	01	1	9609-9904		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CONCRETE PUMP<RA5> L=293	1-49117-734-0	01	1	9905-0006	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CONCRETE PUMP<RA5> L=293	1-49117-734-0	01	1	0007-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CONCRETE PUMP<RA5> L=245	1-49117-733-0	01	1	0007-		●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9604-9904		●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9604-		●	●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9604-		●	●
52	BOLT; EYE,AIR PIPE EXC. CONCRETE PUMP<RA5> M14X27 FLANGE	1-09675-086-0	01	1	9604-9904		●	●
52	BOLT; EYE,AIR PIPE EXC. CONCRETE PUMP<RA5> M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●
53	GASKET; JOINT BOLT EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-9904		●	●
53	GASKET; JOINT BOLT EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9604-9904		●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9905-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9904		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9604-9904		●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9604-9904		●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9604-9904		●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1031	1-47428-387-0	01	1	9604-9904		●	●
109	PIPE; AIR,UNION TO UNION (B) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●	●	●
109	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (A) SERVICED BY L=970	1-47426-385-0	01	1	9604-9904		●	●
109	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (A) SERVICED BY L=970	1-47426-385-0	01	1	9905-	●	●	●
109	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9604-9904		●	●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9905-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-9904		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-9904		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9604-9904		●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=562 SERVICED BY L=570	1-47428-754-0	01	1	9604-9904		●	●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=562 SERVICED BY L=570	1-47428-754-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. CONCRETE PUMP<RA5> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9604-9904		●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-	●	●	●

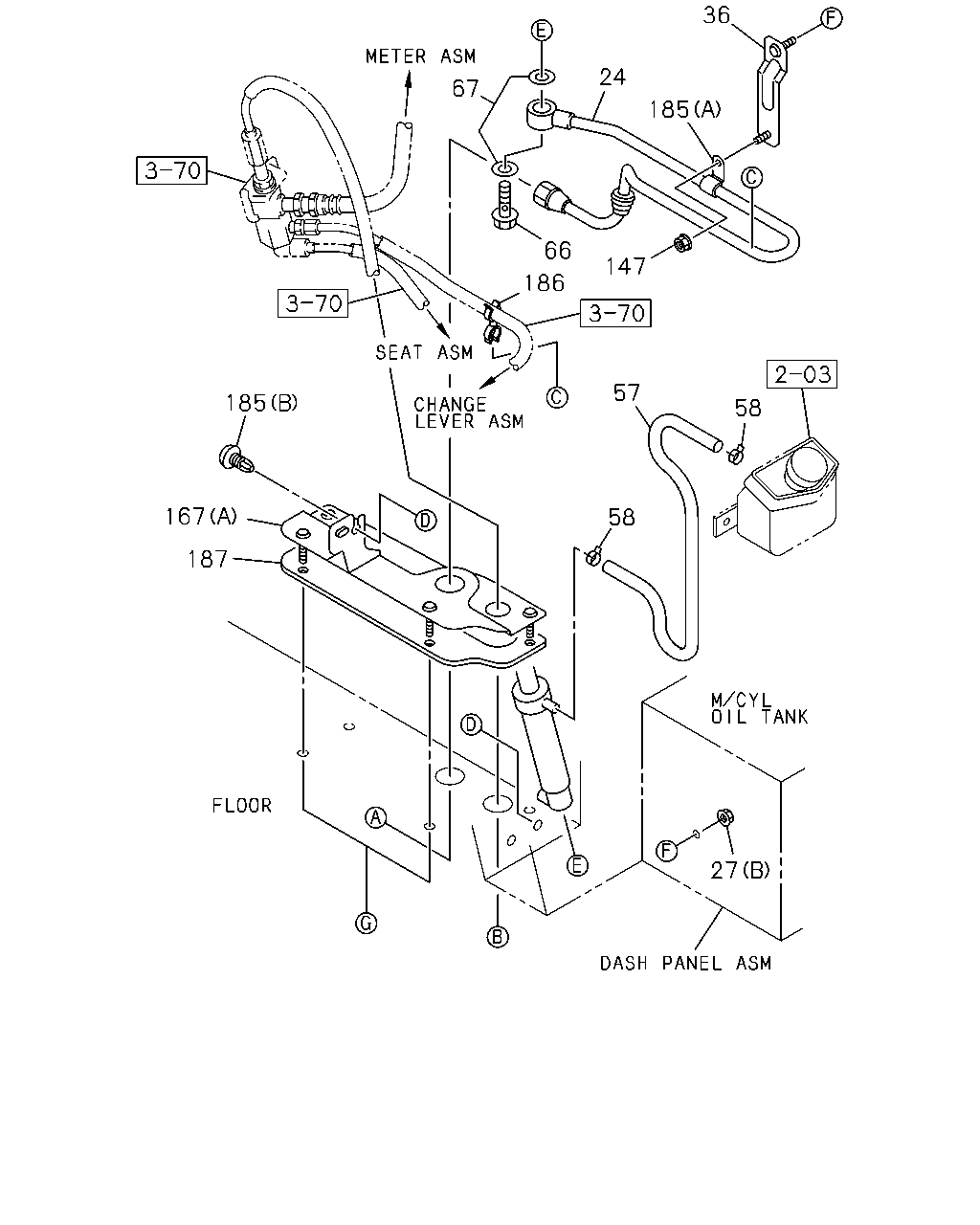

36 24 67 185 66 147 186 57 185 58 167 58 187 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9604-9904		●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9905-	●	●	●
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9604-9904		●	●
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
27	NUT; BRKT (C) M8 FLANGE	8-94279-517-0	04	1	9604-9611		●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904		●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9604-9606		●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904		●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	9604-9904		●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	9905-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9604-9904		●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9905-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9604-9904		●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9604-9904		●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-9904		●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9604-9611		●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904		●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●	●
167	BRACKET; UNION (A)	1-71117-207-1	01	1	9604-9904		●	●
167	BRACKET; UNION (A)	1-71117-207-1	01	1	9905-	●	●	●
167	BRACKET; UNION (B)	1-71907-376-1	01	1	9604-9904		●	●
167	BRACKET; UNION (B)	1-71907-376-1	01	1	9905-	●	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9604-9904		●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9604-9904		●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9604-9904		●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9604-9904		●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9905-	●	●	●

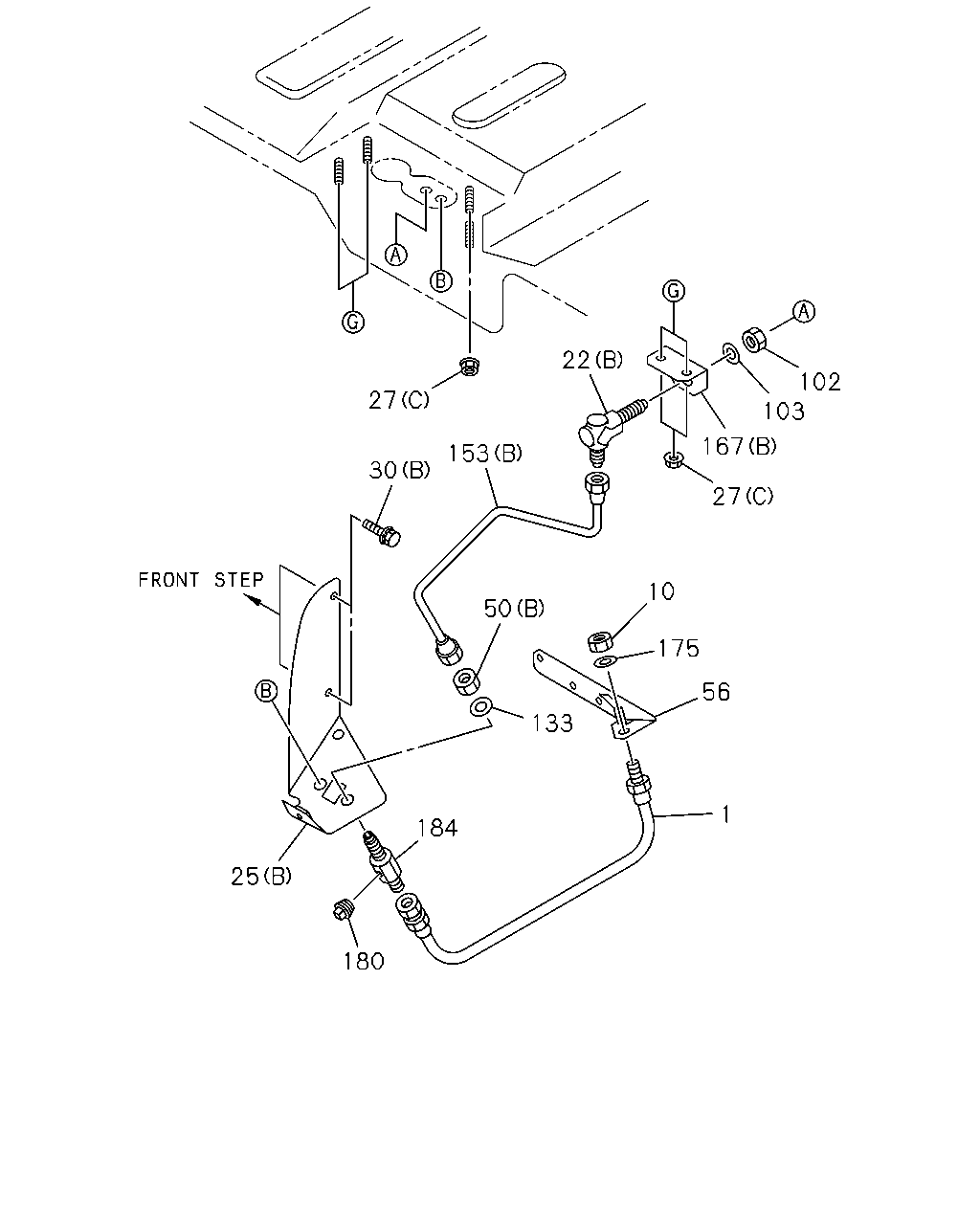

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9604-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-9904		●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	9604-9904		●	●
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	9905-	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (A)	1-09656-181-1	01	1	9604-		●	●
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9604-9702		●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904		●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9604-9904		●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●	●
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9604-9904		●	●
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
27	NUT; BRKT (C) M8 FLANGE	8-94279-517-0	04	1	9604-9611		●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904		●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●	●
27	NUT; BRKT (A) M8	9-09110-408-0	02	1	9604-9606		●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904		●	●
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
30	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9604-9606		●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904		●	●
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-9904		●	●
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9604-9904		●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9604-		●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9604-9904		●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9905-	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9604-9904		●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-9904		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9604-9904		●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9604-9904		●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=562 SERVICED BY L=570	1-47428-754-0	01	1	9604-9904		●	●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=562 SERVICED BY L=570	1-47428-754-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. CONCRETE PUMP<RA5> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9604-9904		●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-	●	●	●
167	BRACKET; UNION (A)	1-71117-207-1	01	1	9604-9904		●	●
167	BRACKET; UNION (A)	1-71117-207-1	01	1	9905-	●	●	●
167	BRACKET; UNION (B)	1-71907-376-1	01	1	9604-9904		●	●
167	BRACKET; UNION (B)	1-71907-376-1	01	1	9905-	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9604-9904		●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9604-9904		●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9604-9904		●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
