6-90 — REAR BUMPER (#52448) — 82 parça

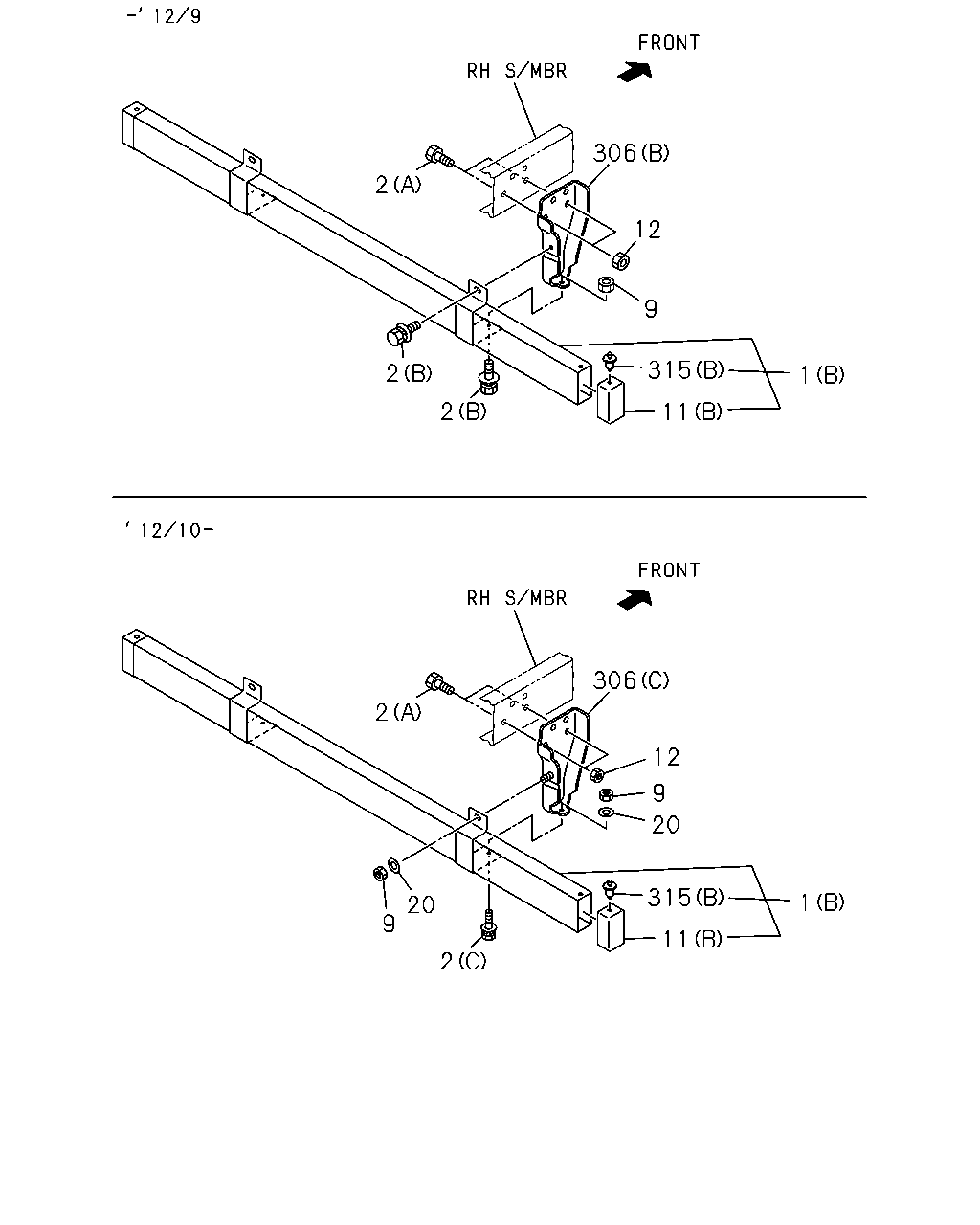

2 9 315 20 20 11 1 9 306 12 2 11 1 315 9 12 306 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	07.070 BUMPER; RR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1008-	●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	0810-0907	●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	0908-	●
2	07.874 BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1008-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) M14X30	0-20851-430-0	08	1	0810-0907	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (A) M14X30	0-20851-430-0	08	1	0908-1007	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (A) M14X30	0-20851-430-0	08	1	1008-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0810-0907	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 01.271 (B) M10X30	8-94324-205-0	04	1	0908-1209	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1210-	●
9	07.070 NUT; BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	0908-1209	●
9	07.070 NUT; BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-	●
11	07.829 CAP; RR BUMPER SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A)	1-71290-064-0	02	1	1008-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A)	8-98070-331-0	02	1	0810-0907	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B)	8-97174-008-0	02	1	0908-	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	0810-0907	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	0908-1007	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1008-	●
20	07.070 WASHER; PL,BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-	●
306	07.836 BAR; BACK,RR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-408-0	01	1	1008-	●
306	07.836 BAR; BACK,RR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-409-0	01	1	1008-	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-408-0	01	1	0810-0907	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1	8-98039-406-0	01	1	0908-1209	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-409-0	01	1	0810-0907	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1	8-98039-407-0	01	1	0908-1209	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1210-	●
315	07.829 RIVET; CAP SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A)	1-71290-062-0	04	1	1008-	●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A)	1-71290-062-0	04	1	0810-0907	●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 08.155 (B) D8X13.5	1-09987-248-1	04	1	0908-	●

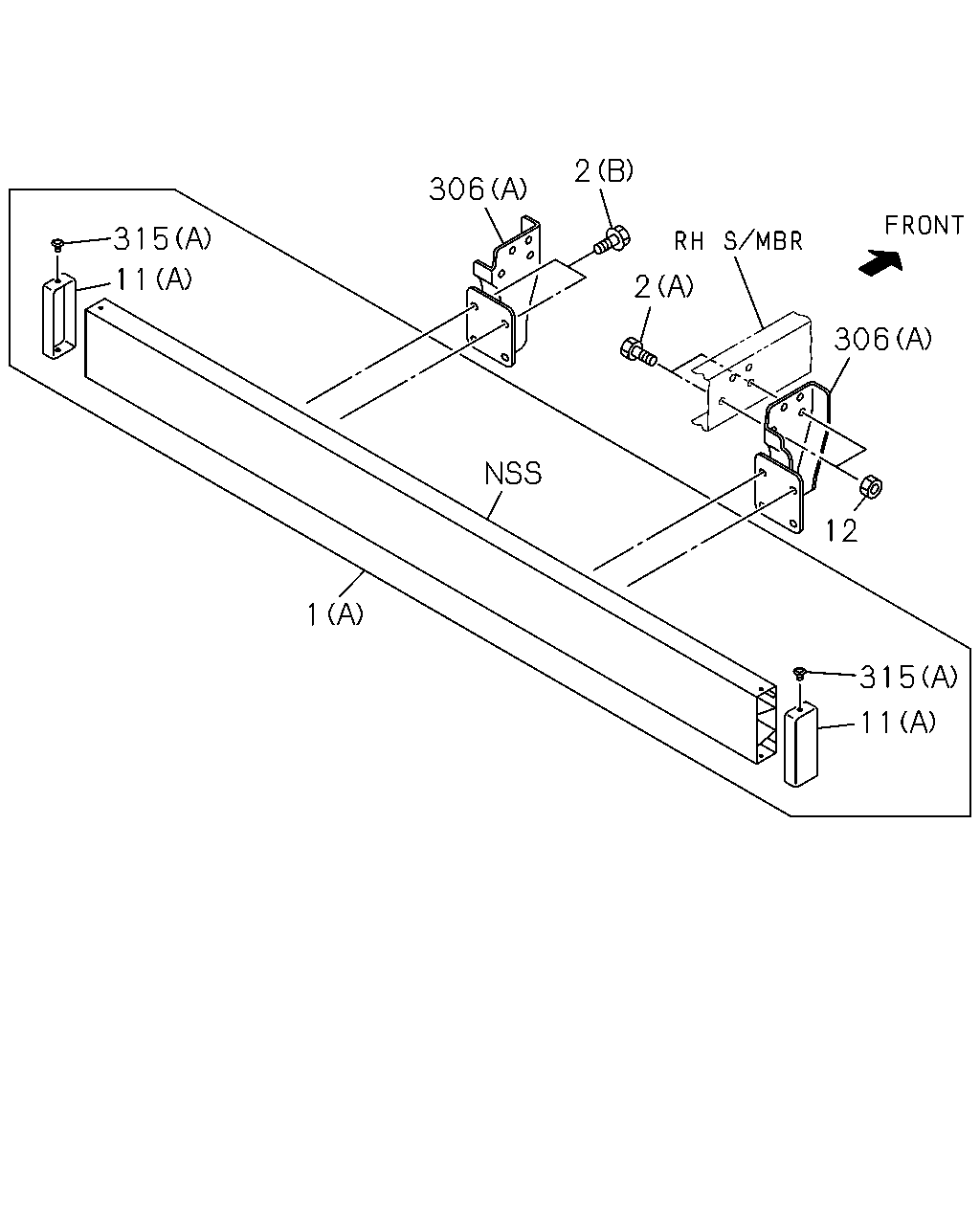

306 2 2 306 12 315 11 1 11 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	07.070 BUMPER; RR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A) ALUMINUM BUMPER STAMP IH2Q	8-98019-417-0	01	1	1008-	●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) ALUMINUM BUMPER STAMP D8Q	8-98088-675-0	01	1	0810-0907	●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B) STEEL BUMPER STAMP IJ2Q	8-98000-148-1	01	1	0908-	●
2	07.874 BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1008-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) M14X30	0-20851-430-0	08	1	0810-0907	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (A) M14X30	0-20851-430-0	08	1	0908-1007	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> (A) M14X30	0-20851-430-0	08	1	1008-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	0810-0907	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 01.271 (B) M10X30	8-94324-205-0	04	1	0908-1209	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1210-	●
11	07.829 CAP; RR BUMPER SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A)	1-71290-064-0	02	1	1008-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A)	8-98070-331-0	02	1	0810-0907	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B)	8-97174-008-0	02	1	0908-	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	0810-0907	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	0908-1007	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS>,BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1008-	●
306	07.836 BAR; BACK,RR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-408-0	01	1	1008-	●
306	07.836 BAR; BACK,RR SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-409-0	01	1	1008-	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-408-0	01	1	0810-0907	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1	8-98039-406-0	01	1	0908-1209	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-979-0	01	1	1210-	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A) STAMP IA3	8-98039-409-0	01	1	0810-0907	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1	8-98039-407-0	01	1	0908-1209	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1	8-98208-980-0	01	1	1210-	●
315	07.829 RIVET; CAP SAUDI ARABIA EQUIPMENT(GH3) BUMPER REAR<7HZ> (A)	1-71290-062-0	04	1	1008-	●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) BUMPER REAR<7HZ> (A)	1-71290-062-0	04	1	0810-0907	●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE STEEL REAR BUMPER<SMS> 08.155 (B) D8X13.5	1-09987-248-1	04	1	0908-	●

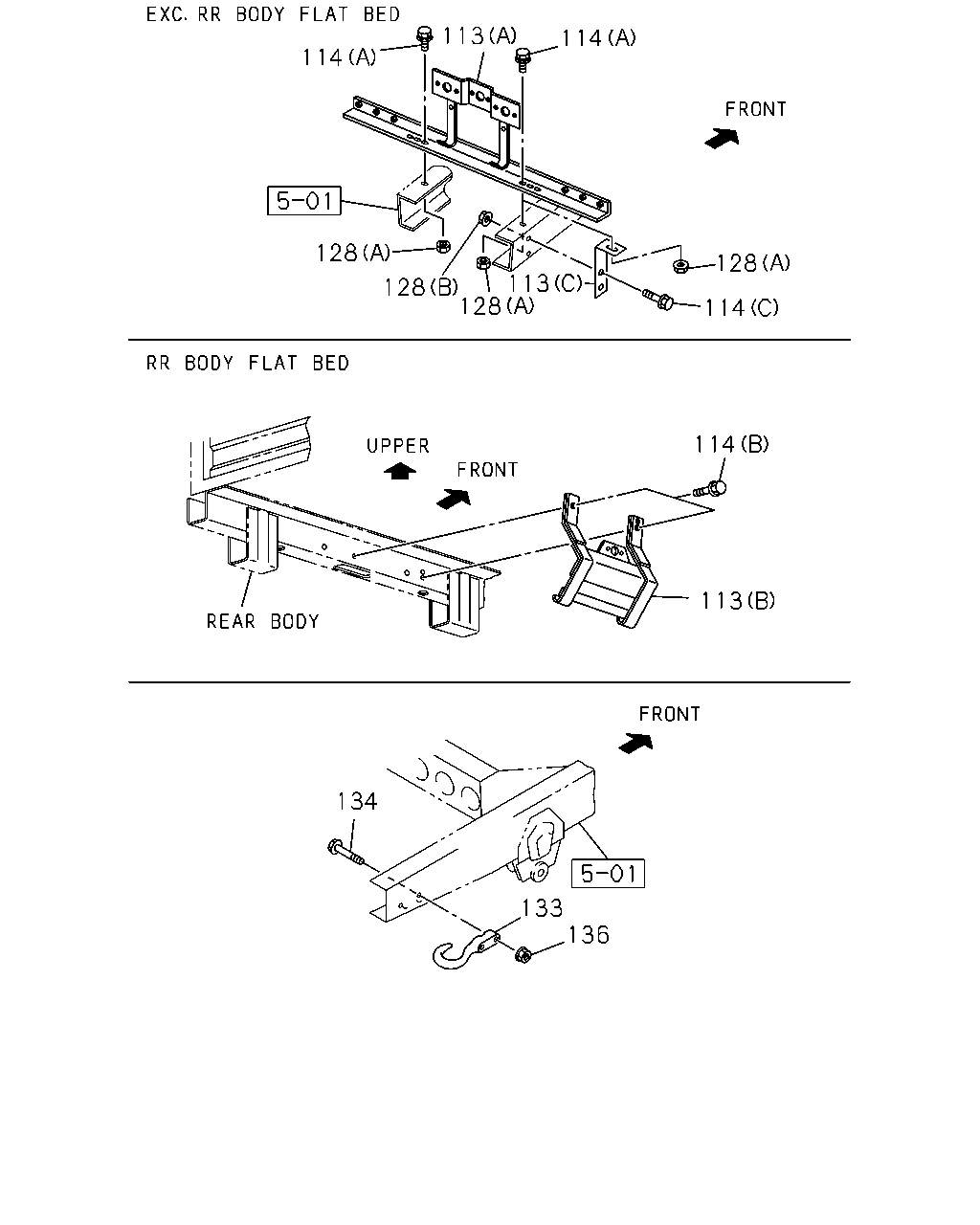

136 133 134 113 114 114 128 113 128 128 128 114 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	0810-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> (A)	8-98029-390-3	01	1	0810-	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	0810-		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W) (C)	8-98091-681-0	02	1	0810-0810		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED<RS6> (C)	8-98091-681-0	02	1	0811-	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W) (C)	8-98091-681-0	02	1	0811-		●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	0810-	●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	0810-	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	0810-		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W) 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	0810-0810		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED<RS6> 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	0811-	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W) 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	0811-		●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-	●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0810-0810		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED<RS6> 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0811-	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0811-		●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0810-	●	●
134	07.068 BOLT; HOOK EXC. MINI BUS CHASSIS(V4B), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1012-	●
134	07.068 BOLT; HOOK EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1012-		●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	0810-1011	●	●
134	07.068 BOLT; HOOK EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1012-	●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1012-	●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50	0-10856-450-0	02	1	1012-		●
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	0810-	●	●
