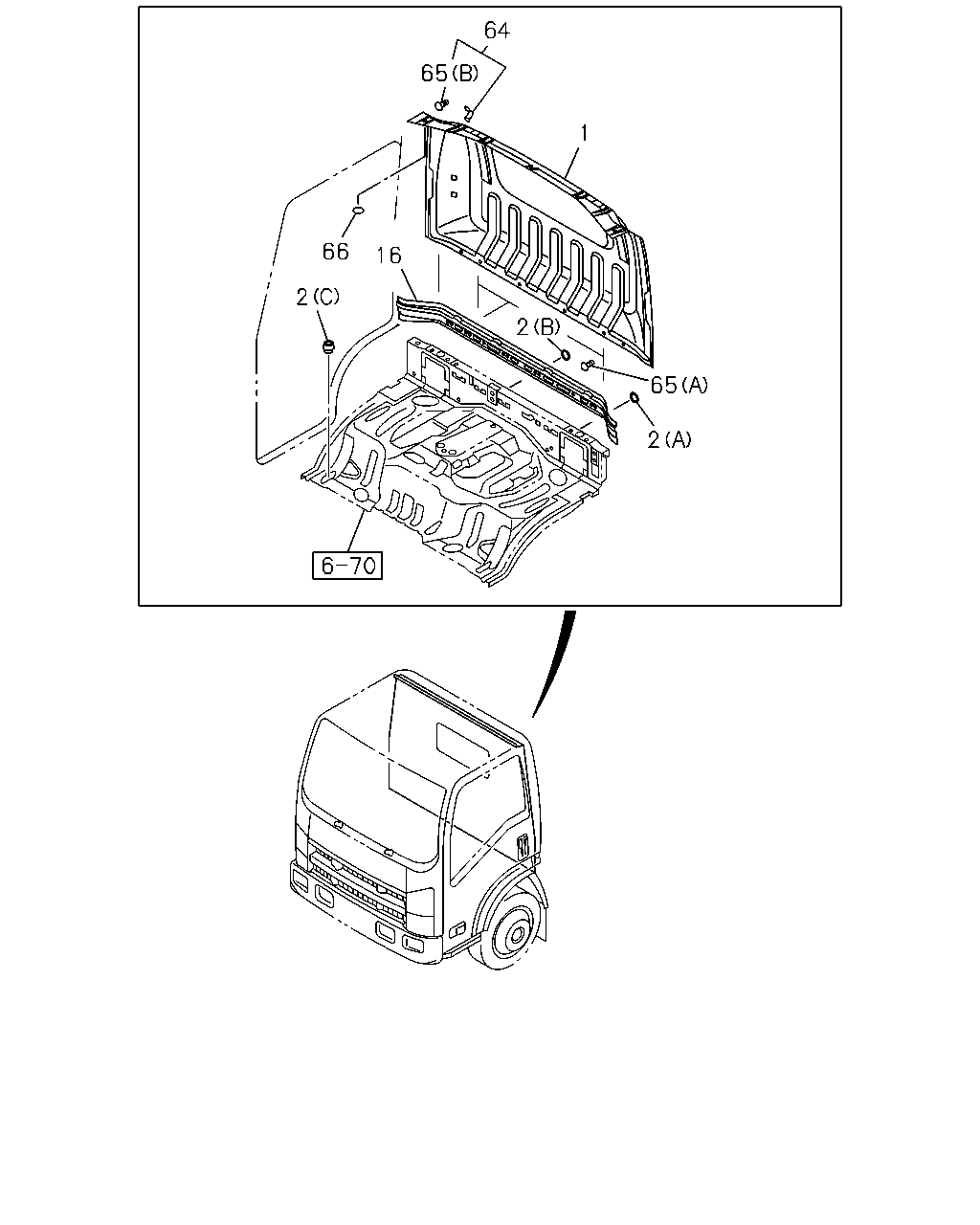

1 |
16.587 PANEL; BACK OUTER
WINDOW RR<8LF>
|
8-97584-304-3 |
01 |
1 |
0810- |
● |
● |
| |
1 |
16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF>
|
8-97584-311-4 |
01 |
1 |
0810- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
02 |
1 |
1110- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA>
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
10 |
1 |
0810- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547
(C)
OD=12.1
|
8-97898-423-0 |
04 |
1 |
0810- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA>
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
0810-1109 |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1110- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA>
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
08 |
1 |
0810-1109 |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA>
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
06 |
1 |
1110- |
● |
● |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
|
8-97584-608-2 |
01 |
1 |
0810- |
● |
● |
| |
64 |
16.587 BRACKET; AIR INTAKE DUCT
16.570
|
8-97584-611-1 |
01 |
1 |
0810- |
● |
● |
| |
65 |
17.198 STUD; BACK PANEL
(B)
|
8-94389-701-0 |
01 |
1 |
0810- |
● |
● |
| |
65 |
17.198 STUD; BACK PANEL
16.588
(A)
M6X12
|
8-98013-112-0 |
04 |
1 |
0810-1001 |
● |
● |
| |
65 |
17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6>
EXC. DUMP CHASSIS(V4D)
16.588
(A)
M6X12
|
8-98013-112-0 |
04 |
1 |
1002- |
● |
|
| |
65 |
17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D)
16.588
(A)
M6X12
|
8-98013-112-0 |
04 |
1 |
1002- |
● |
|
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729)
COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
04 |
1 |
0810-0903 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
04 |
1 |
0904- |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729)
EXC. COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
05 |
1 |
0810-0903 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
05 |
1 |
0904- |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR QUICK SILVER MET(998),BODY
COLOR TRANS BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
0810-0810 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
0811-0903 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL
OR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),
BODY COLOR HIGHWAY ORANGE(944),BODY
COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV
ER MET(998),BODY COLOR TRANS BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
0904- |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR QUICK SILVER MET(998),BODY
COLOR TRANS BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
05 |
1 |
0810-0810 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
05 |
1 |
0811-0903 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL
OR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),
BODY COLOR HIGHWAY ORANGE(944),BODY
COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV
ER MET(998),BODY COLOR TRANS BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
05 |
1 |
0904- |
● |
● |
