◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#52441) — 97 parça

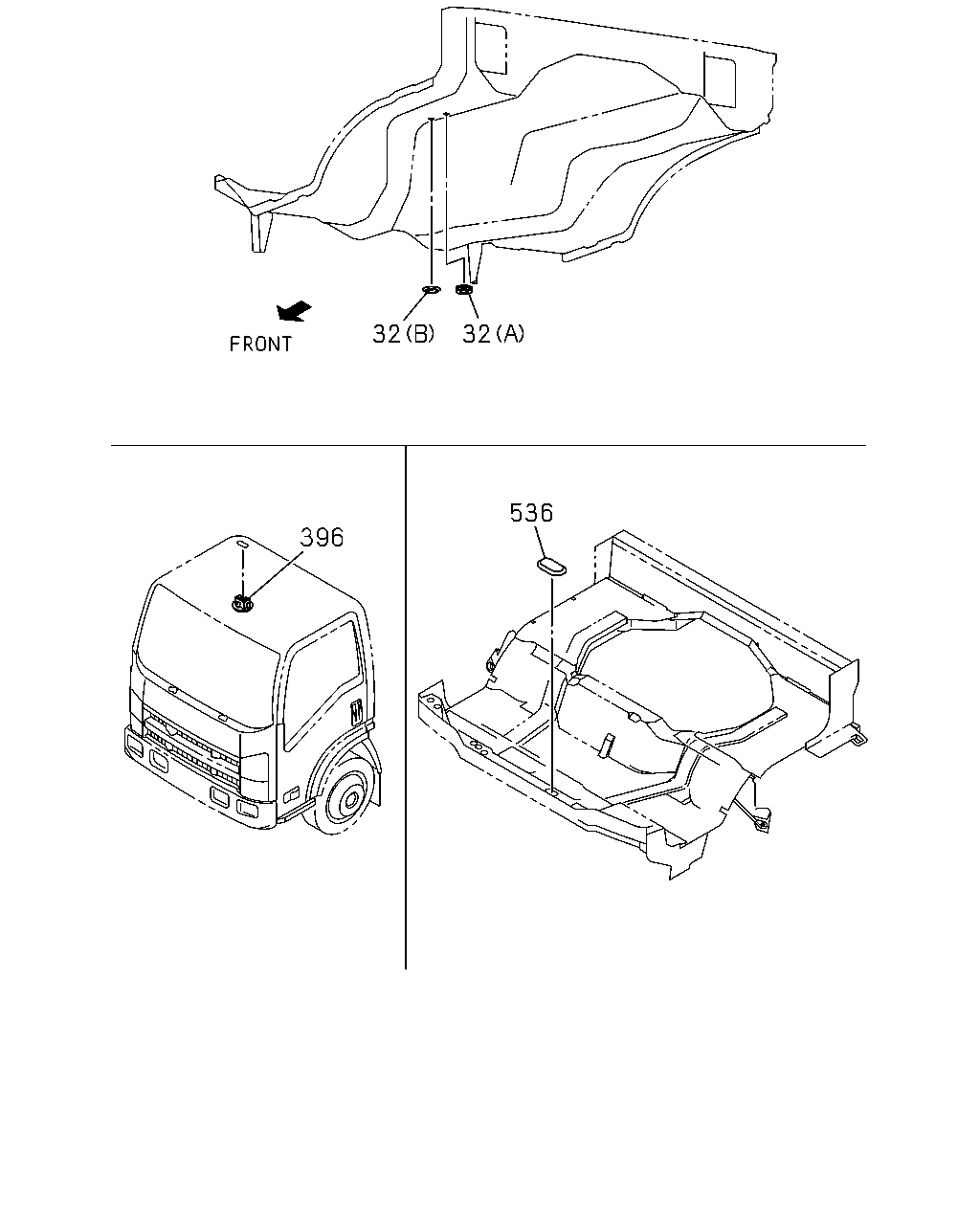

çizim 59257
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2 		8-94492-493-0 02 1 0810-0908 ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 0909- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 0810- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 0810- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 0810- ● ●

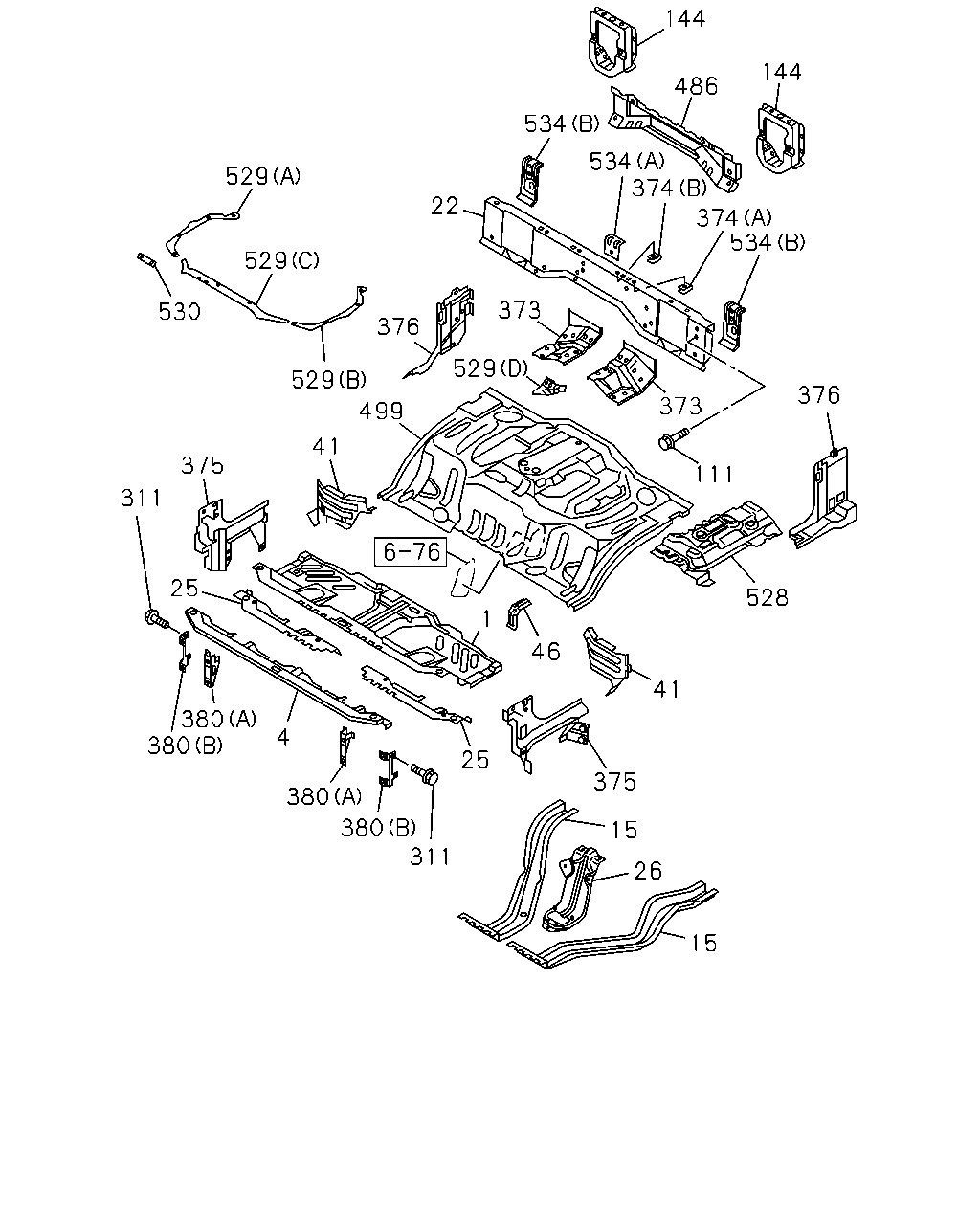

çizim 101556
144 144 486 534 534 374 529 22 374 534 529 373 530 376 529 529 376 373 499 41 375 111 311 25 528 1 46 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 0810-1506 ●
1 16.545 PANEL; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-407-4 01 1 0810-1506 ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1507- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0810-1506 ●
4 16.545 FRAME; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 0810-1506 ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1507- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 0810-1506 ●
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-497-1 01 1 0810-1506 ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1507- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 0810-1506 ●
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 0810-1506 ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1507- ● ●
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 0810- ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97589-430-4 01 1 0810-1506 ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97589-430-4 01 1 1507- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0810-1506 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 0810-1506 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1507- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0810-1506 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 0810-1506 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1507- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 0810-1506 ●
26 16.545 PANEL; GEAR CONT REINF
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-517-1 01 1 0810-1506 ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1507- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 0810-1506 ●
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 0810-1506 ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1507- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 0810-1506 ●
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 0810-1506 ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1507- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0810-1506 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 0810-1506 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1507- ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-1 02 1 0810-1506 ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-2 02 1 1507- ● ●
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 0810- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0810- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 0810- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 0810- ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 0810-1506 ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1507- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0810-1506 ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 0810-1506 ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1507- ● ●
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0810-1506 ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1507- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 0810-1506 ●
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-882-3 01 1 0810-1506 ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1507- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 0810-1506 ●
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-883-2 01 1 0810-1506 ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1507- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 0810-1506 ●
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 0810-1506 ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1507- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 0810-1506 ●
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 0810-1506 ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1507- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0810- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0810- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 0810-1506 ●
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 0810-1506 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1507- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 0810-1506 ●
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 0810-1506 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1507- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-615-2 01 1 0810-1506 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-615-2 01 1 1507- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0810- ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-97589-426-4 01 1 0810-1207 ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98207-188-0 01 1 1208-1506 ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98207-188-0 01 1 1507- ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-5 01 1 0810-1207 ● ●
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1208- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 0810- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 0810-1506 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 0810-1506 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-98006-715-0 01 1 0810-1506 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-98006-715-0 01 1 1507- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98031-663-0 01 1 0810-1506 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98031-663-0 01 1 1507- ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 0810-1506 ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1507- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 0810-1506 ●
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 02 1 0810-1506 ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1507- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0810-1506 ●
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 0810-1506 ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1507- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
