2-01 — CLUTCH (#5243) — 118 parça

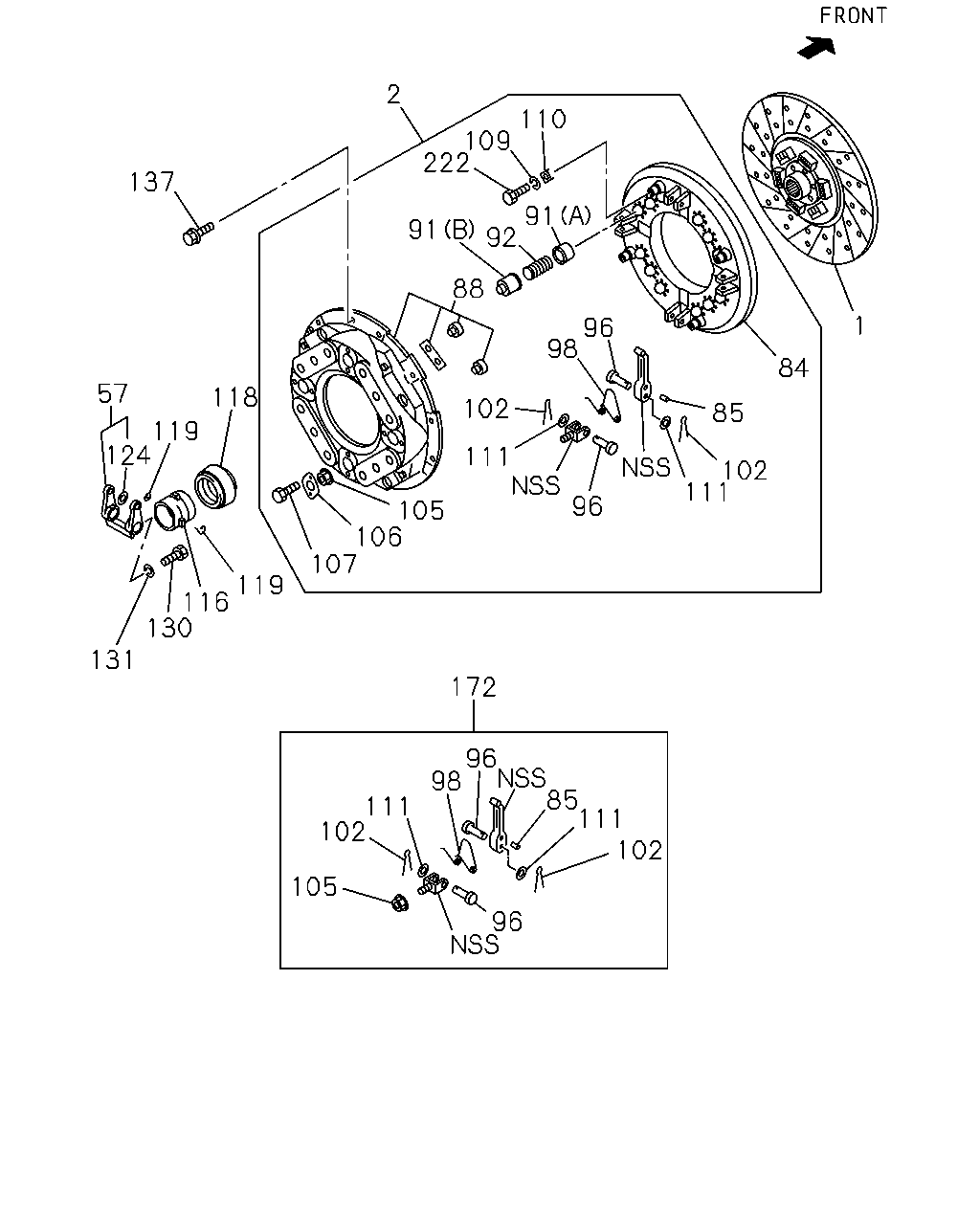

2 110 109 222 137 91 92 91 88 1 96 98 84 57 118 102 85 119 124 111 102 111 96 105 106 107 119 116 130 131 172 96 98 85 111 102 111 102 105 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 17"	1-31240-700-0	01	1	9604-9904	●	●
1	DISC; CLUTCH 17"	1-31240-700-0	01	1	9905-	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L)	1-31220-320-2	01	1	9905-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-320-2	01	1	9905-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-234-1	01	1	9604-9707	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-319-0	01	1	9708-9904	●	●
2	PLATE ASM; PRESSURE,CLU 8PE1S(59L)	1-31220-319-2	01	1	9905-	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9604-9904	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9905-	●	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	9604-9707	●	●
84	PLATE; PRESSURE	1-31221-083-1	01	1	9708-9904	●	●
84	PLATE; PRESSURE	1-31221-083-1	01	1	9905-	●	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	9604-9707	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	9708-9904	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	9905-	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9905-	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9604-9904	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9604-9904	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9905-	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9604-9904	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9905-	●	●	●
92	SPRING; CLU 10PE1N(61L)	1-09580-297-0	12	1	9905-	●
92	SPRING; CLU	1-09580-297-0	12	1	9905-			●
92	SPRING; CLU	1-09580-273-0	12	1	9604-9904	●	●
92	SPRING; CLU 8PE1S(59L)	1-09580-273-0	12	1	9905-	●	●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	9604-9707	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9708-9904	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9905-	●	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	9604-9707	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9708-9904	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9905-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9604-9904	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9905-	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9604-9707	●	●
105	NUT; SUPPORT	1-31235-009-0	04	1	9708-9904	●	●
105	NUT; SUPPORT	1-31235-009-0	04	1	9905-	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9604-9904	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9905-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9604-9904	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9604-9904	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9905-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9604-9904	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9905-	●	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9604-9904	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9905-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9604-9904	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9905-	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9604-9904	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9905-0003	●	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9604-9904	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9905-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9604-9904	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9905-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9604-9904	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9905-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9604-9904	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9905-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9604-9904	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9905-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9604-9904	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9905-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-526-1	01	1	9604-9707	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-2	01	1	9708-	●	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	9604-9707	●	●
222	BOLT; STRAP	1-09040-102-0	04	1	9708-9904	●	●
222	BOLT; STRAP	1-09040-102-0	04	1	9905-	●	●	●

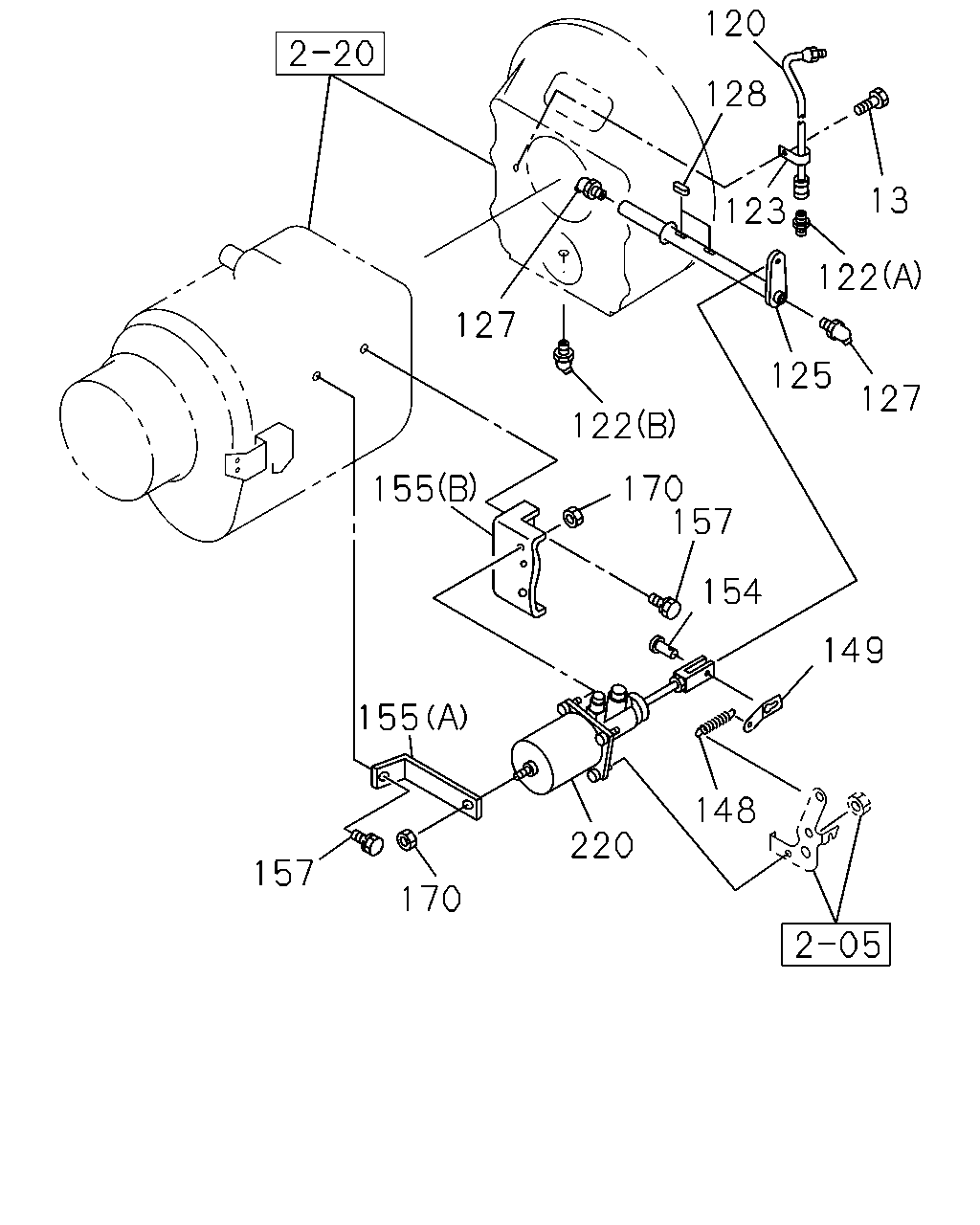

120 128 13 123 122 127 125 127 122 170 157 155 154 149 155 148 220 157 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9604-9904	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9604-9904	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9905-0003	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9604-9904	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-9904	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9604-9904	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9905-	●	●	●
125	SHAFT; CLU L=477	1-31342-240-1	01	1	9604-9901	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	9902-9904	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	9905-	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9604-9904	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9905-	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9604-9904	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9905-	●	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9604-9710	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9711-9904	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9905-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9604-9904	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9905-	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9604-9904	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9905-	●	●	●
155	BRACKET; MINIPACK 10PE1N(61L) (B)	1-31429-401-0	01	1	9905-0006	●
155	BRACKET; MINIPACK (B)	1-31429-401-0	01	1	9905-0006			●
155	BRACKET; MINIPACK 10PE1N(61L) P90 PROP SHAFT(C5T) (B)	1-31429-401-0	01	1	0007-			●
155	BRACKET; MINIPACK 10PE1N(61L) P90 PROP SHAFT(C5T) (B)	1-31429-443-1	01	1	0007-	●
155	BRACKET; MINIPACK (B)	1-31429-290-0	01	1	9604-9901	●	●
155	BRACKET; MINIPACK (B)	1-31429-400-0	01	1	9902-9904	●	●
155	BRACKET; MINIPACK 8PE1S(59L) (B)	1-31429-400-0	01	1	9905-0006	●
155	BRACKET; MINIPACK (B)	1-31429-400-0	01	1	9905-0006		●
155	BRACKET; MINIPACK 8PE1S(59L) (B)	1-31429-444-1	01	1	0007-	●
155	BRACKET; MINIPACK (B)	1-31429-444-1	01	1	0007-		●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	9604-9904	●	●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	9905-	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9604-9904	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9905-	●	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9604-9904	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9905-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L)	1-31800-382-0	01	1	9905-0001	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-0	01	1	9905-0001			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-382-1	01	1	0002-0011	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-1	01	1	0012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-447-0	01	1	0002-0011	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-2	01	1	0012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-385-0	01	1	9604-9904	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 8PE1S(59L)	1-31800-385-2	01	1	9905-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-385-2	01	1	9905-		●
