5-01 — FRAME AND OTHER PARTS (#52422) — 135 parça

51 51 42 31 39 31 24 140 63 103 141 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	0810-	●	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0810-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-98014-125-0	02	1	0810-	●	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98032-389-0	01	1	0810-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	02	1	0810-	●	●
63	01.270 BRACKET; RAD MTG	8-97115-668-0	01	1	0810-	●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	0810-	●	●
103	07.420 STOPPER; SUB SPR EXC. MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	0810-	●	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	0810-	●	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	0810-	●	●
141	07.112 STIFFENER	8-98064-354-2	01	1	0810-	●	●
141	07.112 STIFFENER	8-98064-355-2	01	1	0810-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 118 222 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	07.011 NUT; C/MBR WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) 04.085 M10 FLANGE	0-91180-210-0	17	1	0810-	●
67	07.011 NUT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE	0-91180-210-0	18	1	0810-	●	●
67	07.011 NUT; C/MBR WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.085 M10 FLANGE	0-91180-210-0	18	1	0810-	●
118	07.529 NUT; STOPPER EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	02	1	0810-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0810-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0810-	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-0810		●
221	01.270 BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-0810		●
222	07.039 NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) 01.540 M8 FLANGE	0-91180-208-0	02	1	0811-	●	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE	0-28651-030-0	15	1	0810-	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0810-	●	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0810-	●
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (B) D10X22 TAPER END	9-06751-022-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (F) D10X32 TAPER END	9-06751-032-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (G) D10X36 TAPER END	9-06751-036-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (H) D11X26 TAPER END	9-06751-126-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME (I) D11X30 TAPER END	9-06751-130-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME 07.105 (J) D12X30 TAPER END	9-06751-230-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME 07.428 (K) D12X36 TAPER END	9-06751-236-0	AR	1	0810-	●	●
376	07.039 RIVET; FRAME 07.112 (L) D12X40 TAPER END	9-06751-240-0	AR	1	0810-	●	●

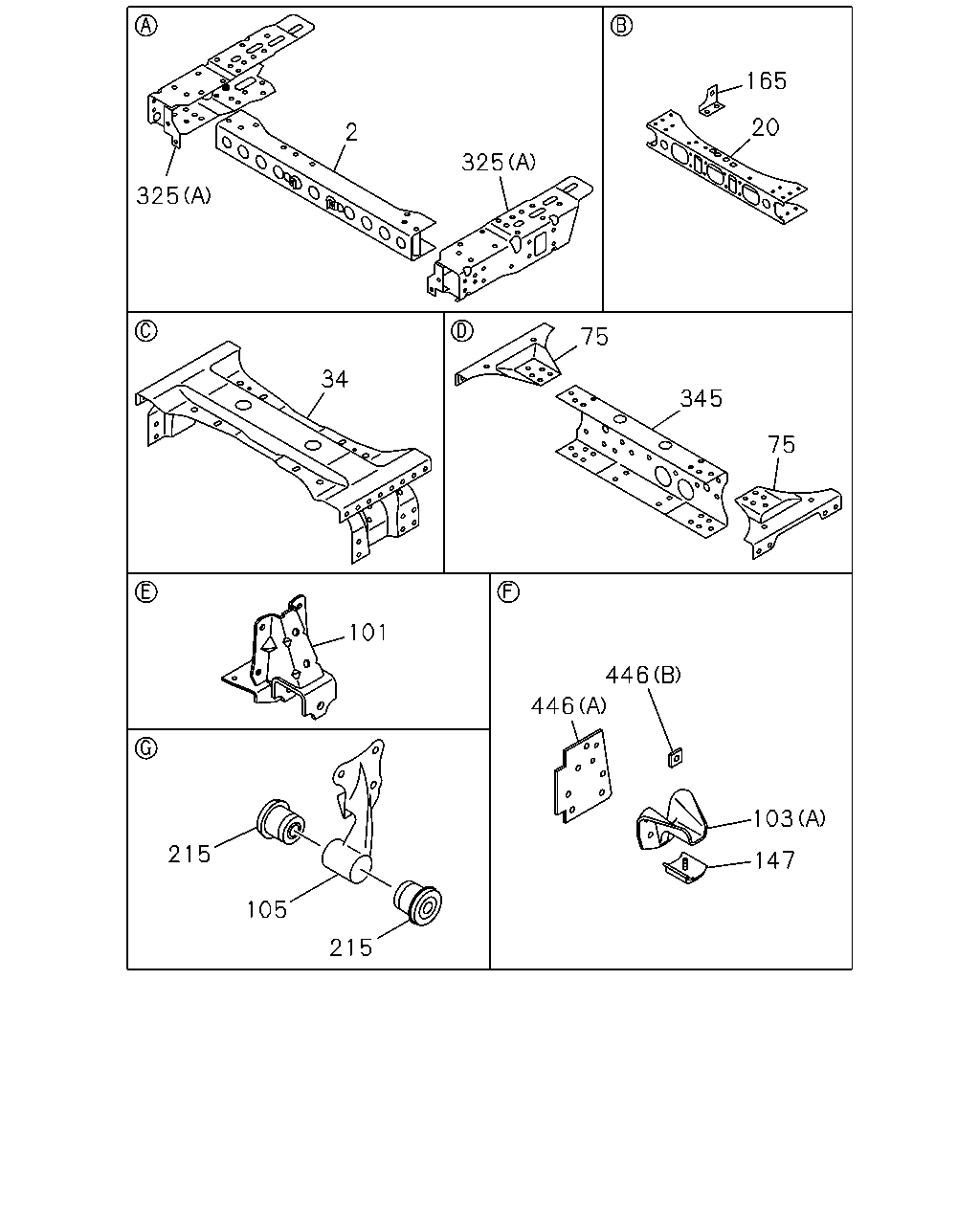

165 20 2 325 325 75 34 345 75 101 446 446 103 215 147 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97387-866-5	01	1	0810-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-7	01	1	0810-	●	●
34	07.012 MEMBER; CROSS,3RD	8-98074-639-4	01	1	0810-	●	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-583-0	02	1	0810-	●	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-584-0	02	1	0810-	●	●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0810-	●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	0810-	●	●
103	07.420 STOPPER; SUB SPR EXC. MINI BUS CHASSIS(V4B) (A)	8-97223-748-0	04	1	0810-	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	0810-	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	0810-	●	●
147	07.535 RUBBER; SUB SPRING EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	0810-	●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0810-	●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0810-	●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	0810-	●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	0810-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0810-0810		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0811-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0810-0810		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0811-	●	●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	0810-	●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS(V4B) (B)	8-97122-173-0	02	1	0810-	●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 2700MM(27W) (A)	8-98014-080-1	02	1	0810-	●

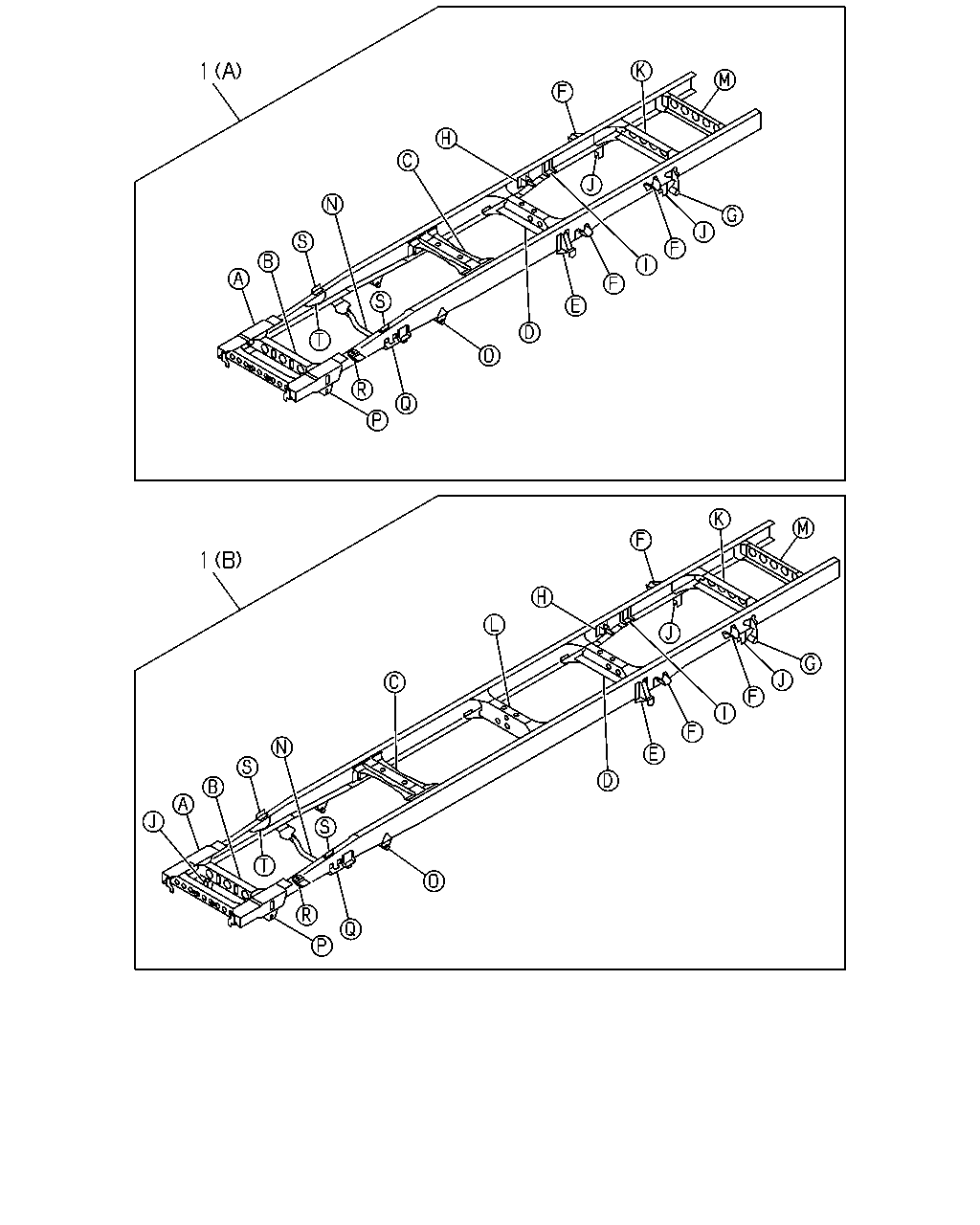

1 414 325 201 131 130 201 325 414 123 132 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) MINI BUS CHASSIS(V4B) (B)	8-98106-326-0	01	1	0811-1007	●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> MINI BUS CHASSIS(V4B) (B)	8-98173-439-1	01	1	1008-	●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) (C)	8-98106-328-0	01	1	0811-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) (A)	8-98106-318-2	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A)	8-98106-319-1	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) (B)	8-98106-322-0	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS(V4B) (B)	8-98106-321-3	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98106-321-3	01	1	0810-		●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (B)	8-98106-325-0	01	1	0810-0810	●	●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B) (B)	8-98106-325-3	01	1	0811-	●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (B)	8-98106-325-3	01	1	0811-		●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (C)	8-98106-329-0	01	1	0810-0810		●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (C)	8-98106-329-1	01	1	0811-	●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (C)	8-98106-329-1	01	1	0811-		●
123	07.039 NUT WHEEL BASE 4100MM(41W) 07.395 M12	8-97360-126-0	16	1	0810-0810		●
123	07.039 NUT WHEEL BASE 4100MM(41W) 07.395 M12	8-97360-126-0	16	1	0811-	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	0810-	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0810-0810		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0811-	●	●
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0810-0810		●
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0811-	●	●
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	08	1	0810-0810		●
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	08	1	0811-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0810-	●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-346-0	01	1	0810-	●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-347-1	01	1	0810-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0810-0810		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0811-	●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0810-0810		●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0811-	●	●
414	07.011 BOLT WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0810-0810		●
414	07.011 BOLT WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0811-	●	●
414	07.011 BOLT WHEEL BASE 4100MM(41W) M12X40 FLANGE	0-28661-240-0	04	1	0810-0810		●
414	07.011 BOLT WHEEL BASE 4100MM(41W) M12X40 FLANGE	0-28661-240-0	04	1	0811-	●	●

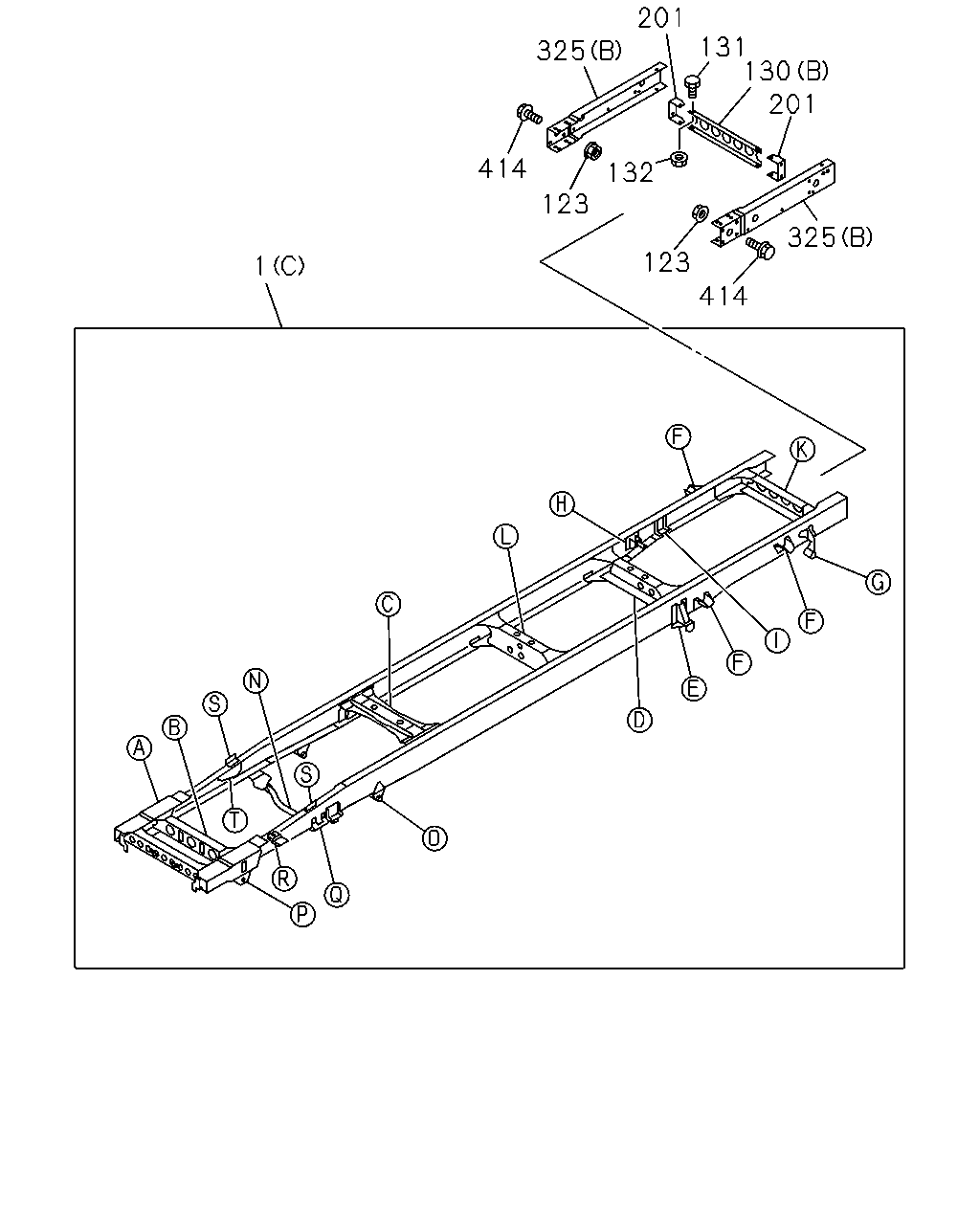

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) MINI BUS CHASSIS(V4B) (B)	8-98106-326-0	01	1	0811-1007	●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> MINI BUS CHASSIS(V4B) (B)	8-98173-439-1	01	1	1008-	●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B) (C)	8-98106-328-0	01	1	0811-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) (A)	8-98106-318-2	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (A)	8-98106-319-1	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) (B)	8-98106-322-0	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. MINI BUS CHASSIS(V4B) (B)	8-98106-321-3	01	1	0810-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98106-321-3	01	1	0810-		●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (B)	8-98106-325-0	01	1	0810-0810	●	●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B) (B)	8-98106-325-3	01	1	0811-	●
1	07.003 FRAME ASM WHEEL BASE 3800MM(38W) (B)	8-98106-325-3	01	1	0811-		●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (C)	8-98106-329-0	01	1	0810-0810		●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B) (C)	8-98106-329-1	01	1	0811-	●
1	07.003 FRAME ASM WHEEL BASE 4100MM(41W) (C)	8-98106-329-1	01	1	0811-		●

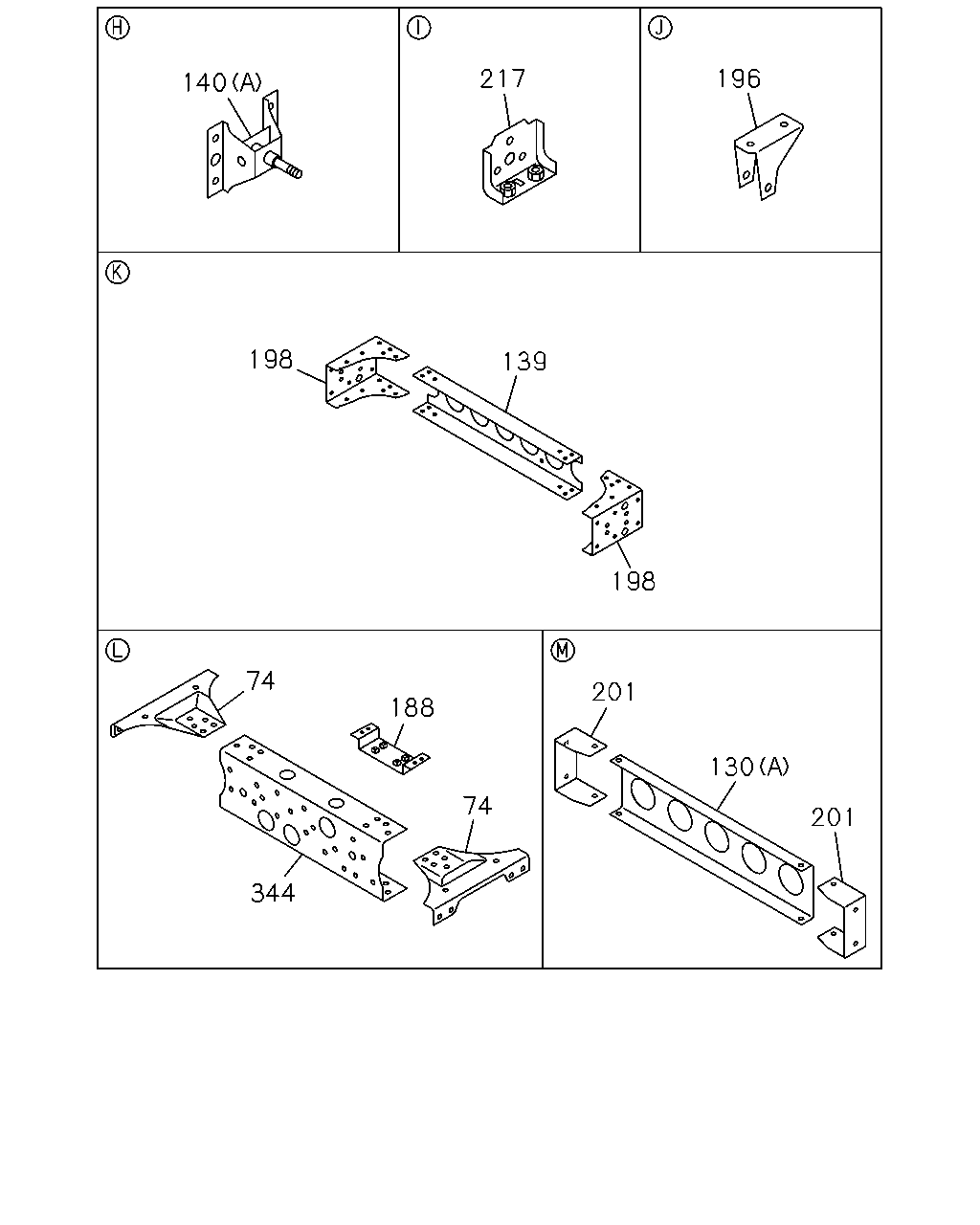

140 217 196 198 139 198 74 344 188 74 201 130 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) RH-LOWER,LH-UPPER	8-98000-583-0	02	1	0810-	●	●
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) RH-UPPER,LH-LOWER	8-98000-584-0	02	1	0810-	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97080-872-0	01	1	0810-	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0810-0810		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W) (B)	8-97205-394-0	01	1	0811-	●	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B)	8-97326-394-0	01	1	1005-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97326-394-0	01	1	1005-		●
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	0810-1004	●	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) MINI BUS CHASSIS(V4B)	8-97107-384-0	01	1	1005-1007	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W)	8-97107-384-0	01	1	1005-1007	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W)	8-97107-384-0	01	1	1005-1007		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3800MM(38W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> MINI BUS CHASSIS(V4B)	8-97107-384-0	01	1	1008-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS(V4B)	8-97107-384-0	01	1	1008-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W)	8-97107-384-0	01	1	1008-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B)	8-97107-384-0	01	1	1008-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W)	8-97107-384-0	01	1	1008-		●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	0810-	●	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	0810-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3800MM(38W)	8-98227-662-0	01	1	1212-	●	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W)	8-98033-523-0	02	1	0810-	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	0810-0810	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	0811-1007	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3800MM(38W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	1008-	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) MINI BUS CHASSIS(V4B)	8-98033-523-0	04	1	1008-	●
198	07.039 GUSSET; 6TH C/MBR	8-98014-079-1	02	1	0810-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0810-	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0810-	●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-97175-993-3	01	1	0810-	●	●
