4-36 — POWER STEERING CONTROL; ENGINE SIDE (#52409) — 20 parça

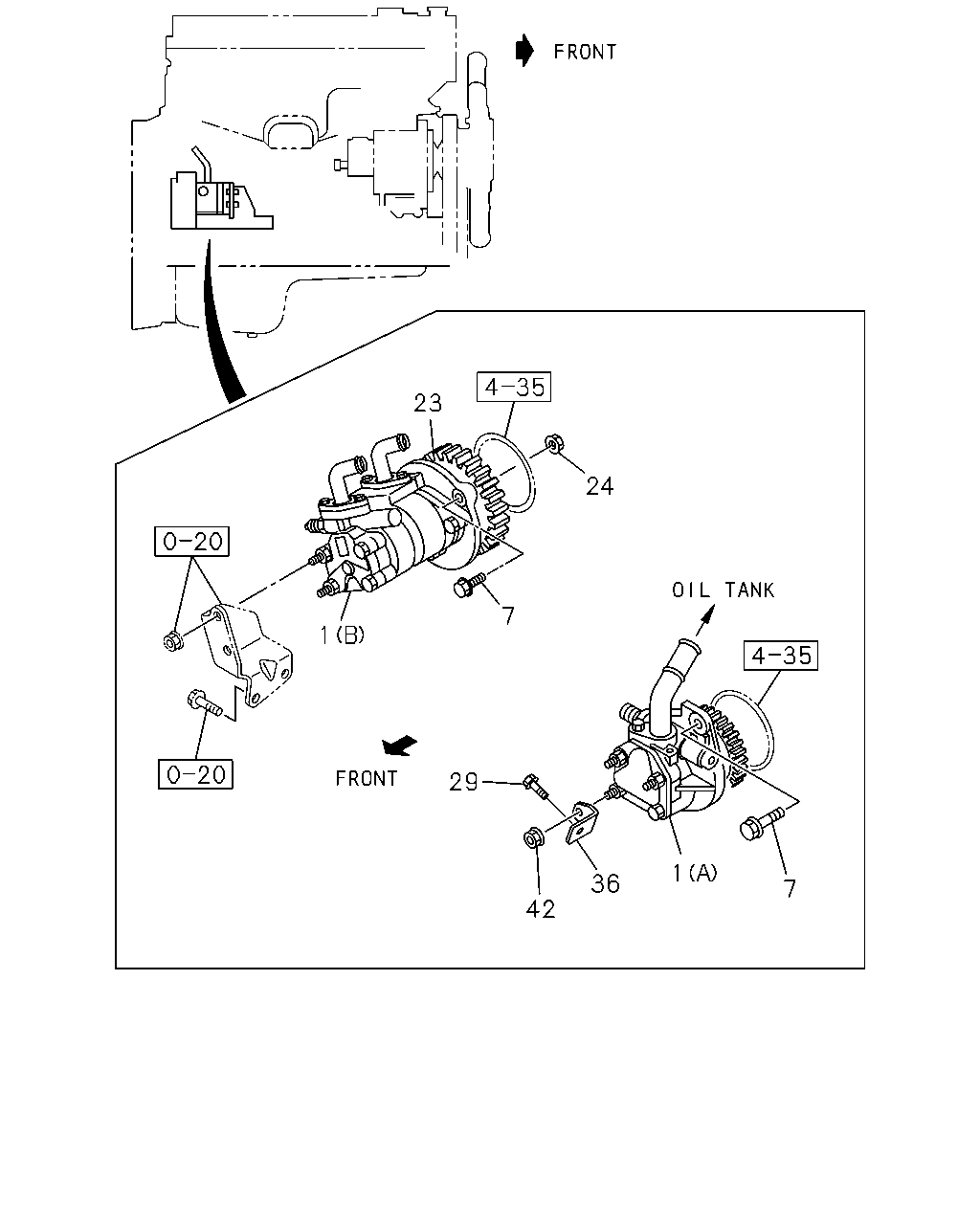

çizim 59296
23 24 7 1 29 1 36 7 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 0812- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		8-98006-793-2 01 1 0810-0811 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98006-793-4 01 1 0812-1405 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 0812-1405 ●
7 09.181 BOLT; OIL PUMP,P/S
04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0810-1010 ● ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ●
23 06.660 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 0812- ●
24 06.673 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 0812- ●
29 09.171 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 0810-0811 ● ●
29 09.171 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 0812-1405 ●
29 09.171 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 0812-1405 ●
36 06.606 BRACKET; PLATE,P/S PUMP 8-98036-532-0 01 1 0810-0811 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP 8-98036-532-0 01 1 0812-1405 ●
36 06.606 BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 0812-1405 ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-0810 ● ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0811-0811 ● ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0811-0811 ● ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0812-1405 ● ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0812-1405 ●
42 06.672 NUT; ADJ PLATE
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0812-1405 ●
