4-31 — STEERING COLUMN AND SHAFT
(#52406) — 43 parça
Tümü
A - NPR6SN
B - NPR6SS
◀

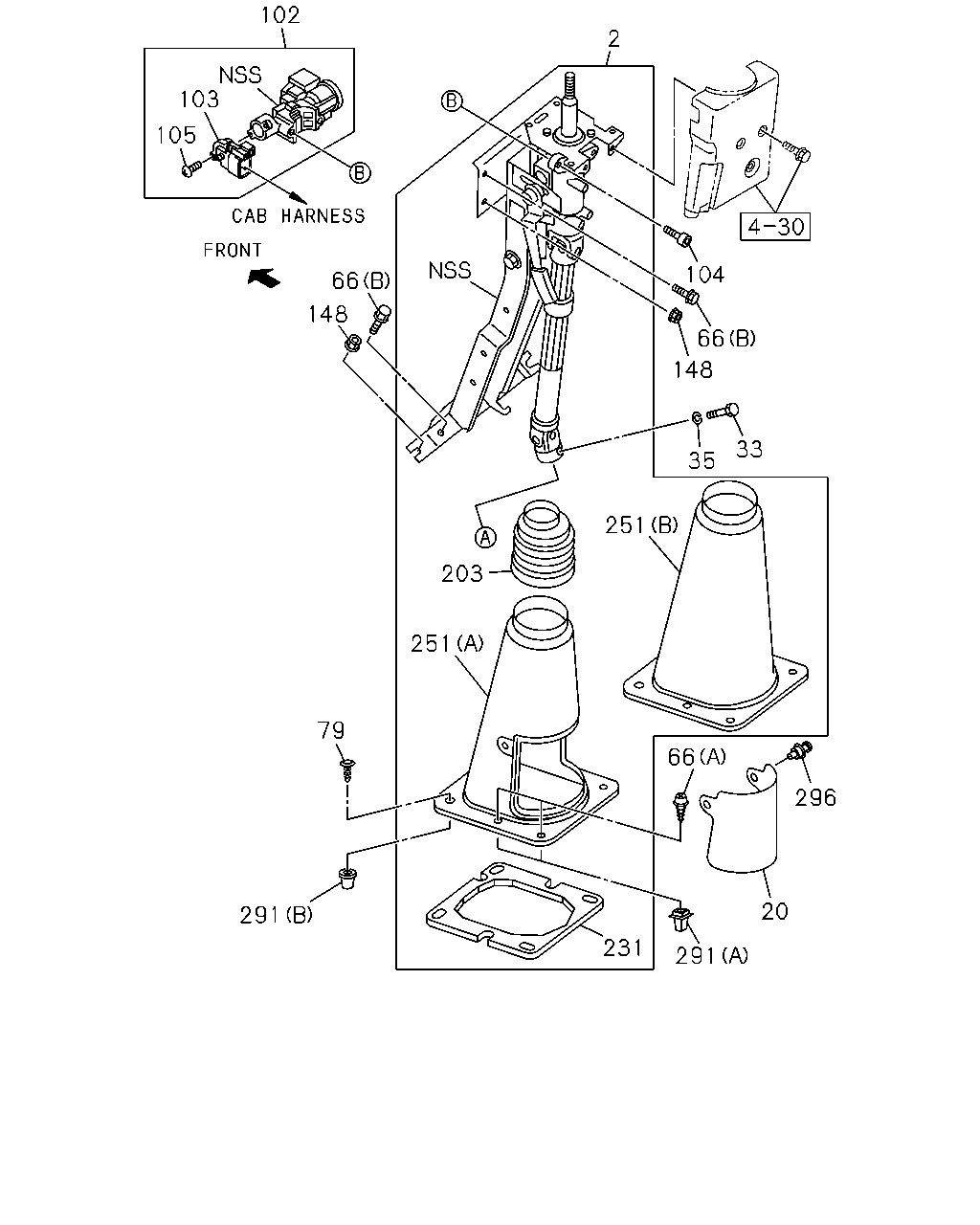

[431A] NO.1 (26 parça)
[431A] NO.2 (17 parça)
▶
102
2
103
105
104
66
148
66
148
33
35
251
203
251
79
66
296
20
291
231
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK
8-97418-802-2
01
1
1008-
●
●
2
06.518 SHAFT ASM; STRG
BLACK
8-97406-375-6
01
1
0810-1007
●
●
2
06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97406-375-8
01
1
1008-
●
●
20
06.525 COVER; STRG SHAFT
BLACK
8-97405-159-0
01
1
0810-1007
●
●
20
06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97405-159-0
01
1
1008-
●
●
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
0810-
●
●
35
06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2
0-91510-808-0
01
1
0810-
●
●
66
06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1201-
●
●
66
06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
04
1
0810-
●
●
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0810-1112
●
●
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1201-
●
●
79
06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK
8-94363-776-0
02
1
0810-
●
●
102
06.500 LOCK ASM; STRG
8-98006-150-0
01
1
0810-
●
●
103
02.188 SWITCH; IGNITION
8-98045-349-0
01
1
0810-
●
●
104
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
0810-
●
●
105
06.500 SCREW; IGN SW
8-98045-346-0
02
1
0810-
●
●
148
06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
03
1
0810-
●
●
203
06.525 BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
0812-
●
●
231
06.525 SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
0812-
●
●
251
06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK
8-97418-804-0
01
1
1008-
●
●
251
06.518 COVER; LWR
(A) BLACK
8-97417-049-0
01
1
0812-1007
●
●
251
06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK
8-97417-049-0
01
1
1008-
●
●
291
06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15
8-94463-268-1
04
1
0810-
●
●
291
06.518 GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
0810-
●
●
296
06.525 CLIP; COVER
BLACK
8-97868-409-0
01
1
0810-1007
●
●
296
06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97868-409-0
01
1
1008-
●
●
348
172
348
96
172
1
107
107
172
321
321
350
172
95
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98110-220-5
01
1
0810-
●
●
95
06.509 BOLT; STRG UNIT
EXC. FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
04
1
1107-
●
95
06.509 BOLT; STRG UNIT
M12X47 FLANGE
8-98055-055-0
04
1
1107-
●
95
06.509 BOLT; STRG UNIT
M12X47 FLANGE
8-98055-055-0
04
1
0810-1106
●
●
95
06.509 BOLT; STRG UNIT
FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
03
1
1107-
●
96
06.509 NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
0810-0905
●
●
96
06.509 NUT; STRG UNIT
EXC. FRONT WIDE TREAD<7GV> M12 FLANGE
8-97359-618-0
01
1
0906-1106
●
96
06.509 NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
0906-1106
●
96
06.509 NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
1107-
●
●
107
06.514 NUT; BRKT
FRONT WIDE TREAD<7GV> 06.509 M12 FLANGE
8-97359-618-0
03
1
0906-
●
172
06.509 BRACKET; STRG
FRONT WIDE TREAD<7GV> (C)
8-98135-276-0
01
1
0906-1106
●
172
06.509 BRACKET; STRG
FRONT WIDE TREAD<7GV> (D)
8-98196-128-0
01
1
1107-
●
172
06.509 BRACKET; STRG
(B)
8-98055-259-0
01
1
0810-
●
●
172
06.509 BRACKET; STRG
(A)
8-98073-917-0
01
1
0810-
●
●
321
06.514 BOLT; BRKT,STRG
FRONT WIDE TREAD<7GV> 06.509 M12X47 FLANGE
8-98055-055-0
06
1
0906-
●
348
06.525 CLIP; BRKT,STRG
ID=5-12 L=22
1-09709-288-0
02
1
0810-
●
●
350
06.509 STUD; BRACKET
FRONT WIDE TREAD<7GV>
8-98196-098-0
01
1
1107-
●
