◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#52401) — 97 parça

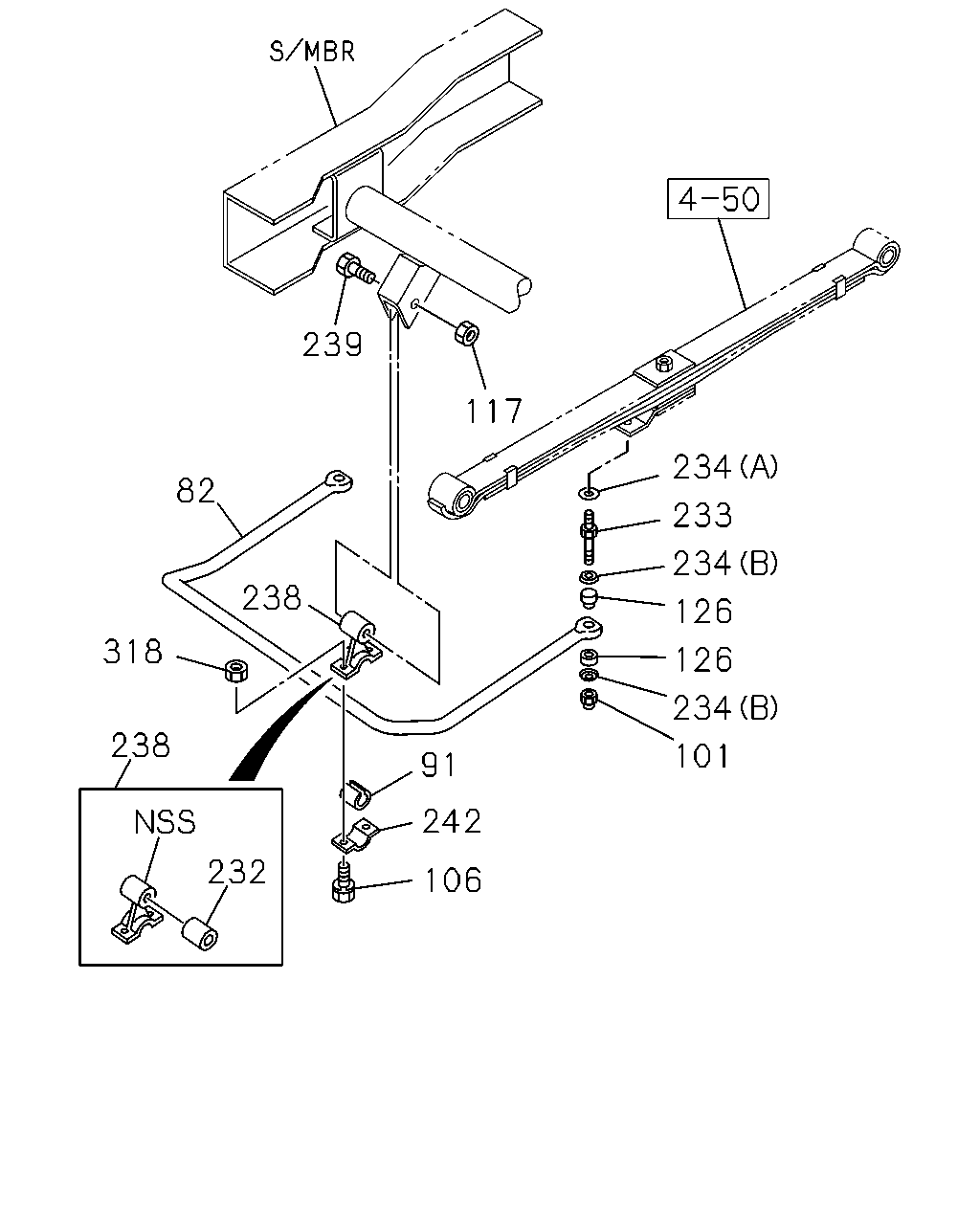

çizim 59291
239 117 234 82 233 234 238 126 318 126 234 238 101 91 242 232 106
BalonParca AdiParca NoAdetTipApplied Date A B
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 		8-98150-721-0 01 1 0908- ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 0810-0907 ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 		8-98006-957-0 01 1 0908- ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 		8-94440-790-0 02 1 0908- ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0810-0907 ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 		8-94342-187-0 02 1 0908- ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0810- ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0810- ●
117 06.174 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 0810- ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 0810- ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0810- ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0810- ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 0810- ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) ID=12.5 		8-97360-055-0 04 1 0810- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0810- ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0810- ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0810- ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0810-1006 ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1007- ●

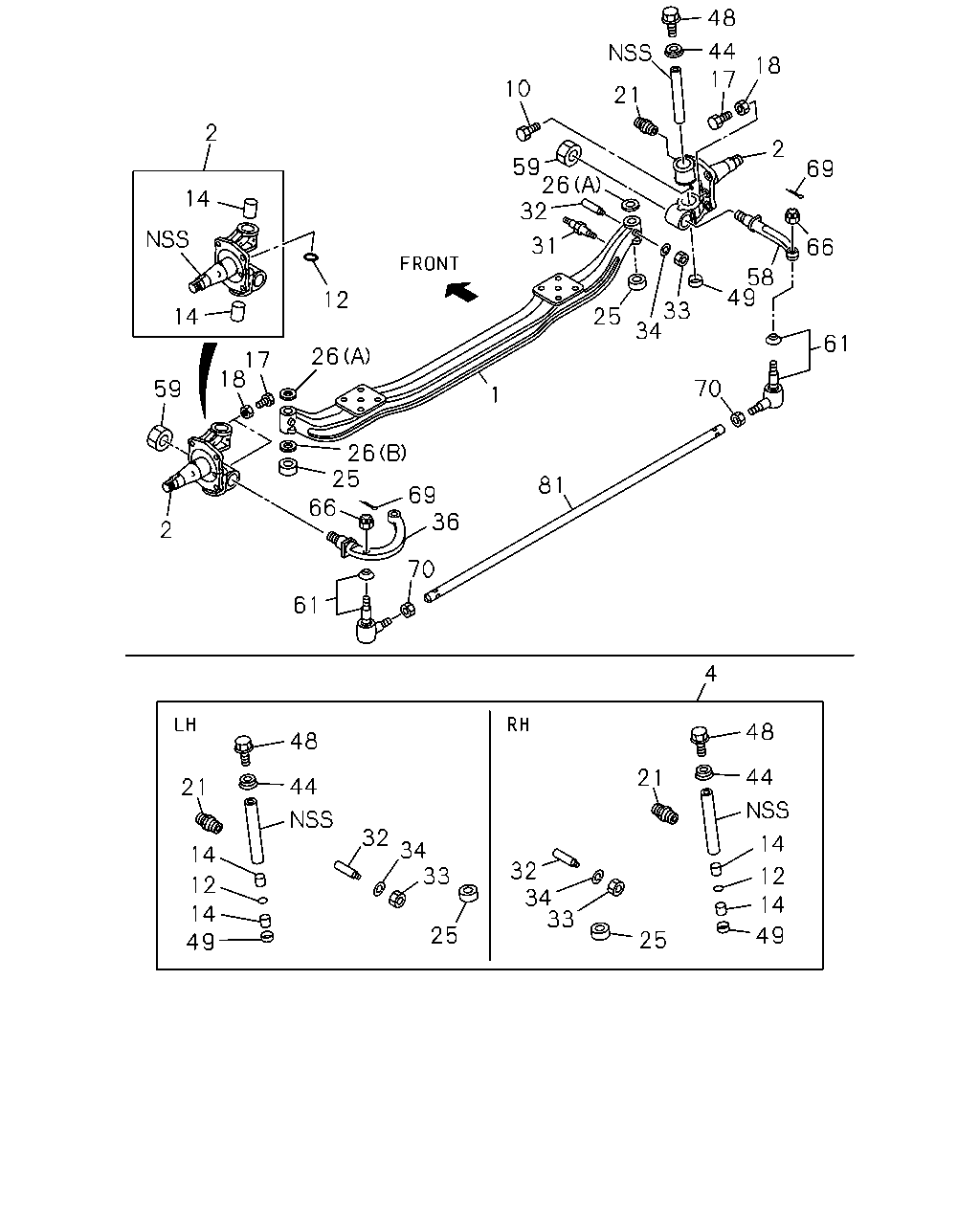

çizim 101428
48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 66 2 70 61 4 48 48 44 21 44 21 32 14 34 33 14 32 34 33 12 12 14 14 49 25 49 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.008 AXLE; FRT
FINAL GEAR RATIO 39/7(GV1) 		8-98141-521-1 01 1 0905- ●
1 06.008 AXLE; FRT 8-98038-384-0 01 1 0810-0903 ● ●
1 06.008 AXLE; FRT
EXC. FINAL GEAR RATIO 39/7(GV1) 		8-98038-384-3 01 1 0904- ●
1 06.008 AXLE; FRT 8-98038-384-3 01 1 0904- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) 		8-97261-549-1 01 1 0810-0810 ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0810-0810 ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97261-549-2 01 1 0811- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 0811- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) 		8-97261-550-1 01 1 0810-0810 ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0810-0810 ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97261-550-2 01 1 0811- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 0811- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) 		8-97261-545-2 01 1 0810- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) 		8-97261-546-2 01 1 0810- ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 0810-1402 ● ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1403- ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0810- ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 0810- ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0810- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0810-0810 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) M12X24 EYE-BOLT 		8-97360-059-0 03 1 0810-0810 ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0810- ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M12X24 EYE-BOLT 		8-97360-059-0 03 1 0810- ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT (9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M12X27.5 		8-98016-968-0 03 1 0810-0810 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) M12X27.5 		8-98016-968-0 03 1 0810- ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 0810- ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 0810- ● ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403- ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 0810-1402 ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0810- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0810- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0810- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0810- ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 0810-1402 ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0810- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0810- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0810- ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 0810- ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 0810- ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 0810- ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 0810- ● ●
36 06.103 ARM; KNUCKLE
FINAL GEAR RATIO 39/7(GV1) 		8-98135-280-2 01 1 0905- ●
36 06.103 ARM; KNUCKLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) 		8-97210-771-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV) 		8-97210-771-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE 8-97210-771-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) 		8-97210-771-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV) 		8-97210-771-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE 8-97210-771-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97210-771-3 01 1 0811-0903 ●
36 06.103 ARM; KNUCKLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV) 		8-97210-771-3 01 1 0811-0903 ●
36 06.103 ARM; KNUCKLE 8-97210-771-3 01 1 0811-0903 ●
36 06.103 ARM; KNUCKLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRONT WIDE TREAD<7GV> 		8-97210-771-5 01 1 0904- ●
36 06.103 ARM; KNUCKLE
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127(19H) G.V.W. 6.0-6.5TON(RPV) 		8-97210-771-5 01 1 0904- ●
36 06.103 ARM; KNUCKLE 8-97210-771-5 01 1 0904- ●
36 06.103 ARM; KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H) ,FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.0-6.5TON(RPV) 		8-97210-770-3 01 1 0810-0810 ●
36 06.103 ARM; KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) G.V.W. 6.0-6.5TON(RPV) 		8-97210-770-4 01 1 0810-0903 ●
36 06.103 ARM; KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) G.V.W. 6.0-6.5TON(RPV) EXC. FRONT WIDE TREAD<7GV> 		8-97210-770-5 01 1 0904- ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0810- ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0810- ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 0810- ● ●
58 06.103 ARM; TIE ROD 8-97147-636-2 01 1 0810- ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 0810- ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 0810-1310 ● ●
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0810-1310 ● ●
61 06.233 ROD END; TIE ROD
FINAL GEAR RATIO 39/7(GV1) 		8-97107-349-2 01 1 1311-1311 ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1312- ● ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0810-1204 ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0810- ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0810- ● ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 0810- ● ●
81 06.230 ROD; TIE
FINAL GEAR RATIO 39/7(GV1) 		8-98137-615-0 01 1 0905- ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 0810-0903 ● ●
81 06.230 ROD; TIE
EXC. FINAL GEAR RATIO 39/7(GV1) 		8-97061-869-0 01 1 0904- ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 0904- ●
