Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#524) — 840 parça

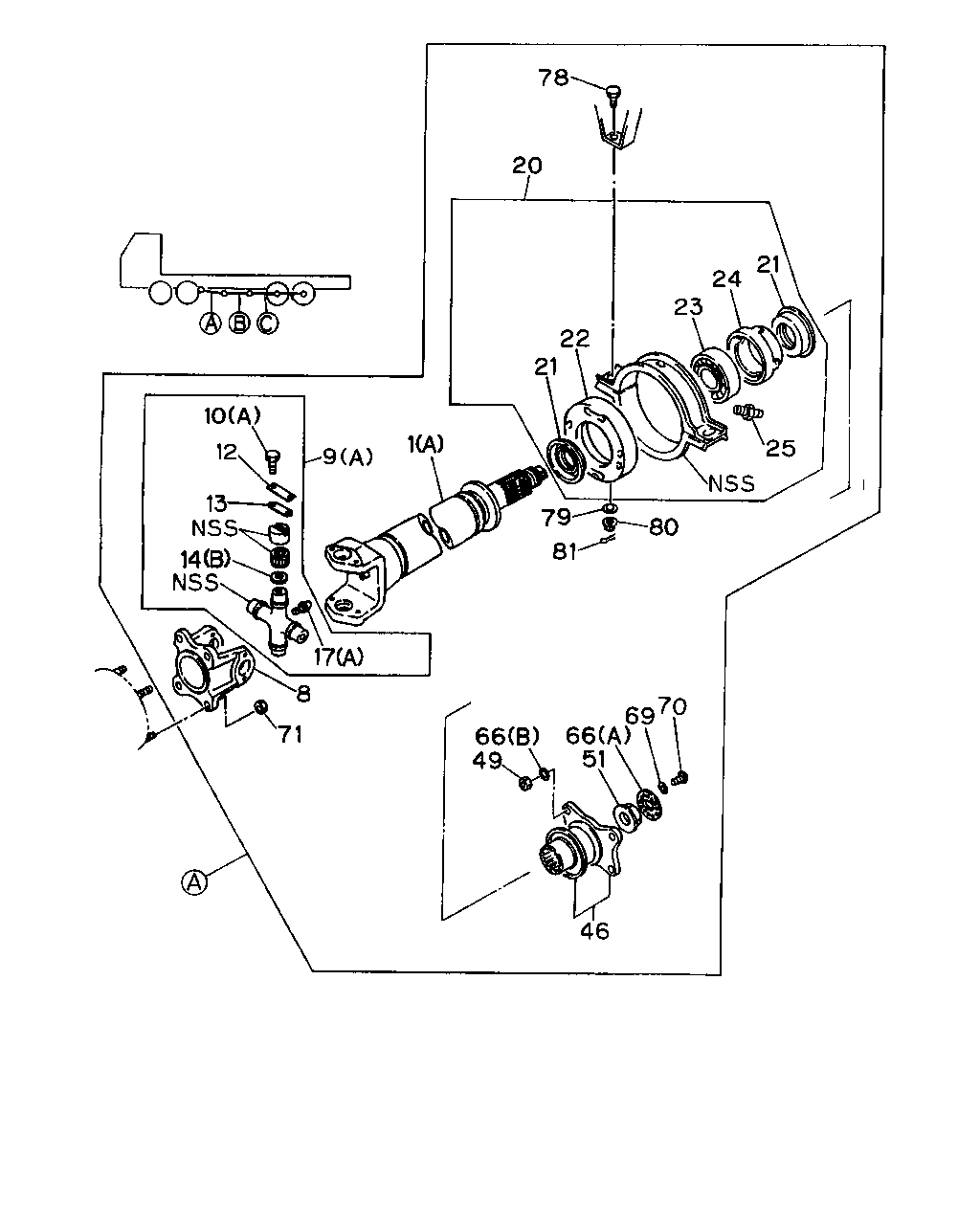

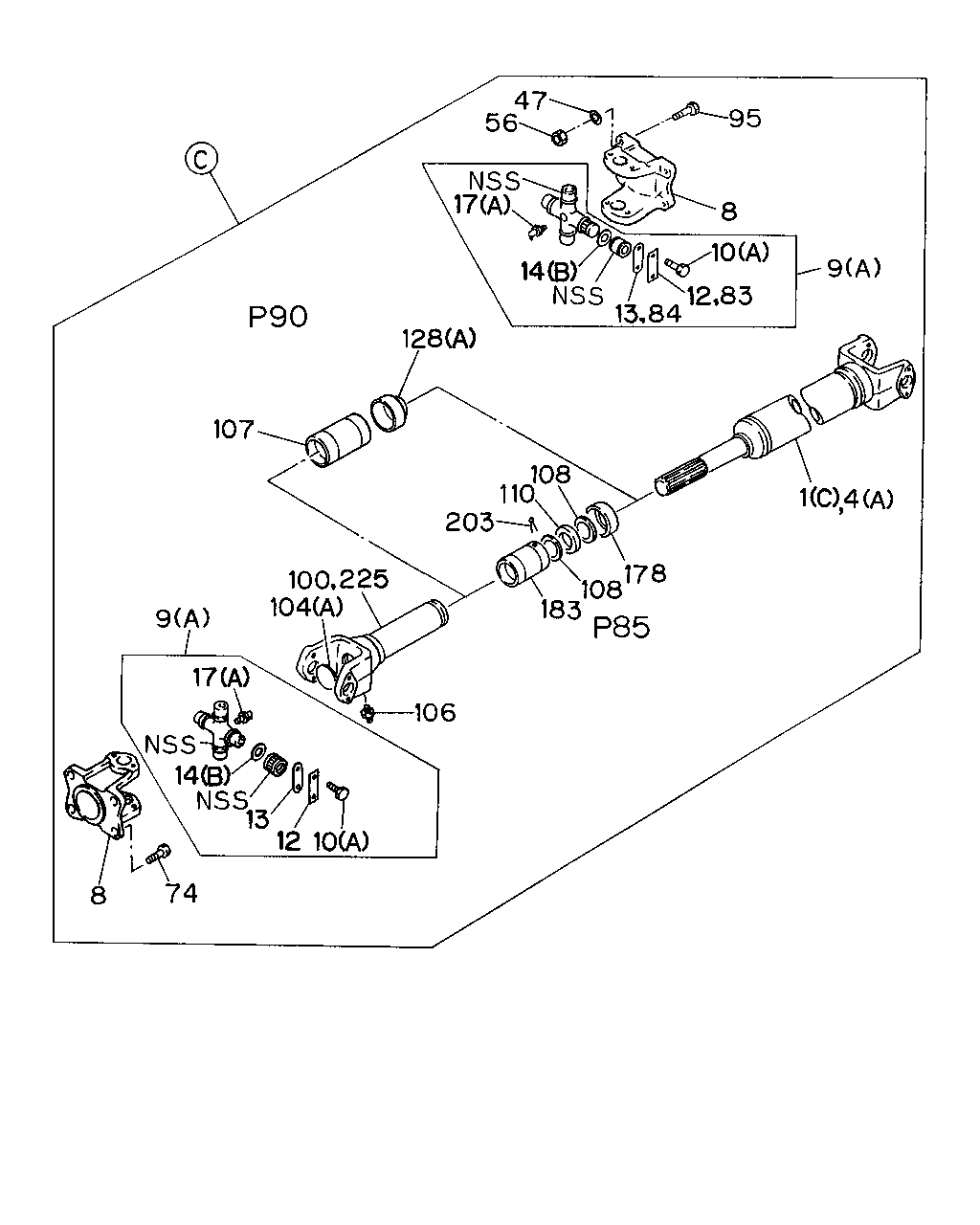

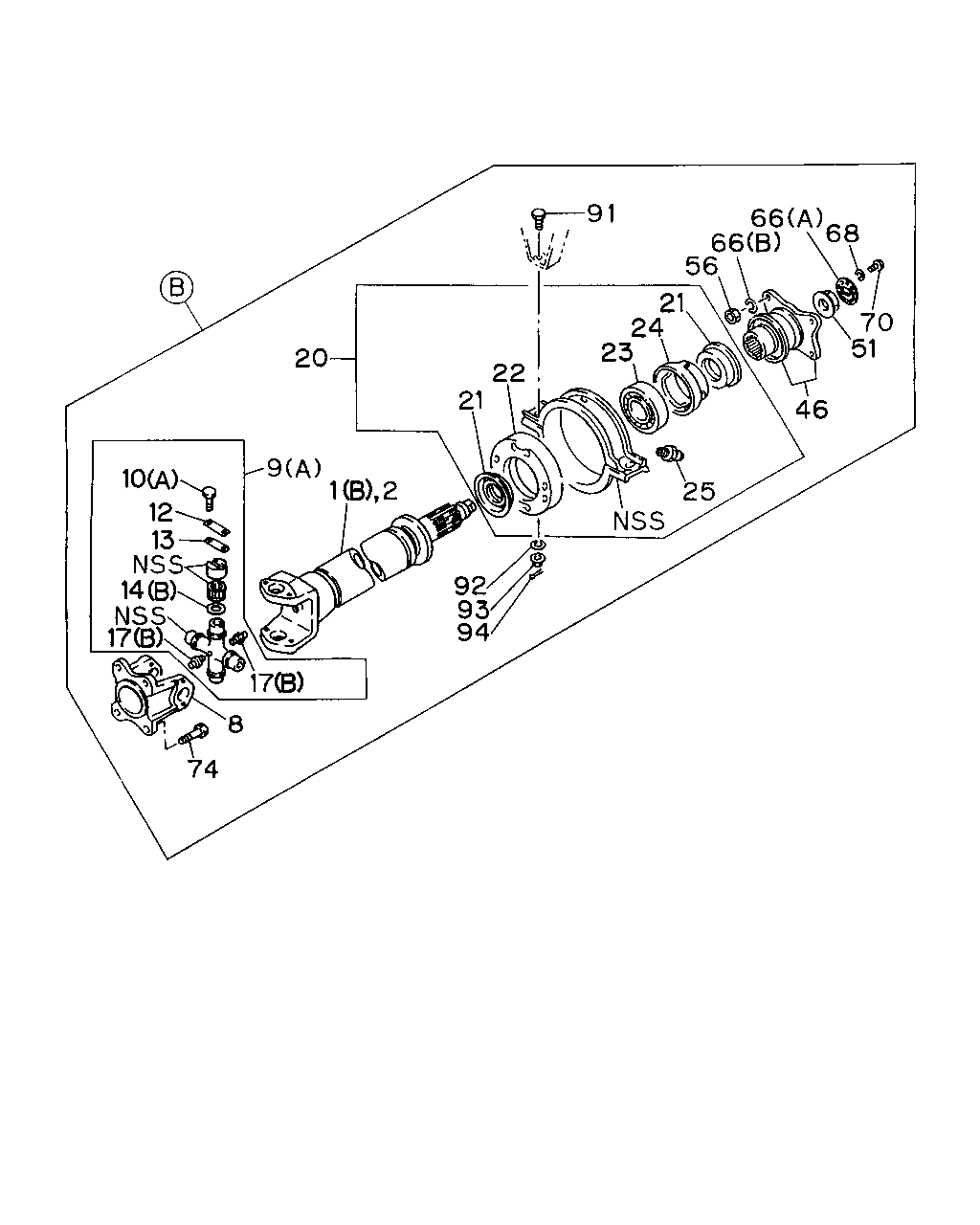

95 47 56 8 9 10 12 83 17 14 13 84 1 4 178 108 108 183 110 203 128 107 100 225 104 106 9 17 14 13 12 10 74 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=976	1-37117-483-0	01	1	8902-9001	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=972	1-37117-568-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=1232	1-37123-571-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37131-252-0	01	1	9002-9306	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37123-774-0	01	1	9307-	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=1114	1-37117-234-0	01	1	8712-9001	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P105 PROP SHAFT<C1X> (A) L=728	1-37117-028-0	01	1	8712-9001	●	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P110 PROP SHAFT<B5P> (A) L=751	1-37116-505-1	01	1	8712-9001	●	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P110 PROP SHAFT<B5P> (A) L=831	1-37116-504-1	01	1	8712-9001	●	●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=1353	1-37117-029-0	01	1	9002-		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1387	1-37131-251-0	01	1	9002-9306		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1394	1-37131-217-1	01	1	9307-		●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) (A) L=728	1-37117-028-0	01	1	9002-		●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT(C5X) (A) L=693	1-37117-615-0	01	1	9002-		●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=824	1-37117-027-0	01	1	8712-9001		●
1	SHAFT; PROP RT14715 M/T FULLER(X8L) P115 PROP SHAFT(C5X) (A) L=663	1-37117-627-0	01	1	9002-9306		●
4	SHAFT; PROP P105 PROP SHAFT<C1X> (A) L=1069	1-37123-439-0	01	1	8712-9001	●
4	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=1222	1-37131-249-0	01	1	8902-9001	●
4	SHAFT; PROP (B) L=348	1-37171-058-0	01	1	8712-	●	●
4	SHAFT; PROP P105 PROP SHAFT<C1X> (A) L=1274	1-37123-146-0	01	1	8712-9001		●
4	SHAFT; PROP P110 PROP SHAFT<B5P> (A) L=1279	1-37131-206-0	01	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
13	COVER; FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	1-37355-003-1	16	1	8902-9001	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	04	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	08	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37355-005-0	16	1	8712-9001		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-130-0	12	1	9105-	●
14	COVER; DUST,SPIDER (A)	1-37319-004-0	08	1	9002-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
47	WASHER; PL,YOKE,FLANGE FINAL P85 PROP SHAFT<B5N> ID=17 OD=30	9-09851-935-0	04	1	8902-8905	●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	08	1	8902-8905	●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	08	1	8906-9001	●
56	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	16	1	9002-		●
56	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	08	1	9002-	●
56	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	08	1	8712-9001	●	●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	12	1	8712-8905		●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	12	1	8906-9001		●
74	BOLT; YOKE,TRANS P85 PROP SHAFT<B5N> M16X48	1-09000-383-0	08	1	8902-9001	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	08	1	9002-	●
74	BOLT; YOKE,TRANS P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	18	1	8712-9001		●
74	BOLT; YOKE,TRANS P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	08	1	8712-9001	●	●
74	BOLT; YOKE,TRANS P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	24	1	9002-		●
83	PLATE; LK,UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
84	COVER; UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	04	1	9002-	●
95	BOLT; YOKE,FINAL P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	06	1	8712-9001		●
95	BOLT; YOKE,FINAL P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	04	1	8712-8901	●	●
95	BOLT; YOKE,FINAL P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	04	1	8902-9001	●	●
95	BOLT; YOKE,FINAL P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	04	1	9002-	●
95	BOLT; YOKE,FINAL P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	08	1	9002-		●
100	YOKE; SLEEVE,PROP SHAFT,END P85 PROP SHAFT<B5N>	1-37241-050-2	01	1	8902-9001	●
100	YOKE; SLEEVE,PROP SHAFT,END P110 PROP SHAFT<B5P>	1-37241-037-0	01	1	8712-9001		●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT(C5T) (A)	1-09600-067-0	01	1	9002-	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	8712-	●	●
104	PLUG; SLEEVE YOKE P85 PROP SHAFT<B5N> (A)	1-09600-046-1	01	1	8902-9001	●	●
104	PLUG; SLEEVE YOKE P110 PROP SHAFT<B5P> (A)	1-09600-041-0	01	1	8712-9001		●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT(C5X) (A)	1-37248-011-0	01	1	9002-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8712-8901		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8902-9001	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37248-010-0	01	1	9002-		●
107	COVER; RET,SLEEVE P90 PROP SHAFT(C5T)	1-37249-039-1	01	1	9002-	●
108	RING; FELT SEAL,SLEEVE P85 PROP SHAFT<B5N>	1-37249-014-0	02	1	8902-9001	●
110	RING; FELT,SLEEVE YOKE P85 PROP SHAFT<B5N>	1-09620-006-0	01	1	8902-9001	●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-016-0	01	1	9002-	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	8712-	●	●
128	SEAL; SLEEVE P115 PROP SHAFT(C5X) (A)	1-37247-013-0	01	1	9002-		●
178	CAP; DUST COVER P85 PROP SHAFT<B5N>	9-37249-077-0	01	1	8902-9001	●
183	COVER; DUST P85 PROP SHAFT<B5N>	1-37249-029-0	01	1	8902-9001	●
203	RING; SNAP,SLEEVE P85 PROP SHAFT<B5N>	1-09589-009-0	01	1	8902-9001	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37241-090-1	01	1	9002-9106	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37241-097-0	01	1	9107-	●

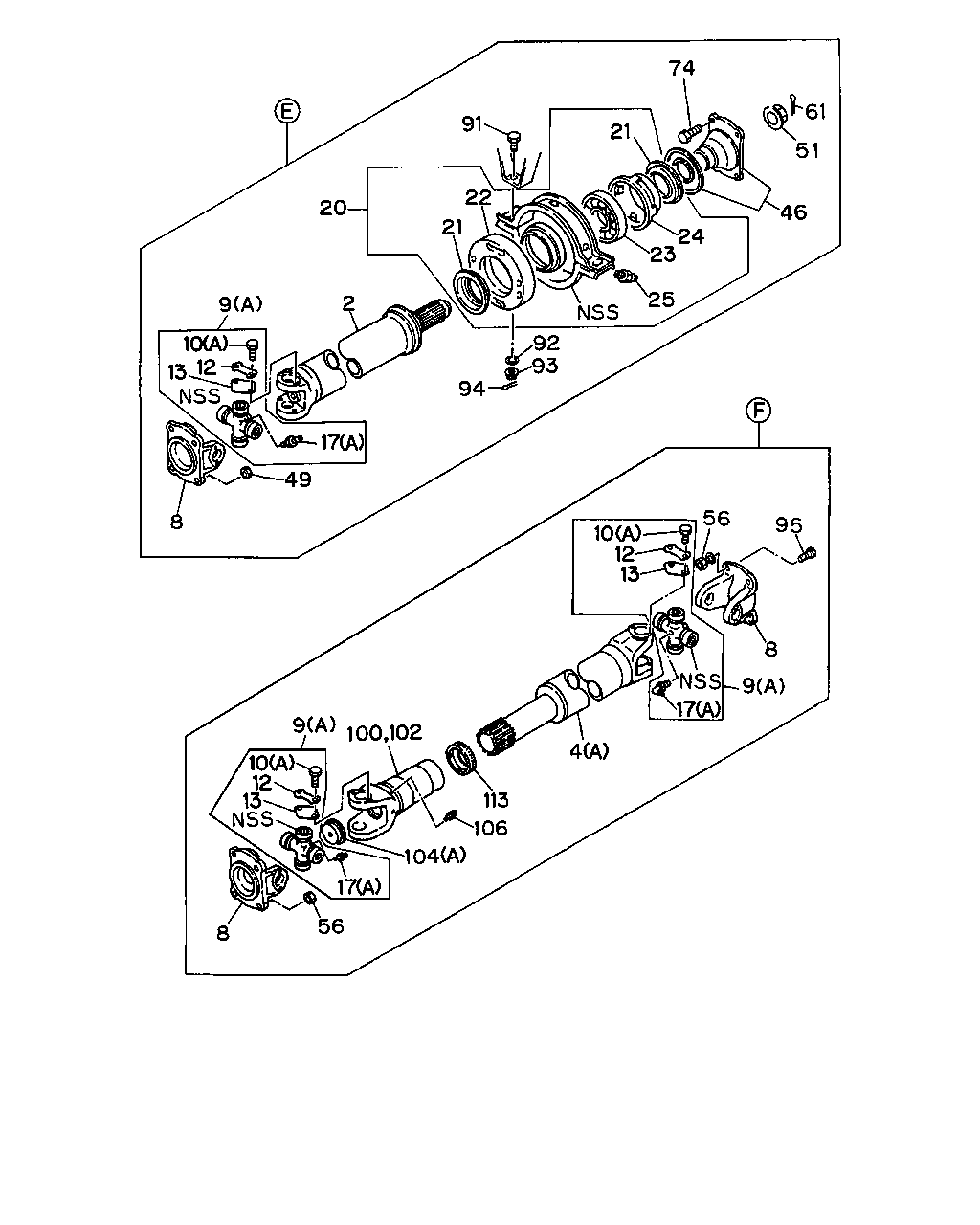

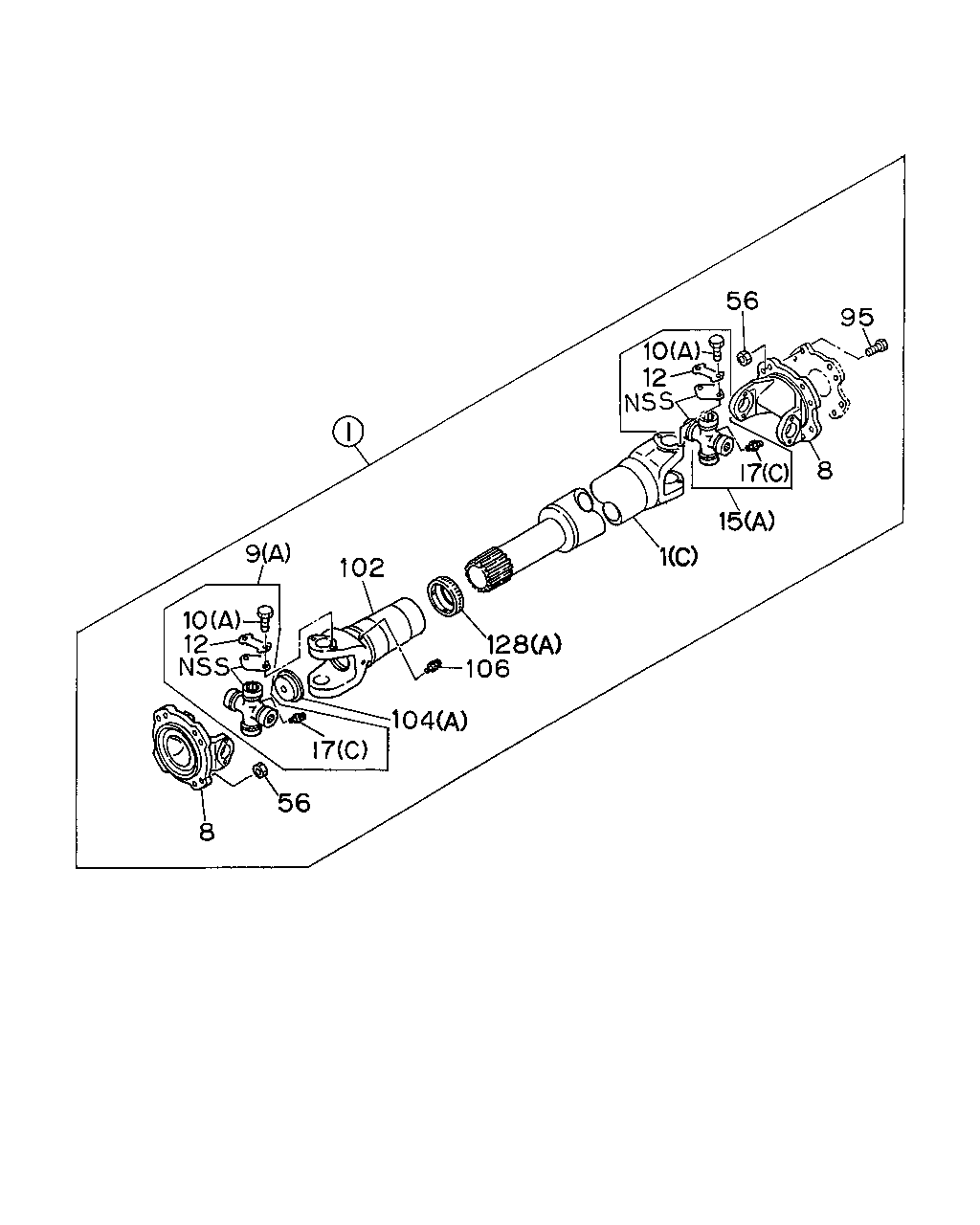

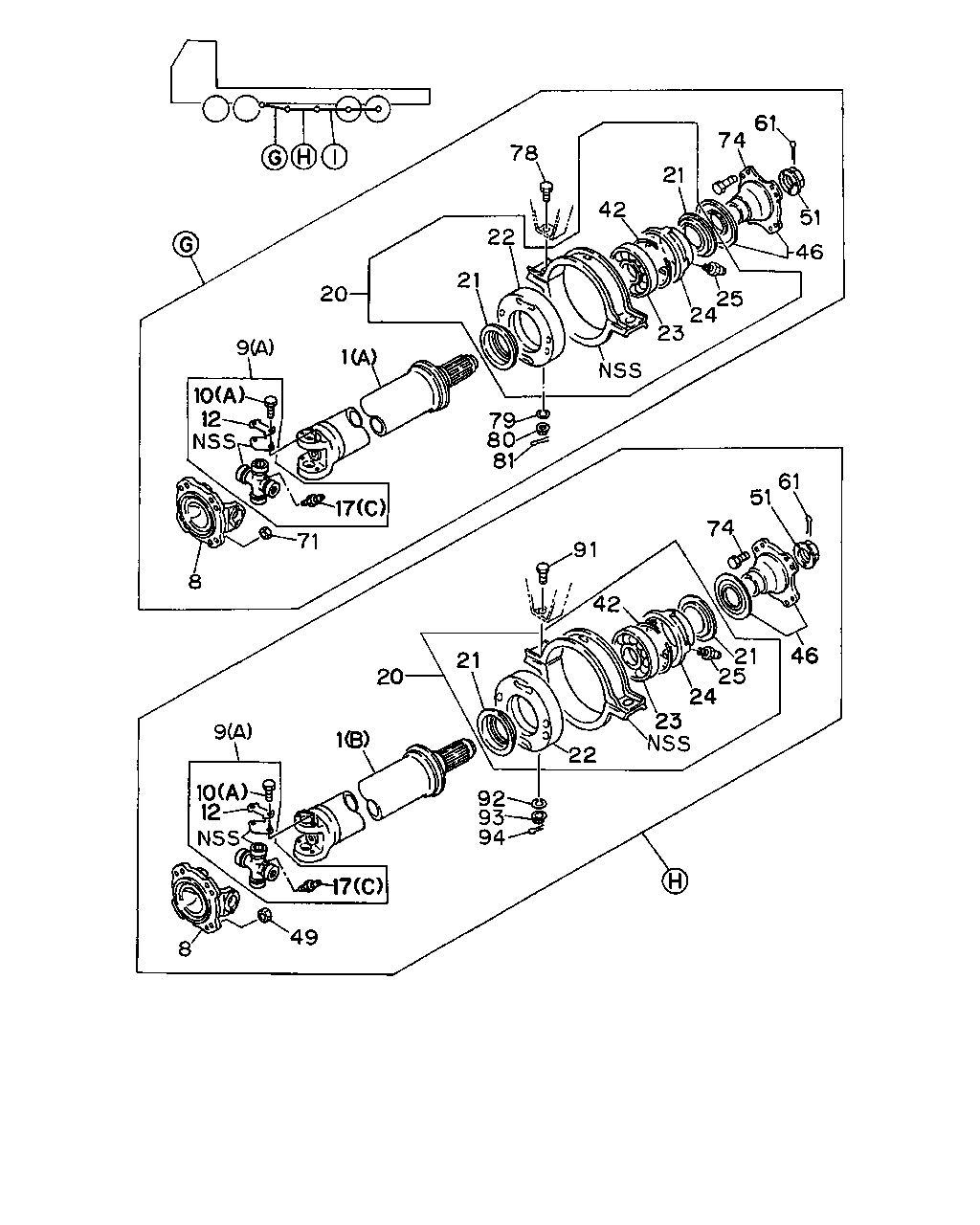

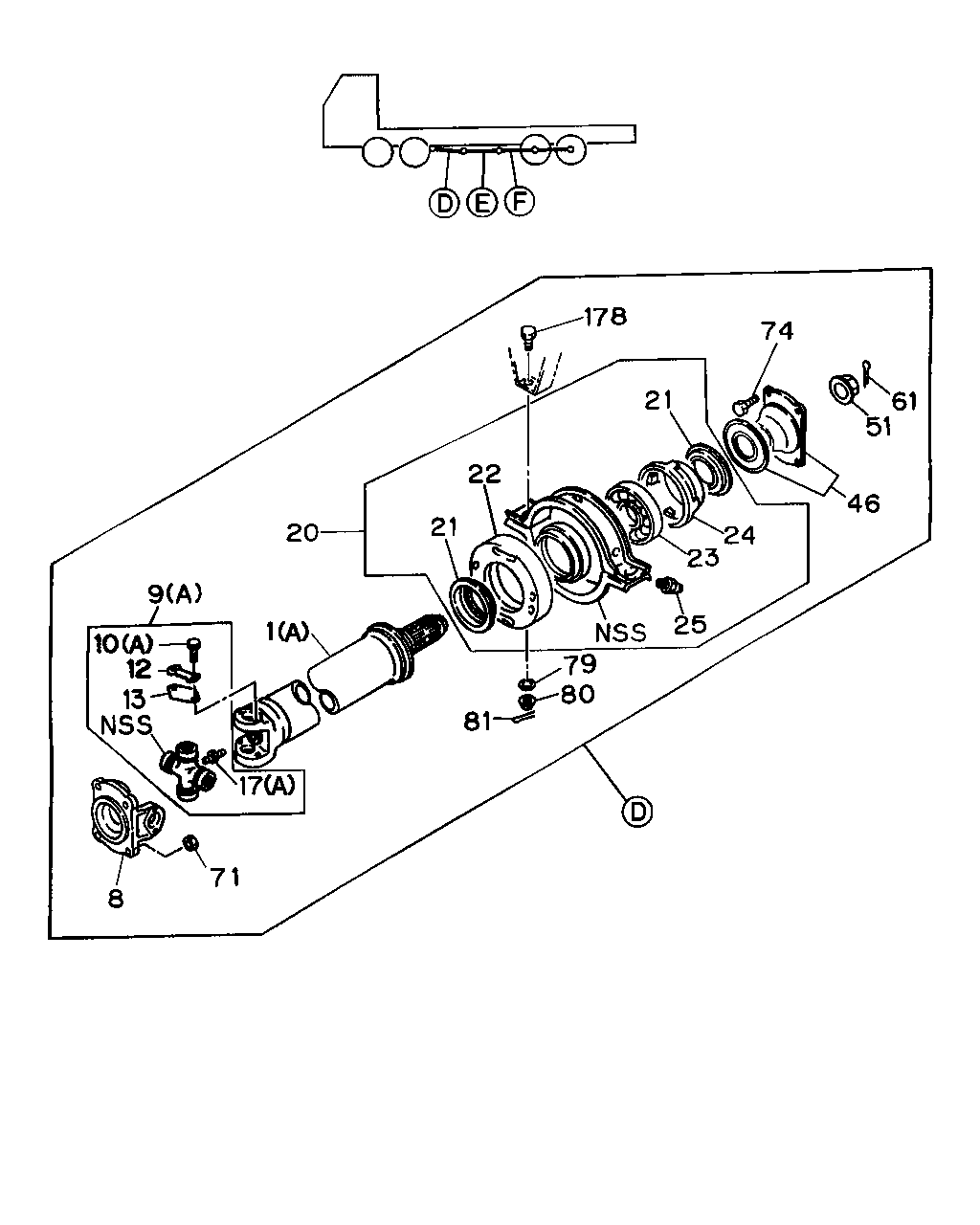

20 21 22 78 42 21 74 61 51 46 25 24 23 79 80 81 1 9 10 12 8 71 17 91 42 74 51 61 46 21 25 24 23 22 21 20 1 9 10 12 8 49 94 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=976	1-37117-483-0	01	1	8902-9001	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=972	1-37117-568-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=1232	1-37123-571-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37131-252-0	01	1	9002-9306	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37123-774-0	01	1	9307-	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=1114	1-37117-234-0	01	1	8712-9001	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P105 PROP SHAFT<C1X> (A) L=728	1-37117-028-0	01	1	8712-9001	●	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P110 PROP SHAFT<B5P> (A) L=751	1-37116-505-1	01	1	8712-9001	●	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P110 PROP SHAFT<B5P> (A) L=831	1-37116-504-1	01	1	8712-9001	●	●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=1353	1-37117-029-0	01	1	9002-		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1387	1-37131-251-0	01	1	9002-9306		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1394	1-37131-217-1	01	1	9307-		●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) (A) L=728	1-37117-028-0	01	1	9002-		●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT(C5X) (A) L=693	1-37117-615-0	01	1	9002-		●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=824	1-37117-027-0	01	1	8712-9001		●
1	SHAFT; PROP RT14715 M/T FULLER(X8L) P115 PROP SHAFT(C5X) (A) L=663	1-37117-627-0	01	1	9002-9306		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T)	1-37510-094-3	02	1	9002-	●
20	BEARING ASM; CTR,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37510-097-1	02	1	8712-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P85 PROP SHAFT<B5N>	1-37510-094-3	02	1	8902-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT(C5X)	1-37510-101-0	02	1	9002-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) D=120	1-09625-127-0	04	1	9002-	●
21	SEAL; OIL,CENTER BRG P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> OD=114	1-09625-222-1	04	1	8712-9001	●	●
21	SEAL; OIL,CENTER BRG P85 PROP SHAFT<B5N> D=120	1-09625-127-0	04	1	8902-9001	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) OD=114	1-09625-222-1	04	1	9002-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37516-048-2	02	1	8902-9001	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37516-048-2	02	1	9002-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37516-051-2	02	1	8712-9001	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37516-056-0	02	1	9002-		●
23	BEARING; CENTER,PROP SHAFT P85 PROP SHAFT<B5N>	9-00090-256-0	02	1	8902-9001	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T)	9-00090-256-0	02	1	9002-	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-141-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-142-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT(C5X)	1-09800-210-0	02	1	9002-		●
24	RETAINER; CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37529-041-0	02	1	8902-9001	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37529-041-0	02	1	9002-	●
24	RETAINER; CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37529-045-2	02	1	8712-9001	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37529-067-0	02	1	9002-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	8712-	●	●
42	RING; SNAP,CTR BRG P115 PROP SHAFT(C5X)	1-09587-085-0	02	1	9002-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P85 PROP SHAFT<B5N>	1-37245-052-0	02	1	8902-9001	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-052-0	02	1	9002-9408	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-271-1	01	1	9409-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P105 PROP SHAFT<C1X>	1-37240-081-1	02	1	8712-9001	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P110 PROP SHAFT<B5P>	1-37243-099-1	02	1	8712-9001		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT(C5X)	1-37240-088-1	02	1	9002-		●
49	NUT; YOKE P85 PROP SHAFT<B5N>	9-99110-516-0	04	1	8902-8905	●
49	NUT; YOKE P85 PROP SHAFT<B5N>	1-09449-065-0	04	1	8906-9001	●
49	NUT; YOKE P115 PROP SHAFT(C5X)	1-09449-065-0	08	1	9002-		●
49	NUT; YOKE P90 PROP SHAFT(C5T)	1-09449-065-0	04	1	9002-	●
49	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	04	1	8712-9001	●	●
49	NUT; YOKE P110 PROP SHAFT<B5P>	9-99110-516-0	06	1	8712-8905		●
49	NUT; YOKE P110 PROP SHAFT<B5P>	1-09449-065-0	06	1	8906-9001		●
51	NUT; FLANGE,SPLINED P85 PROP SHAFT<B5N> M45 FLAMGE	1-09449-040-0	02	1	8712-9001	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) M39	1-09440-035-0	02	1	9002-	●
51	NUT; FLANGE,SPLINED P105 PROP SHAFT<C1X> M45	1-09449-057-1	02	1	8712-9001	●	●
51	NUT; FLANGE,SPLINED P110 PROP SHAFT<B5P> M39	1-09449-003-0	02	1	8902-9001		●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT(C5X) M45	1-09449-057-1	02	1	9002-		●
61	PIN; SPLIT P105 PROP SHAFT<C1X>	9-08108-080-0	02	1	8712-9001	●	●
61	PIN; SPLIT P115 PROP SHAFT(C5X)	9-08108-080-0	02	1	9002-		●
71	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	04	1	8902-8905	●
71	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	04	1	8906-9001	●
71	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	08	1	9002-		●
71	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	04	1	9002-	●
71	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	04	1	8712-9001	●	●
71	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	06	1	8712-8905		●
71	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	06	1	8906-9001		●
74	BOLT; YOKE,TRANS P85 PROP SHAFT<B5N> M16X48	1-09000-383-0	08	1	8902-9001	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	08	1	9002-	●
74	BOLT; YOKE,TRANS P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	18	1	8712-9001		●
74	BOLT; YOKE,TRANS P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	08	1	8712-9001	●	●
74	BOLT; YOKE,TRANS P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	24	1	9002-		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP	1-09042-025-0	02	1	8712-8904	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	8905-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG	9-09160-616-0	02	1	8712-8904	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-0	02	1	8905-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	8712-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	8712-	●	●
91	BOLT; HOLDER SET,CTR BRG	1-09042-025-0	02	1	8712-8904	●	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	8905-	●	●
92	WASHER; LK,HOLDER SET,CTR BRG	9-09160-616-0	02	1	8712-8904	●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-0	02	1	8905-	●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	9-99116-516-0	02	1	8712-	●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	9-08114-025-0	02	1	8712-	●	●

61 51 46 74 21 24 23 25 92 93 94 91 22 21 20 2 9 10 12 13 17 49 8 56 95 10 12 13 8 9 17 4 113 106 104 102 100 9 17 56 8 13 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT; PROP,2ND P105 PROP SHAFT<C1X> L=1234	1-37117-235-0	01	1	8712-9001	●
2	SHAFT; PROP,2ND P85 PROP SHAFT<B5N> L=1236	1-37123-559-0	01	1	8902-9001	●
2	SHAFT; PROP,2ND P105 PROP SHAFT<C1X> L=1353	1-37117-029-0	01	1	8712-9001		●
2	SHAFT; PROP,2ND P110 PROP SHAFT<B5P> L=1376	1-37122-876-1	01	1	8712-9001		●
4	SHAFT; PROP P105 PROP SHAFT<C1X> (A) L=1069	1-37123-439-0	01	1	8712-9001	●
4	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=1222	1-37131-249-0	01	1	8902-9001	●
4	SHAFT; PROP (B) L=348	1-37171-058-0	01	1	8712-	●	●
4	SHAFT; PROP P105 PROP SHAFT<C1X> (A) L=1274	1-37123-146-0	01	1	8712-9001		●
4	SHAFT; PROP P110 PROP SHAFT<B5P> (A) L=1279	1-37131-206-0	01	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
13	COVER; FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	1-37355-003-1	16	1	8902-9001	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	04	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	08	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37355-005-0	16	1	8712-9001		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T)	1-37510-094-3	02	1	9002-	●
20	BEARING ASM; CTR,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37510-097-1	02	1	8712-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P85 PROP SHAFT<B5N>	1-37510-094-3	02	1	8902-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT(C5X)	1-37510-101-0	02	1	9002-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) D=120	1-09625-127-0	04	1	9002-	●
21	SEAL; OIL,CENTER BRG P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> OD=114	1-09625-222-1	04	1	8712-9001	●	●
21	SEAL; OIL,CENTER BRG P85 PROP SHAFT<B5N> D=120	1-09625-127-0	04	1	8902-9001	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) OD=114	1-09625-222-1	04	1	9002-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37516-048-2	02	1	8902-9001	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37516-048-2	02	1	9002-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37516-051-2	02	1	8712-9001	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37516-056-0	02	1	9002-		●
23	BEARING; CENTER,PROP SHAFT P85 PROP SHAFT<B5N>	9-00090-256-0	02	1	8902-9001	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T)	9-00090-256-0	02	1	9002-	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-141-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-142-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT(C5X)	1-09800-210-0	02	1	9002-		●
24	RETAINER; CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37529-041-0	02	1	8902-9001	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37529-041-0	02	1	9002-	●
24	RETAINER; CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37529-045-2	02	1	8712-9001	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37529-067-0	02	1	9002-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	8712-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P85 PROP SHAFT<B5N>	1-37245-052-0	02	1	8902-9001	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-052-0	02	1	9002-9408	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-271-1	01	1	9409-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P105 PROP SHAFT<C1X>	1-37240-081-1	02	1	8712-9001	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P110 PROP SHAFT<B5P>	1-37243-099-1	02	1	8712-9001		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT(C5X)	1-37240-088-1	02	1	9002-		●
49	NUT; YOKE P85 PROP SHAFT<B5N>	9-99110-516-0	04	1	8902-8905	●
49	NUT; YOKE P85 PROP SHAFT<B5N>	1-09449-065-0	04	1	8906-9001	●
49	NUT; YOKE P115 PROP SHAFT(C5X)	1-09449-065-0	08	1	9002-		●
49	NUT; YOKE P90 PROP SHAFT(C5T)	1-09449-065-0	04	1	9002-	●
49	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	04	1	8712-9001	●	●
49	NUT; YOKE P110 PROP SHAFT<B5P>	9-99110-516-0	06	1	8712-8905		●
49	NUT; YOKE P110 PROP SHAFT<B5P>	1-09449-065-0	06	1	8906-9001		●
51	NUT; FLANGE,SPLINED P85 PROP SHAFT<B5N> M45 FLAMGE	1-09449-040-0	02	1	8712-9001	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) M39	1-09440-035-0	02	1	9002-	●
51	NUT; FLANGE,SPLINED P105 PROP SHAFT<C1X> M45	1-09449-057-1	02	1	8712-9001	●	●
51	NUT; FLANGE,SPLINED P110 PROP SHAFT<B5P> M39	1-09449-003-0	02	1	8902-9001		●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT(C5X) M45	1-09449-057-1	02	1	9002-		●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	08	1	8902-8905	●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	08	1	8906-9001	●
56	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	16	1	9002-		●
56	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	08	1	9002-	●
56	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	08	1	8712-9001	●	●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	12	1	8712-8905		●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	12	1	8906-9001		●
61	PIN; SPLIT P105 PROP SHAFT<C1X>	9-08108-080-0	02	1	8712-9001	●	●
61	PIN; SPLIT P115 PROP SHAFT(C5X)	9-08108-080-0	02	1	9002-		●
74	BOLT; YOKE,TRANS P85 PROP SHAFT<B5N> M16X48	1-09000-383-0	08	1	8902-9001	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	08	1	9002-	●
74	BOLT; YOKE,TRANS P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	18	1	8712-9001		●
74	BOLT; YOKE,TRANS P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	08	1	8712-9001	●	●
74	BOLT; YOKE,TRANS P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	24	1	9002-		●
91	BOLT; HOLDER SET,CTR BRG	1-09042-025-0	02	1	8712-8904	●	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	8905-	●	●
92	WASHER; LK,HOLDER SET,CTR BRG	9-09160-616-0	02	1	8712-8904	●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-0	02	1	8905-	●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	9-99116-516-0	02	1	8712-	●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	9-08114-025-0	02	1	8712-	●	●
95	BOLT; YOKE,FINAL P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	06	1	8712-9001		●
95	BOLT; YOKE,FINAL P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	04	1	8712-8901	●	●
95	BOLT; YOKE,FINAL P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	04	1	8902-9001	●	●
95	BOLT; YOKE,FINAL P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	04	1	9002-	●
95	BOLT; YOKE,FINAL P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	08	1	9002-		●
100	YOKE; SLEEVE,PROP SHAFT,END P85 PROP SHAFT<B5N>	1-37241-050-2	01	1	8902-9001	●
100	YOKE; SLEEVE,PROP SHAFT,END P110 PROP SHAFT<B5P>	1-37241-037-0	01	1	8712-9001		●
102	YOKE; TRANSFER TO AXLE P105 PROP SHAFT<C1X>	1-37240-086-0	01	1	8712-9001	●	●
102	YOKE; TRANSFER TO AXLE P115 PROP SHAFT(C5X)	1-37240-086-0	01	1	9002-		●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT(C5T) (A)	1-09600-067-0	01	1	9002-	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	8712-	●	●
104	PLUG; SLEEVE YOKE P85 PROP SHAFT<B5N> (A)	1-09600-046-1	01	1	8902-9001	●	●
104	PLUG; SLEEVE YOKE P110 PROP SHAFT<B5P> (A)	1-09600-041-0	01	1	8712-9001		●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT(C5X) (A)	1-37248-011-0	01	1	9002-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8712-8901		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8902-9001	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37248-010-0	01	1	9002-		●
113	RETAINER; OIL SEAL,SLEEVE P105 PROP SHAFT<C1X>	1-37247-013-0	01	1	8712-9001	●	●
113	RETAINER; OIL SEAL,SLEEVE P110 PROP SHAFT<B5P>	1-37247-005-0	01	1	8712-9001		●

78 20 21 24 23 22 21 25 80 81 79 1 9 10 12 13 14 17 8 71 66 49 66 69 70 51 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=976	1-37117-483-0	01	1	8902-9001	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=972	1-37117-568-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=1232	1-37123-571-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37131-252-0	01	1	9002-9306	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37123-774-0	01	1	9307-	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=1114	1-37117-234-0	01	1	8712-9001	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P105 PROP SHAFT<C1X> (A) L=728	1-37117-028-0	01	1	8712-9001	●	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P110 PROP SHAFT<B5P> (A) L=751	1-37116-505-1	01	1	8712-9001	●	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P110 PROP SHAFT<B5P> (A) L=831	1-37116-504-1	01	1	8712-9001	●	●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=1353	1-37117-029-0	01	1	9002-		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1387	1-37131-251-0	01	1	9002-9306		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1394	1-37131-217-1	01	1	9307-		●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) (A) L=728	1-37117-028-0	01	1	9002-		●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT(C5X) (A) L=693	1-37117-615-0	01	1	9002-		●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=824	1-37117-027-0	01	1	8712-9001		●
1	SHAFT; PROP RT14715 M/T FULLER(X8L) P115 PROP SHAFT(C5X) (A) L=663	1-37117-627-0	01	1	9002-9306		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
13	COVER; FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	1-37355-003-1	16	1	8902-9001	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	04	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	08	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37355-005-0	16	1	8712-9001		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-130-0	12	1	9105-	●
14	COVER; DUST,SPIDER (A)	1-37319-004-0	08	1	9002-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T)	1-37510-094-3	02	1	9002-	●
20	BEARING ASM; CTR,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37510-097-1	02	1	8712-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P85 PROP SHAFT<B5N>	1-37510-094-3	02	1	8902-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT(C5X)	1-37510-101-0	02	1	9002-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) D=120	1-09625-127-0	04	1	9002-	●
21	SEAL; OIL,CENTER BRG P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> OD=114	1-09625-222-1	04	1	8712-9001	●	●
21	SEAL; OIL,CENTER BRG P85 PROP SHAFT<B5N> D=120	1-09625-127-0	04	1	8902-9001	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) OD=114	1-09625-222-1	04	1	9002-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37516-048-2	02	1	8902-9001	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37516-048-2	02	1	9002-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37516-051-2	02	1	8712-9001	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37516-056-0	02	1	9002-		●
23	BEARING; CENTER,PROP SHAFT P85 PROP SHAFT<B5N>	9-00090-256-0	02	1	8902-9001	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T)	9-00090-256-0	02	1	9002-	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-141-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-142-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT(C5X)	1-09800-210-0	02	1	9002-		●
24	RETAINER; CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37529-041-0	02	1	8902-9001	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37529-041-0	02	1	9002-	●
24	RETAINER; CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37529-045-2	02	1	8712-9001	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37529-067-0	02	1	9002-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	8712-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P85 PROP SHAFT<B5N>	1-37245-052-0	02	1	8902-9001	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-052-0	02	1	9002-9408	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-271-1	01	1	9409-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P105 PROP SHAFT<C1X>	1-37240-081-1	02	1	8712-9001	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P110 PROP SHAFT<B5P>	1-37243-099-1	02	1	8712-9001		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT(C5X)	1-37240-088-1	02	1	9002-		●
49	NUT; YOKE P85 PROP SHAFT<B5N>	9-99110-516-0	04	1	8902-8905	●
49	NUT; YOKE P85 PROP SHAFT<B5N>	1-09449-065-0	04	1	8906-9001	●
49	NUT; YOKE P115 PROP SHAFT(C5X)	1-09449-065-0	08	1	9002-		●
49	NUT; YOKE P90 PROP SHAFT(C5T)	1-09449-065-0	04	1	9002-	●
49	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	04	1	8712-9001	●	●
49	NUT; YOKE P110 PROP SHAFT<B5P>	9-99110-516-0	06	1	8712-8905		●
49	NUT; YOKE P110 PROP SHAFT<B5P>	1-09449-065-0	06	1	8906-9001		●
51	NUT; FLANGE,SPLINED P85 PROP SHAFT<B5N> M45 FLAMGE	1-09449-040-0	02	1	8712-9001	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) M39	1-09440-035-0	02	1	9002-	●
51	NUT; FLANGE,SPLINED P105 PROP SHAFT<C1X> M45	1-09449-057-1	02	1	8712-9001	●	●
51	NUT; FLANGE,SPLINED P110 PROP SHAFT<B5P> M39	1-09449-003-0	02	1	8902-9001		●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT(C5X) M45	1-09449-057-1	02	1	9002-		●
66	WASHER P85 PROP SHAFT<B5N> (A)	1-09509-007-0	02	1	8902-9001	●
66	WASHER P85 PROP SHAFT<B5N> (B) ID=17 OD=30	9-09851-935-0	08	1	8902-8905	●
69	WASHER; LK,SPLINED P85 PROP SHAFT<B5N> ID=6.1	9-09150-606-0	03	1	8902-9001	●
70	SCREW; FLANGE,SPLINED P85 PROP SHAFT<B5N> M6X18	9-03460-618-0	06	1	8902-9001	●
71	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	04	1	8902-8905	●
71	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	04	1	8906-9001	●
71	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	08	1	9002-		●
71	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	04	1	9002-	●
71	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	04	1	8712-9001	●	●
71	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	06	1	8712-8905		●
71	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	06	1	8906-9001		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP	1-09042-025-0	02	1	8712-8904	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	8905-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG	9-09160-616-0	02	1	8712-8904	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-0	02	1	8905-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	8712-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	8712-	●	●

91 66 68 70 51 46 66 56 21 24 23 22 21 25 92 93 94 2 1 20 9 10 12 13 14 17 17 8 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=976	1-37117-483-0	01	1	8902-9001	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=972	1-37117-568-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=1232	1-37123-571-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37131-252-0	01	1	9002-9306	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37123-774-0	01	1	9307-	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=1114	1-37117-234-0	01	1	8712-9001	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P105 PROP SHAFT<C1X> (A) L=728	1-37117-028-0	01	1	8712-9001	●	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P110 PROP SHAFT<B5P> (A) L=751	1-37116-505-1	01	1	8712-9001	●	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P110 PROP SHAFT<B5P> (A) L=831	1-37116-504-1	01	1	8712-9001	●	●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=1353	1-37117-029-0	01	1	9002-		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1387	1-37131-251-0	01	1	9002-9306		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1394	1-37131-217-1	01	1	9307-		●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) (A) L=728	1-37117-028-0	01	1	9002-		●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT(C5X) (A) L=693	1-37117-615-0	01	1	9002-		●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=824	1-37117-027-0	01	1	8712-9001		●
1	SHAFT; PROP RT14715 M/T FULLER(X8L) P115 PROP SHAFT(C5X) (A) L=663	1-37117-627-0	01	1	9002-9306		●
2	SHAFT; PROP,2ND P105 PROP SHAFT<C1X> L=1234	1-37117-235-0	01	1	8712-9001	●
2	SHAFT; PROP,2ND P85 PROP SHAFT<B5N> L=1236	1-37123-559-0	01	1	8902-9001	●
2	SHAFT; PROP,2ND P105 PROP SHAFT<C1X> L=1353	1-37117-029-0	01	1	8712-9001		●
2	SHAFT; PROP,2ND P110 PROP SHAFT<B5P> L=1376	1-37122-876-1	01	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
13	COVER; FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	1-37355-003-1	16	1	8902-9001	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	04	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	08	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37355-005-0	16	1	8712-9001		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-130-0	12	1	9105-	●
14	COVER; DUST,SPIDER (A)	1-37319-004-0	08	1	9002-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T)	1-37510-094-3	02	1	9002-	●
20	BEARING ASM; CTR,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37510-097-1	02	1	8712-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P85 PROP SHAFT<B5N>	1-37510-094-3	02	1	8902-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT(C5X)	1-37510-101-0	02	1	9002-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) D=120	1-09625-127-0	04	1	9002-	●
21	SEAL; OIL,CENTER BRG P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> OD=114	1-09625-222-1	04	1	8712-9001	●	●
21	SEAL; OIL,CENTER BRG P85 PROP SHAFT<B5N> D=120	1-09625-127-0	04	1	8902-9001	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) OD=114	1-09625-222-1	04	1	9002-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37516-048-2	02	1	8902-9001	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37516-048-2	02	1	9002-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37516-051-2	02	1	8712-9001	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37516-056-0	02	1	9002-		●
23	BEARING; CENTER,PROP SHAFT P85 PROP SHAFT<B5N>	9-00090-256-0	02	1	8902-9001	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T)	9-00090-256-0	02	1	9002-	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-141-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-142-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT(C5X)	1-09800-210-0	02	1	9002-		●
24	RETAINER; CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37529-041-0	02	1	8902-9001	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37529-041-0	02	1	9002-	●
24	RETAINER; CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37529-045-2	02	1	8712-9001	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37529-067-0	02	1	9002-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	8712-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P85 PROP SHAFT<B5N>	1-37245-052-0	02	1	8902-9001	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-052-0	02	1	9002-9408	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-271-1	01	1	9409-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P105 PROP SHAFT<C1X>	1-37240-081-1	02	1	8712-9001	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P110 PROP SHAFT<B5P>	1-37243-099-1	02	1	8712-9001		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT(C5X)	1-37240-088-1	02	1	9002-		●
51	NUT; FLANGE,SPLINED P85 PROP SHAFT<B5N> M45 FLAMGE	1-09449-040-0	02	1	8712-9001	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) M39	1-09440-035-0	02	1	9002-	●
51	NUT; FLANGE,SPLINED P105 PROP SHAFT<C1X> M45	1-09449-057-1	02	1	8712-9001	●	●
51	NUT; FLANGE,SPLINED P110 PROP SHAFT<B5P> M39	1-09449-003-0	02	1	8902-9001		●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT(C5X) M45	1-09449-057-1	02	1	9002-		●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	08	1	8902-8905	●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	08	1	8906-9001	●
56	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	16	1	9002-		●
56	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	08	1	9002-	●
56	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	08	1	8712-9001	●	●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	12	1	8712-8905		●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	12	1	8906-9001		●
66	WASHER P85 PROP SHAFT<B5N> (A)	1-09509-007-0	02	1	8902-9001	●
66	WASHER P85 PROP SHAFT<B5N> (B) ID=17 OD=30	9-09851-935-0	08	1	8902-8905	●
68	WASHER; LK,FLANGE,SPLINED P85 PROP SHAFT<B5N> ID=6.1	9-09150-606-0	03	1	8902-9001	●
70	SCREW; FLANGE,SPLINED P85 PROP SHAFT<B5N> M6X18	9-03460-618-0	06	1	8902-9001	●
74	BOLT; YOKE,TRANS P85 PROP SHAFT<B5N> M16X48	1-09000-383-0	08	1	8902-9001	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	08	1	9002-	●
74	BOLT; YOKE,TRANS P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	18	1	8712-9001		●
74	BOLT; YOKE,TRANS P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	08	1	8712-9001	●	●
74	BOLT; YOKE,TRANS P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	24	1	9002-		●
91	BOLT; HOLDER SET,CTR BRG	1-09042-025-0	02	1	8712-8904	●	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	8905-	●	●
92	WASHER; LK,HOLDER SET,CTR BRG	9-09160-616-0	02	1	8712-8904	●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-0	02	1	8905-	●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	9-99116-516-0	02	1	8712-	●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	9-08114-025-0	02	1	8712-	●	●

74 178 21 61 51 46 24 23 25 79 80 81 22 21 20 9 1 10 12 13 17 71 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=976	1-37117-483-0	01	1	8902-9001	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=972	1-37117-568-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=1232	1-37123-571-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37131-252-0	01	1	9002-9306	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37123-774-0	01	1	9307-	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=1114	1-37117-234-0	01	1	8712-9001	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P105 PROP SHAFT<C1X> (A) L=728	1-37117-028-0	01	1	8712-9001	●	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P110 PROP SHAFT<B5P> (A) L=751	1-37116-505-1	01	1	8712-9001	●	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P110 PROP SHAFT<B5P> (A) L=831	1-37116-504-1	01	1	8712-9001	●	●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=1353	1-37117-029-0	01	1	9002-		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1387	1-37131-251-0	01	1	9002-9306		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1394	1-37131-217-1	01	1	9307-		●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) (A) L=728	1-37117-028-0	01	1	9002-		●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT(C5X) (A) L=693	1-37117-615-0	01	1	9002-		●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=824	1-37117-027-0	01	1	8712-9001		●
1	SHAFT; PROP RT14715 M/T FULLER(X8L) P115 PROP SHAFT(C5X) (A) L=663	1-37117-627-0	01	1	9002-9306		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
13	COVER; FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	1-37355-003-1	16	1	8902-9001	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	04	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	1-37355-003-1	08	1	9002-	●
13	COVER; FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37355-005-0	16	1	8712-9001		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T)	1-37510-094-3	02	1	9002-	●
20	BEARING ASM; CTR,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37510-097-1	02	1	8712-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P85 PROP SHAFT<B5N>	1-37510-094-3	02	1	8902-9001	●	●
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT(C5X)	1-37510-101-0	02	1	9002-		●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) D=120	1-09625-127-0	04	1	9002-	●
21	SEAL; OIL,CENTER BRG P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> OD=114	1-09625-222-1	04	1	8712-9001	●	●
21	SEAL; OIL,CENTER BRG P85 PROP SHAFT<B5N> D=120	1-09625-127-0	04	1	8902-9001	●	●
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) OD=114	1-09625-222-1	04	1	9002-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37516-048-2	02	1	8902-9001	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37516-048-2	02	1	9002-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37516-051-2	02	1	8712-9001	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37516-056-0	02	1	9002-		●
23	BEARING; CENTER,PROP SHAFT P85 PROP SHAFT<B5N>	9-00090-256-0	02	1	8902-9001	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T)	9-00090-256-0	02	1	9002-	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-141-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> KOYO	1-09800-142-0	02	1	8712-9001	●	●
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT(C5X)	1-09800-210-0	02	1	9002-		●
24	RETAINER; CENTER BRG,1ST P85 PROP SHAFT<B5N>	1-37529-041-0	02	1	8902-9001	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T)	1-37529-041-0	02	1	9002-	●
24	RETAINER; CENTER BRG,1ST P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X>	1-37529-045-2	02	1	8712-9001	●	●
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37529-067-0	02	1	9002-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	02	1	8712-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P85 PROP SHAFT<B5N>	1-37245-052-0	02	1	8902-9001	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-052-0	02	1	9002-9408	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T)	1-37245-271-1	01	1	9409-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P105 PROP SHAFT<C1X>	1-37240-081-1	02	1	8712-9001	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P110 PROP SHAFT<B5P>	1-37243-099-1	02	1	8712-9001		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT(C5X)	1-37240-088-1	02	1	9002-		●
51	NUT; FLANGE,SPLINED P85 PROP SHAFT<B5N> M45 FLAMGE	1-09449-040-0	02	1	8712-9001	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) M39	1-09440-035-0	02	1	9002-	●
51	NUT; FLANGE,SPLINED P105 PROP SHAFT<C1X> M45	1-09449-057-1	02	1	8712-9001	●	●
51	NUT; FLANGE,SPLINED P110 PROP SHAFT<B5P> M39	1-09449-003-0	02	1	8902-9001		●
51	NUT; FLANGE,SPLINED P115 PROP SHAFT(C5X) M45	1-09449-057-1	02	1	9002-		●
61	PIN; SPLIT P105 PROP SHAFT<C1X>	9-08108-080-0	02	1	8712-9001	●	●
61	PIN; SPLIT P115 PROP SHAFT(C5X)	9-08108-080-0	02	1	9002-		●
71	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	04	1	8902-8905	●
71	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	04	1	8906-9001	●
71	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	08	1	9002-		●
71	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	04	1	9002-	●
71	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	04	1	8712-9001	●	●
71	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	06	1	8712-8905		●
71	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	06	1	8906-9001		●
74	BOLT; YOKE,TRANS P85 PROP SHAFT<B5N> M16X48	1-09000-383-0	08	1	8902-9001	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	08	1	9002-	●
74	BOLT; YOKE,TRANS P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	18	1	8712-9001		●
74	BOLT; YOKE,TRANS P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	08	1	8712-9001	●	●
74	BOLT; YOKE,TRANS P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	24	1	9002-		●
79	WASHER; PL,HOLDER SET,CENTER BRG	9-09160-616-0	02	1	8712-8904	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-0	02	1	8905-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	8712-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	8712-	●	●
178	CAP; DUST COVER P85 PROP SHAFT<B5N>	9-37249-077-0	01	1	8902-9001	●

14 17 11 10 4 169 96 170 17 15 104 14 106 128 58 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	SHAFT; PROP P105 PROP SHAFT<C1X> (A) L=1069	1-37123-439-0	01	1	8712-9001	●
4	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=1222	1-37131-249-0	01	1	8902-9001	●
4	SHAFT; PROP (B) L=348	1-37171-058-0	01	1	8712-	●	●
4	SHAFT; PROP P105 PROP SHAFT<C1X> (A) L=1274	1-37123-146-0	01	1	8712-9001		●
4	SHAFT; PROP P110 PROP SHAFT<B5P> (A) L=1279	1-37131-206-0	01	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	8712-	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-130-0	12	1	9105-	●
14	COVER; DUST,SPIDER (A)	1-37319-004-0	08	1	9002-	●	●
15	UNIVERSAL CENTER (B)	1-37300-049-0	01	1	8712-8906	●	●
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	8907-9009	●	●
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-	●	●
15	UNIVERSAL CENTER P115 PROP SHAFT(C5X) (A)	1-37300-062-0	01	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
58	FLANGE; SPLINED L=264	1-37245-157-1	01	1	8712-	●	●
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	8712-	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT(C5T) (A)	1-09600-067-0	01	1	9002-	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	8712-	●	●
104	PLUG; SLEEVE YOKE P85 PROP SHAFT<B5N> (A)	1-09600-046-1	01	1	8902-9001	●	●
104	PLUG; SLEEVE YOKE P110 PROP SHAFT<B5P> (A)	1-09600-041-0	01	1	8712-9001		●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT(C5X) (A)	1-37248-011-0	01	1	9002-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8712-8901		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8902-9001	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37248-010-0	01	1	9002-		●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-016-0	01	1	9002-	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	8712-	●	●
128	SEAL; SLEEVE P115 PROP SHAFT(C5X) (A)	1-37247-013-0	01	1	9002-		●
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	8712-	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	8712-	●	●

95 56 8 17 10 12 15 1 128 106 104 17 56 8 12 10 9 1 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP P85 PROP SHAFT<B5N> (A) L=976	1-37117-483-0	01	1	8902-9001	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=972	1-37117-568-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (B) L=1232	1-37123-571-0	01	1	9002-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37131-252-0	01	1	9002-9306	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1216	1-37123-774-0	01	1	9307-	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=1114	1-37117-234-0	01	1	8712-9001	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P105 PROP SHAFT<C1X> (A) L=728	1-37117-028-0	01	1	8712-9001	●	●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P110 PROP SHAFT<B5P> (A) L=751	1-37116-505-1	01	1	8712-9001	●	●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P110 PROP SHAFT<B5P> (A) L=831	1-37116-504-1	01	1	8712-9001	●	●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=1353	1-37117-029-0	01	1	9002-		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1387	1-37131-251-0	01	1	9002-9306		●
1	SHAFT; PROP P115 PROP SHAFT(C5X) (C) L=1394	1-37131-217-1	01	1	9307-		●
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) (A) L=728	1-37117-028-0	01	1	9002-		●
1	SHAFT; PROP RTO14613 M/T FULLER(MRU) P115 PROP SHAFT(C5X) (A) L=693	1-37117-615-0	01	1	9002-		●
1	SHAFT; PROP RT11609A M/T FULLER(PQ4) P105 PROP SHAFT<C1X> (A) L=824	1-37117-027-0	01	1	8712-9001		●
1	SHAFT; PROP RT14715 M/T FULLER(X8L) P115 PROP SHAFT(C5X) (A) L=663	1-37117-627-0	01	1	9002-9306		●
8	YOKE; FLANGE,PROP SHAFT P85 PROP SHAFT<B5N>	1-37211-021-1	04	1	8712-9001	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T)	1-37211-050-1	04	1	9002-	●
8	YOKE; FLANGE,PROP SHAFT P105 PROP SHAFT<C1X>	1-37211-044-0	04	1	8712-9001	●	●
8	YOKE; FLANGE,PROP SHAFT P110 PROP SHAFT<B5P>	1-37211-035-0	04	1	8712-9001		●
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37211-047-2	04	1	9002-		●
9	JOURNAL ASM; PROP SHAFT P85 PROP SHAFT<B5N> (A)	1-37300-065-0	04	1	8902-9001	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (A)	1-37300-085-0	04	1	9002-	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-049-0	01	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	8907-9009	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-057-0	04	1	8712-8906	●	●
9	JOURNAL ASM; PROP SHAFT P105 PROP SHAFT<C1X> (A)	1-37300-062-0	04	1	8907-9001	●	●
9	JOURNAL ASM; PROP SHAFT P110 PROP SHAFT<B5P> (A)	1-37300-055-0	04	1	8712-9001		●
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-062-0	03	1	9002-		●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	08	1	9002-	●
10	BOLT; UJT P90 PROP SHAFT(C5T) (A) M8X20	9-09802-702-0	24	1	9002-	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	08	1	8712-9001	●	●
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-	●	●
10	BOLT; UJT P110 PROP SHAFT<B5P> (A) M8X20	9-09802-702-0	32	1	8712-9001		●
10	BOLT; UJT P85 PROP SHAFT<B5N> (A) M8X20	9-09802-702-0	32	1	8712-9001	●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	08	1	9002-		●
10	BOLT; UJT P115 PROP SHAFT(C5X) (A)	1-37359-001-0	24	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P85 PROP SHAFT<B5N>	9-37356-006-1	16	1	8902-9001	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	04	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT(C5T)	9-37356-006-1	08	1	9002-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P110 PROP SHAFT<B5P>	1-37356-002-0	16	1	8712-9001		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	04	1	9002-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT(C5X)	1-37356-007-0	12	1	9002-		●
15	UNIVERSAL CENTER (B)	1-37300-049-0	01	1	8712-8906	●	●
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	8907-9009	●	●
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-	●	●
15	UNIVERSAL CENTER P115 PROP SHAFT(C5X) (A)	1-37300-062-0	01	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9307-	●
17	NIPPLE; GREASE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> (A) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	8712-9001	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-9306	●	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5?	9-09031-110-0	03	1	9002-9306	●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	02	1	9002-		●
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (C)	1-37319-005-0	06	1	9002-		●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16	9-99110-516-0	08	1	8902-8905	●
56	NUT; YOKE P85 PROP SHAFT<B5N> M16 FLANGE	1-09449-065-0	08	1	8906-9001	●
56	NUT; YOKE P115 PROP SHAFT(C5X) M16 FLANGE	1-09449-065-0	16	1	9002-		●
56	NUT; YOKE P90 PROP SHAFT(C5T) M16 FLANGE	1-09449-065-0	08	1	9002-	●
56	NUT; YOKE P105 PROP SHAFT<C1X>	1-09464-013-0	08	1	8712-9001	●	●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16	9-99110-516-0	12	1	8712-8905		●
56	NUT; YOKE P110 PROP SHAFT<B5P> M16 FLANGE	1-09449-065-0	12	1	8906-9001		●
95	BOLT; YOKE,FINAL P110 PROP SHAFT<B5P> M16X48	1-09000-383-0	06	1	8712-9001		●
95	BOLT; YOKE,FINAL P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	04	1	8712-8901	●	●
95	BOLT; YOKE,FINAL P110 PROP SHAFT<B5P>,P105 PROP SHAFT<C1X> M16X48	1-09000-383-0	04	1	8902-9001	●	●
95	BOLT; YOKE,FINAL P90 PROP SHAFT(C5T) M16X48	1-09000-383-0	04	1	9002-	●
95	BOLT; YOKE,FINAL P115 PROP SHAFT(C5X) M16X48	1-09000-383-0	08	1	9002-		●
102	YOKE; TRANSFER TO AXLE P105 PROP SHAFT<C1X>	1-37240-086-0	01	1	8712-9001	●	●
102	YOKE; TRANSFER TO AXLE P115 PROP SHAFT(C5X)	1-37240-086-0	01	1	9002-		●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT(C5T) (A)	1-09600-067-0	01	1	9002-	●
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	8712-	●	●
104	PLUG; SLEEVE YOKE P85 PROP SHAFT<B5N> (A)	1-09600-046-1	01	1	8902-9001	●	●
104	PLUG; SLEEVE YOKE P110 PROP SHAFT<B5P> (A)	1-09600-041-0	01	1	8712-9001		●
104	PLUG; SLEEVE YOKE P115 PROP SHAFT(C5X) (A)	1-37248-011-0	01	1	9002-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT(C5T) PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8712-8901		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P85 PROP SHAFT<B5N>,P110 PROP SHAFT<B5P> PT1/8 STRAIGHT	9-09031-010-0	02	1	8902-9001	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT(C5X)	1-37248-010-0	01	1	9002-		●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-016-0	01	1	9002-	●
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	8712-	●	●
128	SEAL; SLEEVE P115 PROP SHAFT(C5X) (A)	1-37247-013-0	01	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
