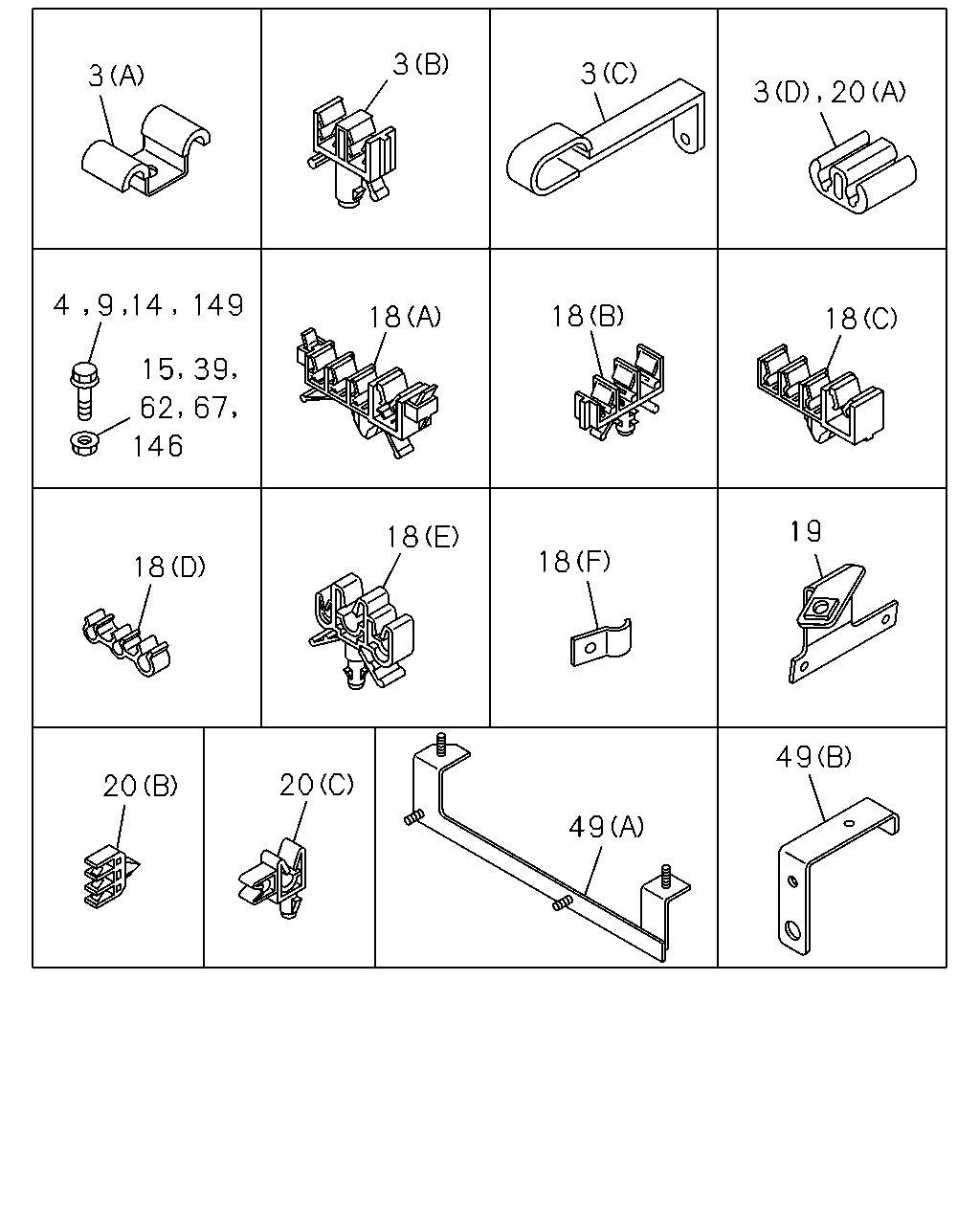

3-58 — FIXING PARTS; OIL PIPING (#52398) — 40 parça

3 3 3 149 4 18 18 18 146 19 18 18 18 49 20 20 49 3 20 15 39 62 67 9 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0812-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0812-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22	8-94252-455-2	03	1	0812-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0812-	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0812-	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
14	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97168-819-0	01	1	0810-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0810-	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 2700MM(27W) (A) ID=10 & 4.76X3	8-97326-158-1	02	1	0810-		●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3	8-97326-158-1	04	1	0810-	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3800MM(38W) (A) ID=10 & 4.76X3	8-97326-158-1	05	1	0810-	●	●
18	04.686 CLIP; BRK PIPE (F) B=18 L=20	1-09700-372-0	02	1	0810-	●	●
18	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0810-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0810-	●	●
18	04.686 CLIP; BRK PIPE (E) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	0810-	●	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	07	1	0810-	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 4100MM(41W) (A) ID=10 & 4.76X3	8-97326-158-1	06	1	0810-0810	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 4100MM(41W) (A) ID=10 & 4.76X3	8-97326-158-1	06	1	0811-	●	●
19	04.686 BRACKET; OIL PIPE	8-97389-845-2	01	1	0810-	●	●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	03	1	0812-	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0810-0811	●	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0812-	●	●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0812-	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0810-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0810-0811	●	●
20	04.686 CLIP; BRK PIPE 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0812-		●
20	04.686 CLIP; BRK PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0812-	●
39	04.686 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-802-1	01	1	0812-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-116-2	01	1	0812-1103	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98187-801-0	01	1	1104-	●
62	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0812-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.515 M14	0-91111-514-0	01	1	0812-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0812-	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0812-	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0812-	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0812-	●
