3-52 — BRAKE PIPING; OIL,FRONT (#52396) — 32 parça

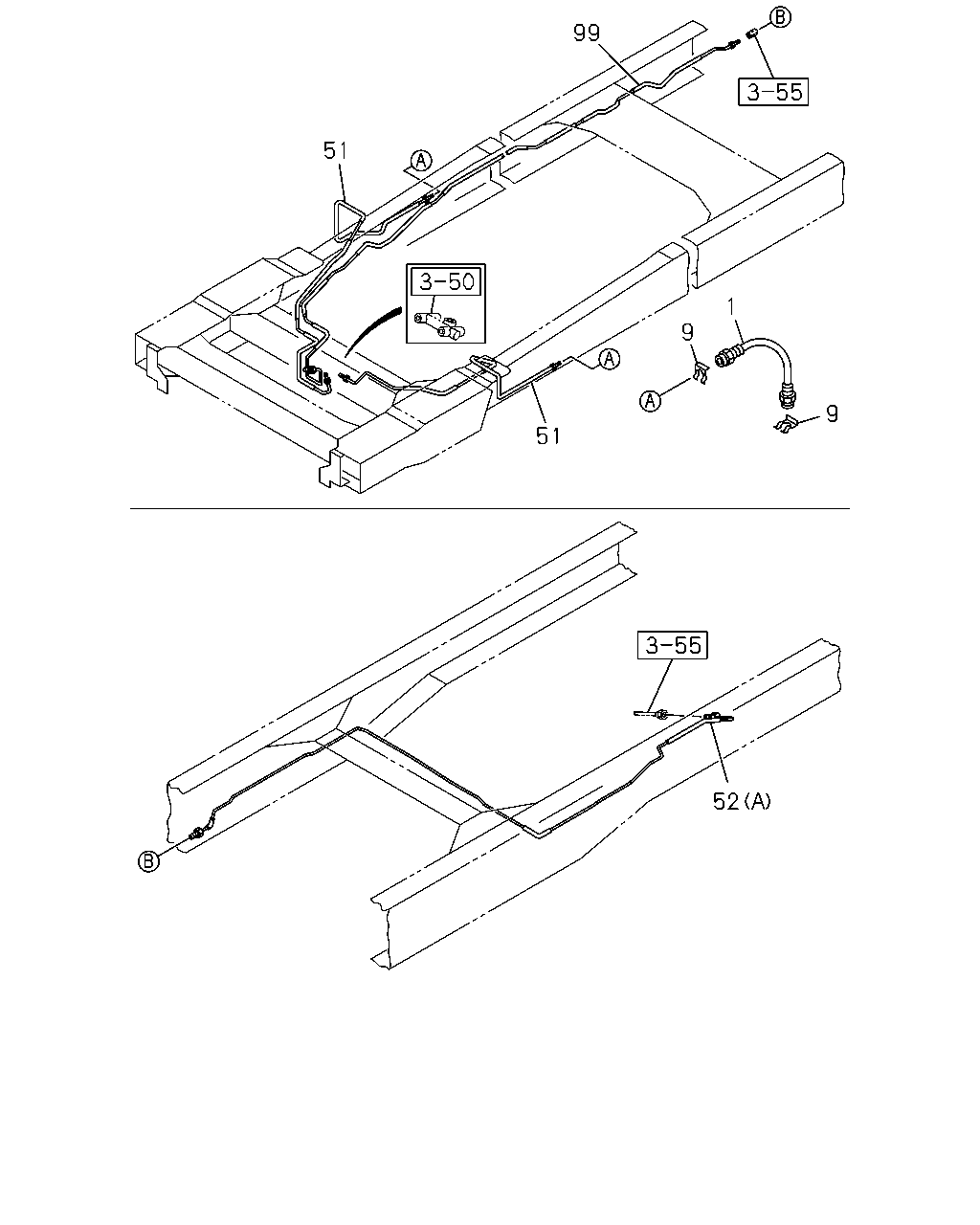

çizim 59042
99 51 1 9 9 51 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 0905- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0810-0903 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 0904- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0904- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0810- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0810- ● ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906- ●
51 04.685 PIPE; BRK
5/6WAY TO FRONT 		8-98065-765-1 01 1 0810-0905 ● ●
51 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906- ●
51 04.685 PIPE; BRK
5/6WAY TO FRONT 		8-98065-765-1 01 1 0906- ●
51 04.685 PIPE; BRK
5/6WAY TO FRONT 		8-98065-766-1 01 1 0810-0905 ● ●
51 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906- ●
51 04.685 PIPE; BRK
5/6WAY TO FRONT 		8-98065-766-1 01 1 0906- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 0812- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A) 2WAY TO REAR 		8-98057-261-0 01 1 0810- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO REAR 		8-98057-262-0 01 1 0810- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) 2WAY TO REAR 		8-98057-263-0 01 1 0810- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) 2WAY TO REAR 		8-98057-264-0 01 1 0810-0810 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) 2WAY TO REAR 		8-98057-264-0 01 1 0811- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0810- ● ●

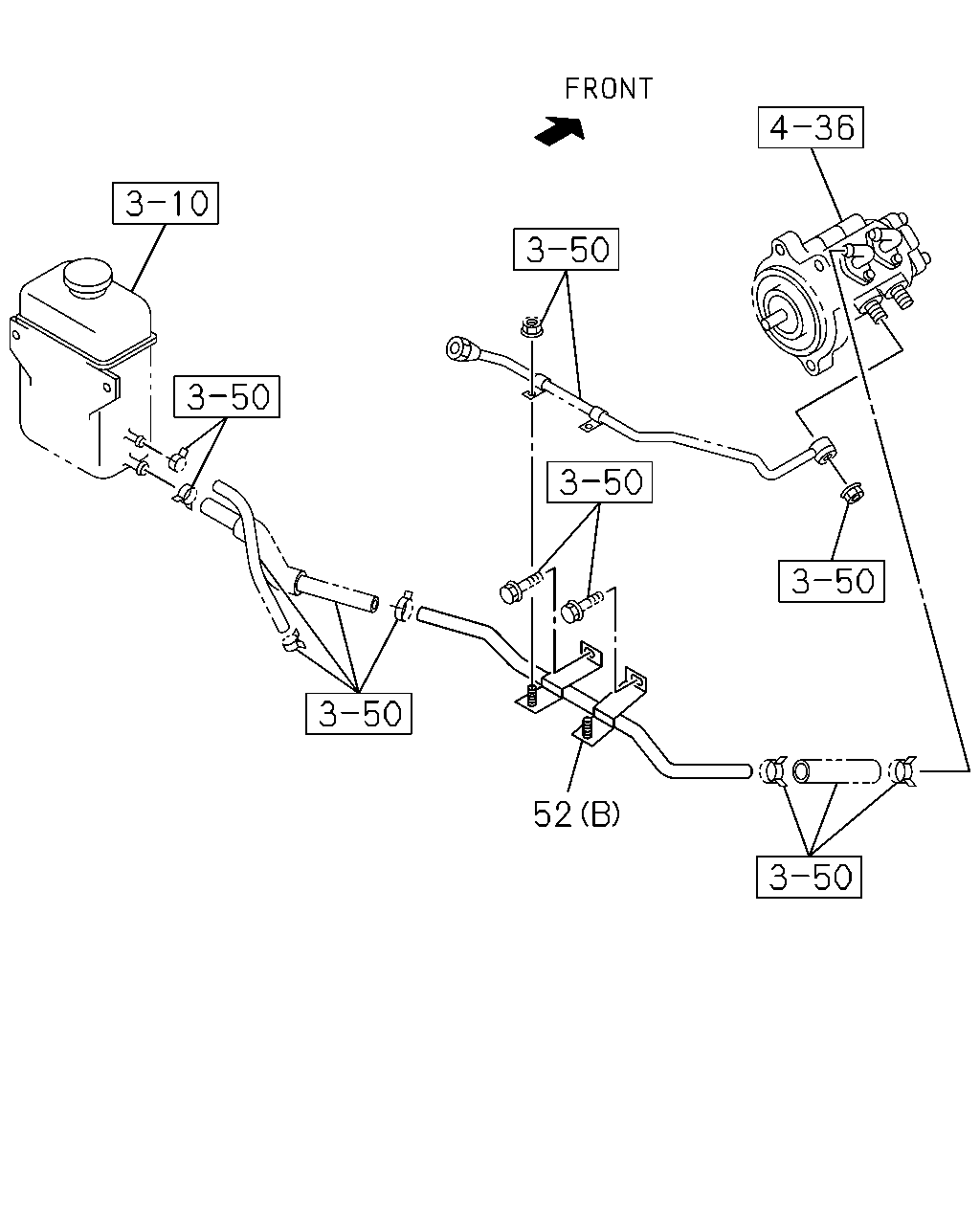

çizim 59054
52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97370-410-0 01 1 0812- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A) 2WAY TO REAR 		8-98057-261-0 01 1 0810- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO REAR 		8-98057-262-0 01 1 0810- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) 2WAY TO REAR 		8-98057-263-0 01 1 0810- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) 2WAY TO REAR 		8-98057-264-0 01 1 0810-0810 ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) 2WAY TO REAR 		8-98057-264-0 01 1 0811- ● ●

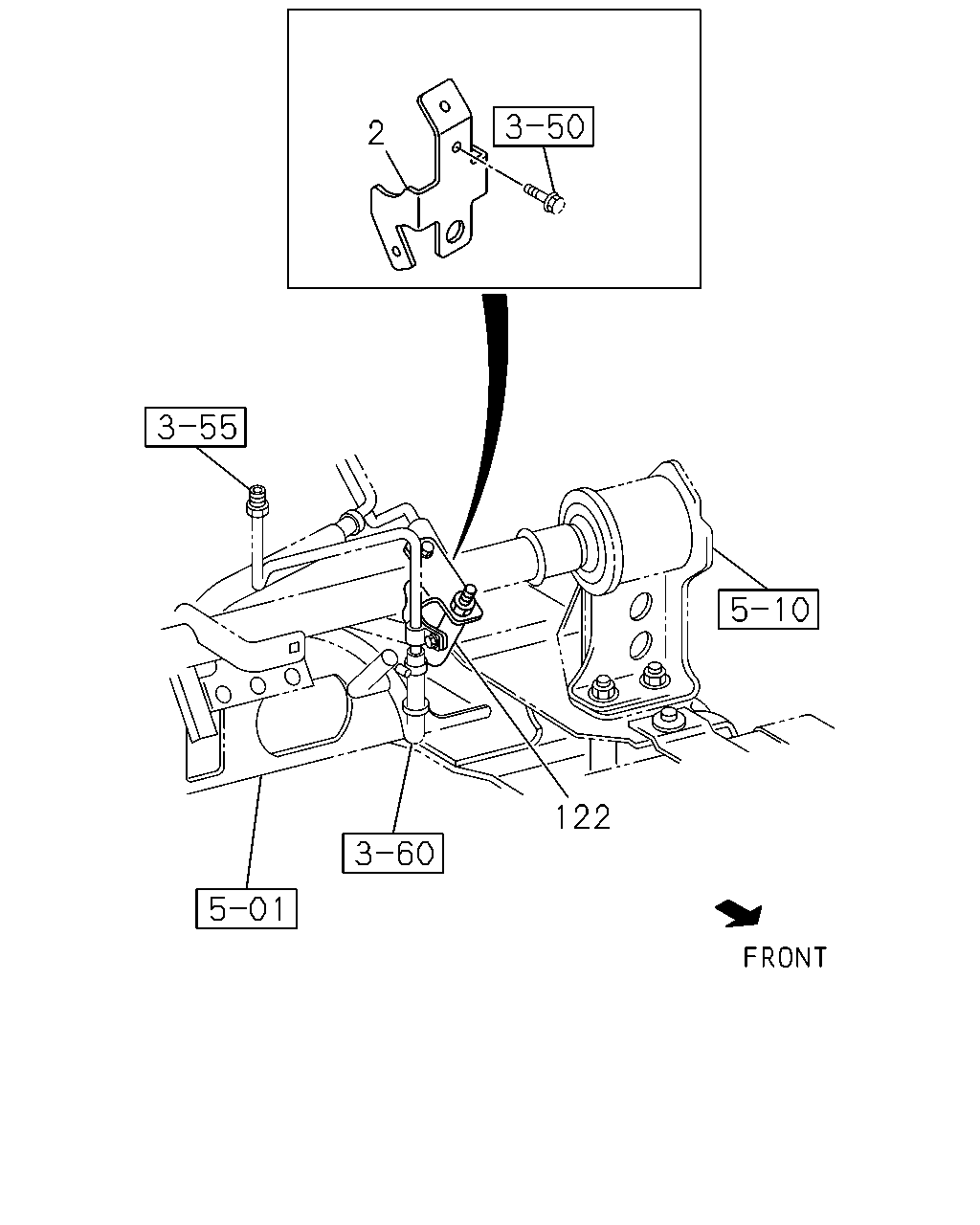

çizim 101426
2 122
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98082-323-0 01 1 0812-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-578-0 01 1 0910- ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98105-772-1 01 1 0812-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1253 		8-98136-817-0 01 1 0910-1205 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98214-083-0 01 1 1206- ●
